Maimai: South Details

Property	Value
Rupture Count	26
Ruptures Above Sect Min Mag	23
Ruptures w/ Nonzero Rates	4
Magnitude Range	[6.69, 7.53]
Length Range	[15, 106] km
Total Rate	1.09480585E-4 /yr
Multi-Fault Rate	1.09480585E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	3

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

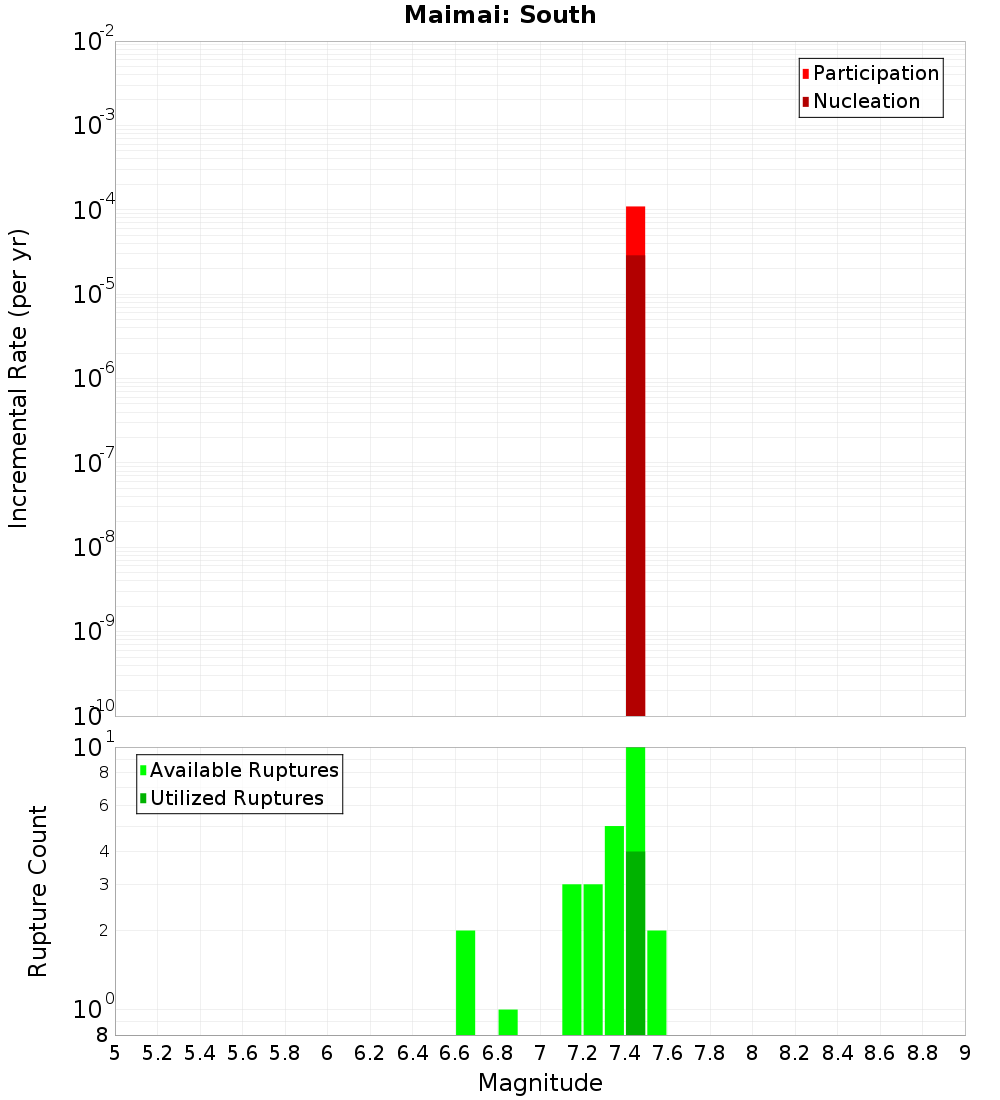

Magnitude-Frequency Distribution

Incremental	Cumulative

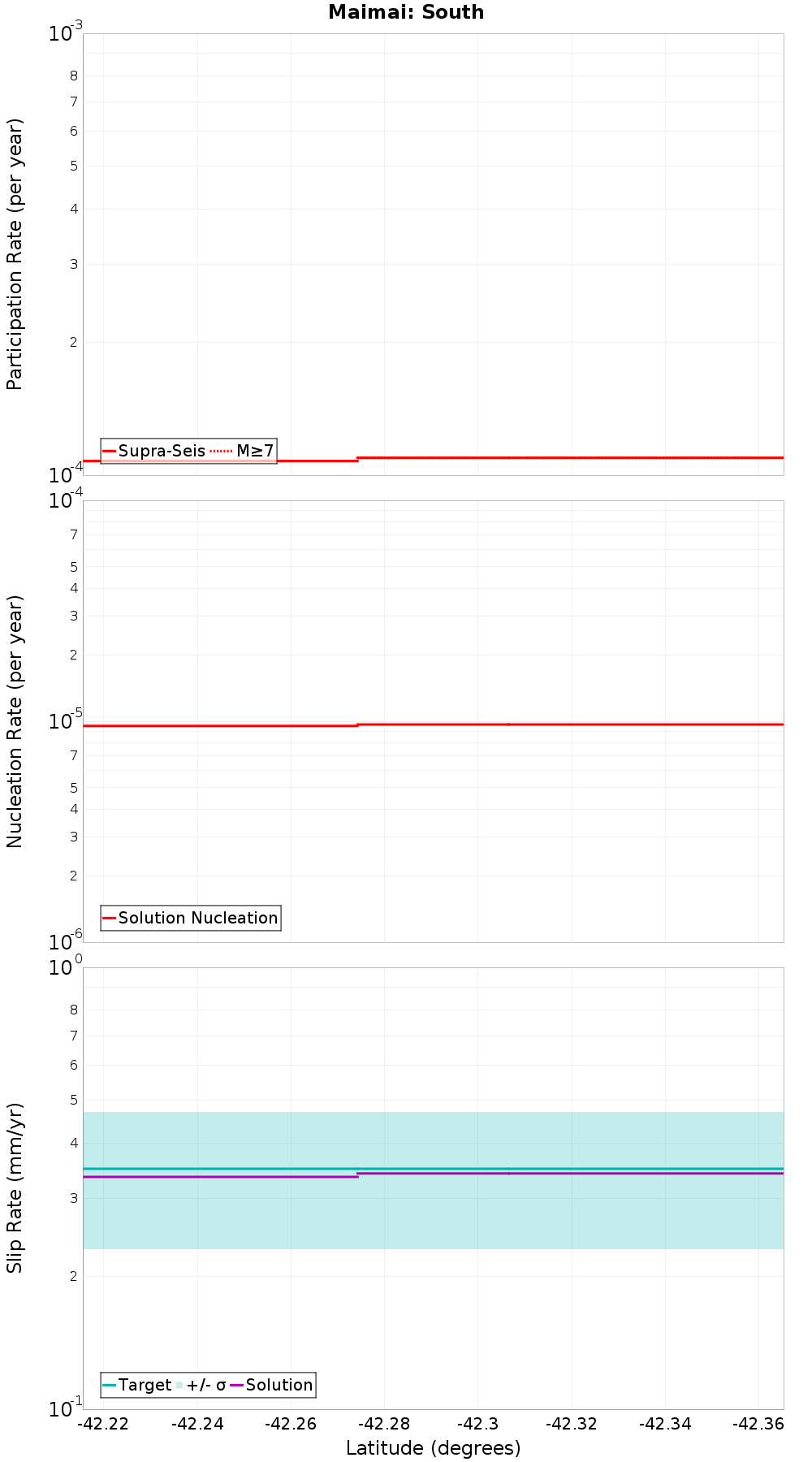

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Maimai: Brunner Anticline, 0 km away
Maimai, 0.09 km away
Paparoa West, 0.22 km away
Cape Foulwind 1, 0.4 km away
Cape Foulwind 2, 4.77 km away
Lyell South, 11.15 km away

Maimai: Brunner Anticline, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maimai, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?	true
Directly Connected?	true
Co-rupture Count	6
Co-rupture Rate	1.8269983E-6

Paparoa West, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?	true
Directly Connected?	true
Co-rupture Count	13
Co-rupture Rate	1.07653585E-4

Cape Foulwind 1, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?	true
Directly Connected?	true
Co-rupture Count	17
Co-rupture Rate	6.0760076E-6

Cape Foulwind 2, 4.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lyell South, 11.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
