Porters Pass Details

PropertyValue
Rupture Count273
Ruptures Above Sect Min Mag249
Ruptures w/ Nonzero Rates21
Magnitude Range[6.44, 8.02]
Length Range[12, 274] km
Total Rate0.0010499471 /yr
Multi-Fault Rate0.0010499471 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults13

Table Of Contents

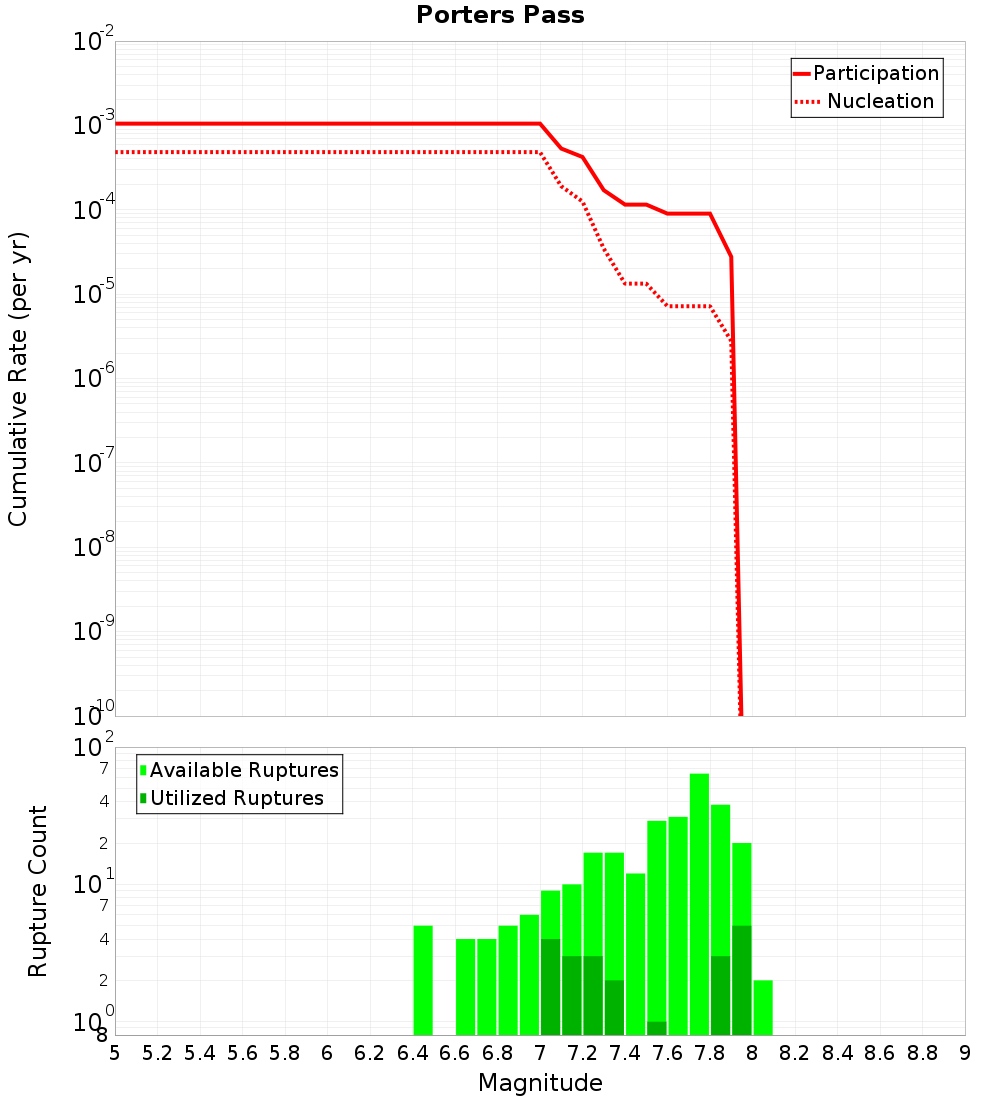

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

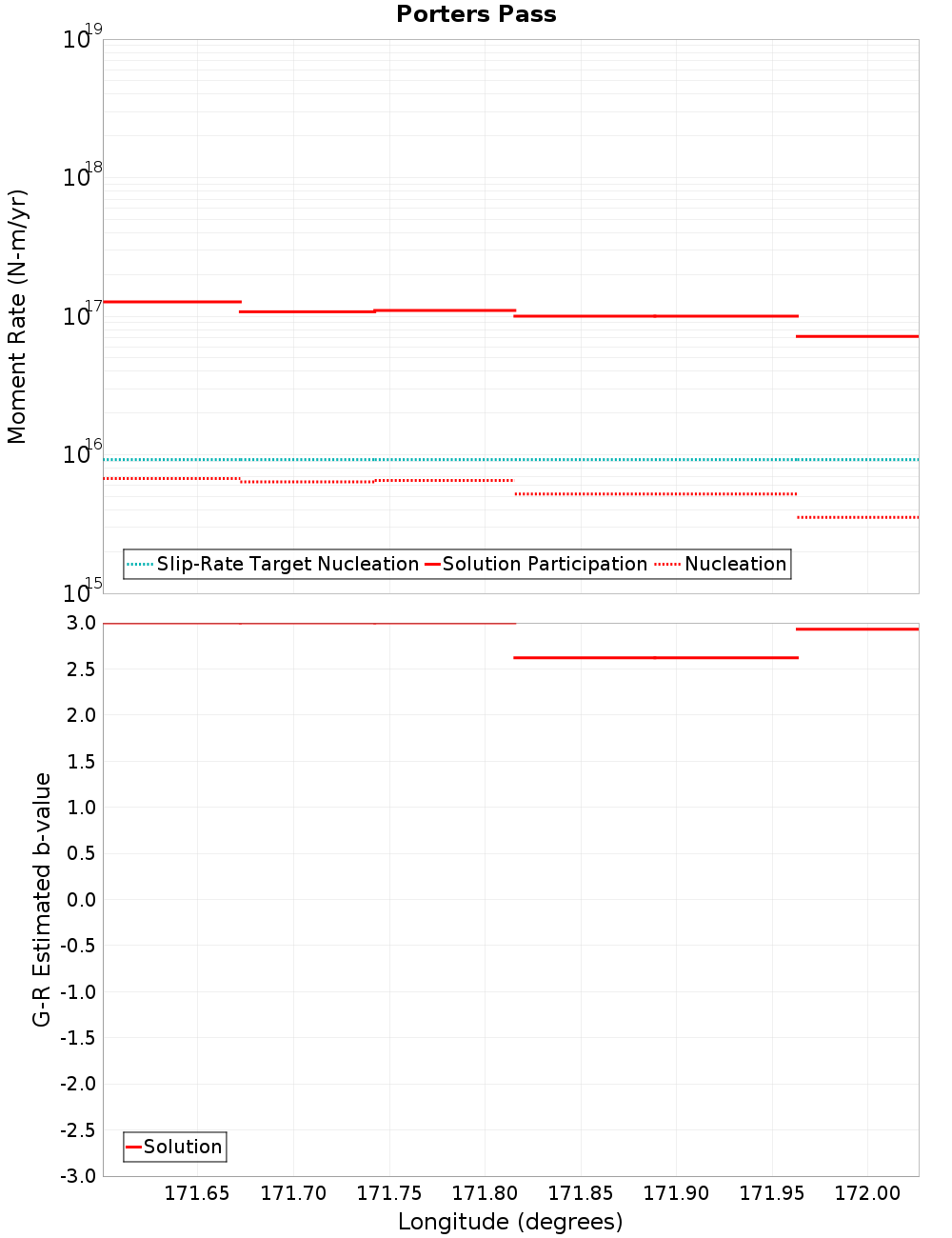

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Esk South, 0.29 km awayKowai - View Hill, 8.66 km away
Torlesse, 0.31 km awayStarvation - Ashley, 10.36 km away
Lees Valley, 0.91 km awayRedcliffe, 11.68 km away
Hutt Peel, 1.77 km awayHigh Peak - Sheffield, 12.52 km away
Big Ben, 2.18 km awayHororata, 15.19 km away
Double Hill, 2.22 km awaySpringbank, 17.08 km away
Cheeseman, 3.57 km awayNorth Branch, 18.46 km away
Knowles Top, 6.61 km awayPancake, 19.52 km away
Sailor, 7.26 km away

Esk South, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Torlesse, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?true
Directly Connected?true
Co-rupture Count131
Co-rupture Rate4.4725262E-4

Lees Valley, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?true
Directly Connected?true
Co-rupture Count94
Co-rupture Rate2.0325786E-4

Hutt Peel, 1.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?true
Directly Connected?true
Co-rupture Count208
Co-rupture Rate8.985289E-5

Big Ben, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate1.0820803E-4

Double Hill, 2.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate2.5722082E-4

Cheeseman, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Knowles Top, 6.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sailor, 7.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate1.4463198E-5

Kowai - View Hill, 8.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Starvation - Ashley, 10.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate3.3587237E-6

Redcliffe, 11.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?true
Directly Connected?true
Co-rupture Count14
Co-rupture Rate6.921895E-5

High Peak - Sheffield, 12.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hororata, 15.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate2.726783E-5

Springbank, 17.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?true
Directly Connected?false
Co-rupture Count37
Co-rupture Rate2.7718992E-5

North Branch, 18.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pancake, 19.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwOTAuMGd3RDRm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
