Kohaihai South Details
| Property | Value |
|---|---|
| Rupture Count | 9 |
| Ruptures Above Sect Min Mag | 8 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.86, 7.59] |
| Length Range | [17, 97] km |
| Total Rate | 1.0860638E-4 /yr |
| Multi-Fault Rate | 1.0860638E-4 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 2 |
Table Of Contents

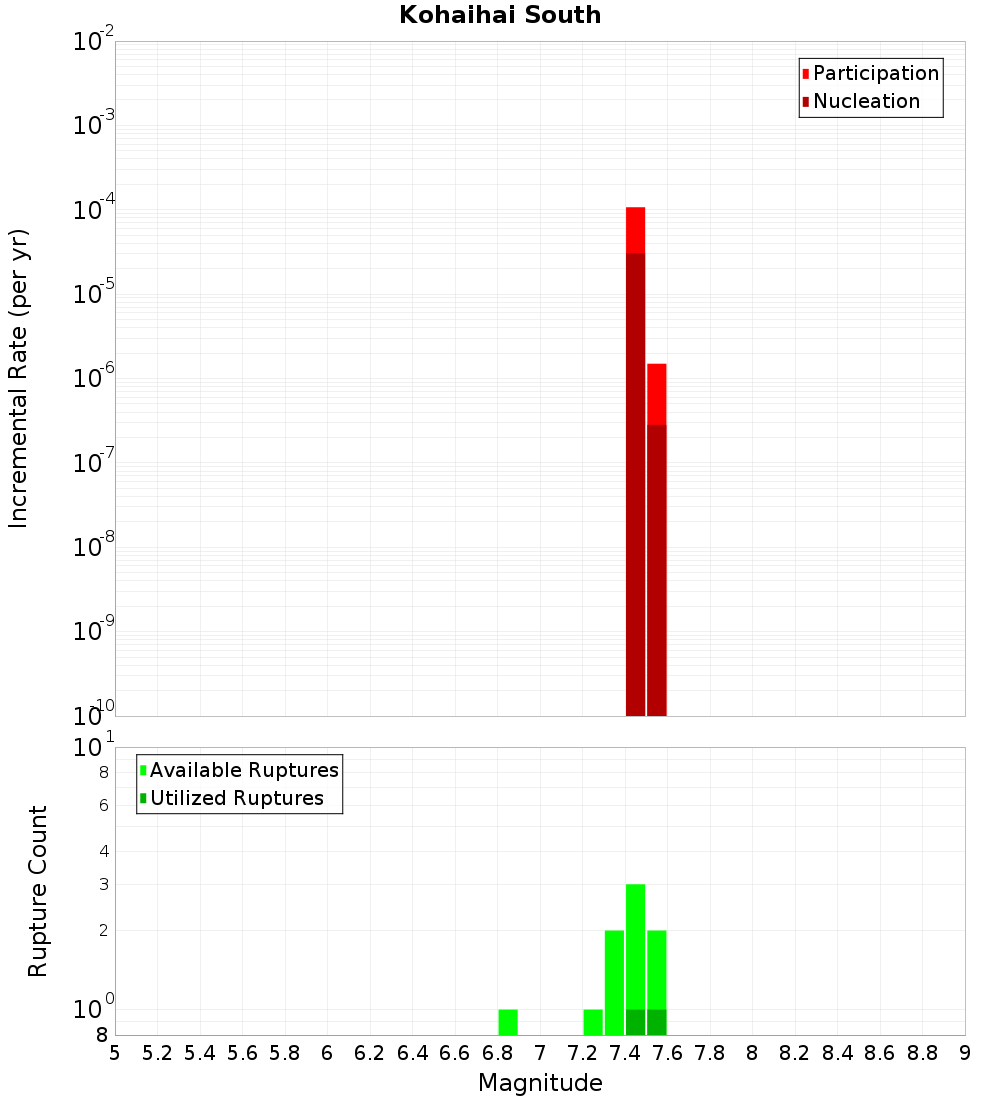

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

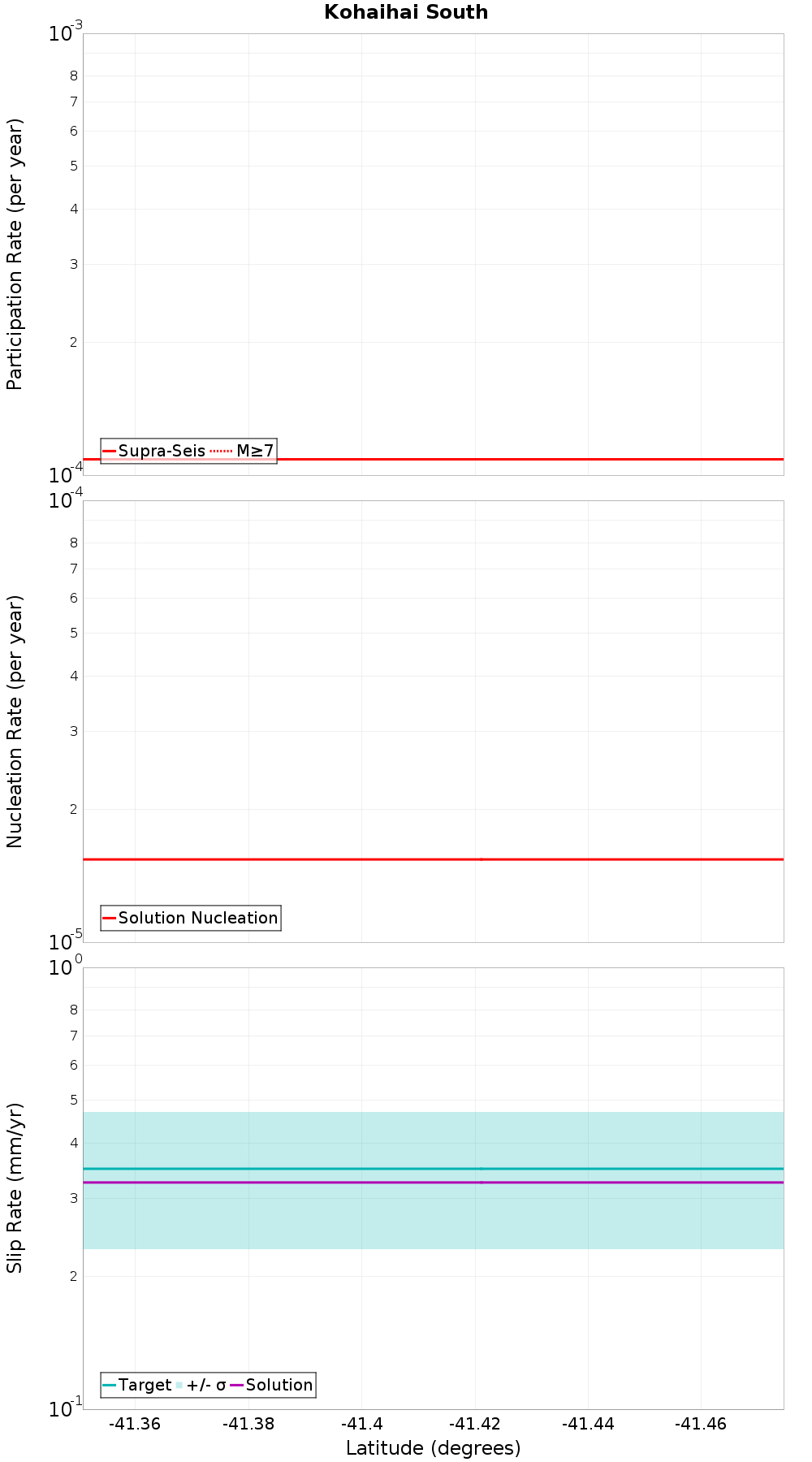

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| White Creek, 0.56 km away |
| Kohaihai, 1.73 km away |
| Kongahau, 7.34 km away |
| Lyell, 16.55 km away |
| Cape Foulwind 2, 17.18 km away |
White Creek, 0.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kohaihai, 1.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 1.0860638E-4 |
Kongahau, 7.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 1.4975099E-6 |
Lyell, 16.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cape Foulwind 2, 17.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
