Rangitaiki 1 Details

Property	Value
Rupture Count	2,346
Ruptures Above Sect Min Mag	2,345
Ruptures w/ Nonzero Rates	53
Magnitude Range	[6.52, 8.20]
Length Range	[9, 444] km
Total Rate	2.523746E-4 /yr
Multi-Fault Rate	2.4950723E-4 /yr (98.86%)
Directly-Connected Faults	2
All Co-Rupturing Faults	43

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

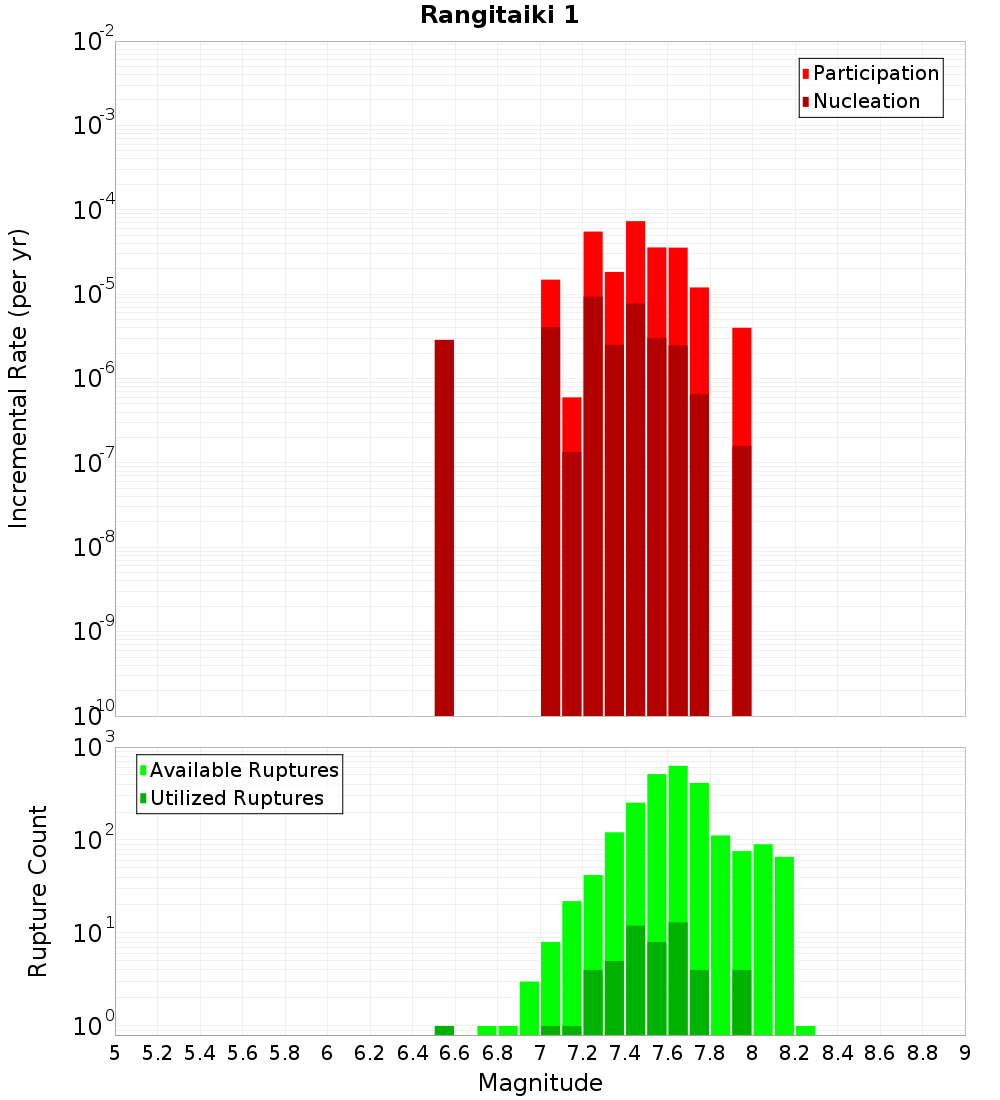

Magnitude-Frequency Distribution

Incremental	Cumulative

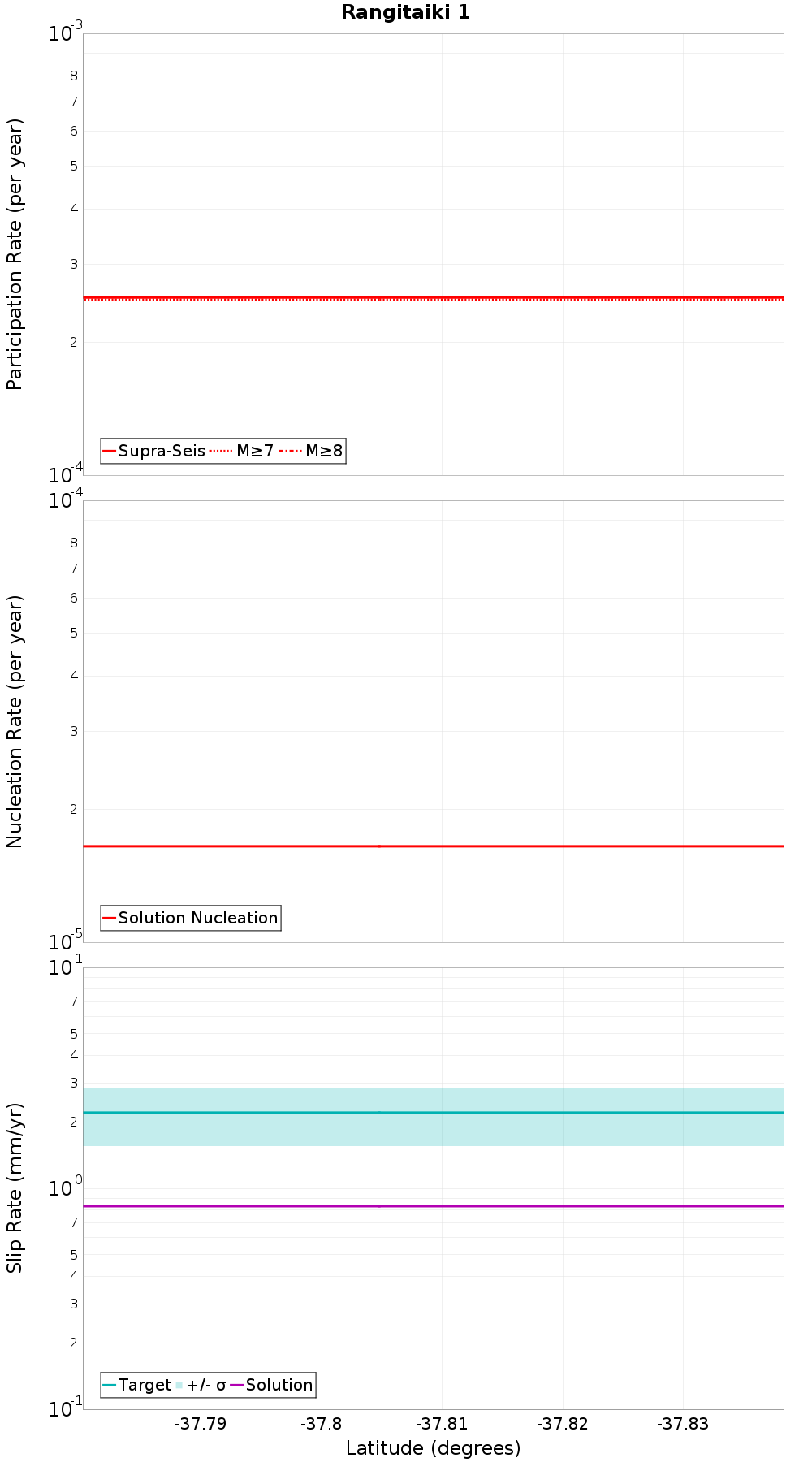

Along-Strike Values

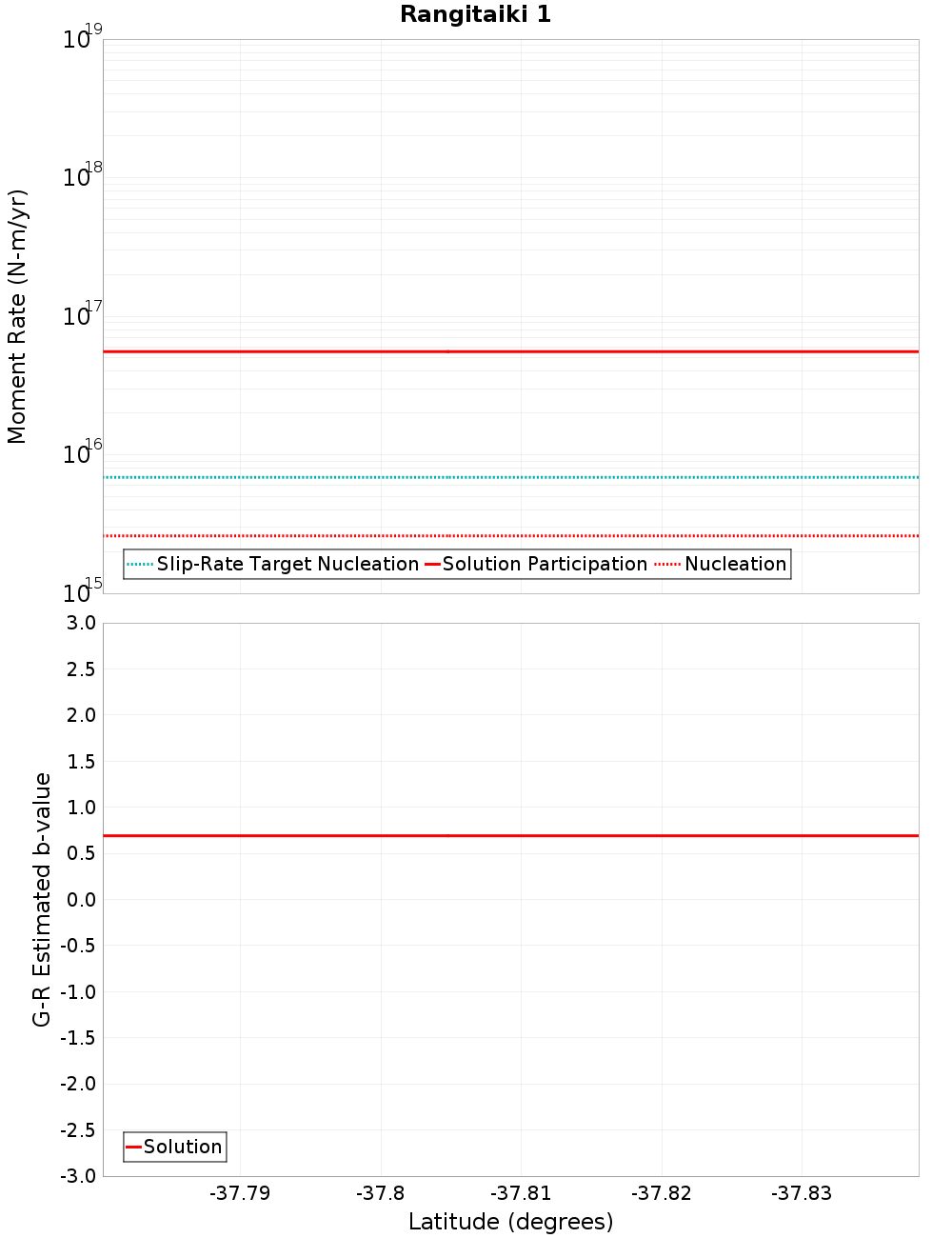

Moment-Rates and b-Values

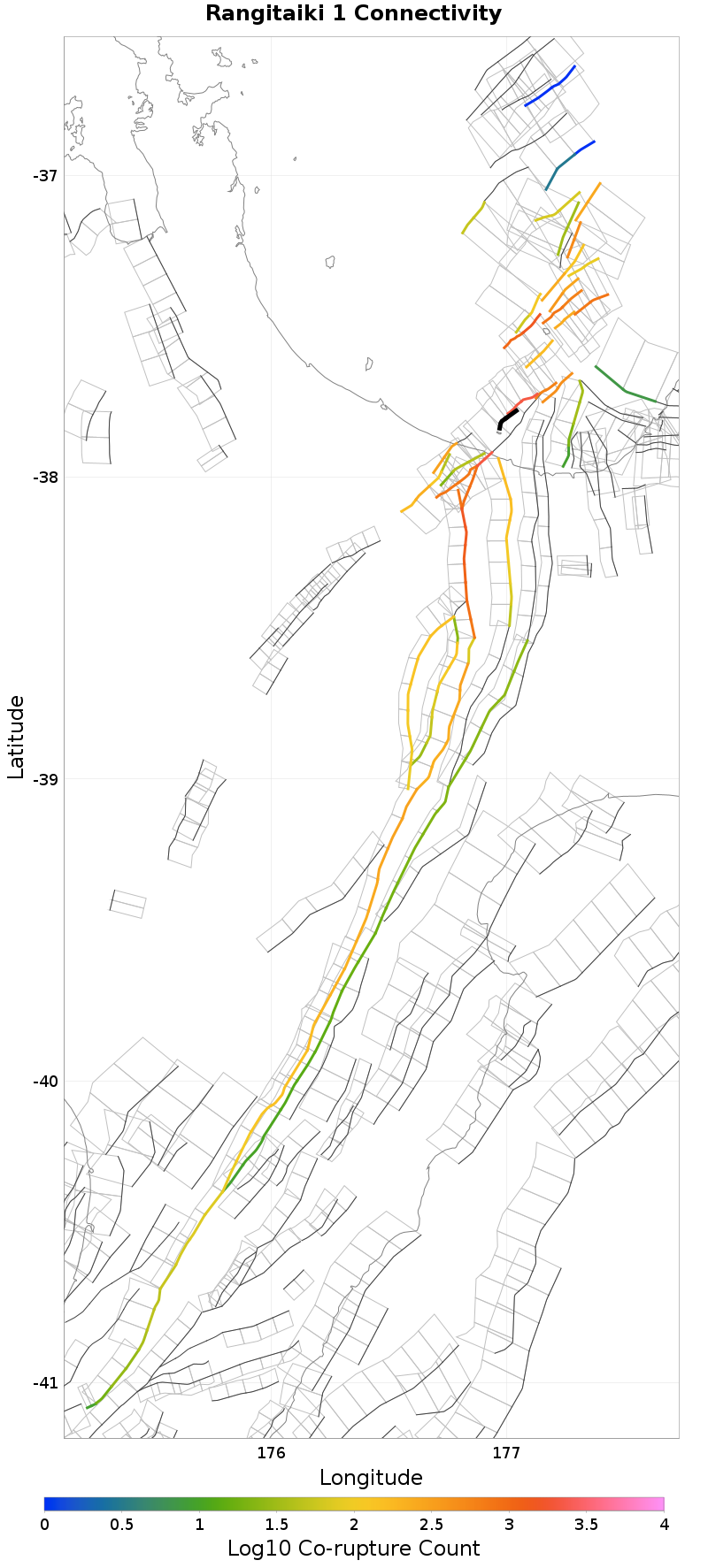

Connectivity

Nearby Sections

Fault Section
Rangitaiki 2, 0.74 km away
White Island 1, 2 km away
Ohiwa 1, 8.72 km away
Edgecumbe Coastal, 8.81 km away
Matata, 9.11 km away
White Island 2, 9.3 km away
Waimana: North, 10.53 km away
Whakaari 4, 10.86 km away
Otakiri, 10.94 km away
Whakatane: North, 11.12 km away
Waimanawa - Waikaremoana, 12.26 km away
Waiotahi: North, 13.71 km away
Calypso 2, 14.65 km away
Edgecumbe 1987, 15.01 km away
Awakeri, 16.13 km away

Rangitaiki 2, 0.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	true
Directly Connected?	true
Co-rupture Count	2,166
Co-rupture Rate	2.346581E-4

White Island 1, 2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohiwa 1, 8.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	true
Directly Connected?	false
Co-rupture Count	599
Co-rupture Rate	2.1106358E-5

Edgecumbe Coastal, 8.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	true
Directly Connected?	true
Co-rupture Count	2,242
Co-rupture Rate	2.3884213E-4

Matata, 9.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	true
Directly Connected?	false
Co-rupture Count	304
Co-rupture Rate	1.6773509E-5

White Island 2, 9.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	true
Directly Connected?	false
Co-rupture Count	450
Co-rupture Rate	6.605363E-5

Waimana: North, 10.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakaari 4, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	true
Directly Connected?	false
Co-rupture Count	1,451
Co-rupture Rate	5.9853584E-5

Otakiri, 10.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	true
Directly Connected?	false
Co-rupture Count	41
Co-rupture Rate	8.290231E-5

Whakatane: North, 11.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	true
Directly Connected?	false
Co-rupture Count	164
Co-rupture Rate	1.2393606E-4

Waimanawa - Waikaremoana, 12.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiotahi: North, 13.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Calypso 2, 14.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	true
Directly Connected?	false
Co-rupture Count	169
Co-rupture Rate	1.09256725E-4

Edgecumbe 1987, 15.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	true
Directly Connected?	false
Co-rupture Count	762
Co-rupture Rate	5.443417E-6

Awakeri, 16.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	true
Directly Connected?	false
Co-rupture Count	874
Co-rupture Rate	9.786838E-6
