Saunders Road Details

PropertyValue
Rupture Count2,219
Ruptures Above Sect Min Mag2,209
Ruptures w/ Nonzero Rates4
Magnitude Range[6.60, 8.61]
Length Range[14, 1,109] km
Total Rate4.3416122E-4 /yr
Multi-Fault Rate4.3416122E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults51

Table Of Contents

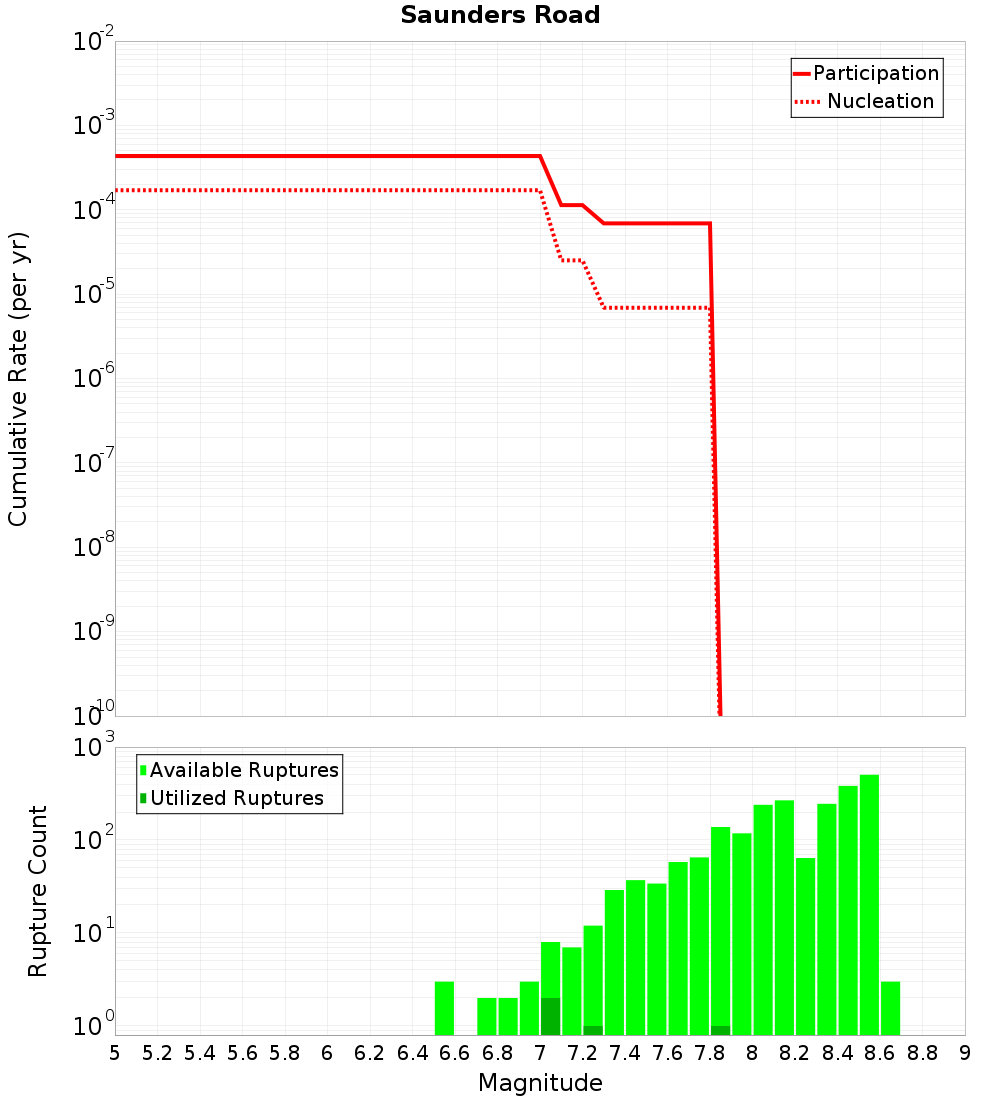

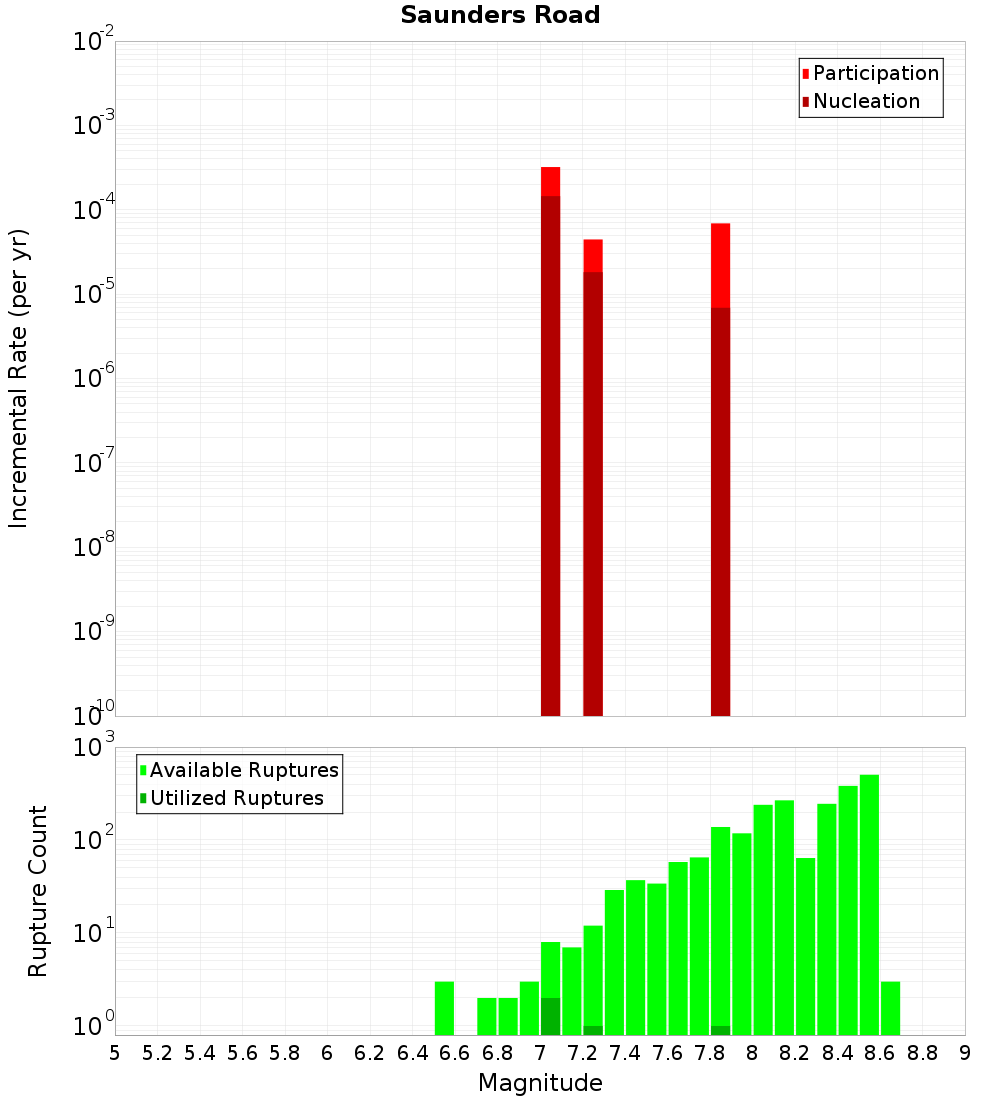

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

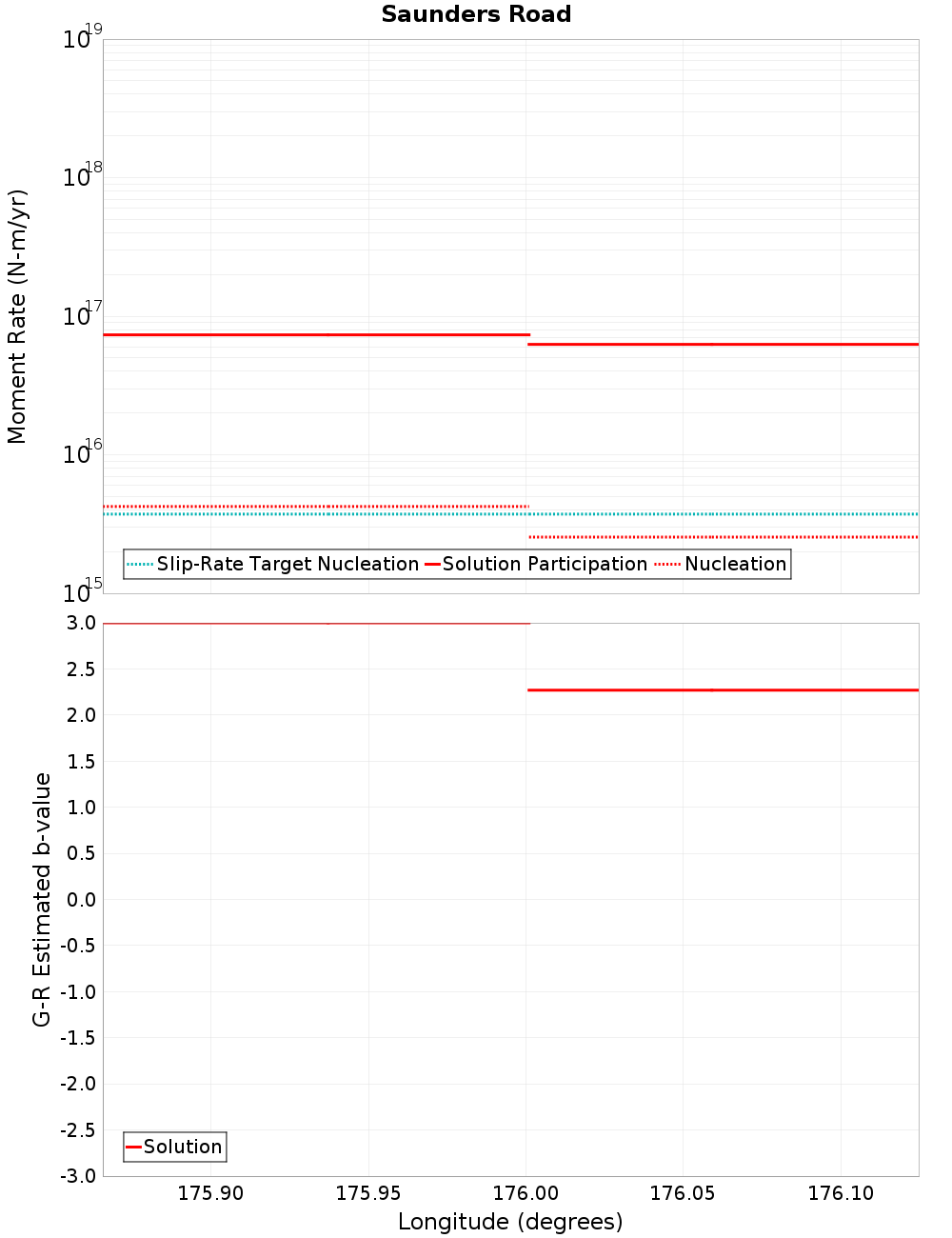

Moment-Rates and b-Values

(top)

Along-strike plot

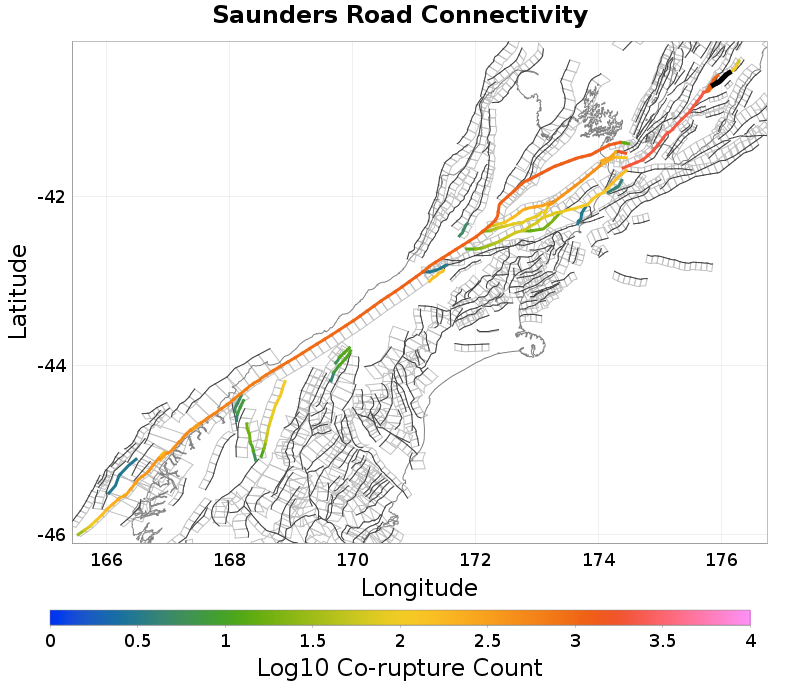

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alfredton South, 0 km away
Alfredton North, 0 km away
Waipukaka, 0.29 km away
Pa Valley, 0.65 km away
Makuri - Waewaepa, 6 km away
Pongaroa - Weber, 6.74 km away
Dreyers Rock, 7.87 km away
Waitawhiti, 9.29 km away
Waewaepa, 12.73 km away
Mokonui Northeast, 15.66 km away
Wairarapa: 3, 16.72 km away
Mataikona, 17.63 km away
Mokonui Southwest, 18.29 km away
Tokomaru, 19.92 km away

Alfredton South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?true
Directly Connected?true
Co-rupture Count1,185
Co-rupture Rate4.3416122E-4

Alfredton North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waipukaka, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?true
Directly Connected?true
Co-rupture Count114
Co-rupture Rate2.1542926E-4

Pa Valley, 0.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?true
Directly Connected?true
Co-rupture Count1,111
Co-rupture Rate0.0

Makuri - Waewaepa, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pongaroa - Weber, 6.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dreyers Rock, 7.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?true
Directly Connected?false
Co-rupture Count1,712
Co-rupture Rate1.1343373E-4

Waitawhiti, 9.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waewaepa, 12.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mokonui Northeast, 15.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: 3, 16.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?true
Directly Connected?false
Co-rupture Count2,196
Co-rupture Rate1.1343373E-4

Mataikona, 17.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mokonui Southwest, 18.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tokomaru, 19.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
