Waimarama 3 & 4 Details

Property	Value
Rupture Count	66
Ruptures Above Sect Min Mag	64
Ruptures w/ Nonzero Rates	2
Magnitude Range	[6.77, 7.61]
Length Range	[18, 129] km
Total Rate	3.0789056E-4 /yr
Multi-Fault Rate	3.0789056E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	4

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

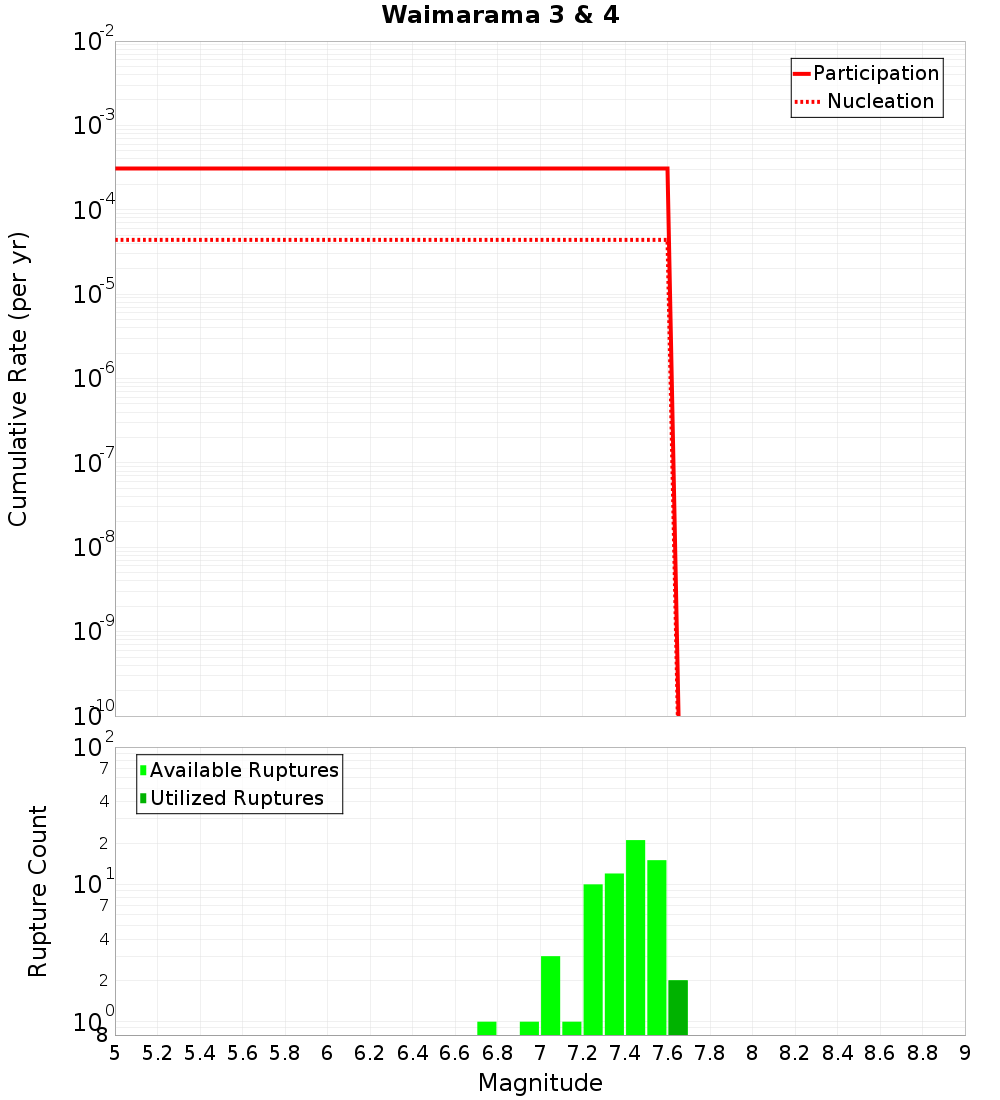

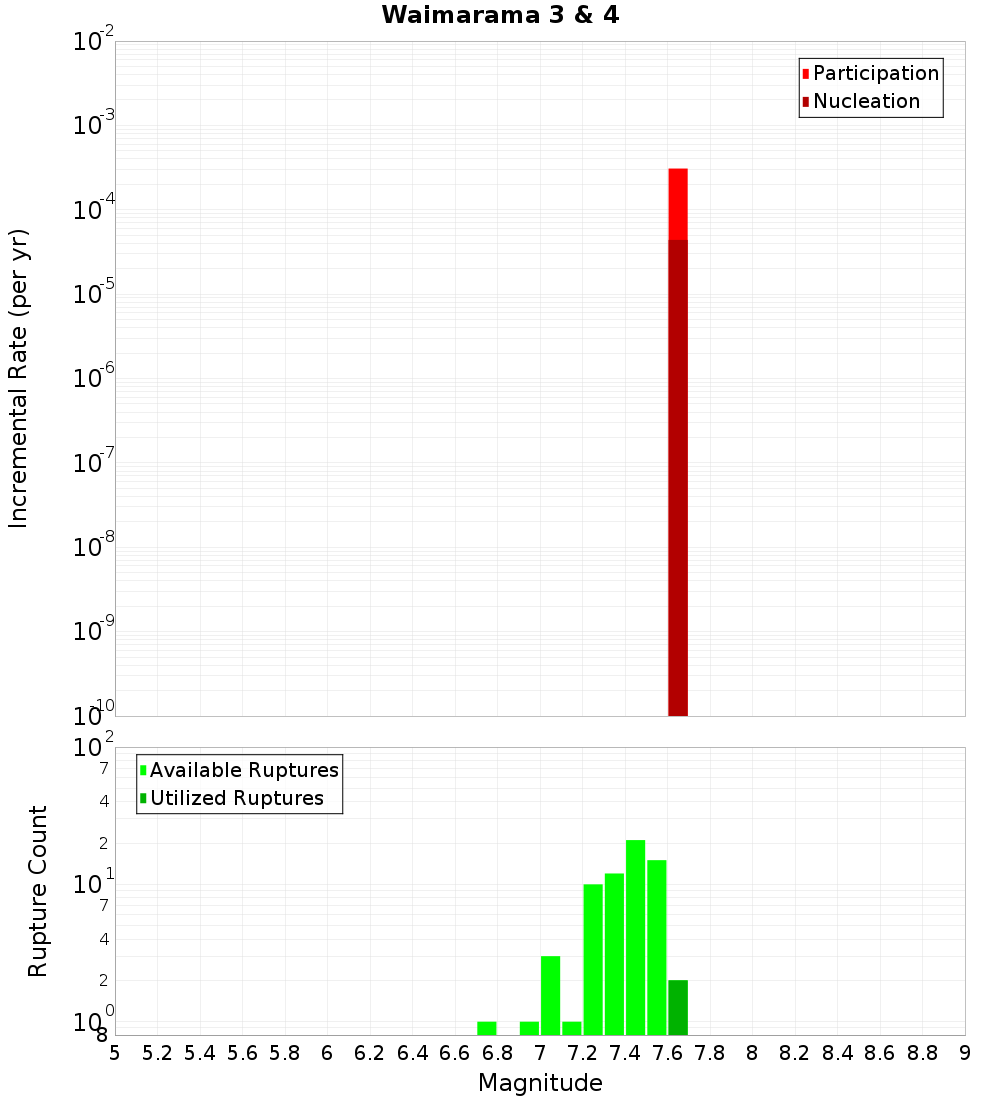

Magnitude-Frequency Distribution

Incremental	Cumulative

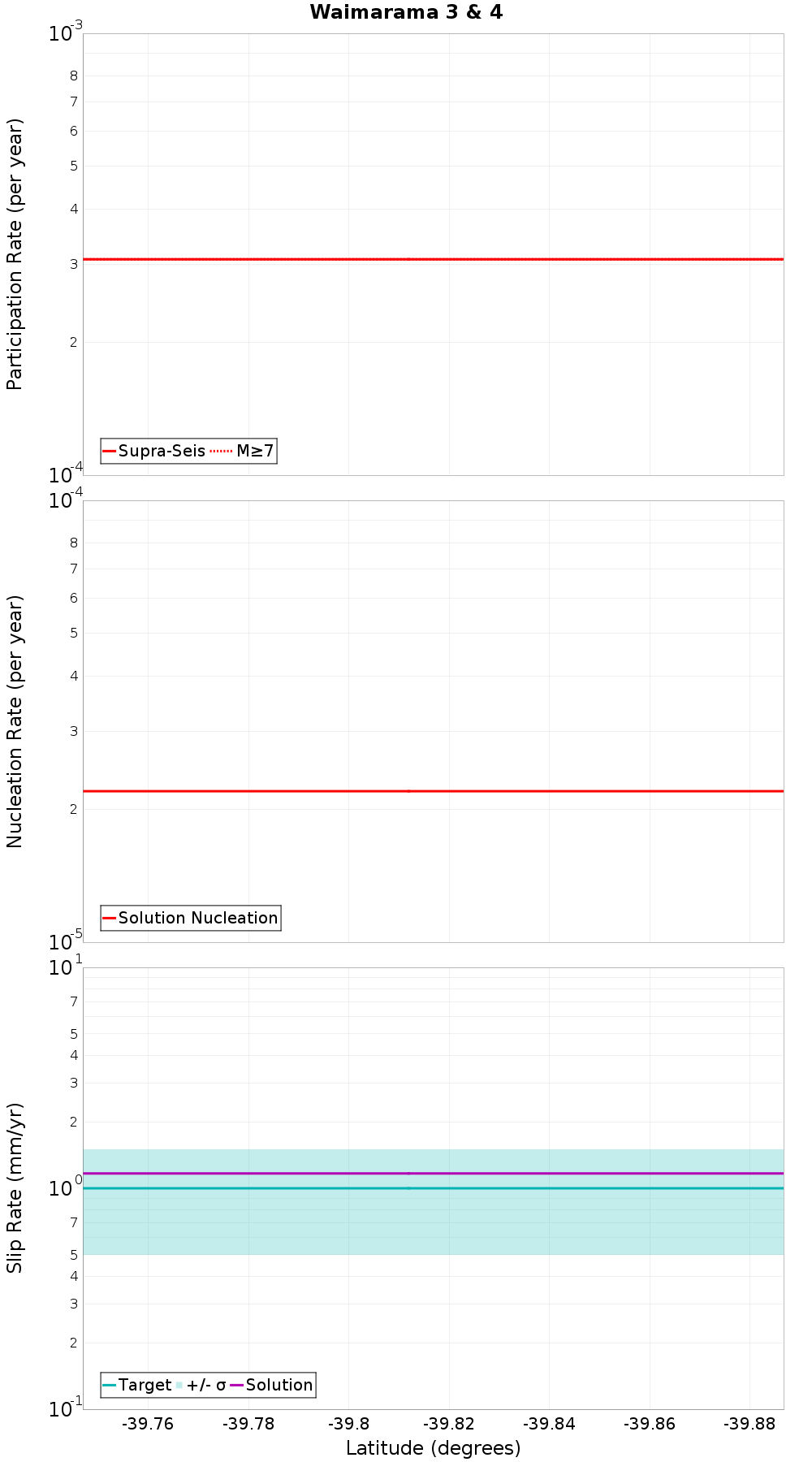

Along-Strike Values

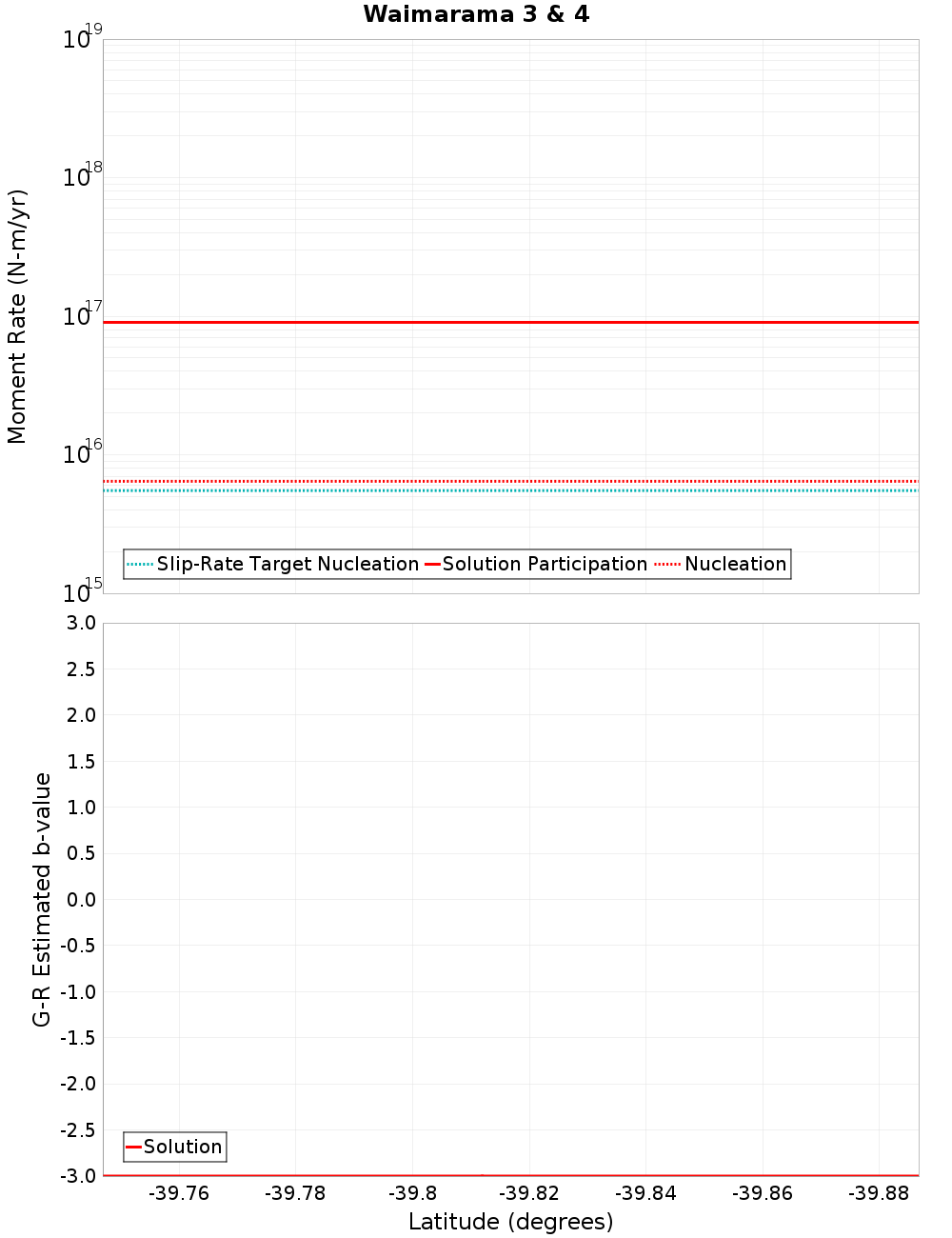

Moment-Rates and b-Values

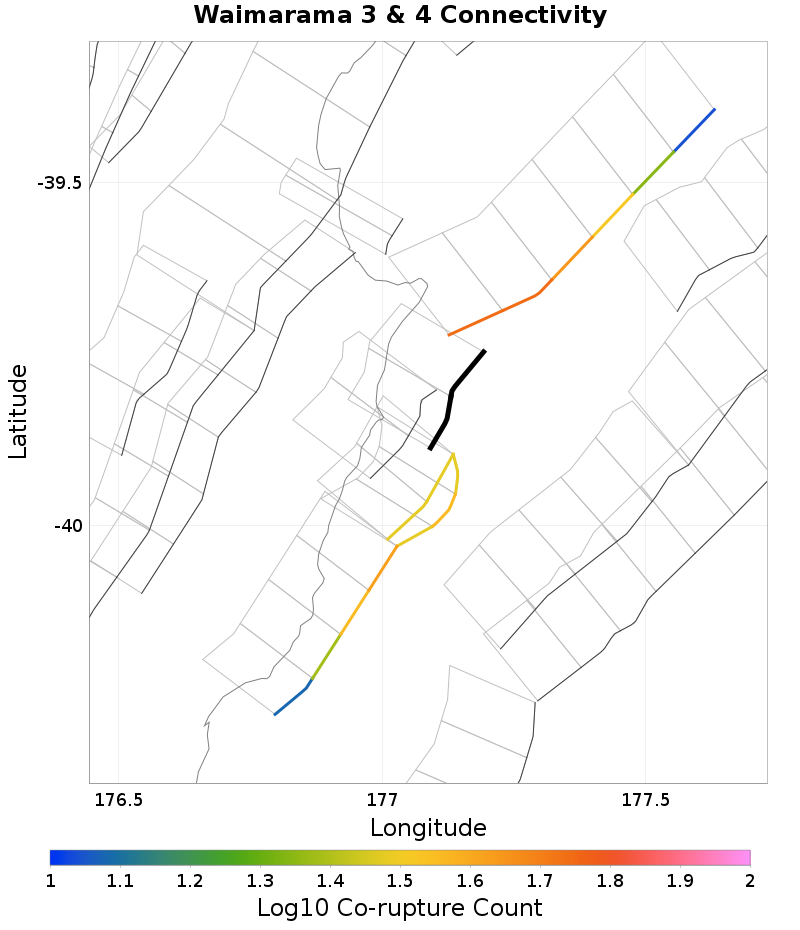

Connectivity

Nearby Sections

Fault Section
Waimarama 1 & 2, 1.41 km away
Kairakau 2, 2.38 km away
Kairakau North, 2.41 km away
Kidnappers Ridge, 3.48 km away
Kairakau South, 14.88 km away
Hawke Bay 8, 15.03 km away
Tukituki Thrust, 16.07 km away

Waimarama 1 & 2, 1.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kairakau 2, 2.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	true
Directly Connected?	true
Co-rupture Count	36
Co-rupture Rate	2.5347387E-4

Kairakau North, 2.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	true
Directly Connected?	true
Co-rupture Count	30
Co-rupture Rate	5.441668E-5

Kidnappers Ridge, 3.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	true
Directly Connected?	true
Co-rupture Count	55
Co-rupture Rate	3.0789056E-4

Kairakau South, 14.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	true
Directly Connected?	false
Co-rupture Count	42
Co-rupture Rate	3.0789056E-4

Hawke Bay 8, 15.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tukituki Thrust, 16.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMDYuMEVwakRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
