Lowry Details

Property	Value
Rupture Count	56
Ruptures Above Sect Min Mag	53
Ruptures w/ Nonzero Rates	2
Magnitude Range	[6.88, 7.64]
Length Range	[21, 136] km
Total Rate	8.558199E-5 /yr
Multi-Fault Rate	8.558199E-5 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	13

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

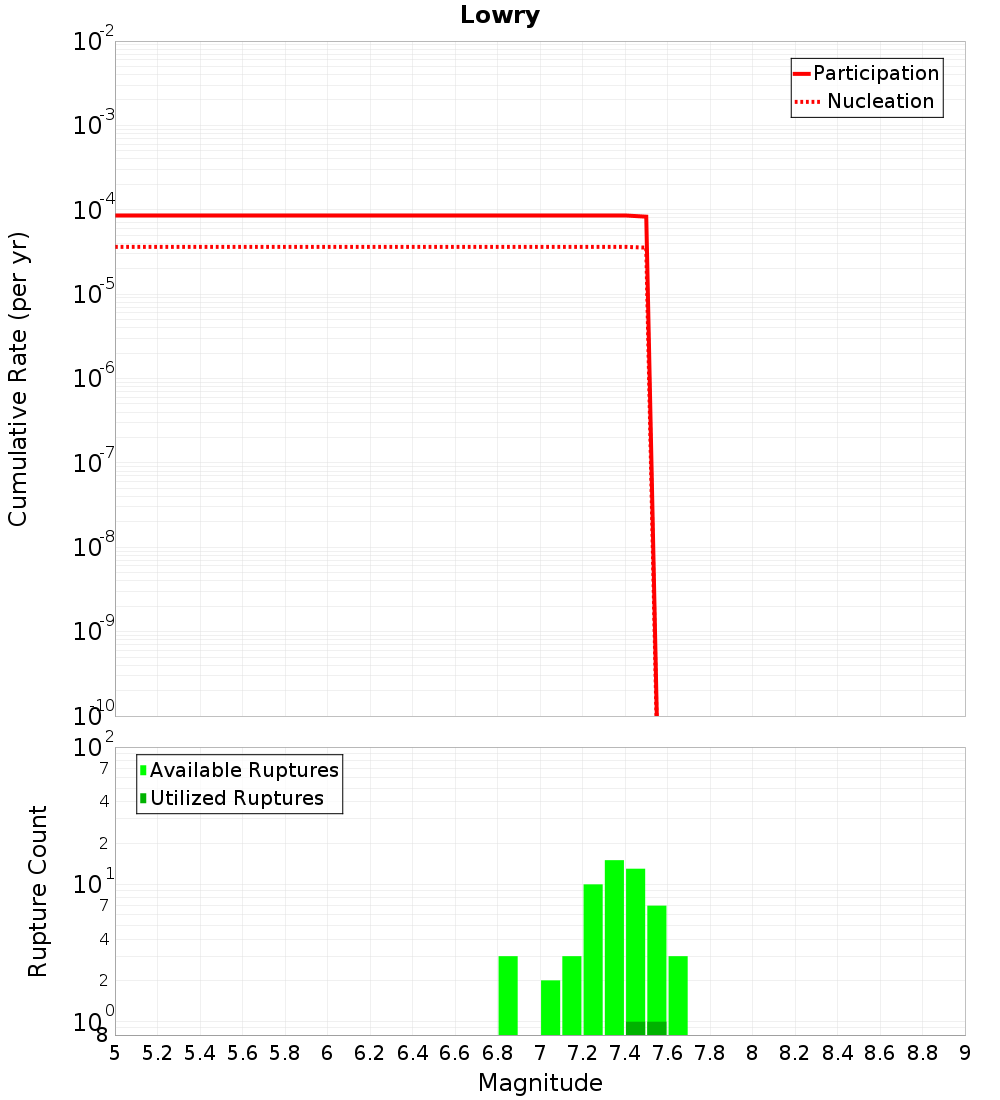

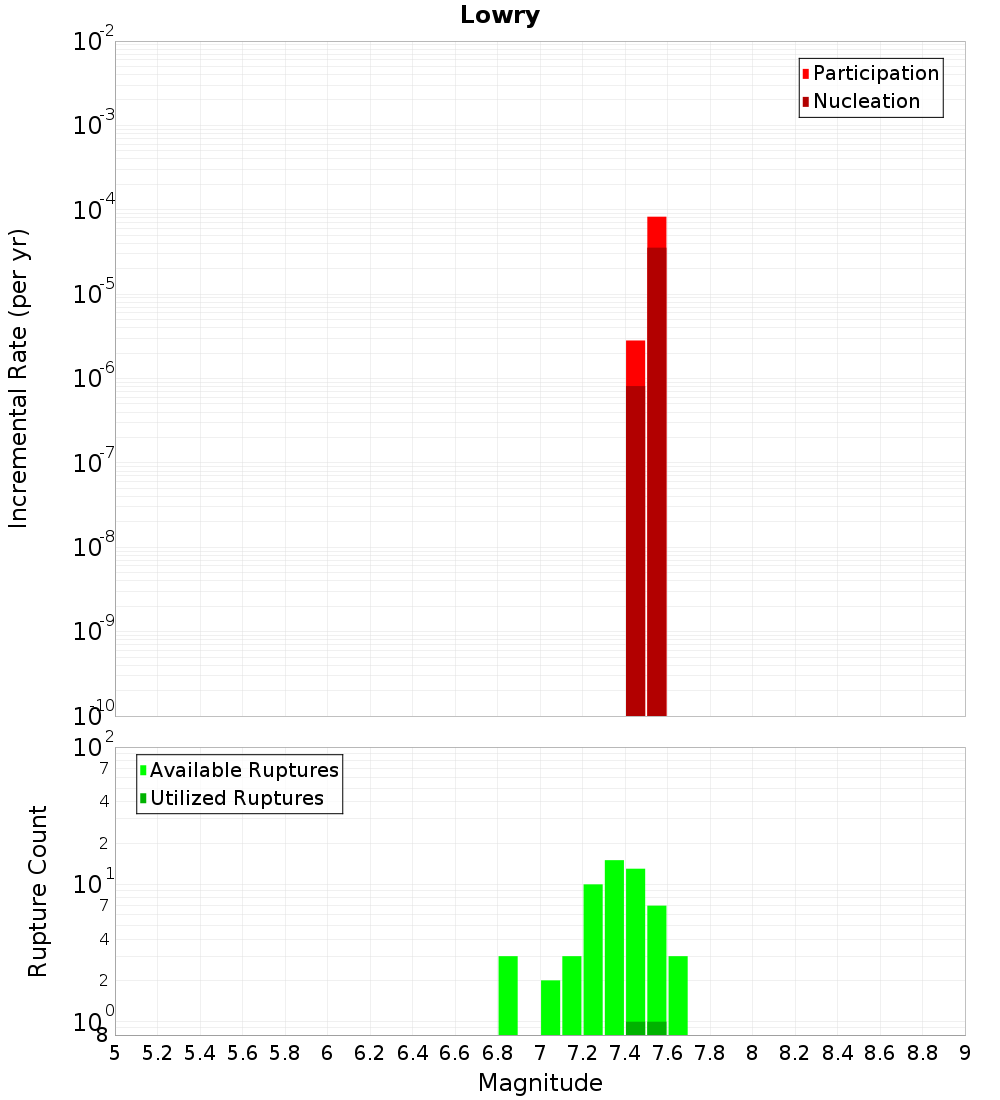

Magnitude-Frequency Distribution

Incremental	Cumulative

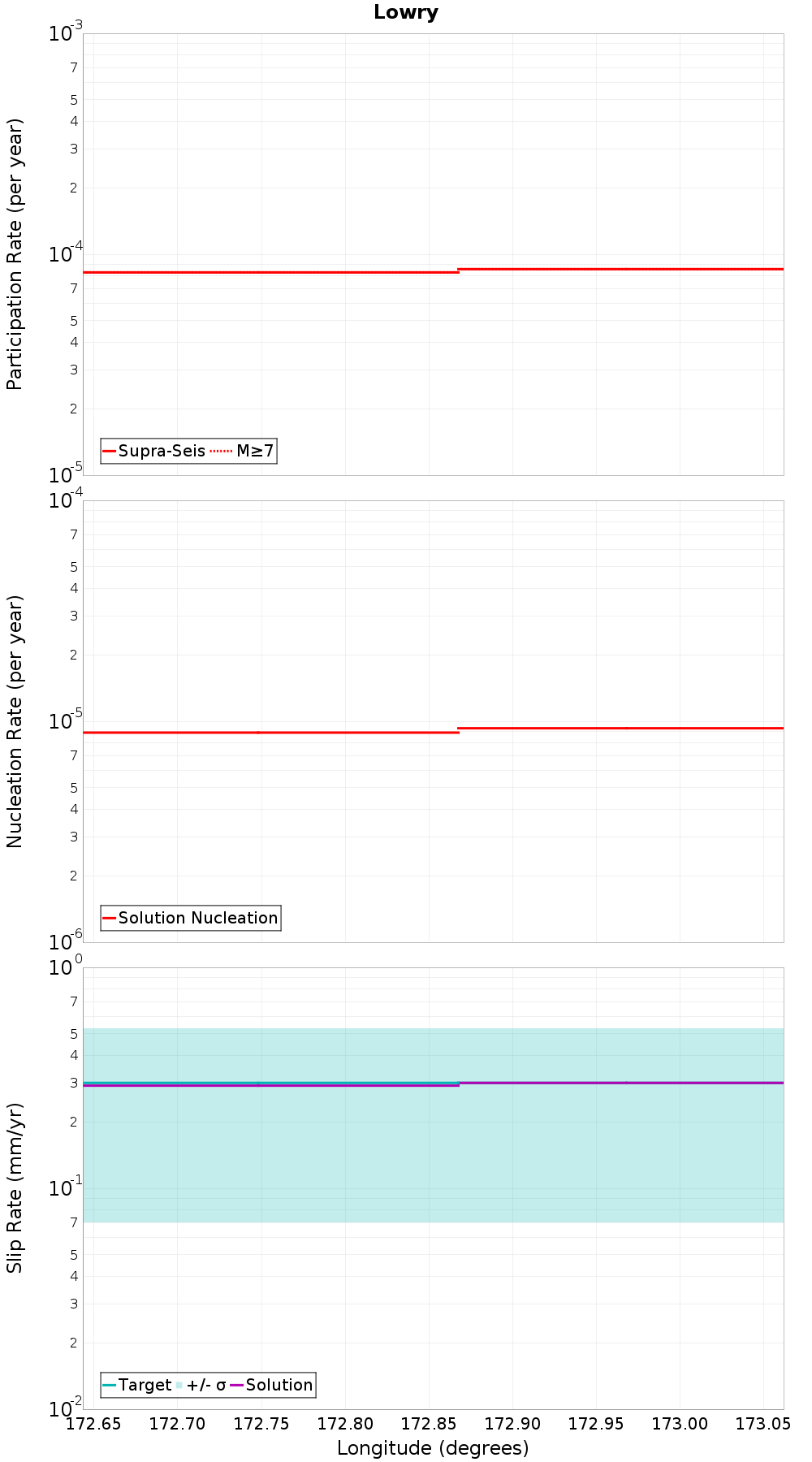

Along-Strike Values

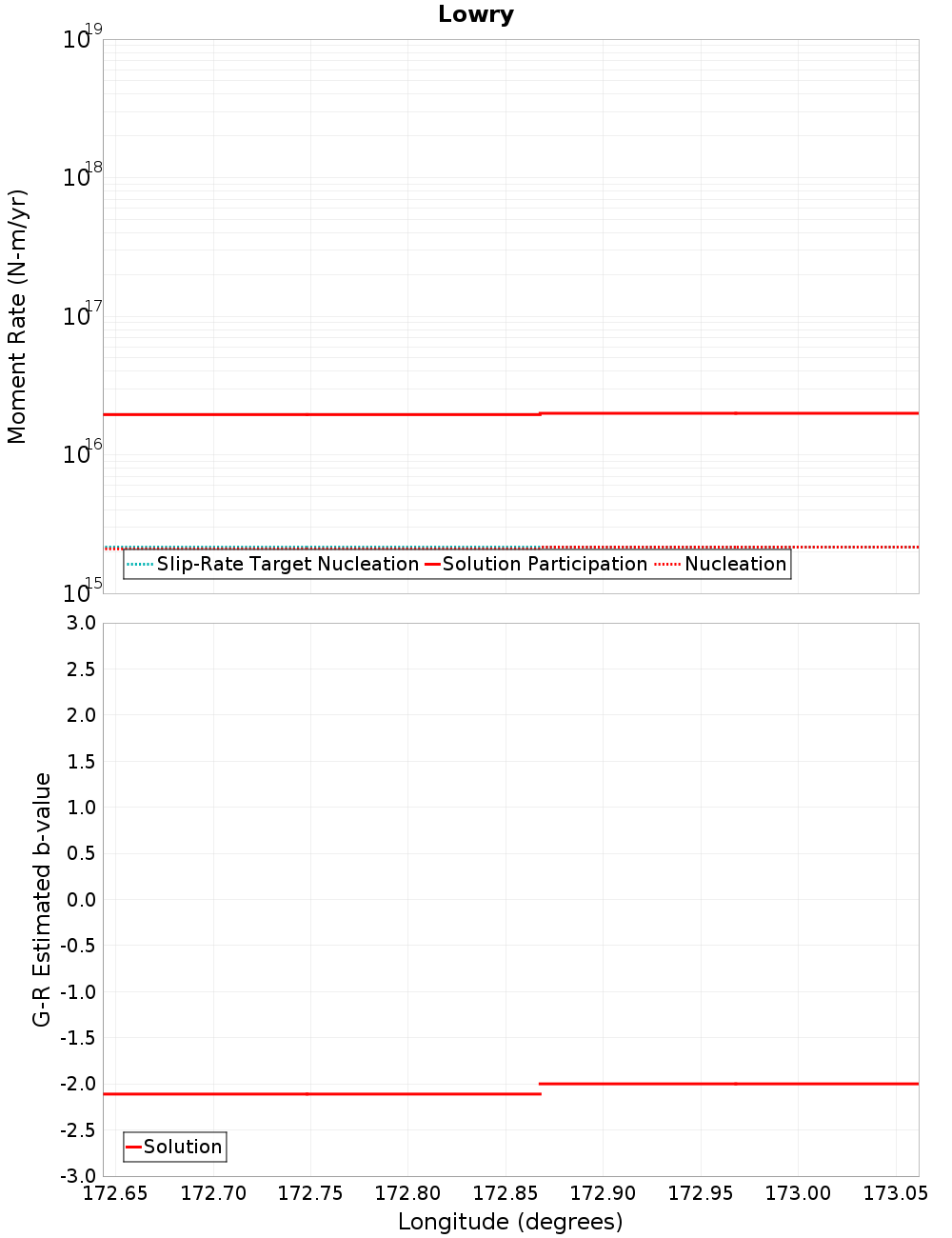

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Kaiwara North, 0.15 km away	Virginia, 9.27 km away
Doctors, 0.53 km away	Boby Stream, 10.33 km away
Balmoral, 0.6 km away	OmihiLwrHuru, 11.55 km away
Leonard Mound, 1.98 km away	Leader: South, 12.1 km away
Alexander, 2.38 km away	Pancake, 15.25 km away
Kaiwara South, 3.01 km away	Hundalee, 15.48 km away
Mt Culverden, 7.58 km away	AmberBlyth, 16.84 km away
The Humps, 8.15 km away	Hawkswood, 17.9 km away
Mt Arden, 9.01 km away	Hanmer, 19.93 km away
Hurunui Peak, 9.05 km away

Kaiwara North, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	2.8227396E-6

Doctors, 0.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	true
Directly Connected?	true
Co-rupture Count	14
Co-rupture Rate	8.275925E-5

Balmoral, 0.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leonard Mound, 1.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	true
Directly Connected?	true
Co-rupture Count	23
Co-rupture Rate	8.558199E-5

Alexander, 2.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	true
Directly Connected?	true
Co-rupture Count	5
Co-rupture Rate	0.0

Kaiwara South, 3.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	0.0

Mt Culverden, 7.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	true
Directly Connected?	true
Co-rupture Count	3
Co-rupture Rate	0.0

The Humps, 8.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	0.0

Mt Arden, 9.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hurunui Peak, 9.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Virginia, 9.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Boby Stream, 10.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

OmihiLwrHuru, 11.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	true
Directly Connected?	true
Co-rupture Count	13
Co-rupture Rate	0.0

Leader: South, 12.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Pancake, 15.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hundalee, 15.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	0.0

AmberBlyth, 16.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Hawkswood, 17.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0

Hanmer, 19.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
