Otara East 2 Details

Property	Value
Rupture Count	5,000
Ruptures Above Sect Min Mag	5,000
Ruptures w/ Nonzero Rates	147
Magnitude Range	[6.93, 8.32]
Length Range	[16, 552] km
Total Rate	2.0892518E-4 /yr
Multi-Fault Rate	2.0892518E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	67

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

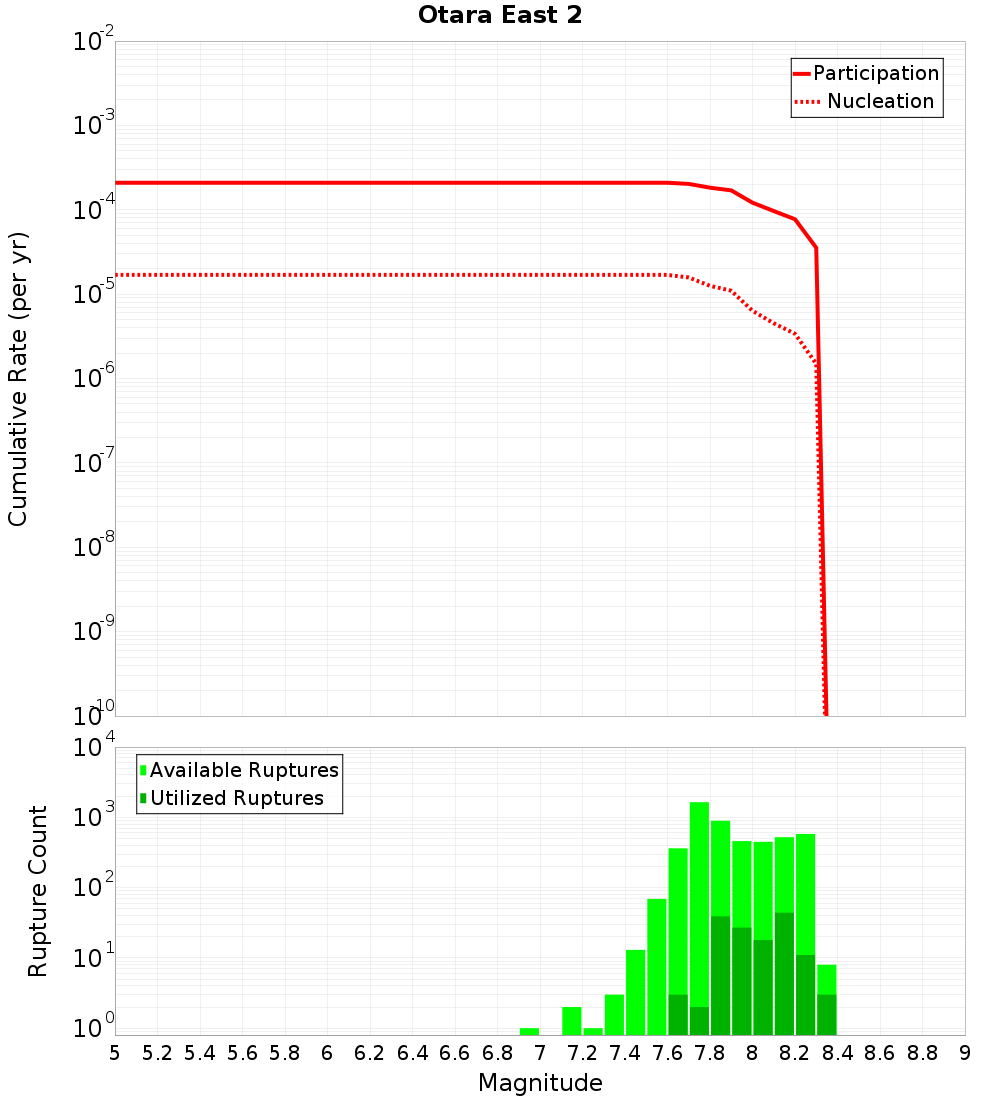

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

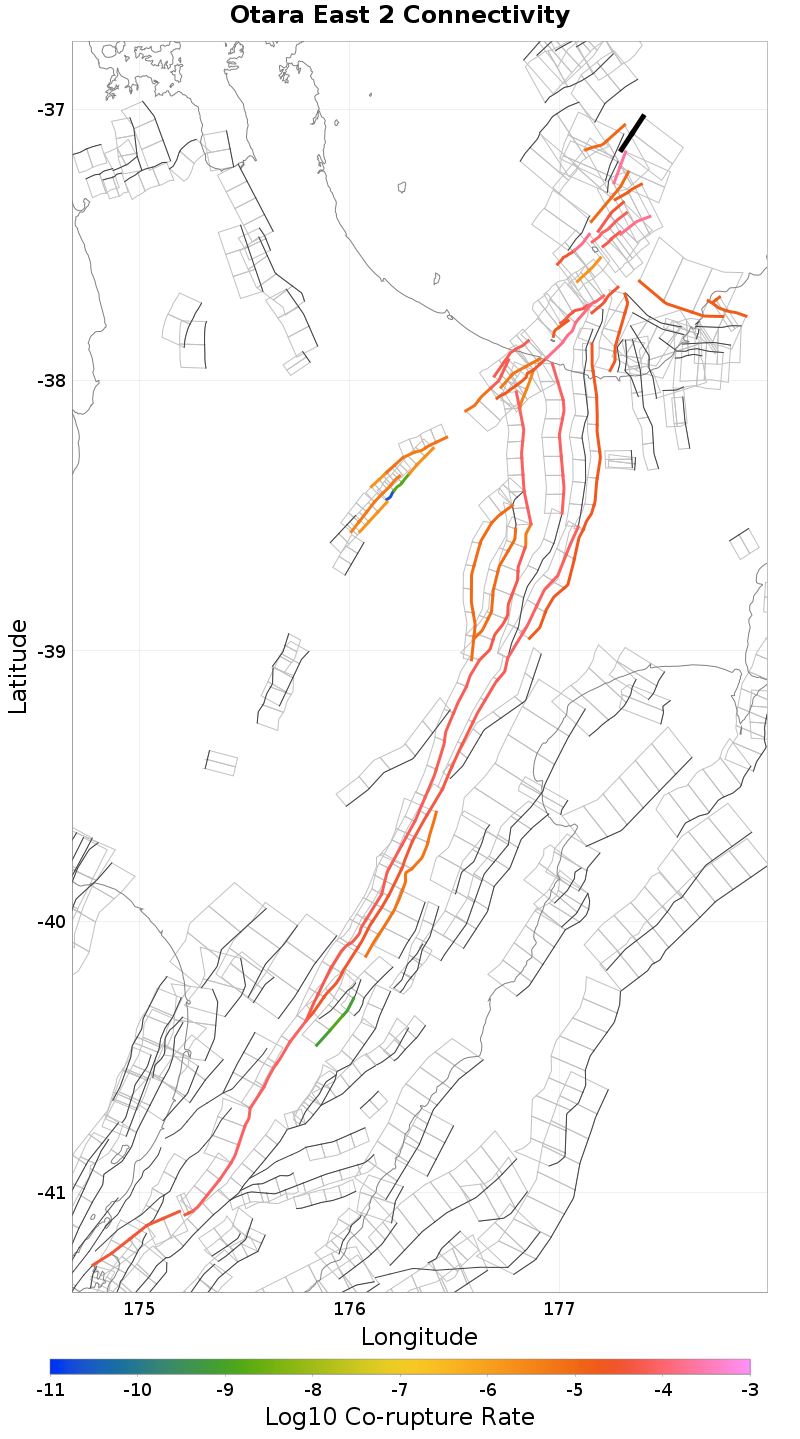

Connectivity

Nearby Sections

Fault Section
Otara East 1, 1.27 km away
Otara West 2, 1.77 km away
Otara West 3, 3.67 km away
Otara West 1, 4.9 km away
Volkner 4, 5.35 km away
Tuatoru 2, 8.63 km away
Te Arawa 3, 13.29 km away
Tauranga Trough East 2, 14.3 km away
Te Arawa 2, 19.77 km away

Otara East 1, 1.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	true
Directly Connected?	true
Co-rupture Count	4,253
Co-rupture Rate	1.9914928E-4

Otara West 2, 1.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otara West 3, 3.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	true
Directly Connected?	true
Co-rupture Count	385
Co-rupture Rate	9.7758975E-6

Otara West 1, 4.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	0.0

Volkner 4, 5.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	true
Directly Connected?	true
Co-rupture Count	1,126
Co-rupture Rate	9.7758975E-6

Tuatoru 2, 8.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	true
Directly Connected?	false
Co-rupture Count	3,642
Co-rupture Rate	1.8234647E-4

Te Arawa 3, 13.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	true
Directly Connected?	false
Co-rupture Count	227
Co-rupture Rate	1.68028E-5

Tauranga Trough East 2, 14.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Arawa 2, 19.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMTEuMHlCSGZS
Connected?	true
Directly Connected?	false
Co-rupture Count	1,141
Co-rupture Rate	5.7519494E-5
