Caswell High 1 Details
| Property | Value |
|---|---|
| Rupture Count | 7,290 |
| Ruptures Above Sect Min Mag | 7,258 |
| Ruptures w/ Nonzero Rates | 45 |
| Magnitude Range | [6.61, 8.55] |
| Length Range | [15, 998] km |
| Total Rate | 2.3190465E-4 /yr |
| Multi-Fault Rate | 2.3190465E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 65 |
Table Of Contents

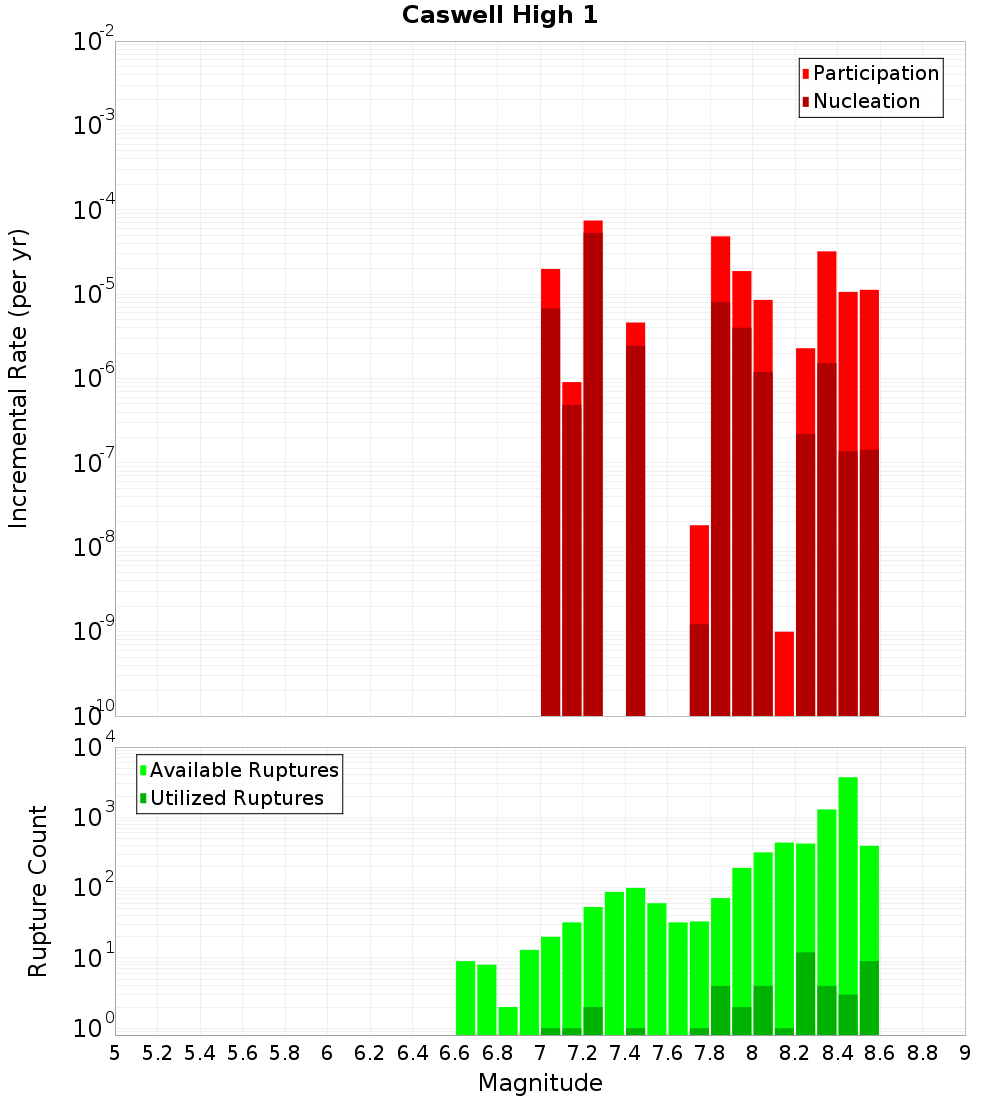

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

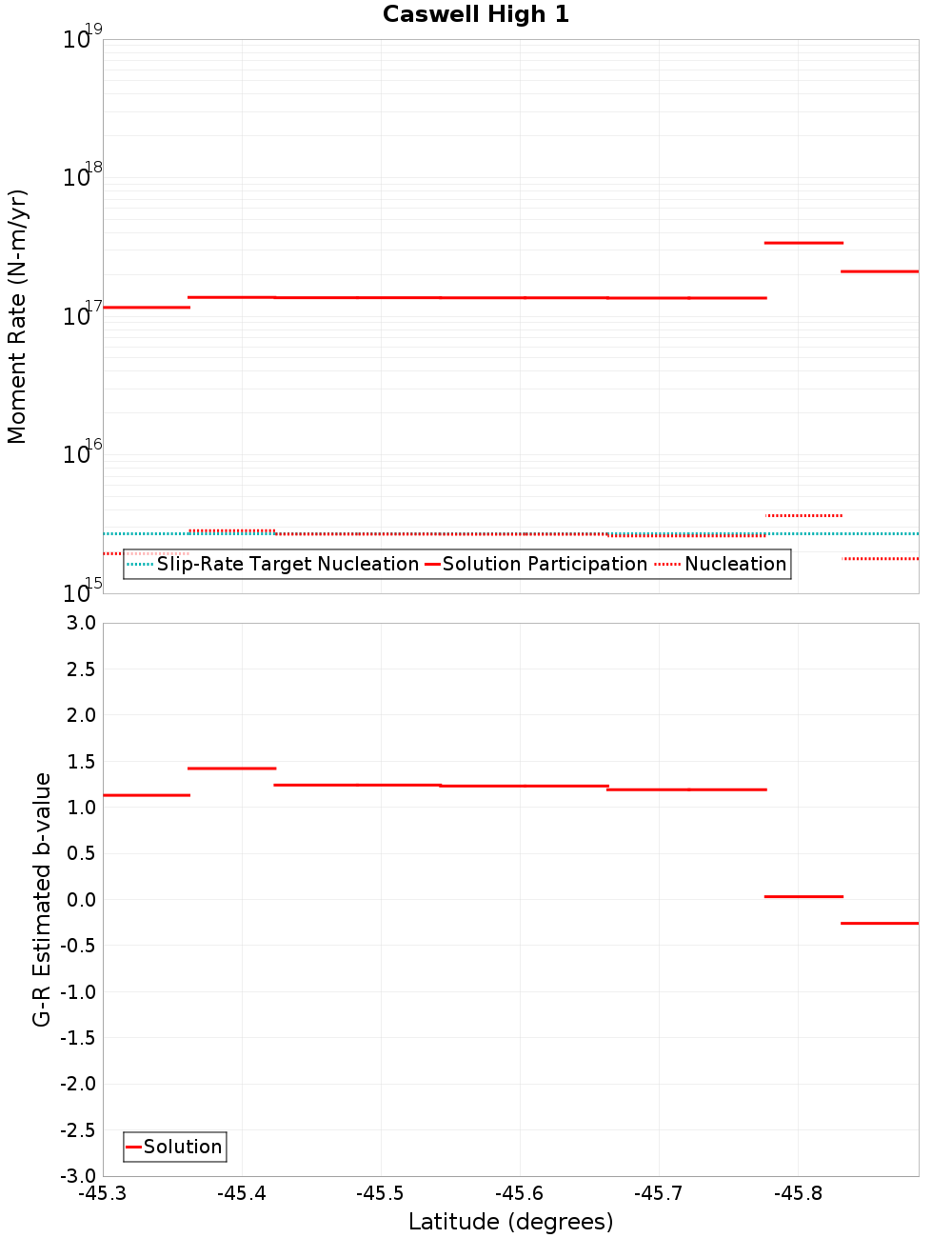

Along-Strike Values
Moment-Rates and b-Values

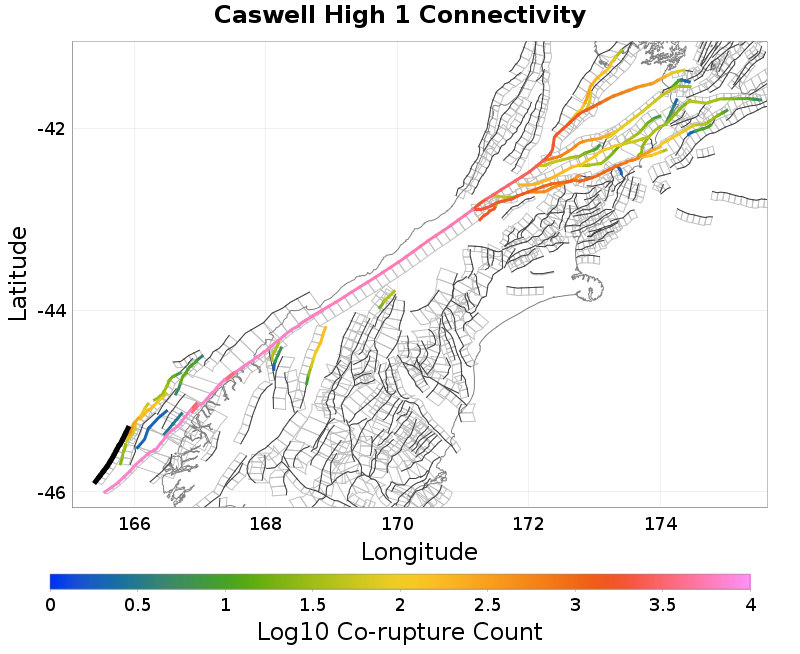

Connectivity
 |  |
|---|
Nearby Sections
Caswell High 4, 2.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 455 |
| Co-rupture Rate | 1.2851774E-4 |
Caswell High 3, 4.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 63 |
| Co-rupture Rate | 1.2833418E-5 |
Caswell 211, 4.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 31 |
| Co-rupture Rate | 1.9881949E-5 |
Alpine: Resolution - Five Fingers, 11.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6,929 |
| Co-rupture Rate | 1.3201367E-4 |
South Wedge 5, 13.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Caswell High 5, 16.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 190 |
| Co-rupture Rate | 0.0 |
South Wedge 3-6-10, 17.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 9.973206E-10 |
