Green Island Details

PropertyValue
Rupture Count41
Ruptures Above Sect Min Mag40
Ruptures w/ Nonzero Rates8
Magnitude Range[6.97, 7.88]
Length Range[18, 154] km
Total Rate2.6238355E-4 /yr
Multi-Fault Rate2.6238355E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults9

Table Of Contents

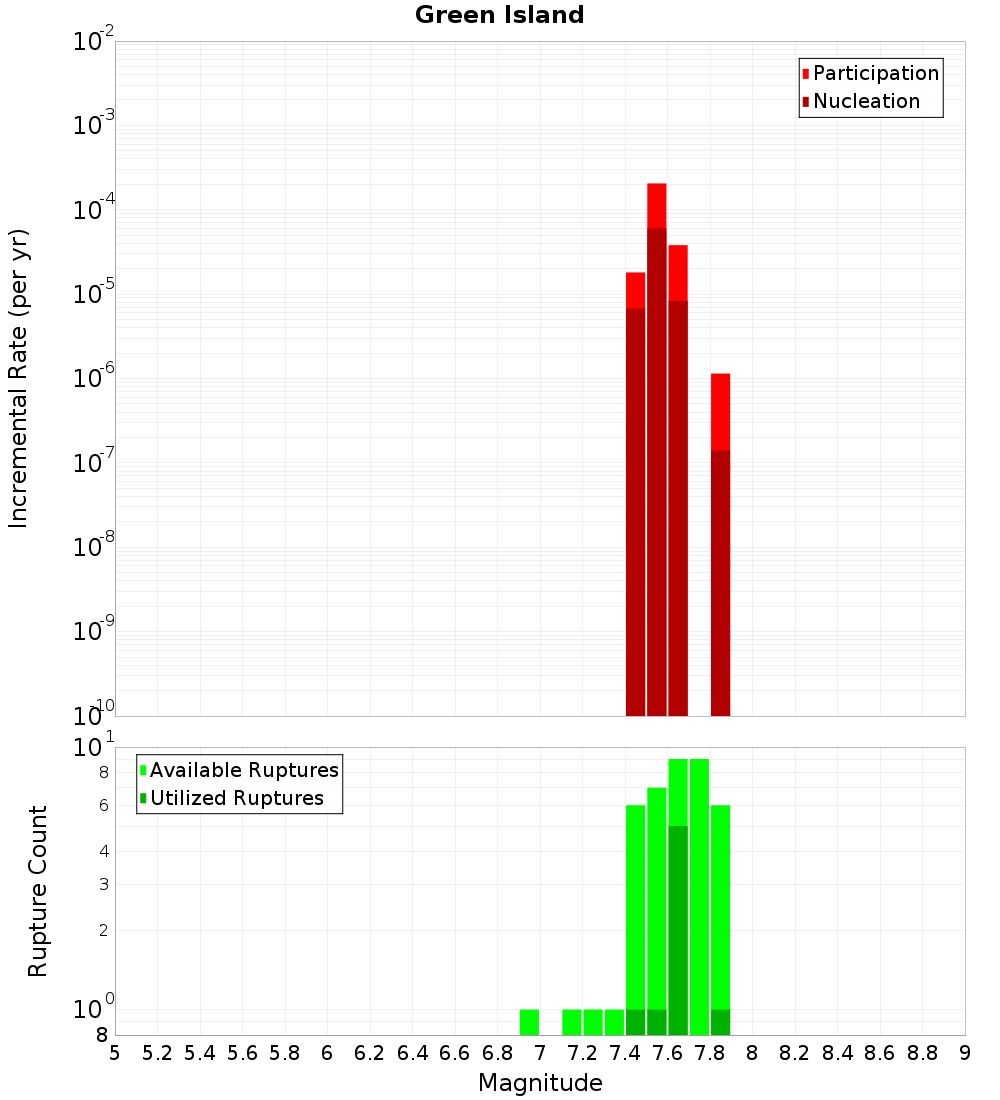

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

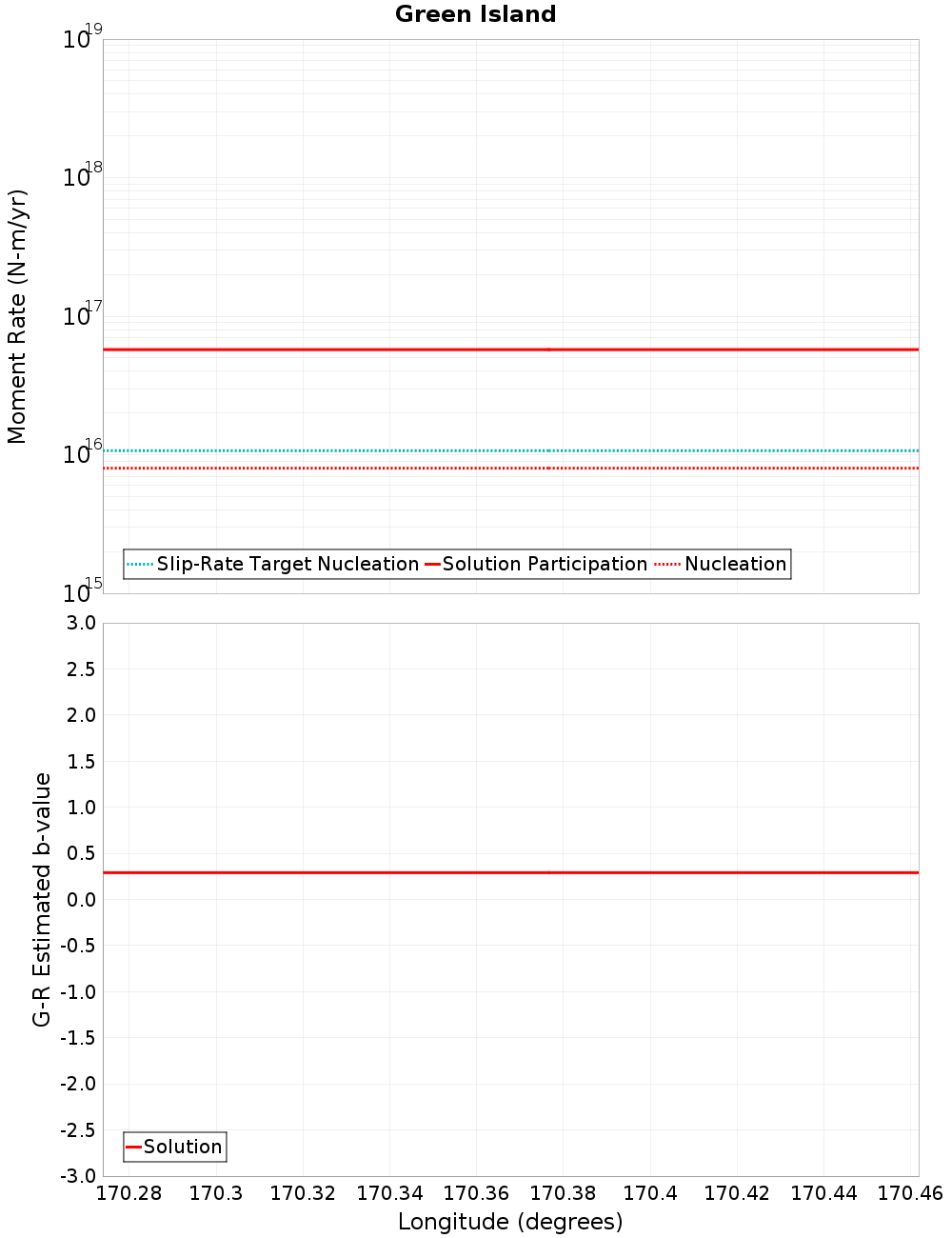

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Akatore, 0.19 km away
Kaikorai, 0.54 km away
Titri Central, 5.11 km away
Titri North, 5.36 km away
Takapu, 10.64 km away
Titri South, 10.73 km away
Sliver Stream - Merton, 12.64 km away
Maungatua - North Taieri, 13.31 km away
Waitahuna 2, 15.74 km away
Waitahuna 1, 17.12 km away

Akatore, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate2.2114615E-4

Kaikorai, 0.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?true
Directly Connected?true
Co-rupture Count27
Co-rupture Rate1.3185547E-5

Titri Central, 5.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate2.316291E-5

Titri North, 5.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate1.80745E-5

Takapu, 10.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?true
Directly Connected?true
Co-rupture Count7
Co-rupture Rate2.8551794E-6

Titri South, 10.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate2.316291E-5

Sliver Stream - Merton, 12.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate1.1451905E-6

Maungatua - North Taieri, 13.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 2, 15.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 1, 17.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
