Tuatoru 1 Details

PropertyValue
Rupture Count6,042
Ruptures Above Sect Min Mag6,042
Ruptures w/ Nonzero Rates45
Magnitude Range[6.56, 8.30]
Length Range[9, 566] km
Total Rate1.8398339E-4 /yr
Multi-Fault Rate1.479211E-4 /yr (80.40%)
Directly-Connected Faults5
All Co-Rupturing Faults50

Table Of Contents

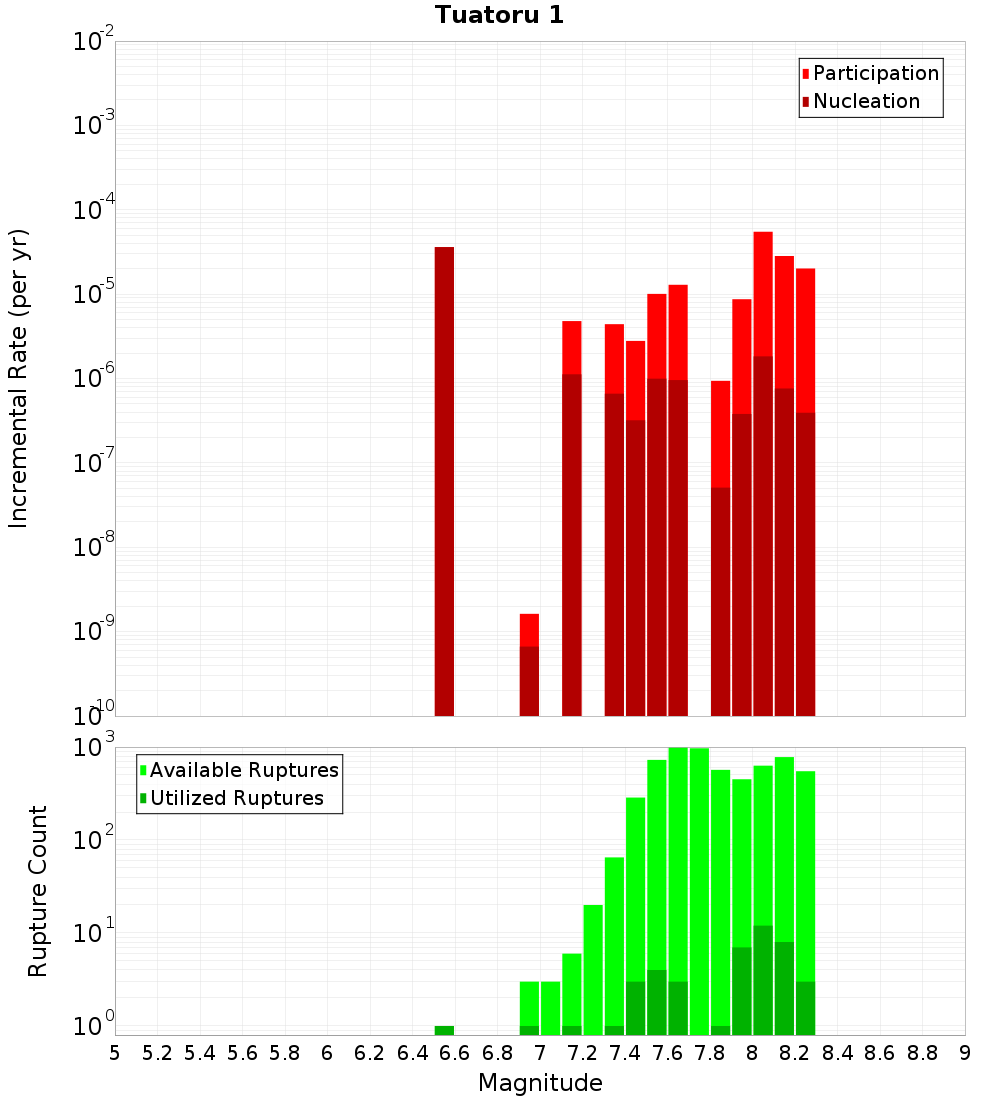

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

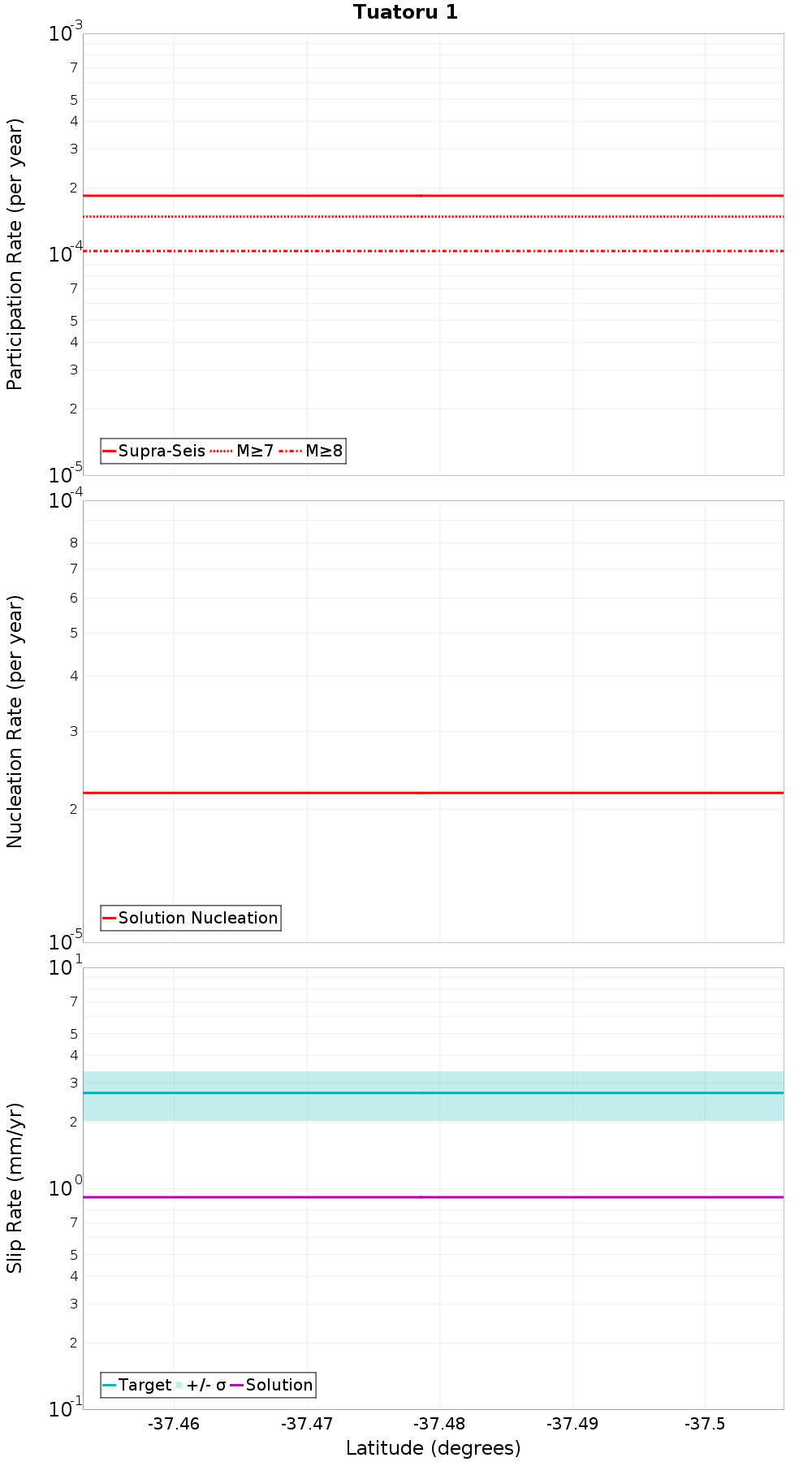

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Tuatoru 2, 0.43 km awayVolkner 3, 10.46 km away
Te Arawa 1, 3.09 km awayVolkner 4, 11.02 km away
Calypso 2, 3.86 km awayOhiwa 1, 11.29 km away
Te Arawa 2, 4.64 km awayOhae 1, 16.26 km away
Hariki, 5.5 km awayOtara West 1, 17.15 km away
Whakaari 4, 5.84 km awayWaimanawa - Waikaremoana, 18.66 km away
White Island 2, 5.84 km awayRangitaiki 2, 19.16 km away
Opotiki 3, 8.45 km awayOtara East 1, 19.26 km away
Te Arawa 3, 9.82 km away

Tuatoru 2, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?true
Directly Connected?true
Co-rupture Count3,976
Co-rupture Rate1.3872179E-4

Te Arawa 1, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 3.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?true
Directly Connected?true
Co-rupture Count417
Co-rupture Rate6.7425035E-6

Te Arawa 2, 4.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?true
Directly Connected?true
Co-rupture Count628
Co-rupture Rate2.5883828E-5

Hariki, 5.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakaari 4, 5.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?true
Directly Connected?true
Co-rupture Count2,654
Co-rupture Rate6.474208E-5

White Island 2, 5.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?true
Directly Connected?true
Co-rupture Count3,131
Co-rupture Rate7.6436525E-5

Opotiki 3, 8.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 3, 9.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?true
Directly Connected?false
Co-rupture Count97
Co-rupture Rate1.9477884E-6

Volkner 3, 10.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 4, 11.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohiwa 1, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?true
Directly Connected?false
Co-rupture Count1,715
Co-rupture Rate6.474208E-5

Ohae 1, 16.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 1, 17.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimanawa - Waikaremoana, 18.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 2, 19.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?true
Directly Connected?false
Co-rupture Count1,252
Co-rupture Rate3.1104588E-5

Otara East 1, 19.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMjYuMEp3b1M2
Connected?true
Directly Connected?false
Co-rupture Count2,458
Co-rupture Rate1.3426563E-4
