Nevis Details

PropertyValue
Rupture Count246
Ruptures Above Sect Min Mag245
Ruptures w/ Nonzero Rates16
Magnitude Range[7.24, 8.44]
Length Range[33, 731] km
Total Rate1.2564205E-4 /yr
Multi-Fault Rate2.5357976E-5 /yr (20.18%)
Directly-Connected Faults5
All Co-Rupturing Faults36

Table Of Contents

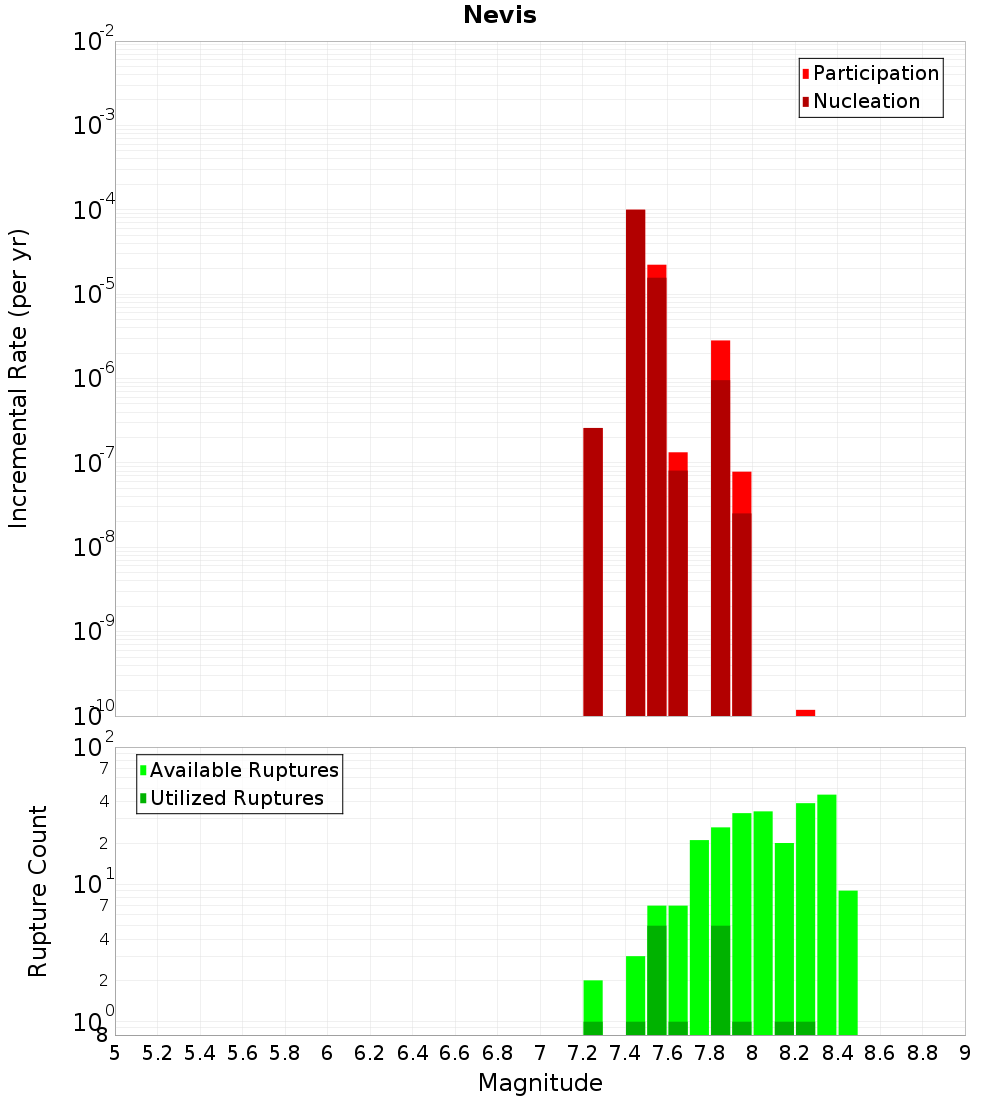

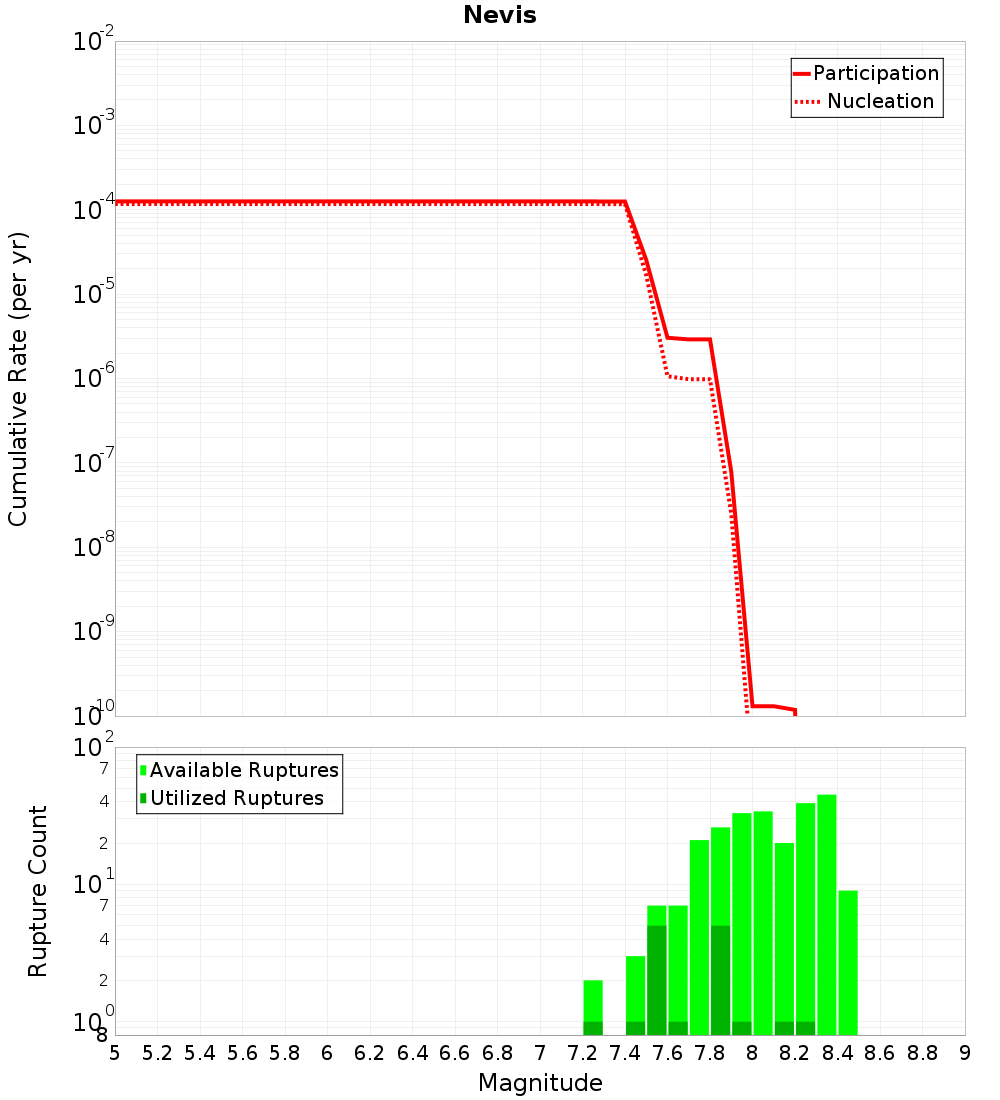

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

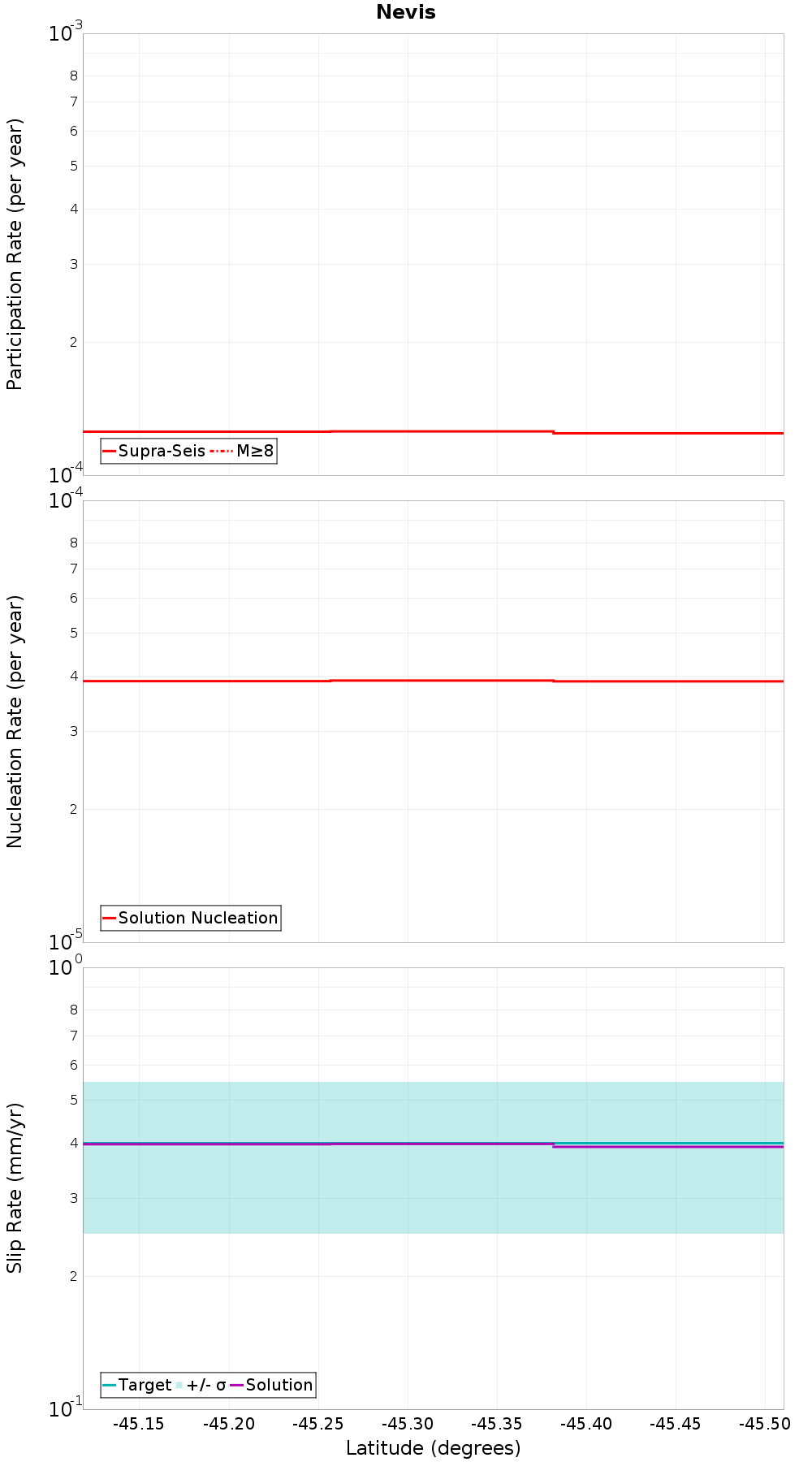

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

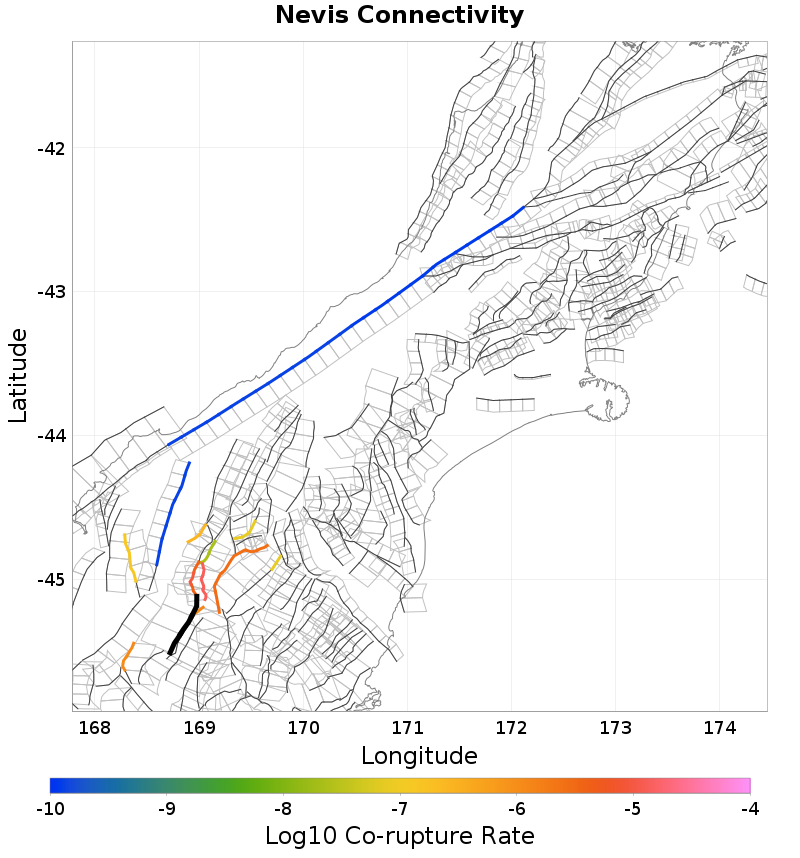

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Roaring Lion, 0.43 km away
NW Cardrona South, 0.47 km away
Mid Dome, 0.85 km away
Acton, 0.95 km away
Moonlight South, 1.43 km away
Roaring Meg, 5.46 km away
Garvie, 6.28 km away
West Wakatipu, 7.52 km away
Pisa, 9.56 km away
Old Man, 14.69 km away
Dunstan, 18.02 km away

Roaring Lion, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?true
Directly Connected?true
Co-rupture Count24
Co-rupture Rate1.2588766E-6

NW Cardrona South, 0.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?true
Directly Connected?true
Co-rupture Count50
Co-rupture Rate9.330522E-6

Mid Dome, 0.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Acton, 0.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate1.0862396E-6

Moonlight South, 1.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Roaring Meg, 5.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate1.3548697E-5

Garvie, 6.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

West Wakatipu, 7.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?true
Directly Connected?true
Co-rupture Count184
Co-rupture Rate1.3364136E-7

Pisa, 9.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?true
Directly Connected?false
Co-rupture Count51
Co-rupture Rate2.9050361E-6

Old Man, 14.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunstan, 18.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate7.8673914E-8
