Palliser - Kaiwhata Details

PropertyValue
Rupture Count9,734
Ruptures Above Sect Min Mag9,727
Ruptures w/ Nonzero Rates72
Magnitude Range[6.84, 8.33]
Length Range[21, 674] km
Total Rate9.6519664E-4 /yr
Multi-Fault Rate9.6519664E-4 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults68

Table Of Contents

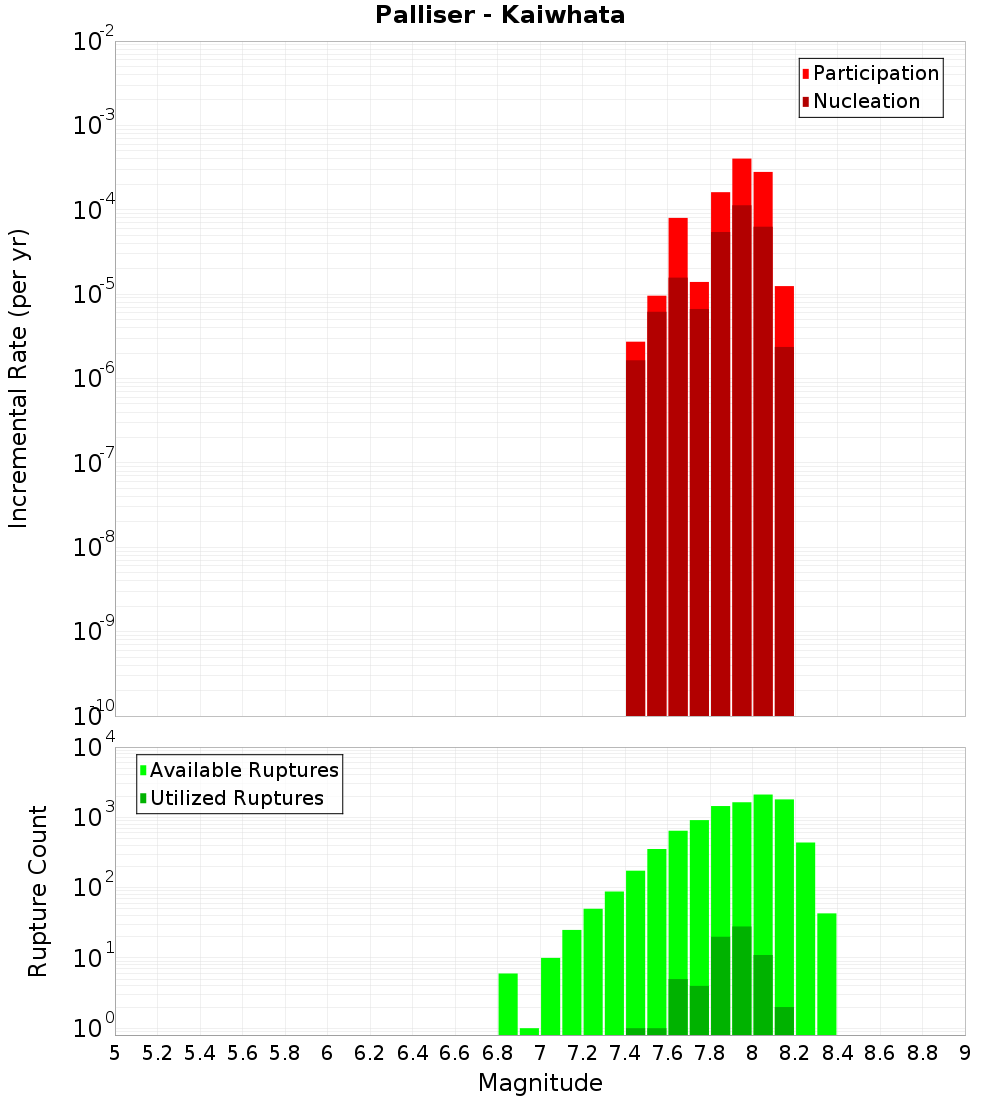

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

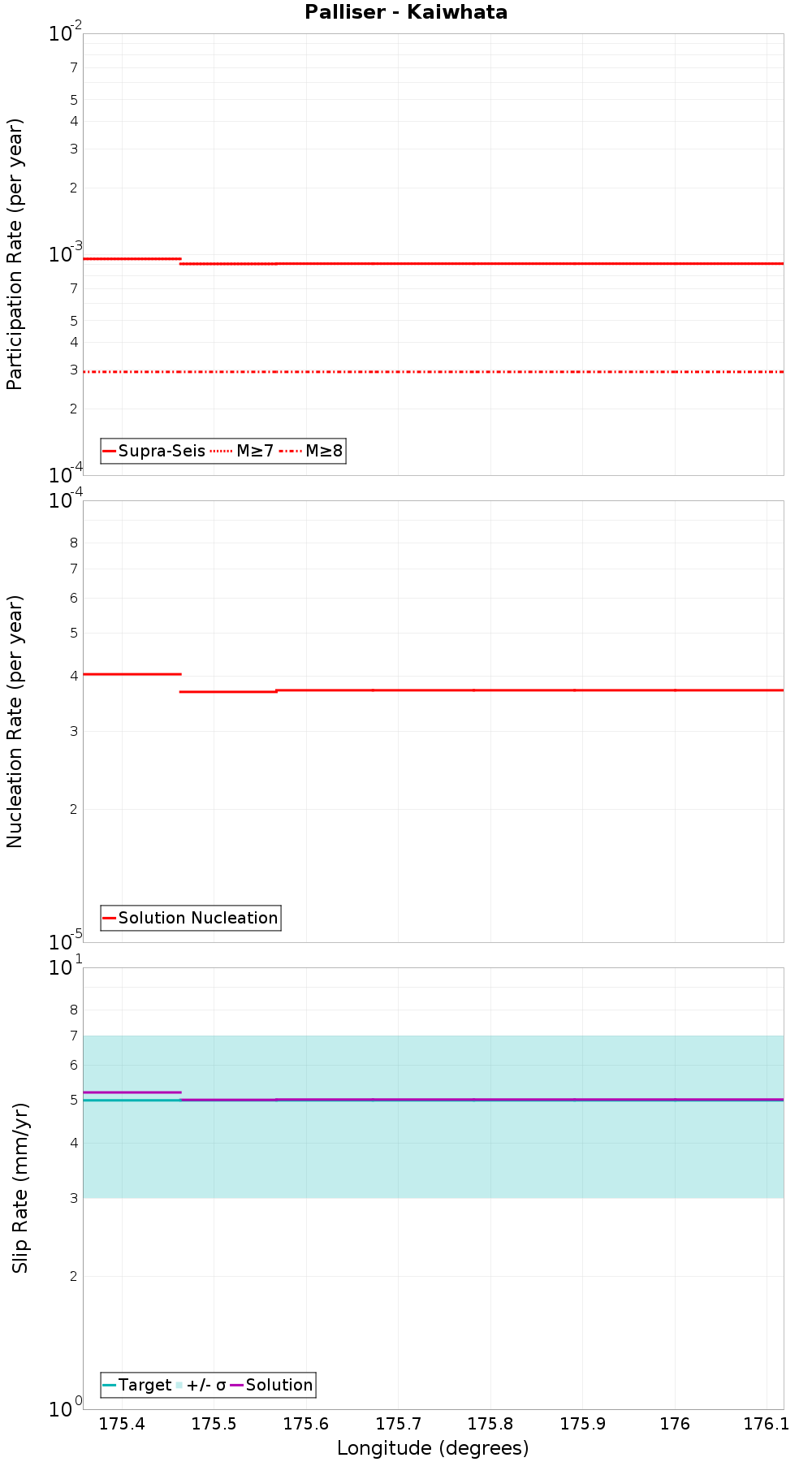

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

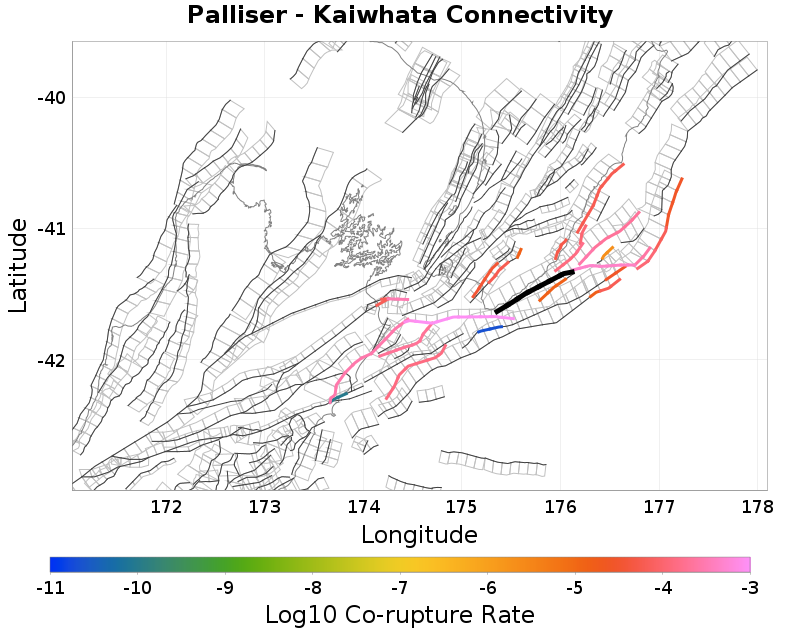

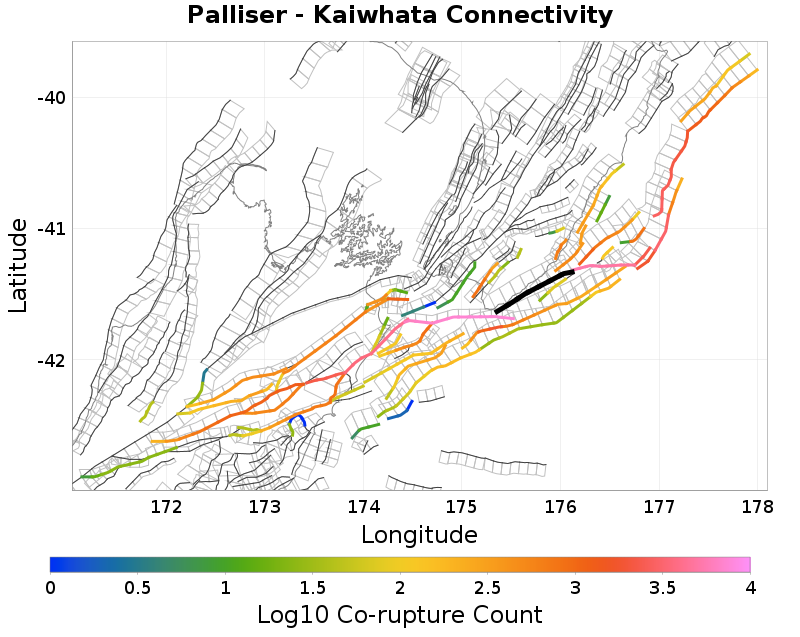

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Honeycomb, 1.22 km away
Uruti Basin, 1.36 km away
Otaraia, 1.7 km away
Riversdale, 3.25 km away
Uruti Point, 3.6 km away
BooBoo, 4.24 km away
Whareama Bank, 6.44 km away
Opouawe - Uruti, 8.58 km away
Dry River - Huangarua: 1, 11.83 km away
Pahaua, 13.63 km away
Riversdale North, 14.39 km away
Dry River - Huangarua: 3, 18.11 km away
Dry River - Huangarua: 2, 18.58 km away

Honeycomb, 1.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?true
Directly Connected?true
Co-rupture Count73
Co-rupture Rate1.4528266E-5

Uruti Basin, 1.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?true
Directly Connected?true
Co-rupture Count5,324
Co-rupture Rate4.6423785E-4

Otaraia, 1.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?true
Directly Connected?true
Co-rupture Count845
Co-rupture Rate3.5421068E-5

Riversdale, 3.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?true
Directly Connected?true
Co-rupture Count587
Co-rupture Rate1.5929207E-4

Uruti Point, 3.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?true
Directly Connected?true
Co-rupture Count721
Co-rupture Rate5.334213E-5

BooBoo, 4.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?true
Directly Connected?true
Co-rupture Count7,381
Co-rupture Rate9.174608E-4

Whareama Bank, 6.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?true
Directly Connected?true
Co-rupture Count1,193
Co-rupture Rate2.6809628E-4

Opouawe - Uruti, 8.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?true
Directly Connected?true
Co-rupture Count1,929
Co-rupture Rate2.681151E-5

Dry River - Huangarua: 1, 11.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate5.8582256E-5

Pahaua, 13.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?true
Directly Connected?false
Co-rupture Count204
Co-rupture Rate6.213739E-5

Riversdale North, 14.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?true
Directly Connected?false
Co-rupture Count336
Co-rupture Rate1.0712082E-4

Dry River - Huangarua: 3, 18.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?true
Directly Connected?false
Co-rupture Count42
Co-rupture Rate1.3929063E-5

Dry River - Huangarua: 2, 18.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxMzEuMHNvelJM
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
