Gable End South Details

Property	Value
Rupture Count	30
Ruptures Above Sect Min Mag	25
Ruptures w/ Nonzero Rates	4
Magnitude Range	[6.62, 7.59]
Length Range	[14, 129] km
Total Rate	0.0011330855 /yr
Multi-Fault Rate	0.0011330855 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	5

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

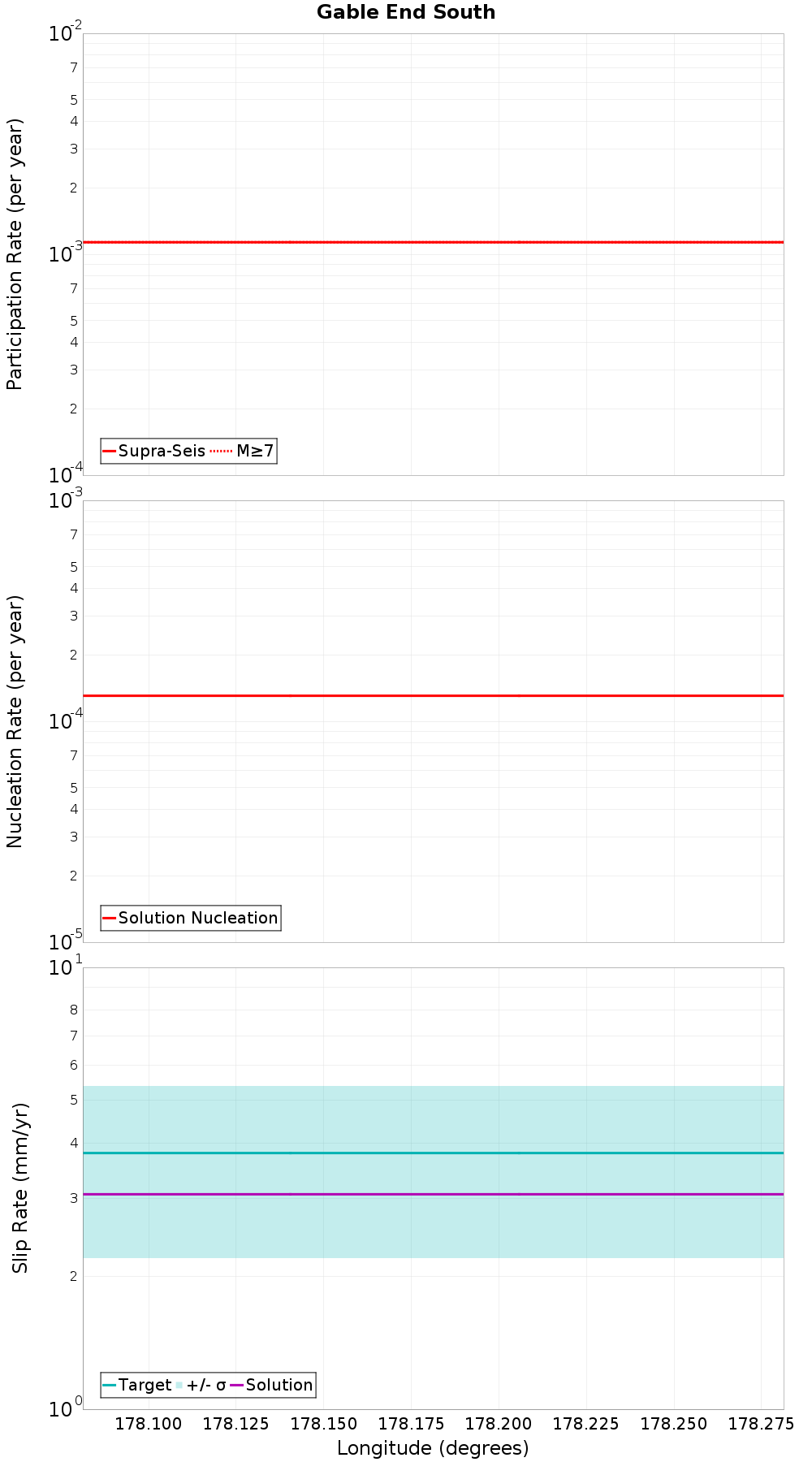

Along-Strike Values

Moment-Rates and b-Values

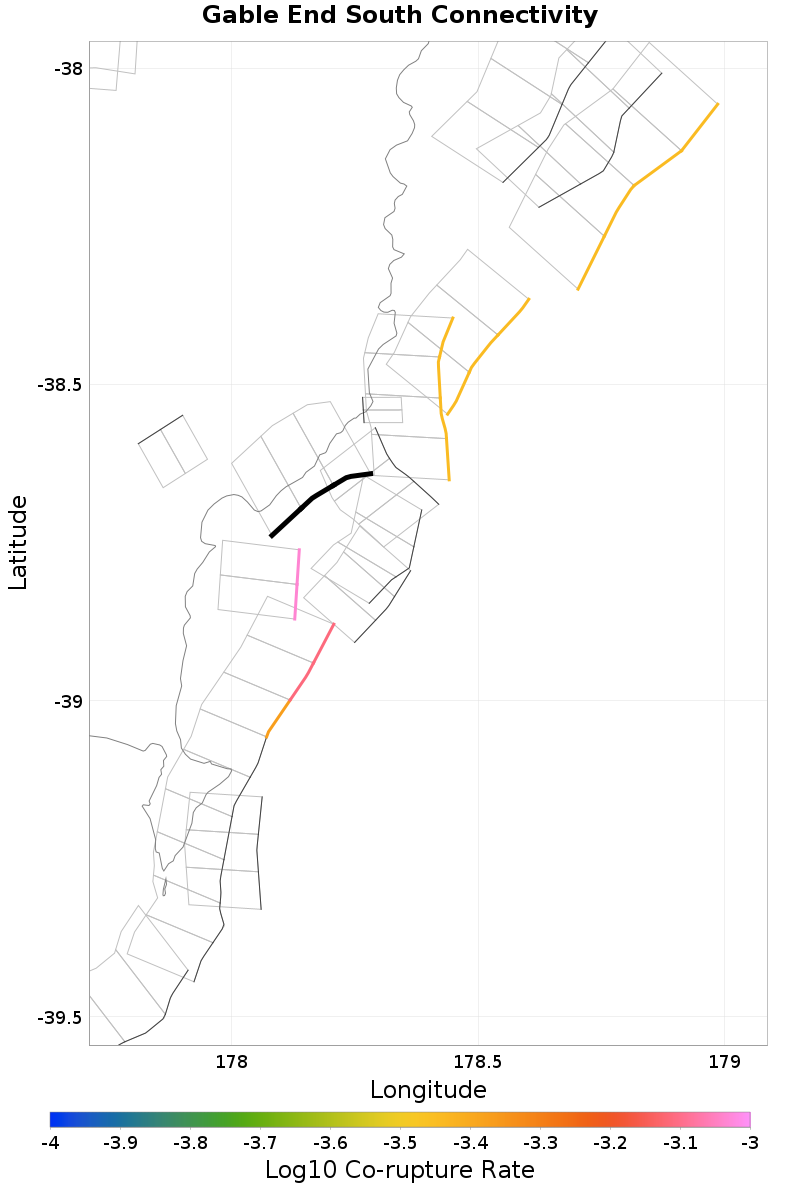

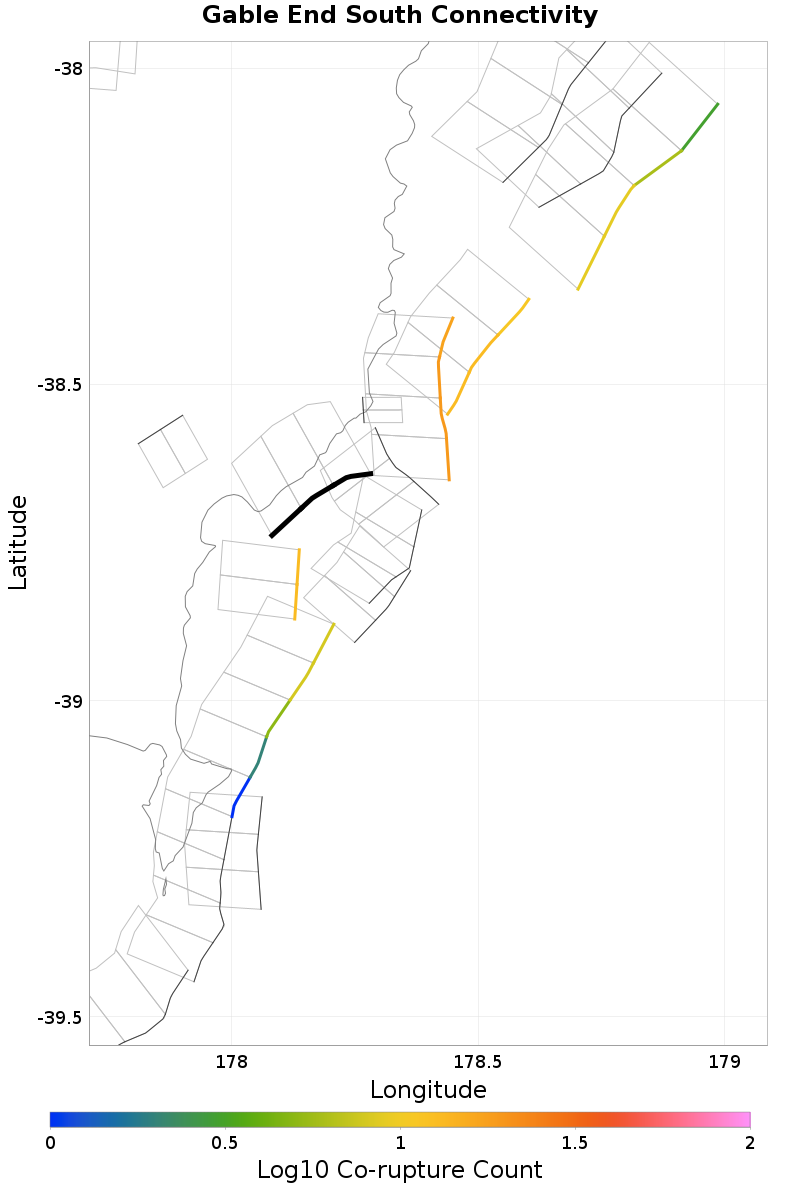

Connectivity

Nearby Sections

Fault Section
Te Ikaarongamai, 0.43 km away
Poverty Bay, 3.79 km away
Repongaere, 5.2 km away
Gable End North, 5.25 km away
Pakarae, 5.55 km away
Ariel Bank, 7.12 km away
Ariel Bank 2, 11.88 km away
Ariel East, 13.13 km away
Lachlan 3, 14.5 km away

Te Ikaarongamai, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Poverty Bay, 3.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?	true
Directly Connected?	true
Co-rupture Count	13
Co-rupture Rate	9.2190225E-4

Repongaere, 5.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Gable End North, 5.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?	true
Directly Connected?	true
Co-rupture Count	19
Co-rupture Rate	3.604404E-4

Pakarae, 5.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ariel Bank, 7.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ariel Bank 2, 11.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?	true
Directly Connected?	false
Co-rupture Count	13
Co-rupture Rate	3.604404E-4

Ariel East, 13.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lachlan 3, 14.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	7.72645E-4
