Paddys Ridge Details

PropertyValue
Rupture Count58
Ruptures Above Sect Min Mag57
Ruptures w/ Nonzero Rates5
Magnitude Range[6.95, 8.13]
Length Range[21, 273] km
Total Rate1.2416871E-5 /yr
Multi-Fault Rate1.2416871E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults24

Table Of Contents

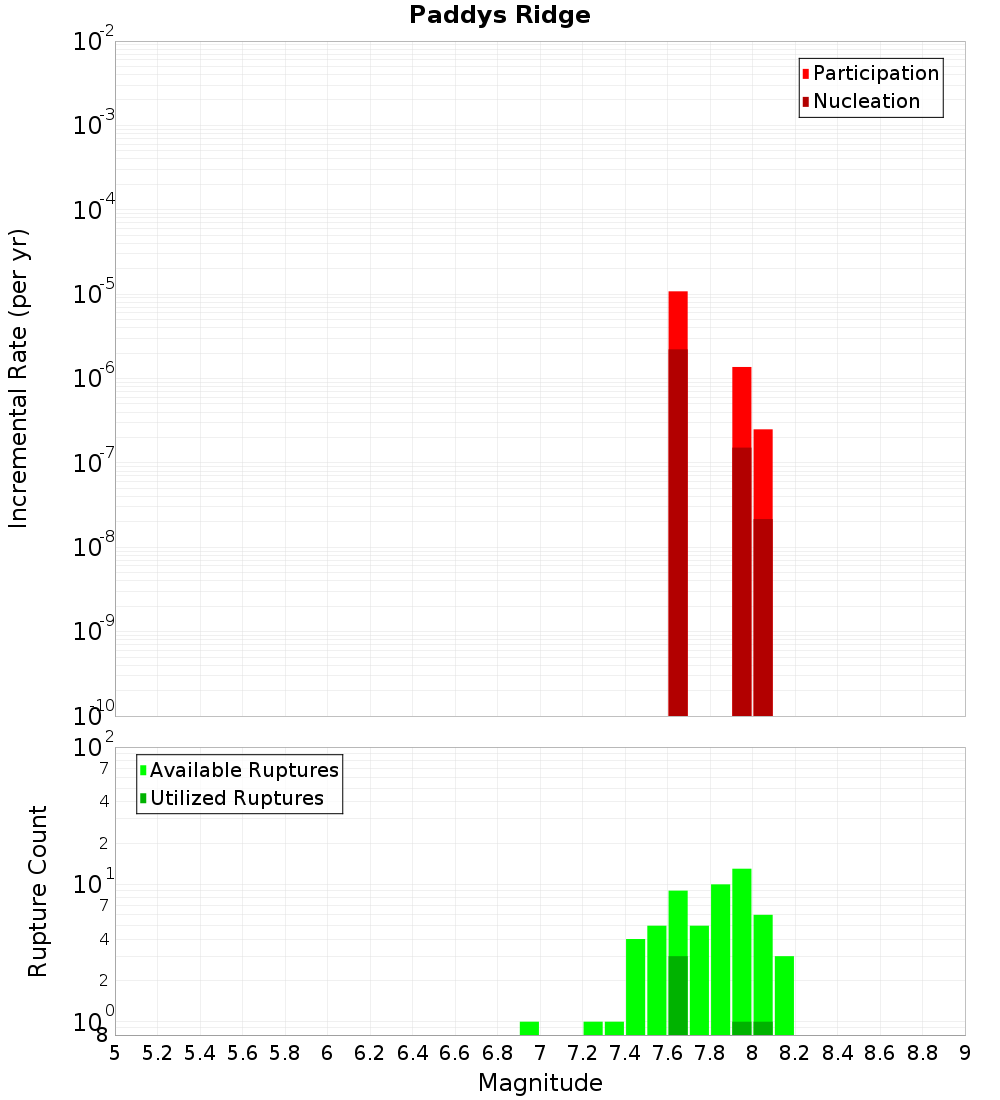

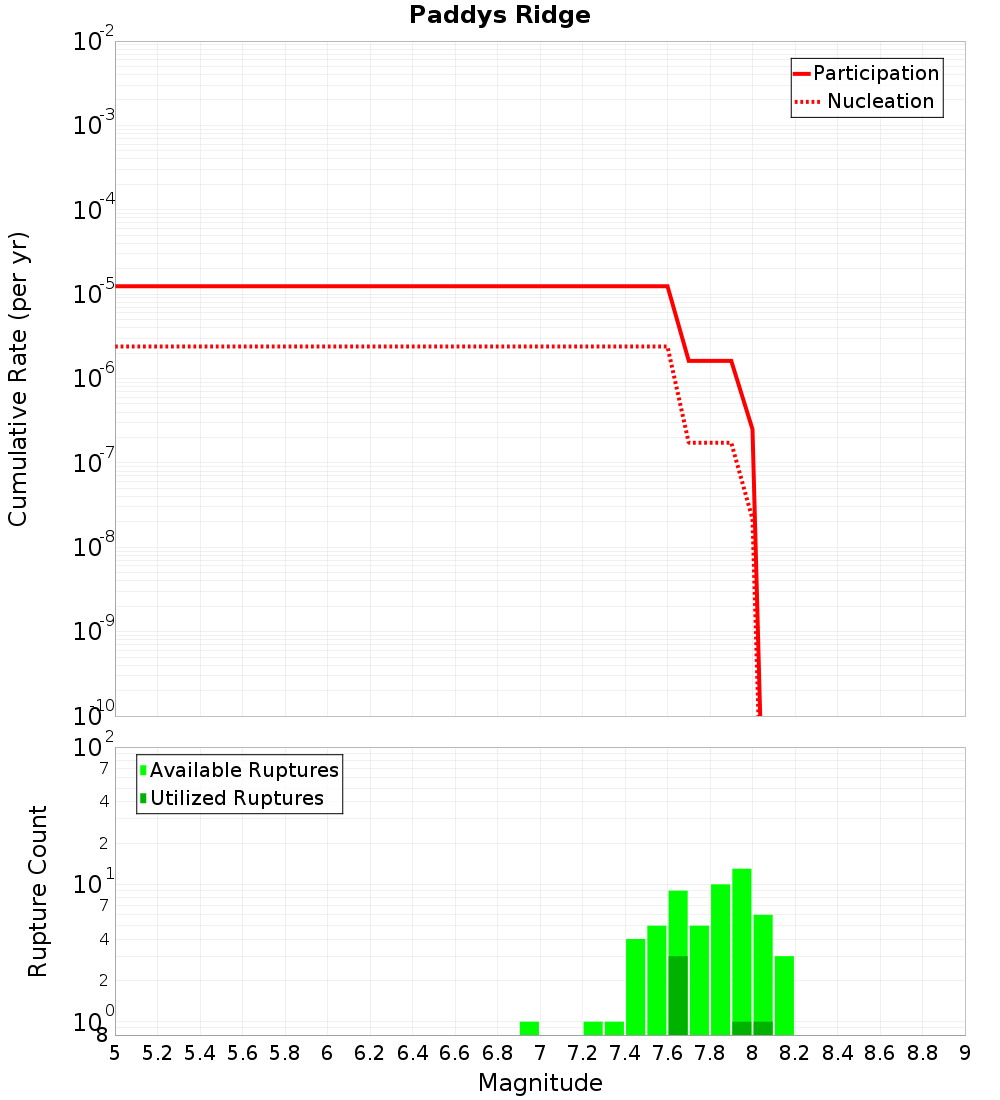

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

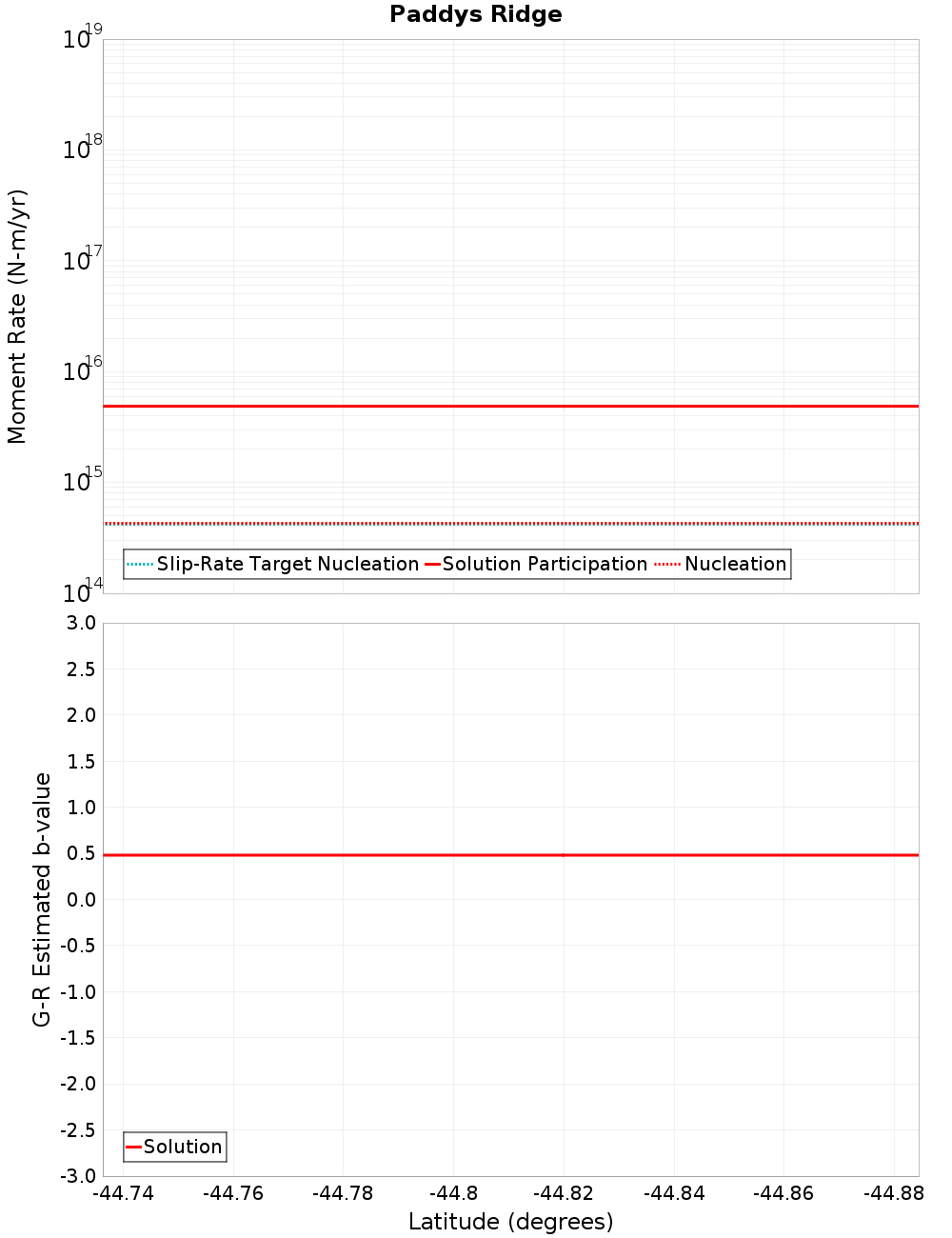

Moment-Rates and b-Values

(top)

Along-strike plot

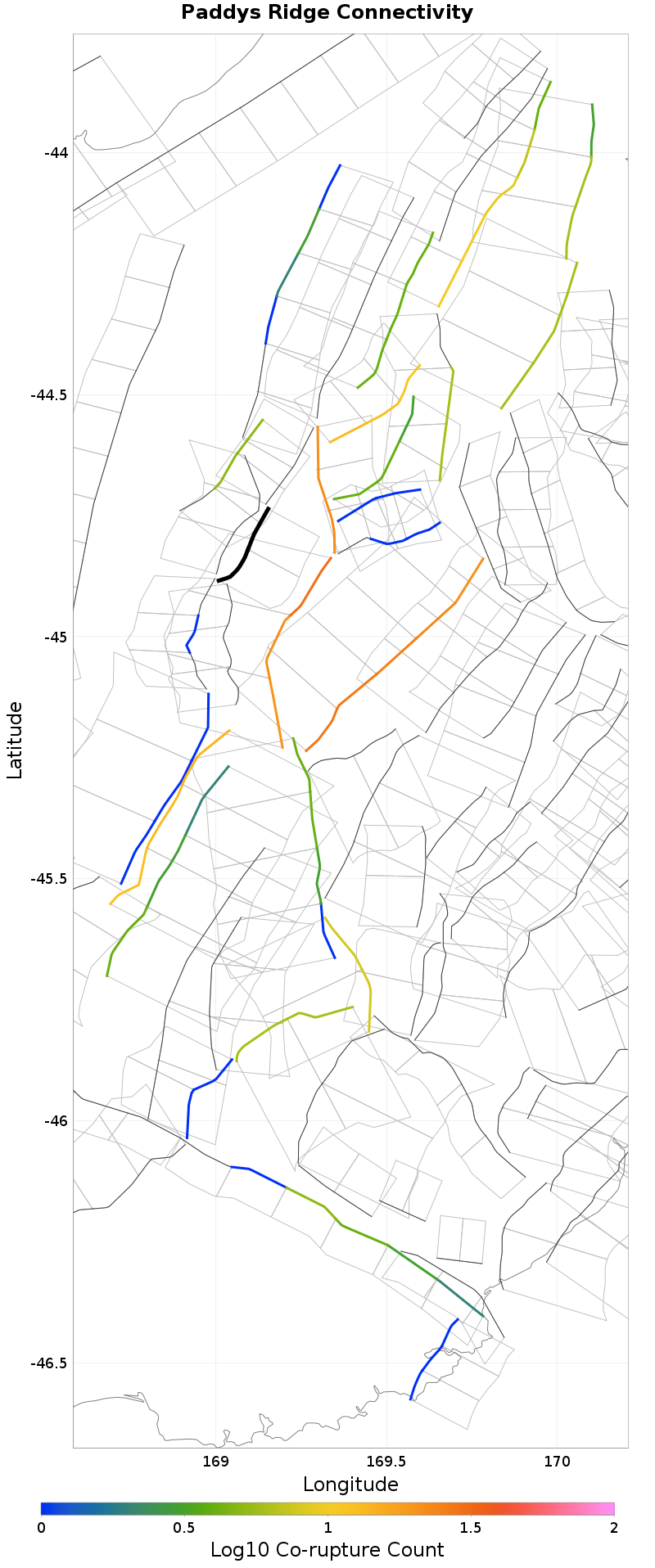

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pisa, 0.29 km away
Roaring Meg, 0.41 km away
NW Cardrona South, 1.01 km away
Cardrona - Hawea, 1.23 km away
NW Cardrona North, 1.63 km away
Dunstan, 5.61 km away
Cluden, 5.99 km away
Motatapu, 10.98 km away
Goodger, 11.59 km away
Grandview, 12.33 km away
Lindis River, 13.84 km away
Wanaka, 16.65 km away
Dromedary, 19.07 km away

Pisa, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate0.0

Roaring Meg, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

NW Cardrona South, 1.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Cardrona - Hawea, 1.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

NW Cardrona North, 1.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunstan, 5.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?true
Directly Connected?true
Co-rupture Count27
Co-rupture Rate1.2416871E-5

Cluden, 5.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate2.2859726E-7

Motatapu, 10.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate5.159587E-6

Goodger, 11.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate5.40887E-6

Grandview, 12.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate1.6198171E-6

Lindis River, 13.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Wanaka, 16.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate1.3699479E-6

Dromedary, 19.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNDQuMDN6SG12
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate2.4986917E-7
