Edgecumbe 1987 Details

Property	Value
Rupture Count	8,339
Ruptures Above Sect Min Mag	8,339
Ruptures w/ Nonzero Rates	223
Magnitude Range	[6.79, 8.00]
Length Range	[20, 300] km
Total Rate	2.819953E-4 /yr
Multi-Fault Rate	2.819946E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	52

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

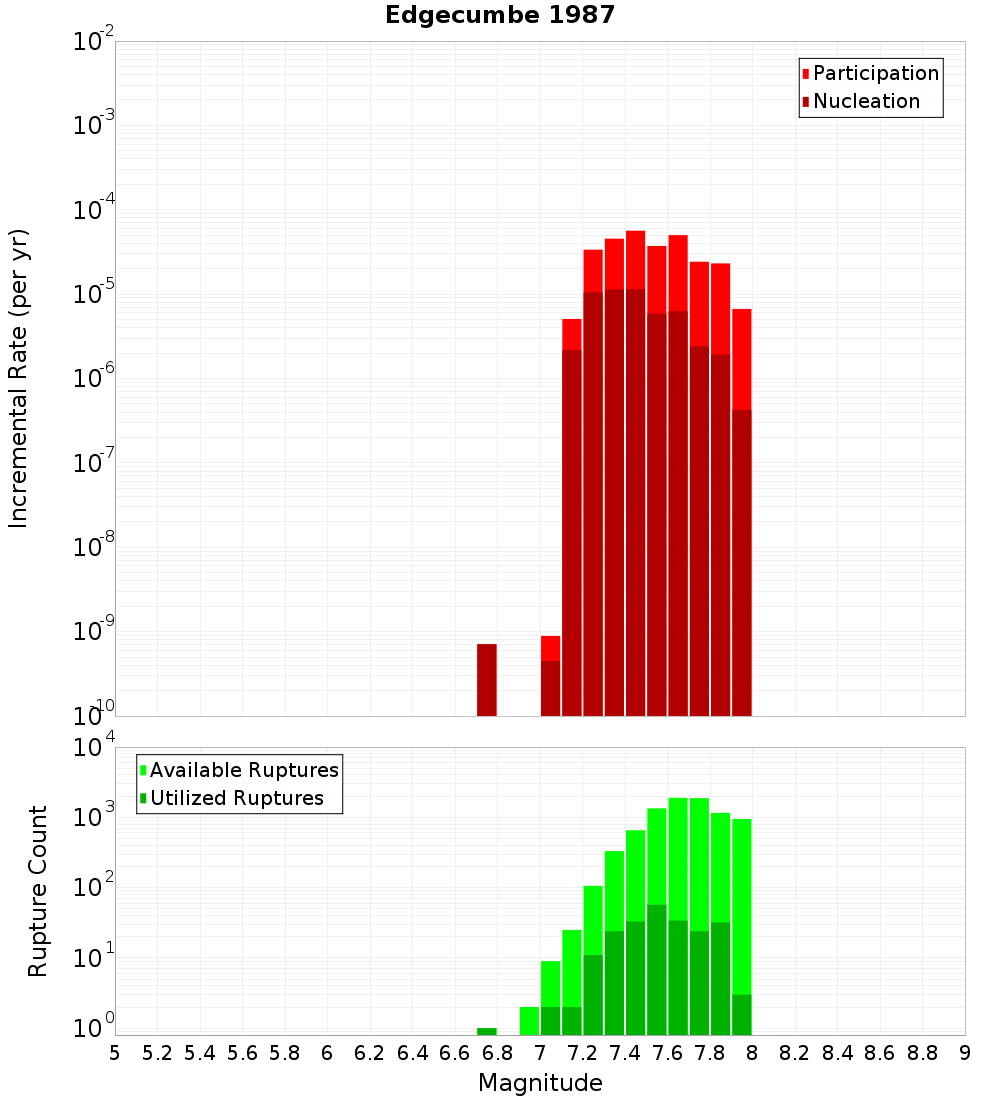

Magnitude-Frequency Distribution

Incremental	Cumulative

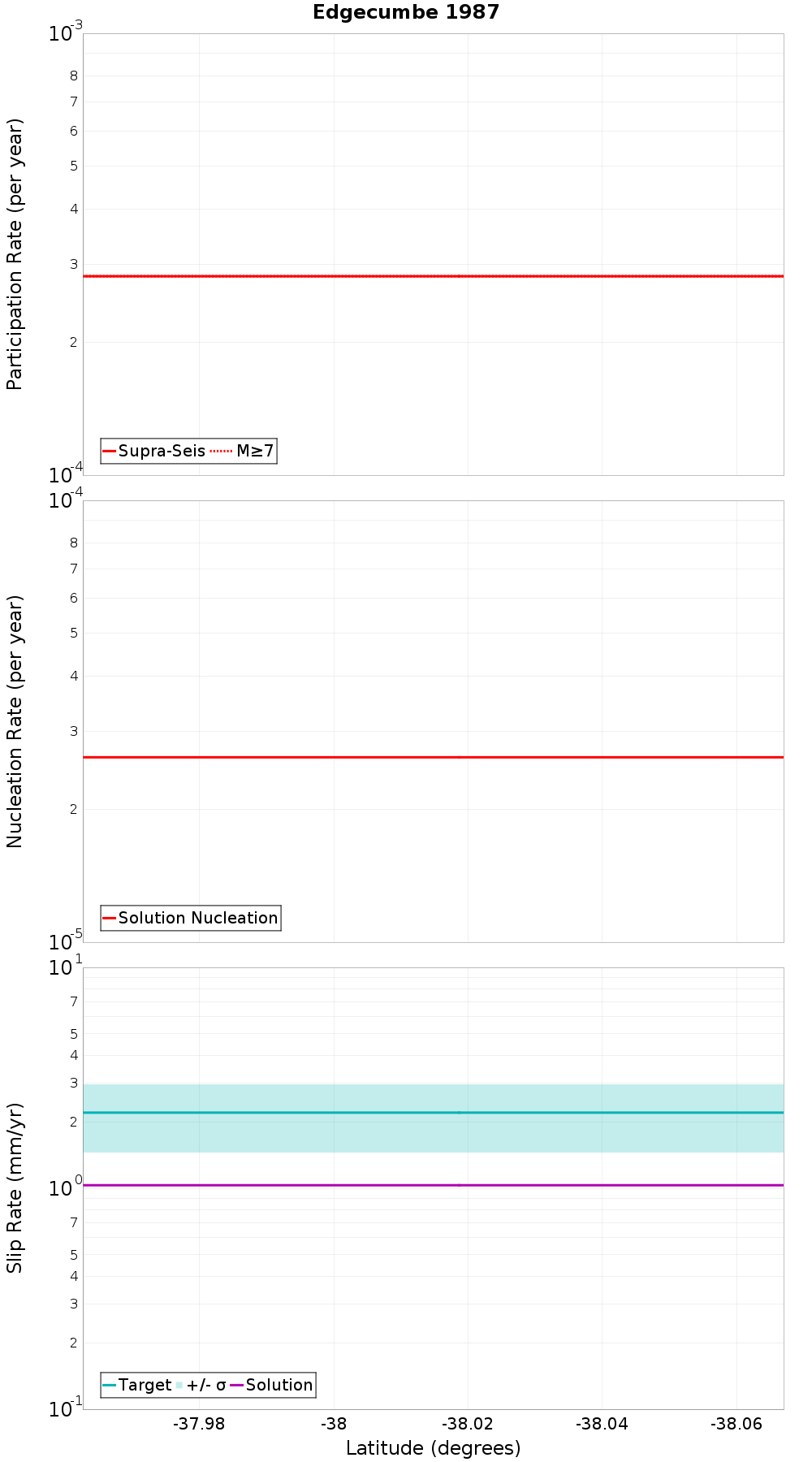

Along-Strike Values

Moment-Rates and b-Values

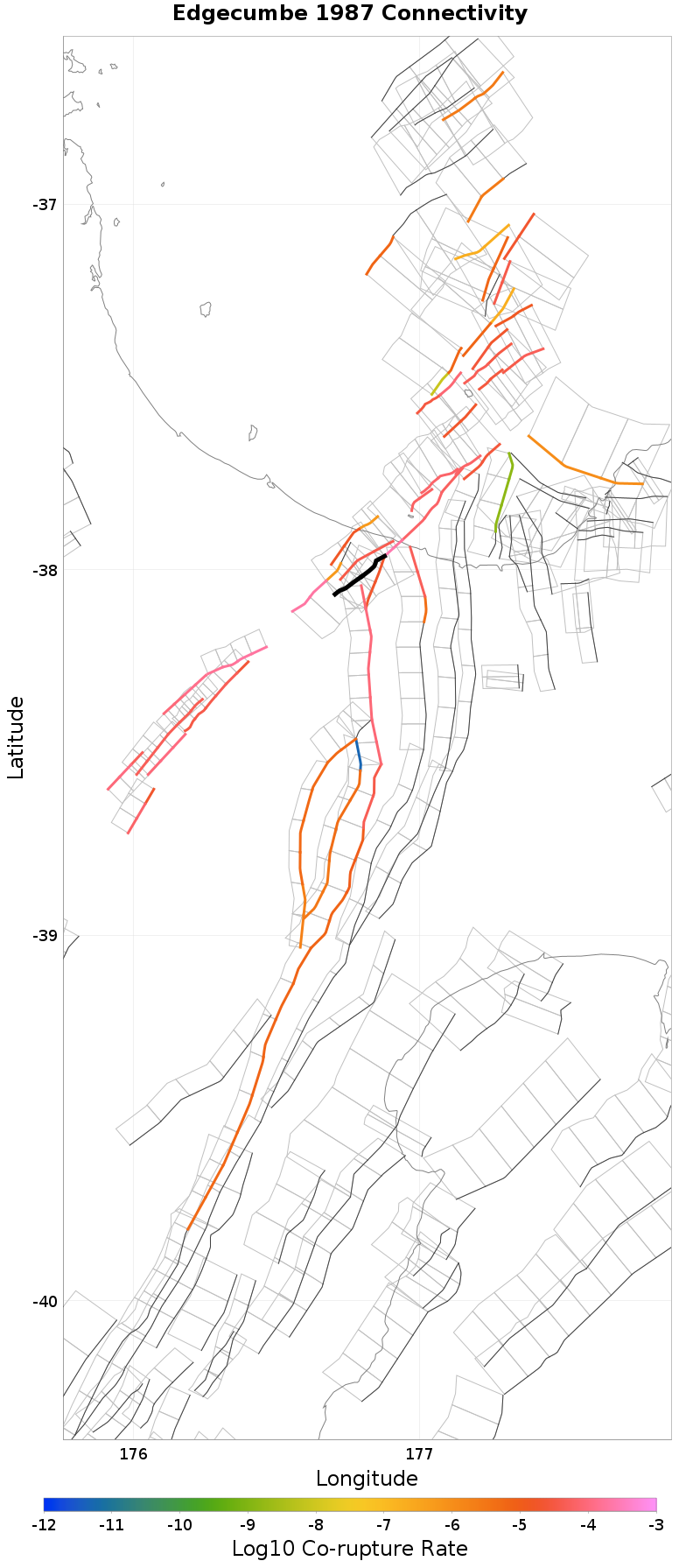

Connectivity

Nearby Sections

Fault Section
Awakeri, 0 km away
Edgecumbe Coastal, 0 km away
Otakiri, 0.19 km away
Matata, 0.29 km away
Braemar, 0.32 km away
Waiohau: North, 2.18 km away
White Island 1, 4.49 km away
Whakatane: North, 7.15 km away
Rangitaiki 1, 15.01 km away

Awakeri, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNjQuNXc5Q2RH
Connected?	true
Directly Connected?	false
Co-rupture Count	410
Co-rupture Rate	1.881573E-5

Edgecumbe Coastal, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNjQuNXc5Q2RH
Connected?	true
Directly Connected?	true
Co-rupture Count	6,470
Co-rupture Rate	2.520647E-4

Otakiri, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNjQuNXc5Q2RH
Connected?	true
Directly Connected?	false
Co-rupture Count	114
Co-rupture Rate	3.9826635E-5

Matata, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNjQuNXc5Q2RH
Connected?	true
Directly Connected?	false
Co-rupture Count	427
Co-rupture Rate	1.579858E-5

Braemar, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNjQuNXc5Q2RH
Connected?	true
Directly Connected?	true
Co-rupture Count	2,690
Co-rupture Rate	2.0083402E-4

Waiohau: North, 2.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNjQuNXc5Q2RH
Connected?	true
Directly Connected?	true
Co-rupture Count	5,723
Co-rupture Rate	9.725511E-5

White Island 1, 4.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNjQuNXc5Q2RH
Connected?	true
Directly Connected?	true
Co-rupture Count	6,509
Co-rupture Rate	6.380436E-5

Whakatane: North, 7.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNjQuNXc5Q2RH
Connected?	true
Directly Connected?	false
Co-rupture Count	36
Co-rupture Rate	4.8806643E-5

Rangitaiki 1, 15.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxNjQuNXc5Q2RH
Connected?	true
Directly Connected?	false
Co-rupture Count	691
Co-rupture Rate	5.7659483E-5
