Maungati Details
| Property | Value |
|---|---|
| Rupture Count | 13 |
| Ruptures Above Sect Min Mag | 11 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.67, 7.53] |
| Length Range | [16, 90] km |
| Total Rate | 3.848952E-5 /yr |
| Multi-Fault Rate | 1.6171618E-6 /yr (4.20%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 2 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

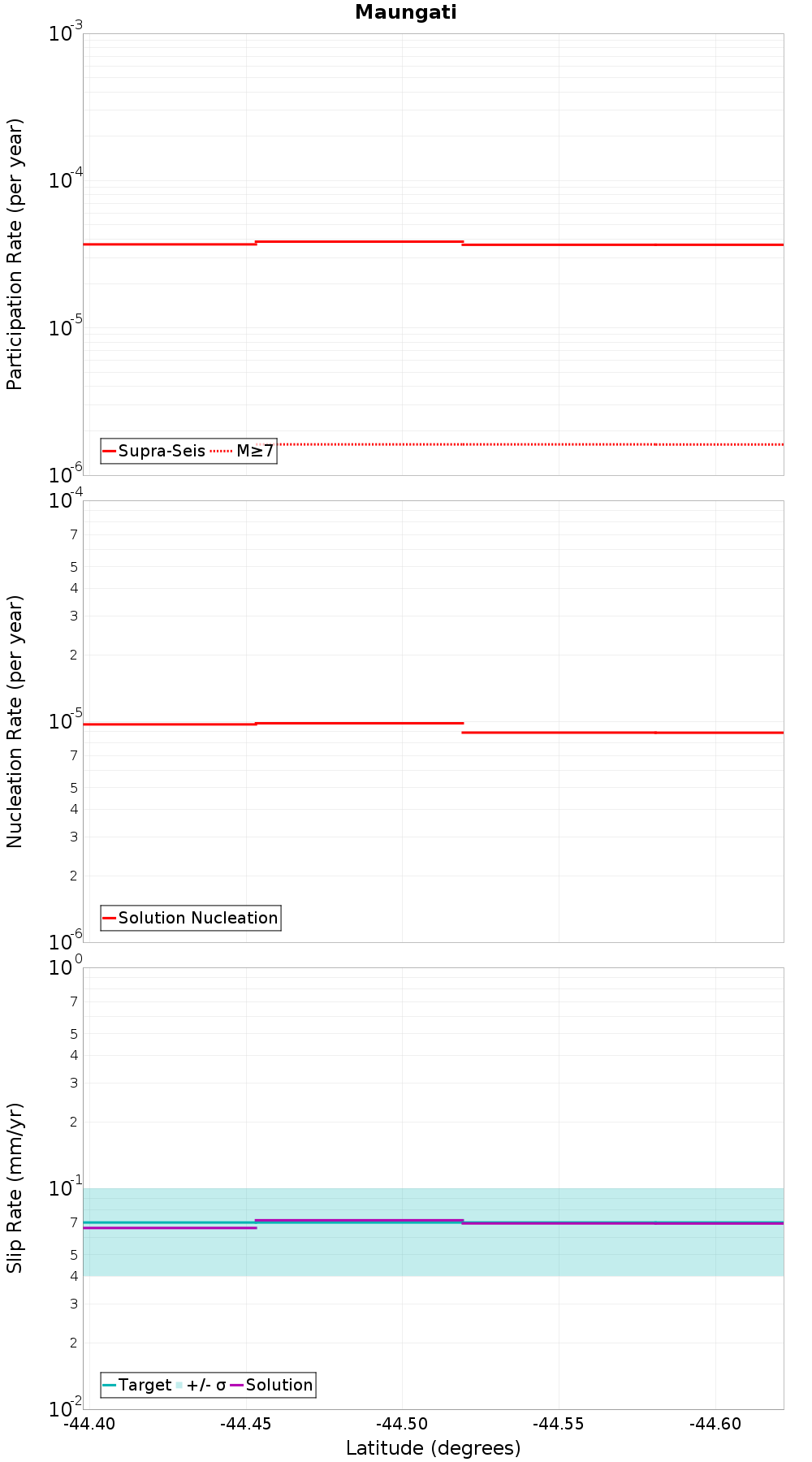

Along-Strike Values

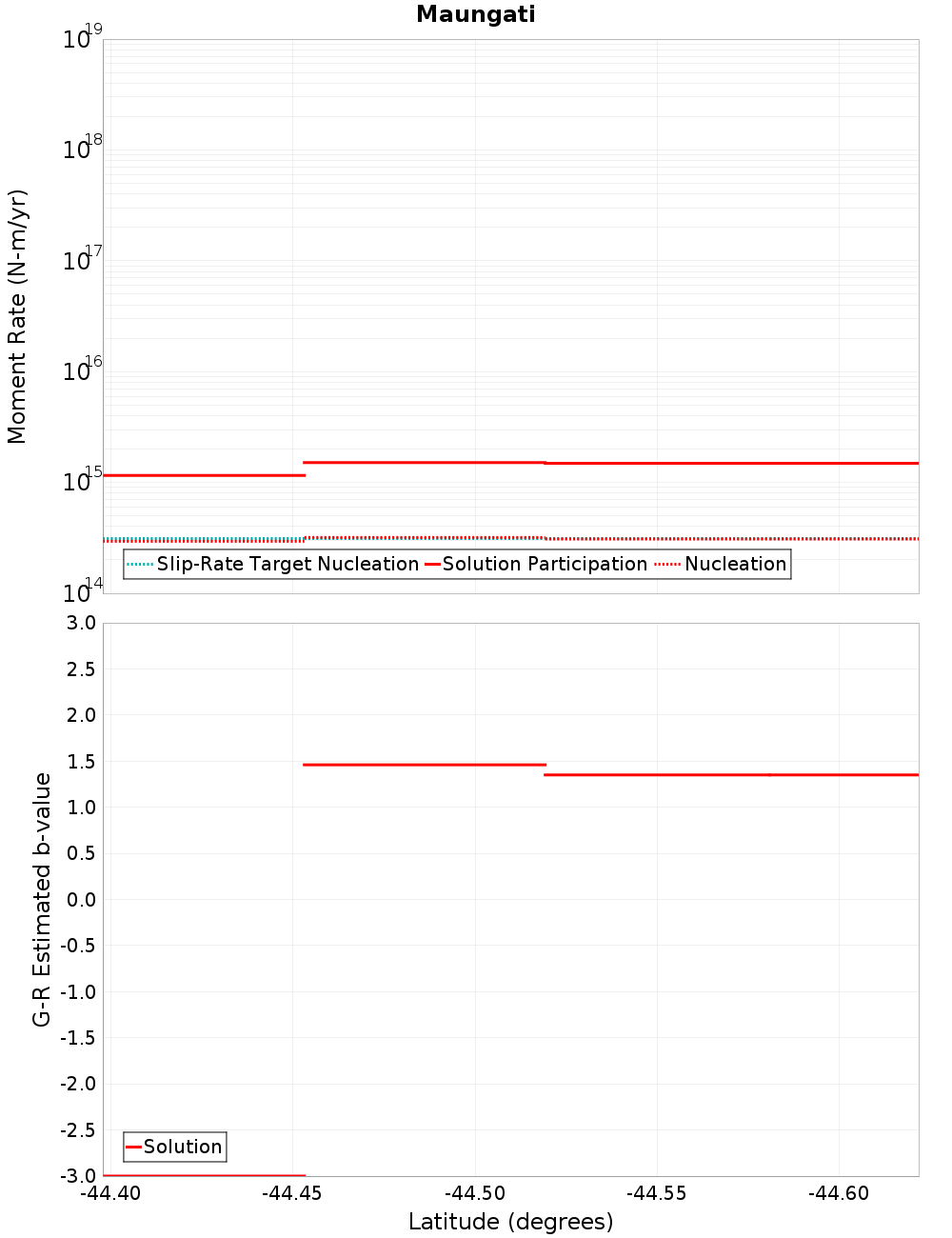

Moment-Rates and b-Values

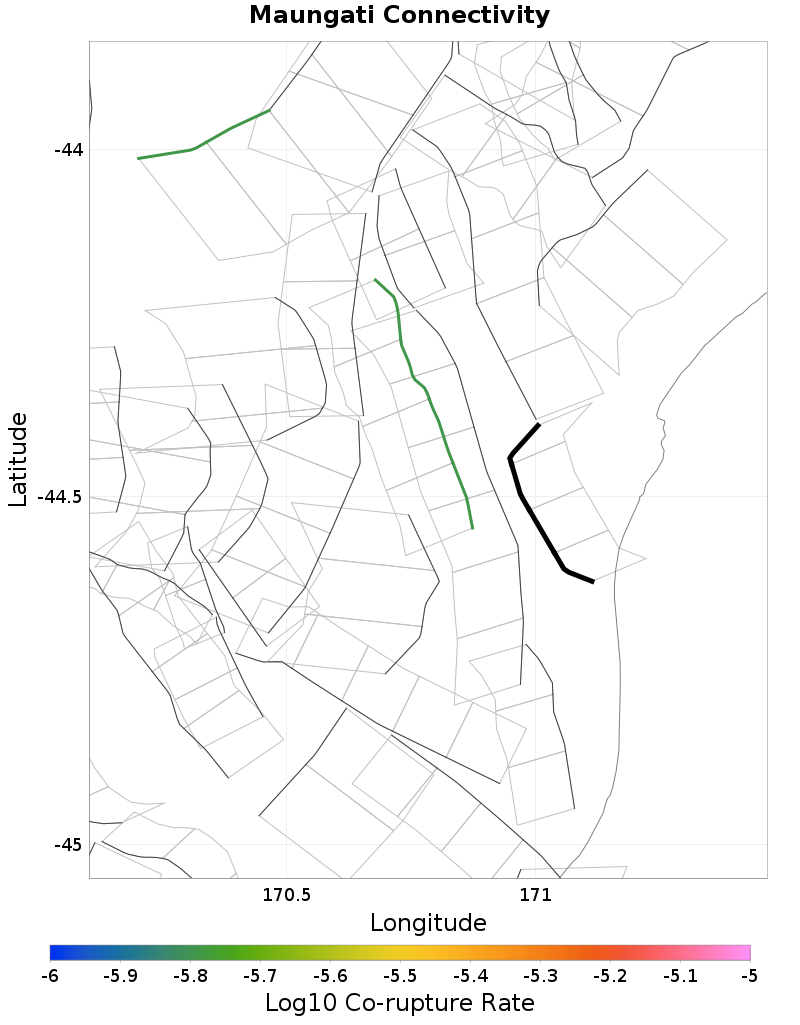

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Brothers, 0.81 km away |
| Hunters, 3.56 km away |
| Rapuwai, 6.24 km away |
| Chamberlain, 8.42 km away |
| Waimate, 13.4 km away |
| Campbell Hills, 17.6 km away |
Brothers, 0.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODEuMDZ1OFc0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hunters, 3.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODEuMDZ1OFc0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rapuwai, 6.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODEuMDZ1OFc0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Chamberlain, 8.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODEuMDZ1OFc0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 1.6171618E-6 |
Waimate, 13.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODEuMDZ1OFc0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Campbell Hills, 17.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODEuMDZ1OFc0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
