Motatapu Details
| Property | Value |
|---|---|
| Rupture Count | 88 |
| Ruptures Above Sect Min Mag | 87 |
| Ruptures w/ Nonzero Rates | 9 |
| Magnitude Range | [6.93, 8.13] |
| Length Range | [19, 272] km |
| Total Rate | 1.3292259E-4 /yr |
| Multi-Fault Rate | 3.1121413E-5 /yr (23.41%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 23 |
Table Of Contents

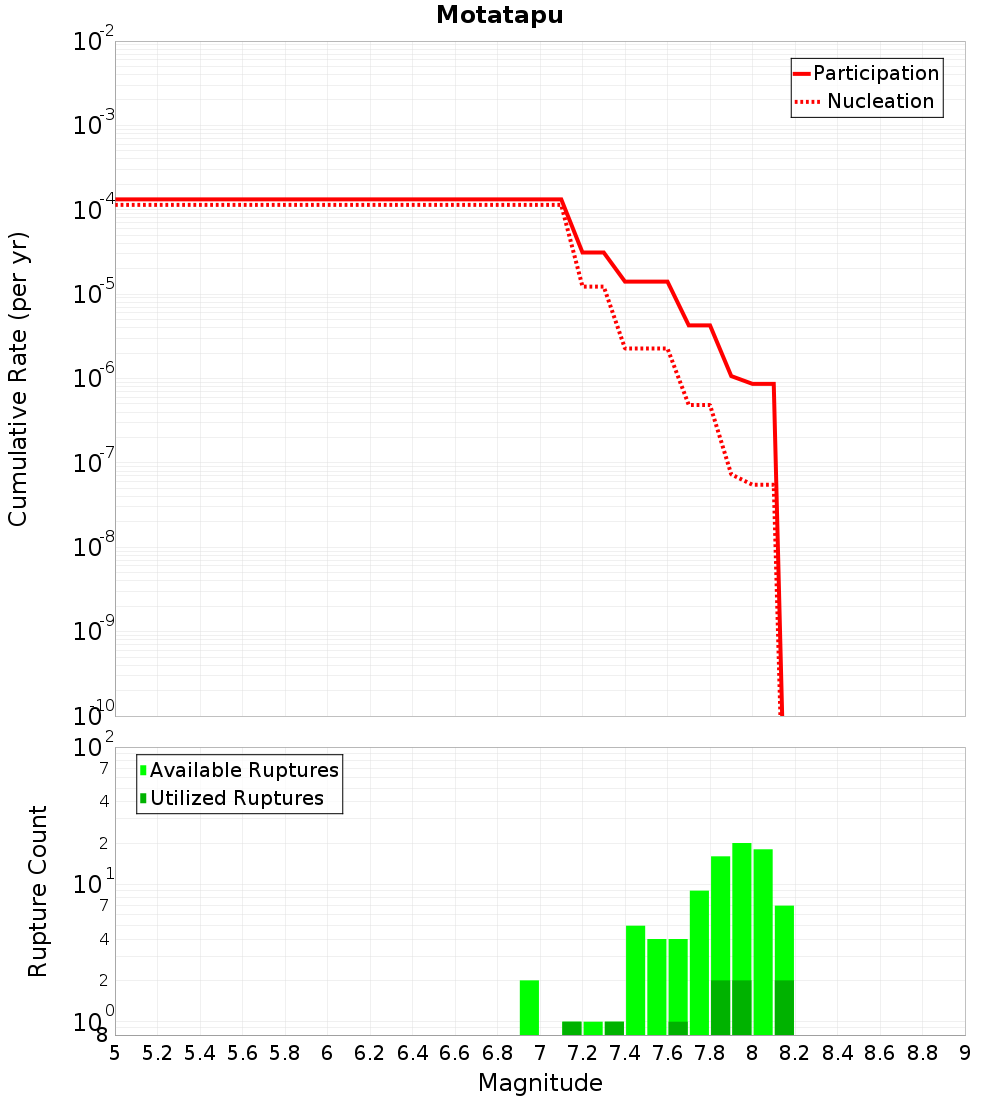

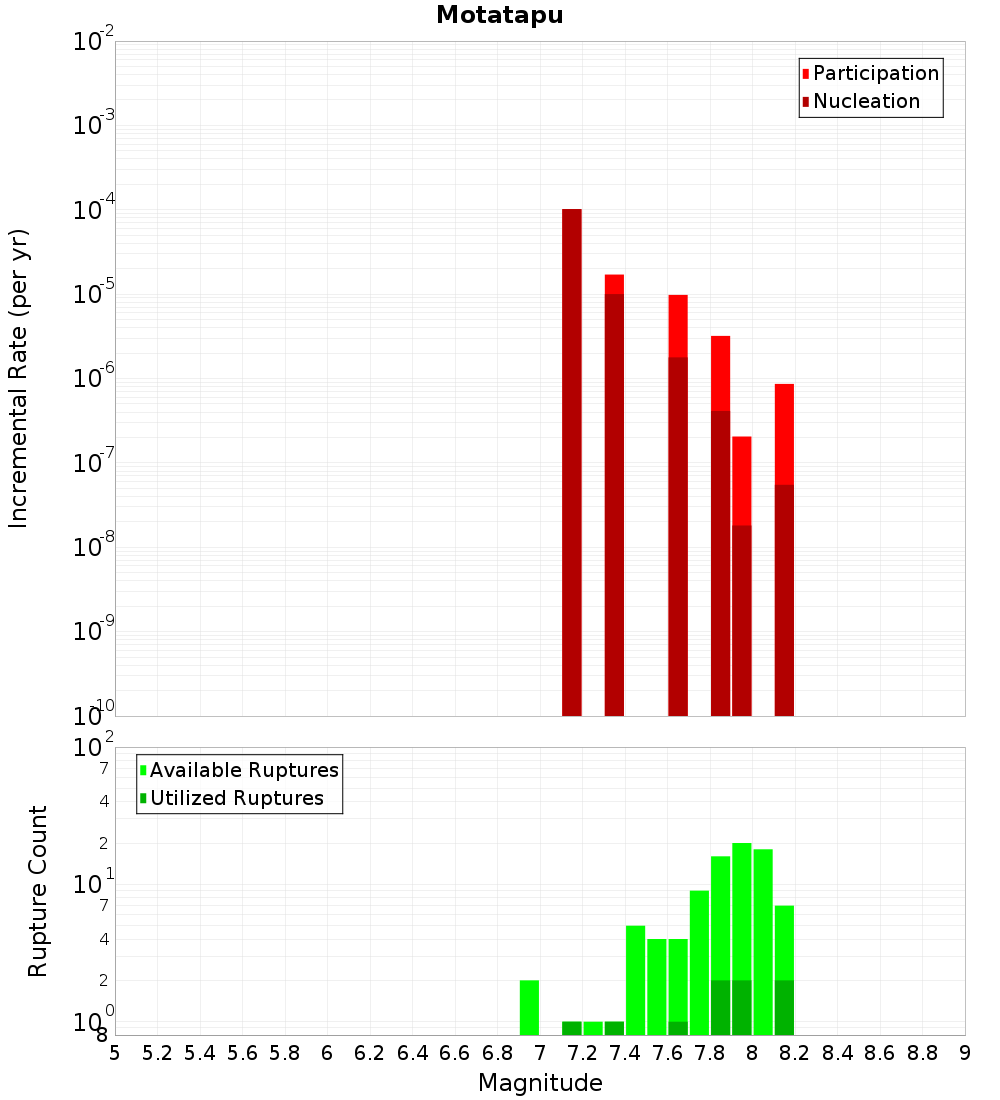

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

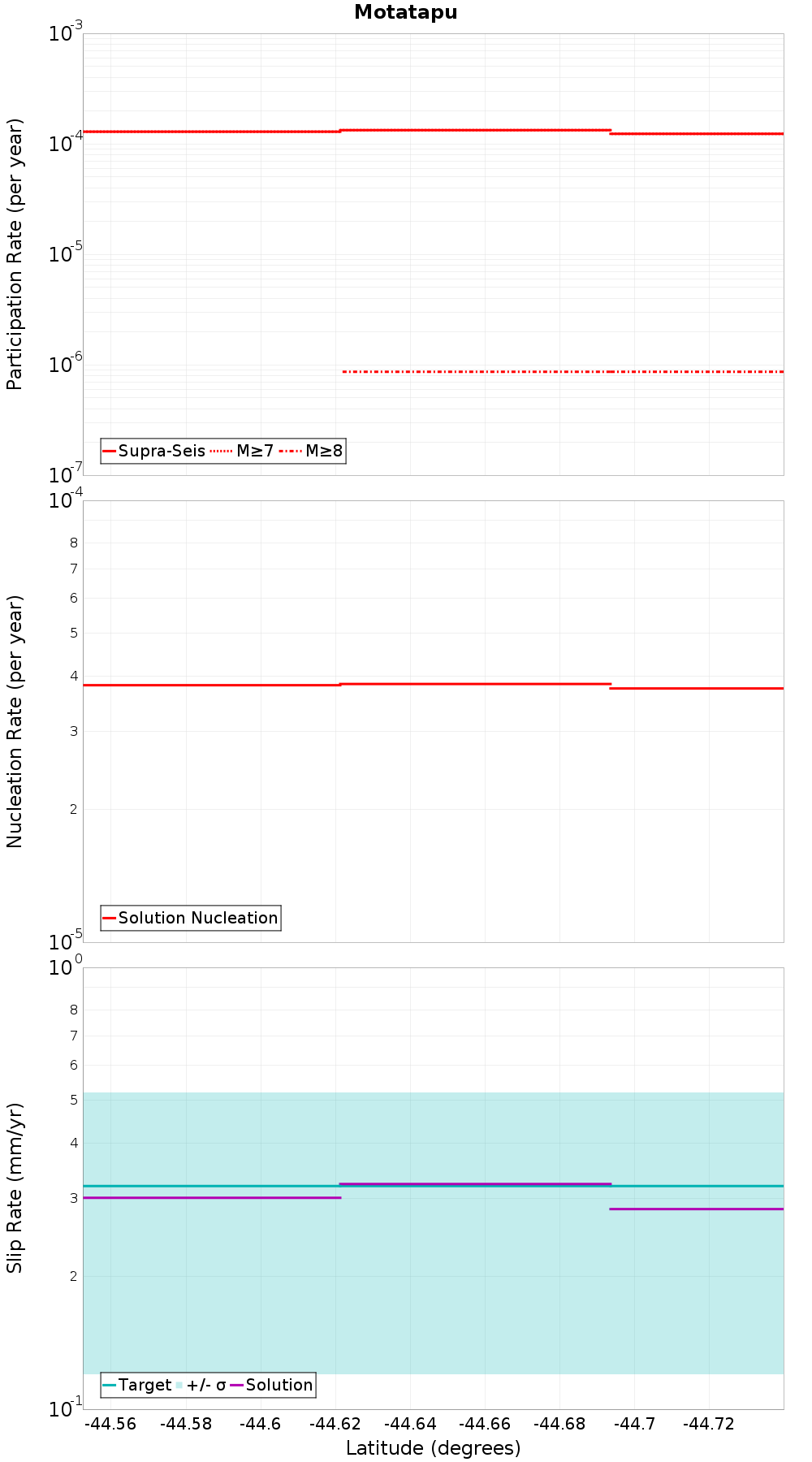

Along-Strike Values

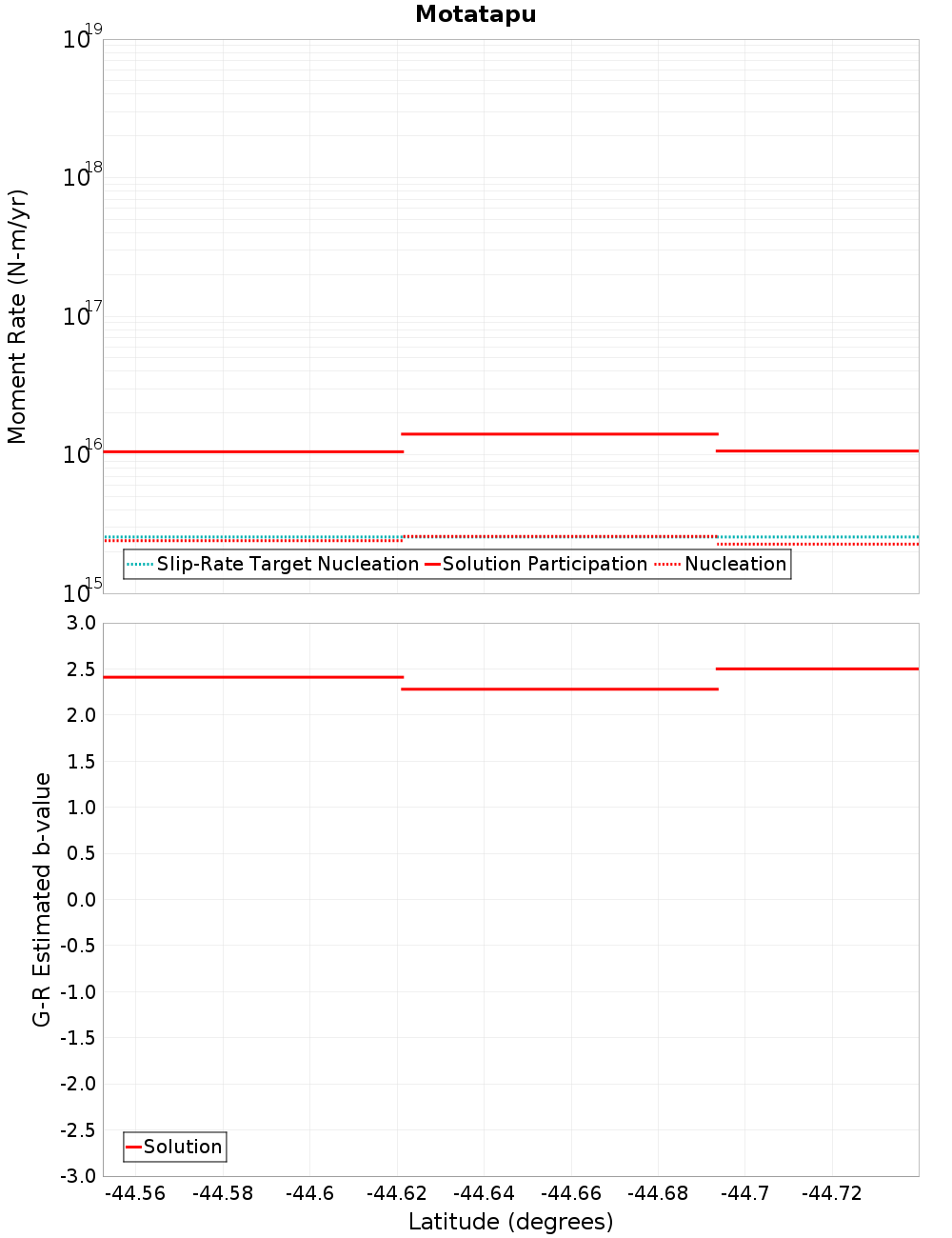

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
NW Cardrona North, 0.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODEuMDZ1OFc0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 1.7062384E-5 |
Pisa, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODEuMDZ1OFc0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 79 |
| Co-rupture Rate | 4.267509E-6 |
Cardrona - Hawea, 0.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODEuMDZ1OFc0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wanaka, 1.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODEuMDZ1OFc0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hunter Valley, 6.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODEuMDZ1OFc0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Timaru Creek, 7.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODEuMDZ1OFc0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Cluden, 8.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODEuMDZ1OFc0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Paddys Ridge, 10.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODEuMDZ1OFc0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5 |
| Co-rupture Rate | 9.791521E-6 |
Grandview, 11.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODEuMDZ1OFc0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 11 |
| Co-rupture Rate | 0.0 |
NW Cardrona South, 11.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODEuMDZ1OFc0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 3.085836E-6 |
Roaring Meg, 13.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODEuMDZ1OFc0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Dingle, 17.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODEuMDZ1OFc0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Dromedary, 17.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODEuMDZ1OFc0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
Moonlight North, 19.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODEuMDZ1OFc0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
