Rangitaiki 1 Details

PropertyValue
Rupture Count451
Ruptures Above Sect Min Mag451
Ruptures w/ Nonzero Rates40
Magnitude Range[6.52, 7.50]
Length Range[9, 109] km
Total Rate2.1388363E-4 /yr
Multi-Fault Rate2.1388363E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults25

Table Of Contents

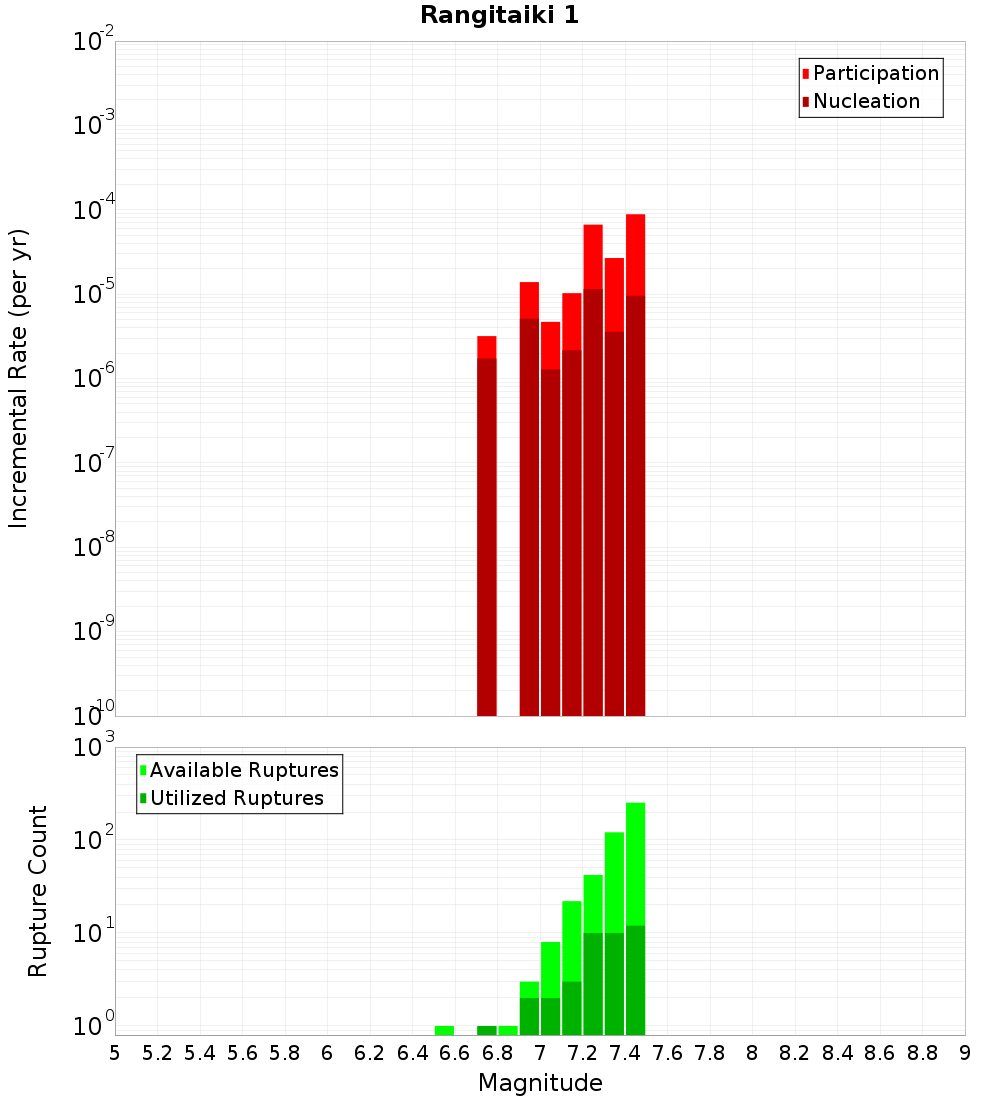

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Rangitaiki 2, 0.74 km away
White Island 1, 2 km away
Ohiwa 1, 8.72 km away
Edgecumbe Coastal, 8.81 km away
Matata, 9.11 km away
White Island 2, 9.3 km away
Waimana: North, 10.53 km away
Whakaari 4, 10.86 km away
Otakiri, 10.94 km away
Whakatane: North, 11.12 km away
Waimanawa - Waikaremoana, 12.26 km away
Waiotahi: North, 13.71 km away
Calypso 2, 14.65 km away
Edgecumbe 1987, 15.01 km away
Awakeri, 16.13 km away

Rangitaiki 2, 0.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODkuMFREWUdR
Connected?true
Directly Connected?true
Co-rupture Count401
Co-rupture Rate1.7925318E-4

White Island 1, 2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODkuMFREWUdR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohiwa 1, 8.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODkuMFREWUdR
Connected?true
Directly Connected?false
Co-rupture Count112
Co-rupture Rate1.2682183E-4

Edgecumbe Coastal, 8.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODkuMFREWUdR
Connected?true
Directly Connected?true
Co-rupture Count400
Co-rupture Rate2.1388363E-4

Matata, 9.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODkuMFREWUdR
Connected?true
Directly Connected?false
Co-rupture Count98
Co-rupture Rate4.4107466E-5

White Island 2, 9.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODkuMFREWUdR
Connected?true
Directly Connected?false
Co-rupture Count95
Co-rupture Rate1.7554803E-5

Waimana: North, 10.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODkuMFREWUdR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakaari 4, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODkuMFREWUdR
Connected?true
Directly Connected?false
Co-rupture Count180
Co-rupture Rate1.5386619E-5

Otakiri, 10.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODkuMFREWUdR
Connected?true
Directly Connected?false
Co-rupture Count29
Co-rupture Rate1.6013128E-5

Whakatane: North, 11.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODkuMFREWUdR
Connected?true
Directly Connected?false
Co-rupture Count54
Co-rupture Rate9.2723356E-5

Waimanawa - Waikaremoana, 12.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODkuMFREWUdR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: North, 13.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODkuMFREWUdR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODkuMFREWUdR
Connected?true
Directly Connected?false
Co-rupture Count63
Co-rupture Rate2.1240128E-5

Edgecumbe 1987, 15.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODkuMFREWUdR
Connected?true
Directly Connected?false
Co-rupture Count72
Co-rupture Rate1.8858671E-5

Awakeri, 16.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxODkuMFREWUdR
Connected?true
Directly Connected?false
Co-rupture Count90
Co-rupture Rate2.8015827E-5
