Drury Details

PropertyValue
Rupture Count8
Ruptures Above Sect Min Mag7
Ruptures w/ Nonzero Rates3
Magnitude Range[6.65, 7.16]
Length Range[15, 47] km
Total Rate6.663941E-6 /yr
Multi-Fault Rate1.6425723E-6 /yr (24.65%)
Directly-Connected Faults2
All Co-Rupturing Faults2

Table Of Contents

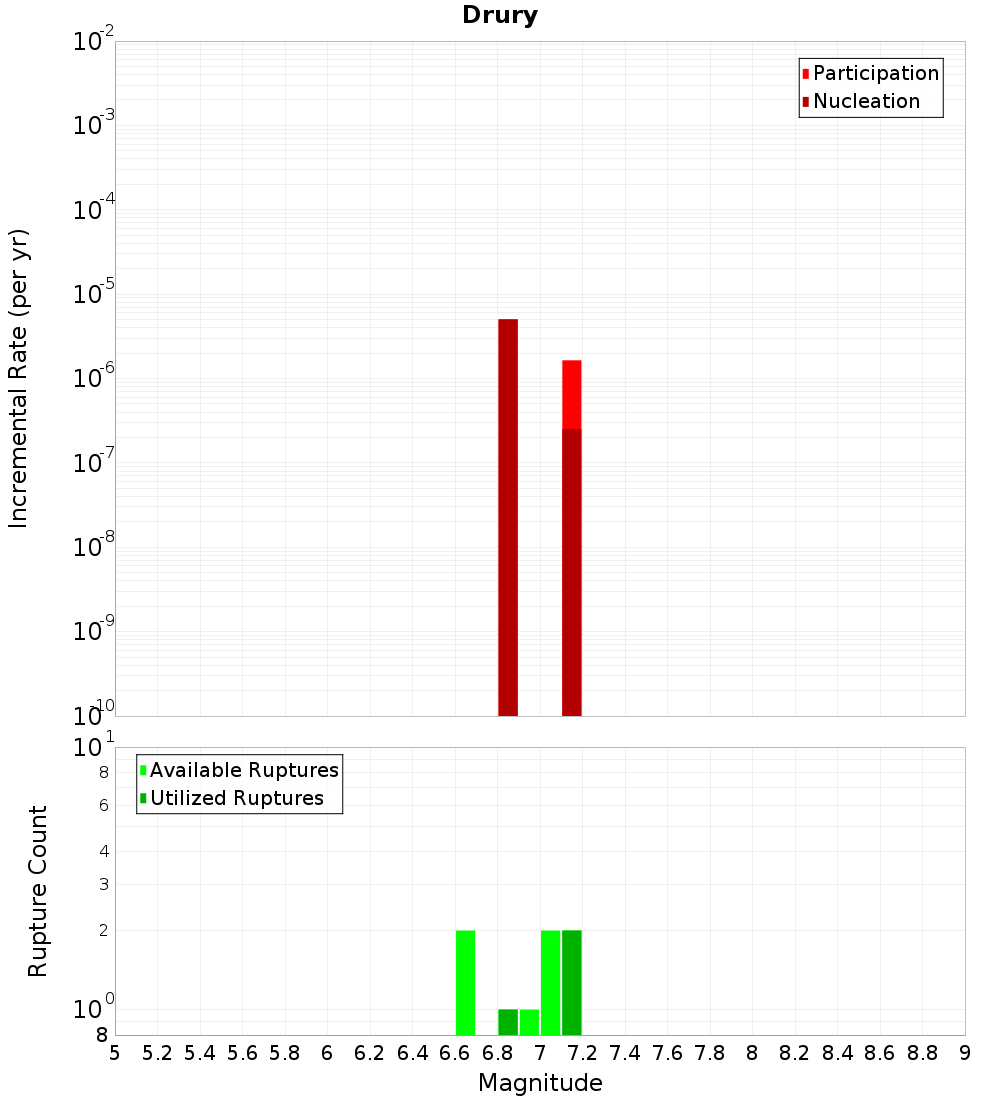

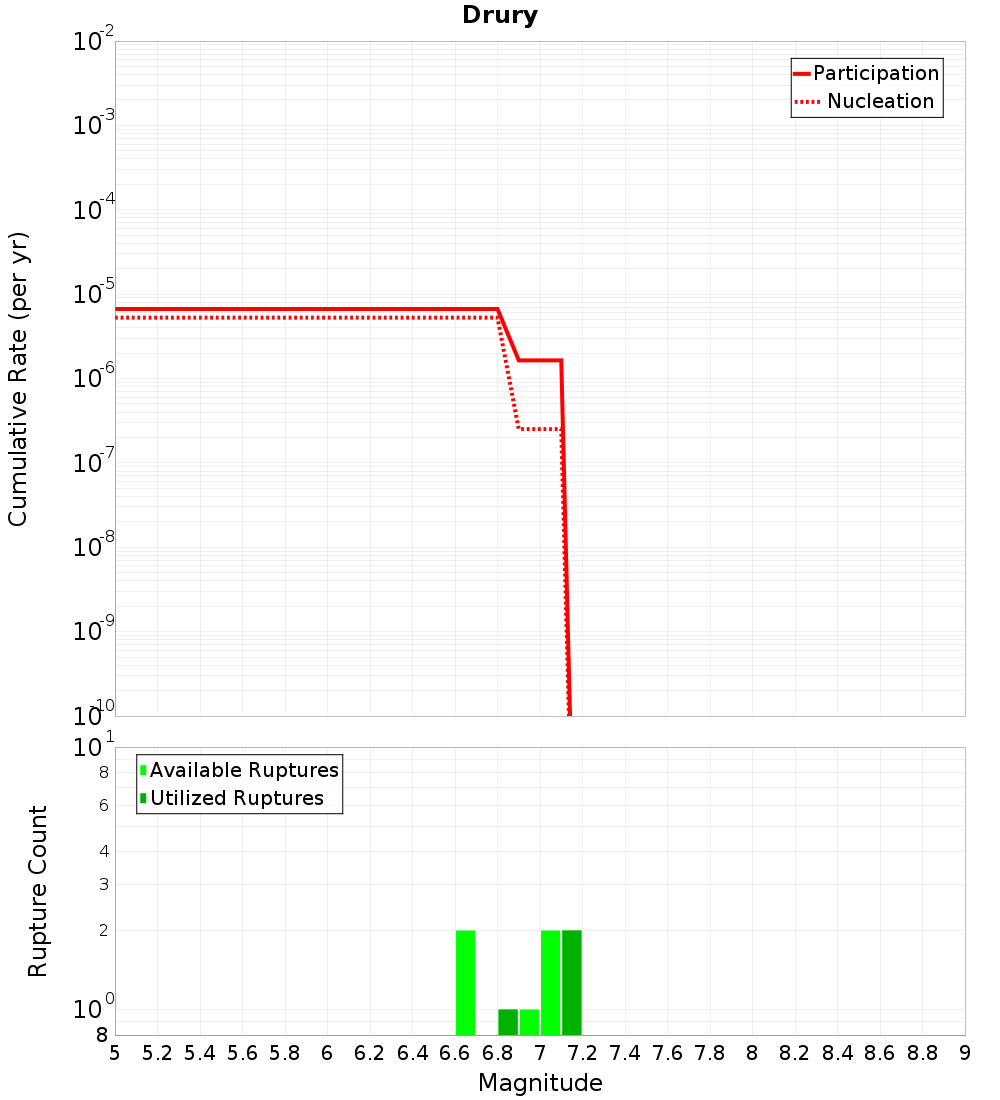

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

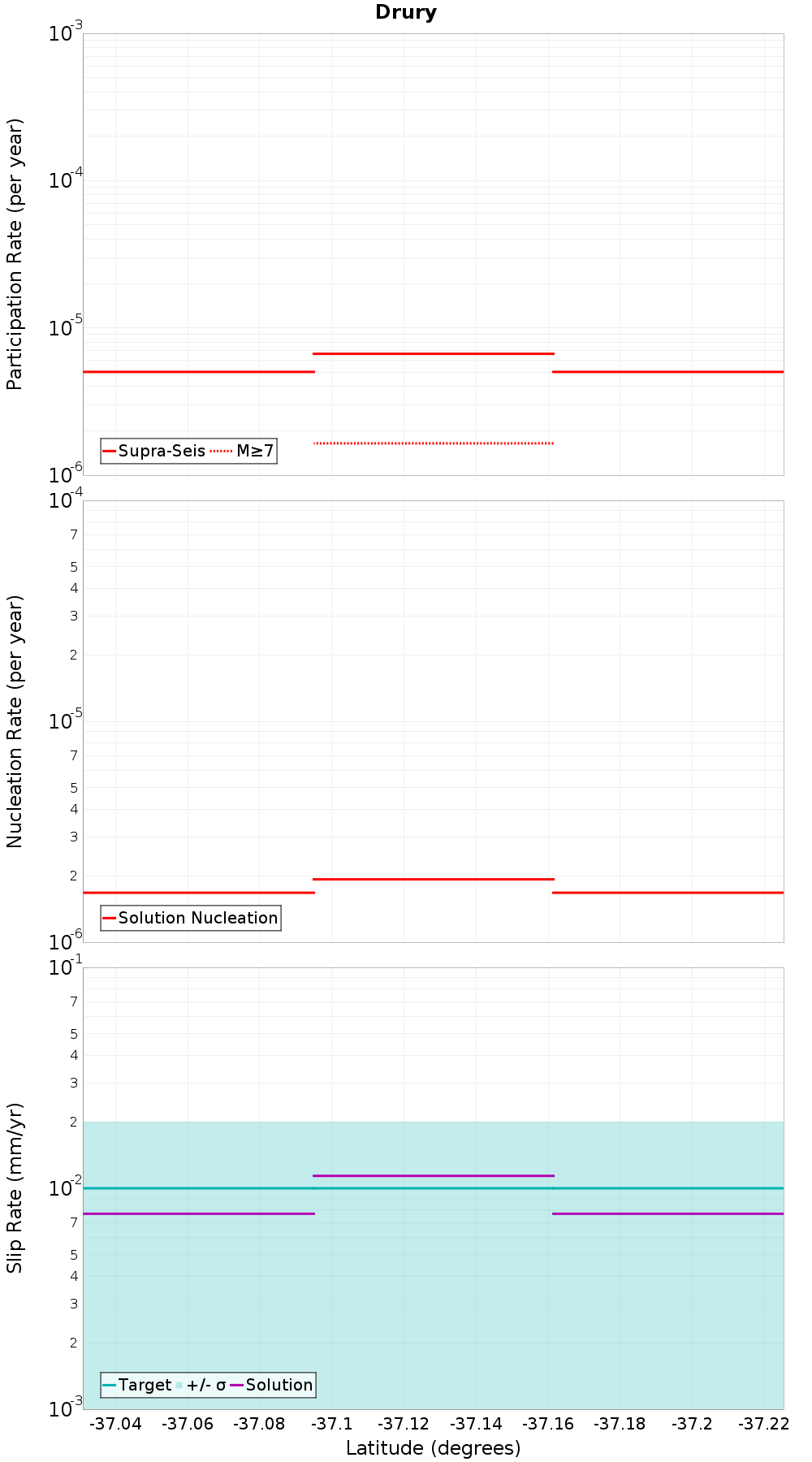

Along-Strike Values

(top)

Along-strike plot

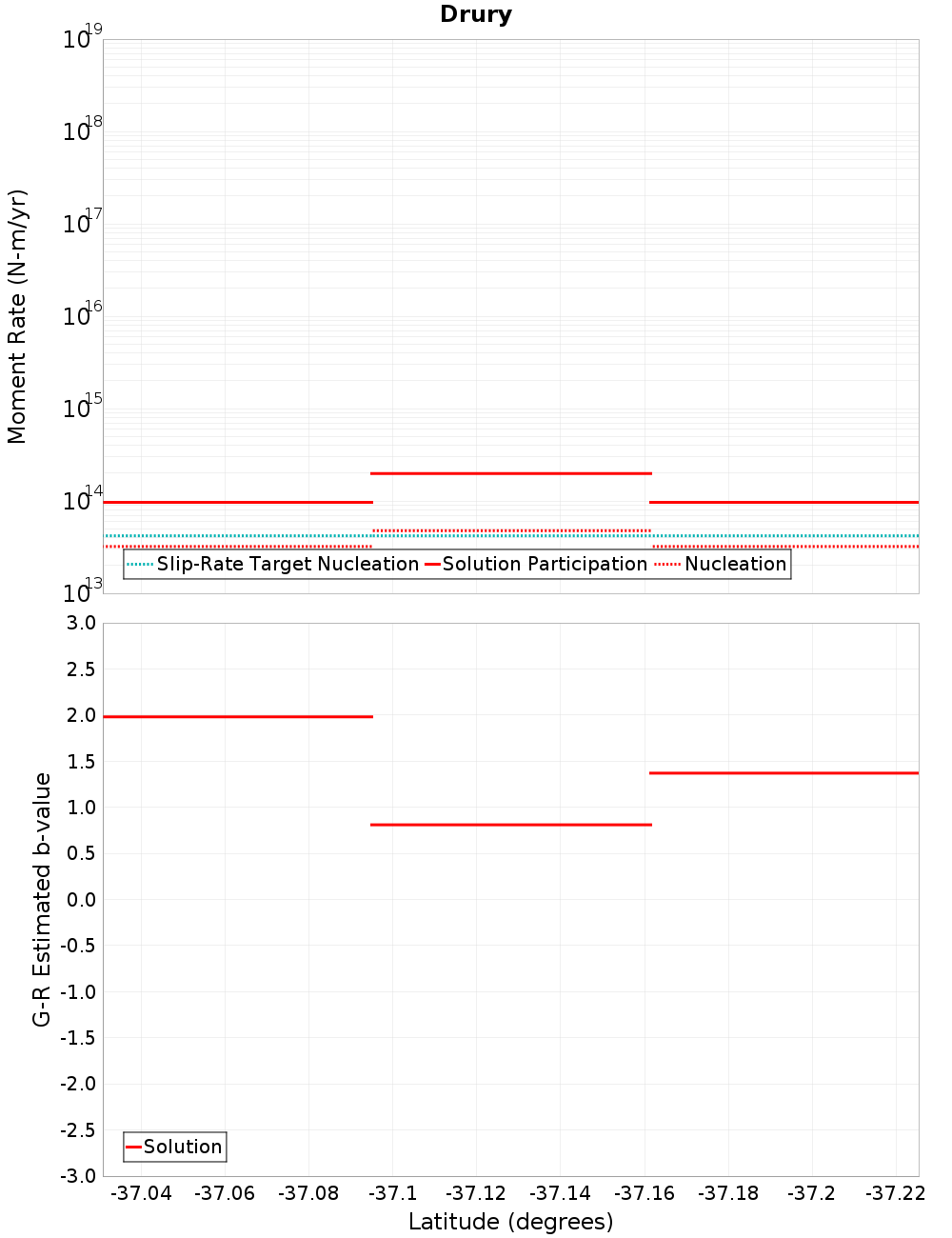

Moment-Rates and b-Values

(top)

Along-strike plot

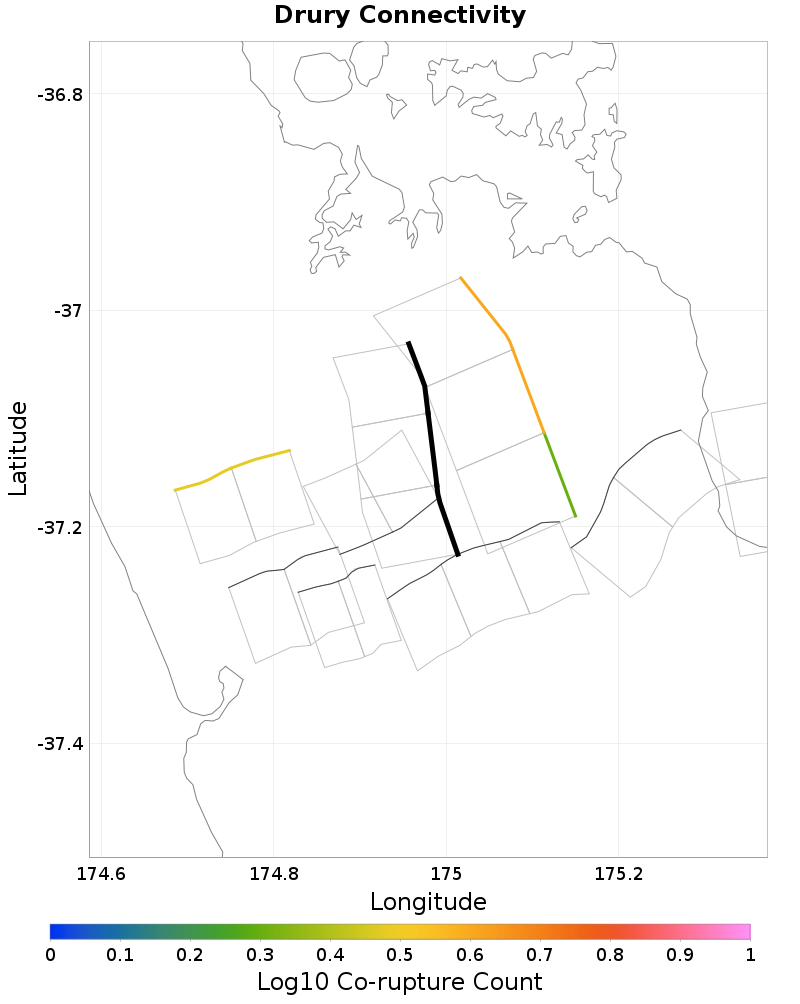

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
St Stephens, 0.1 km away
Pokeno, 0.15 km away
Aka Aka, 5.03 km away
Glenbrook, 5.17 km away
Pukekohe, 5.32 km away
Wairoa North, 5.5 km away
Mangatangi, 11.66 km away

St Stephens, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pokeno, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Aka Aka, 5.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Glenbrook, 5.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate1.6423221E-6

Pukekohe, 5.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairoa North, 5.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate1.6425723E-6

Mangatangi, 11.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
