Edgecumbe 1987 Details

Property	Value
Rupture Count	6,234
Ruptures Above Sect Min Mag	6,234
Ruptures w/ Nonzero Rates	236
Magnitude Range	[6.79, 7.80]
Length Range	[20, 210] km
Total Rate	2.3740133E-4 /yr
Multi-Fault Rate	2.3740133E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	45

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

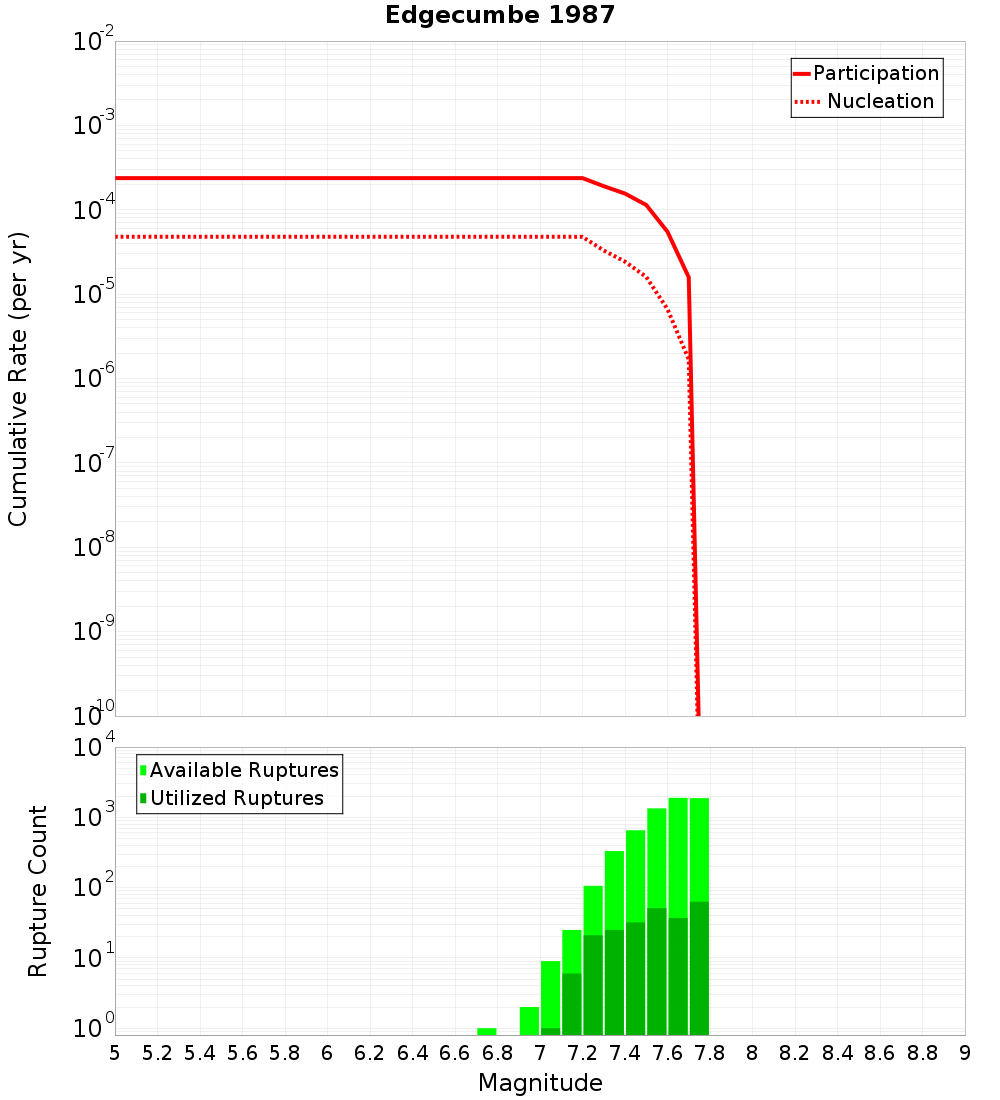

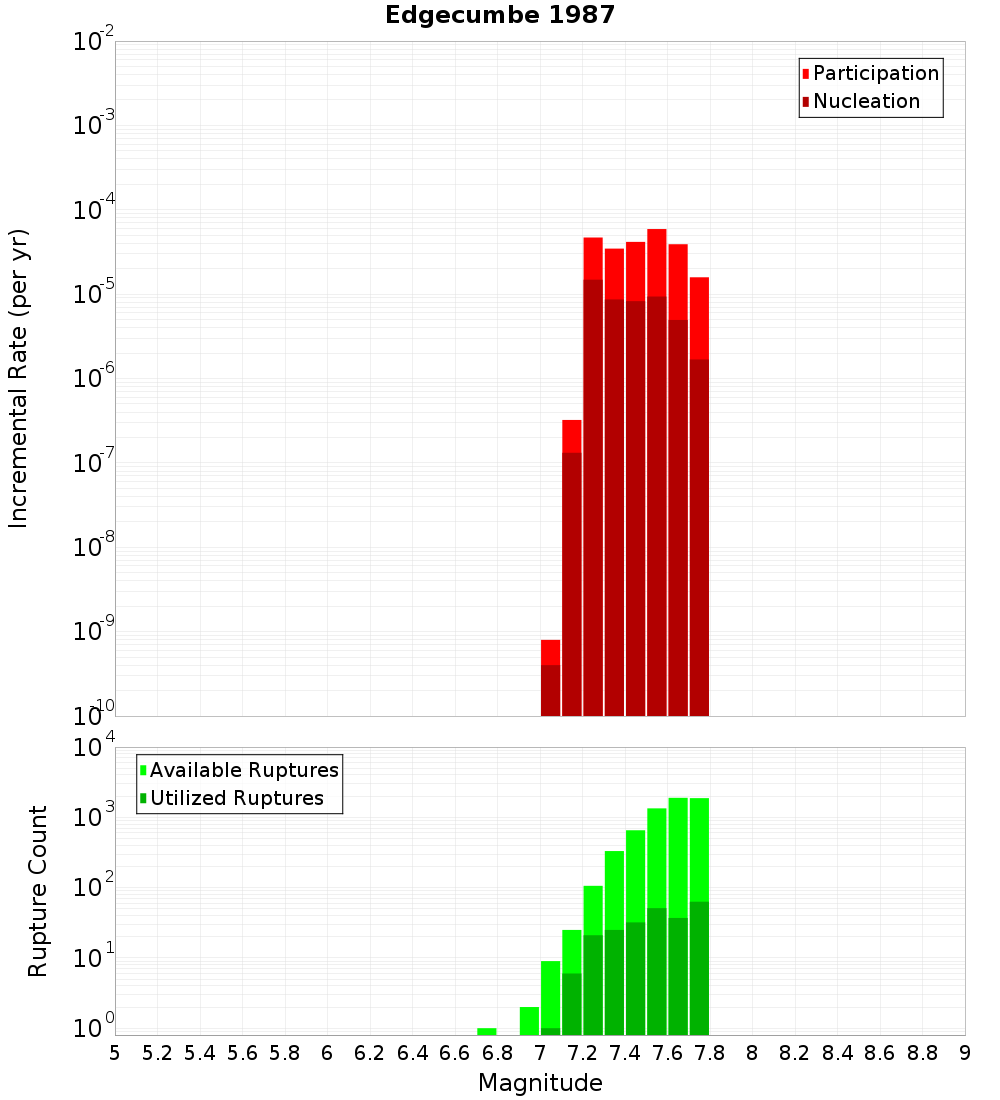

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

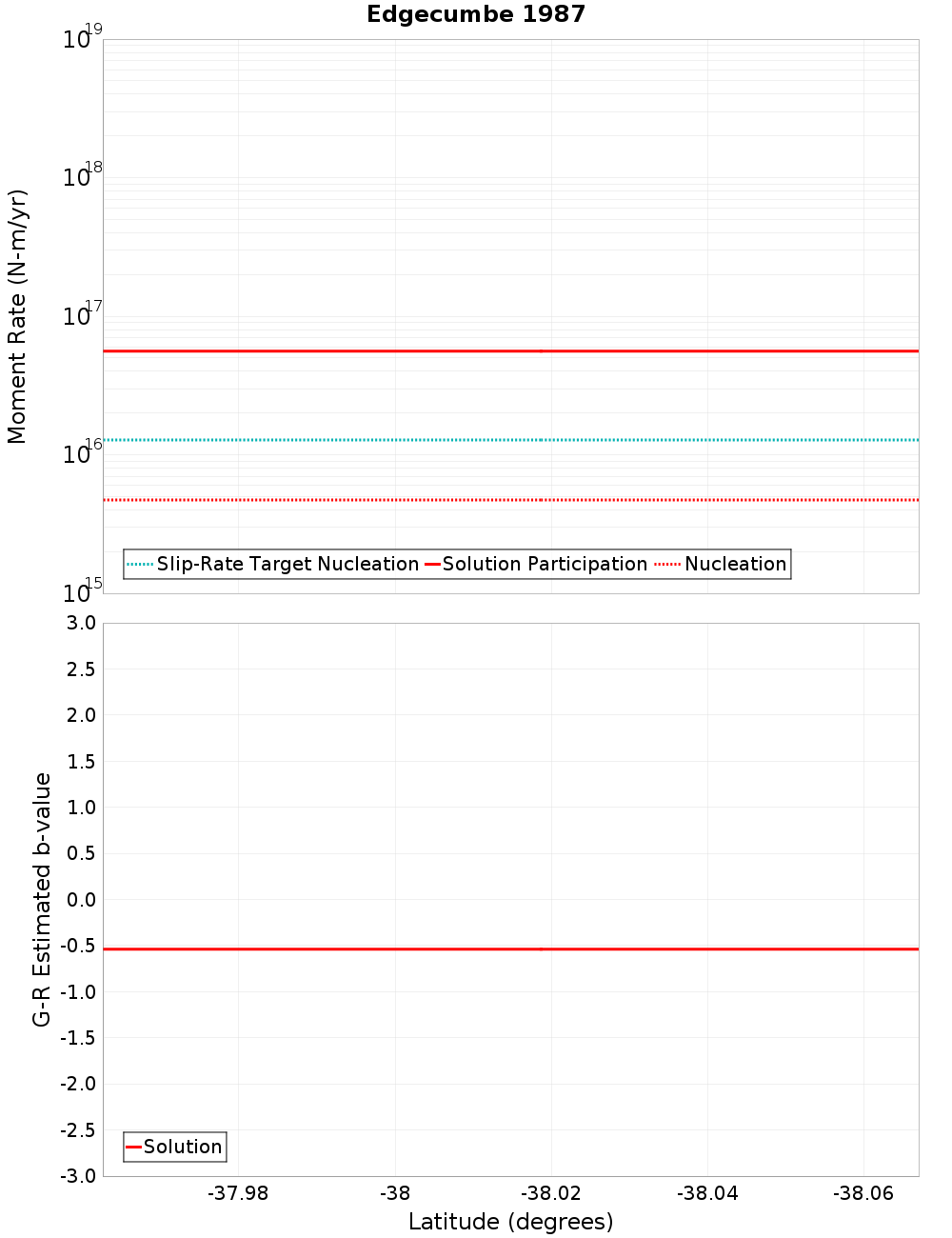

Moment-Rates and b-Values

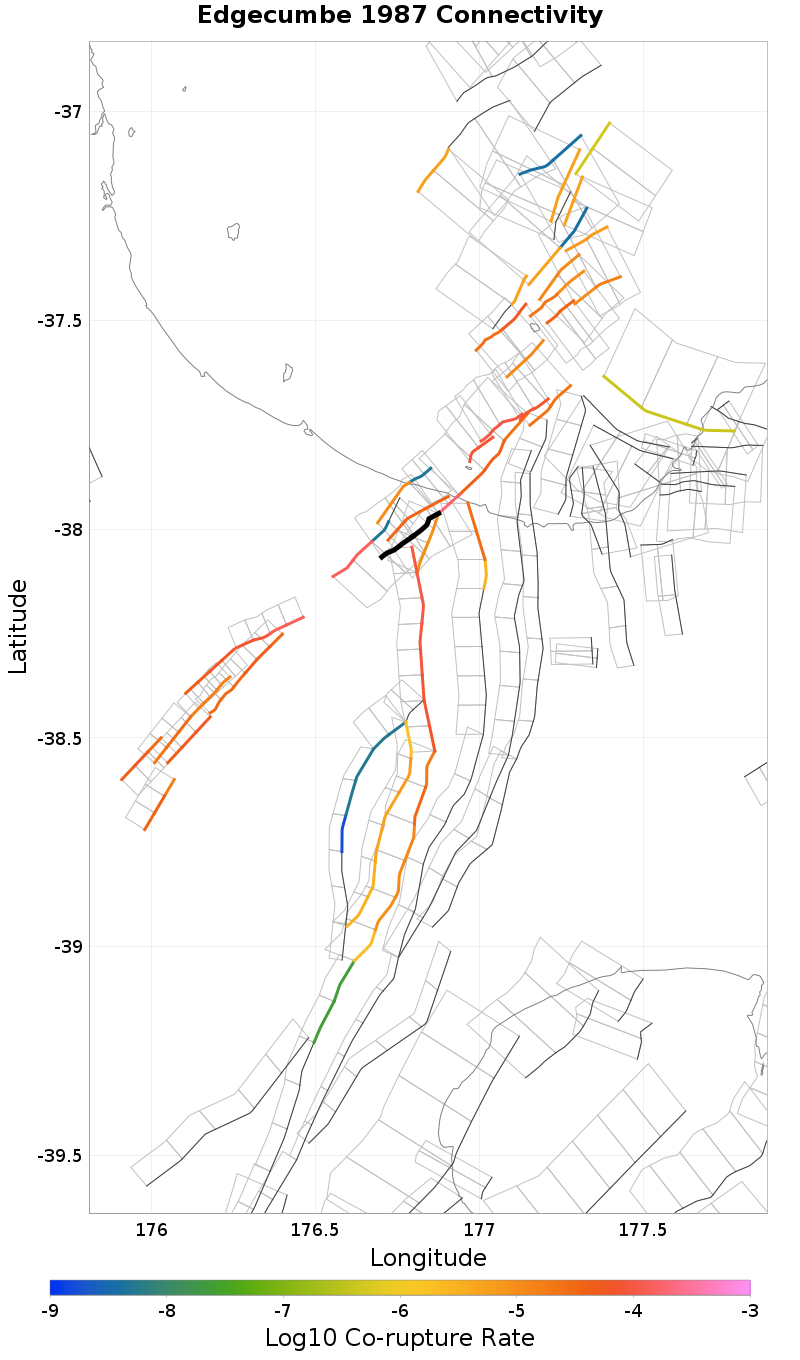

Connectivity

Nearby Sections

Fault Section
Awakeri, 0 km away
Edgecumbe Coastal, 0 km away
Otakiri, 0.19 km away
Matata, 0.29 km away
Braemar, 0.32 km away
Waiohau: North, 2.18 km away
White Island 1, 4.49 km away
Whakatane: North, 7.15 km away
Rangitaiki 1, 15.01 km away

Awakeri, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	true
Directly Connected?	false
Co-rupture Count	351
Co-rupture Rate	9.630375E-6

Edgecumbe Coastal, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	true
Directly Connected?	true
Co-rupture Count	4,731
Co-rupture Rate	2.0971251E-4

Otakiri, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	true
Directly Connected?	false
Co-rupture Count	114
Co-rupture Rate	3.698418E-5

Matata, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	true
Directly Connected?	false
Co-rupture Count	388
Co-rupture Rate	1.0812798E-5

Braemar, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	true
Directly Connected?	true
Co-rupture Count	2,611
Co-rupture Rate	1.358672E-4

Waiohau: North, 2.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	true
Directly Connected?	true
Co-rupture Count	3,657
Co-rupture Rate	1.0812145E-4

White Island 1, 4.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	true
Directly Connected?	true
Co-rupture Count	4,656
Co-rupture Rate	3.974601E-5

Whakatane: North, 7.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	true
Directly Connected?	false
Co-rupture Count	36
Co-rupture Rate	2.8965855E-5

Rangitaiki 1, 15.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	true
Directly Connected?	false
Co-rupture Count	626
Co-rupture Rate	8.072704E-5
