Kaiapo Details
| Property | Value |
|---|---|
| Rupture Count | 1,105 |
| Ruptures Above Sect Min Mag | 1,102 |
| Ruptures w/ Nonzero Rates | 234 |
| Magnitude Range | [6.29, 7.79] |
| Length Range | [10, 210] km |
| Total Rate | 7.602861E-4 /yr |
| Multi-Fault Rate | 7.602861E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 27 |
Table Of Contents

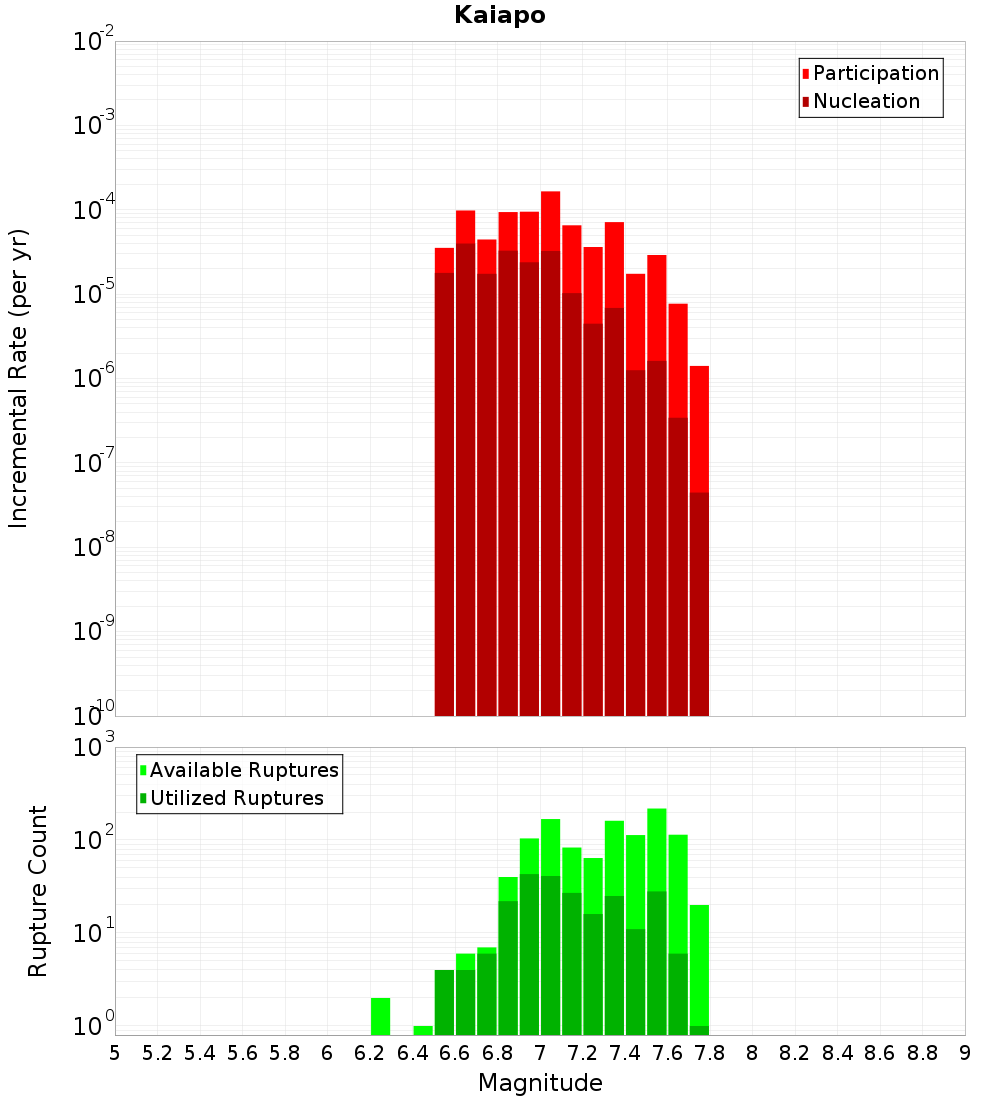

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

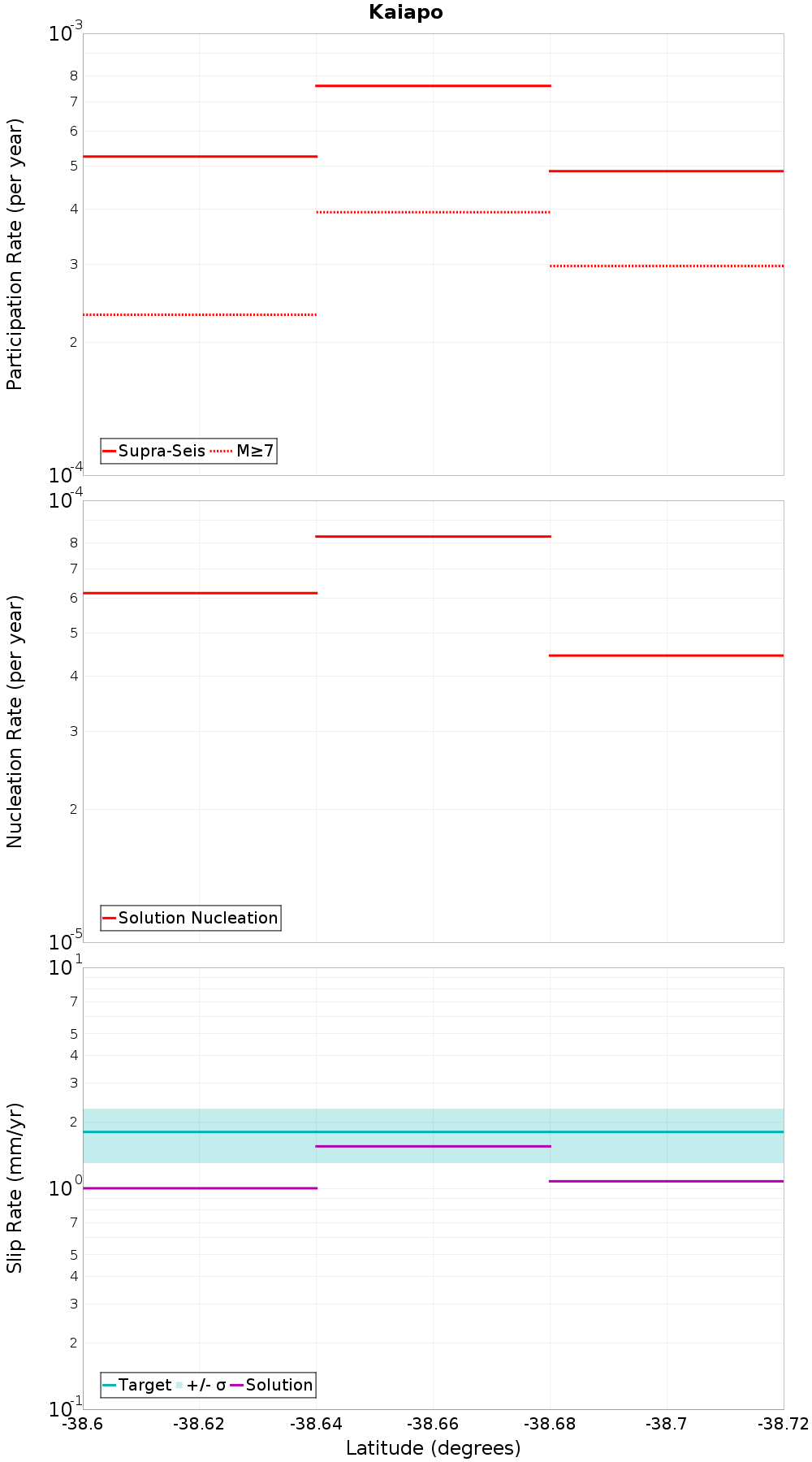

Along-Strike Values

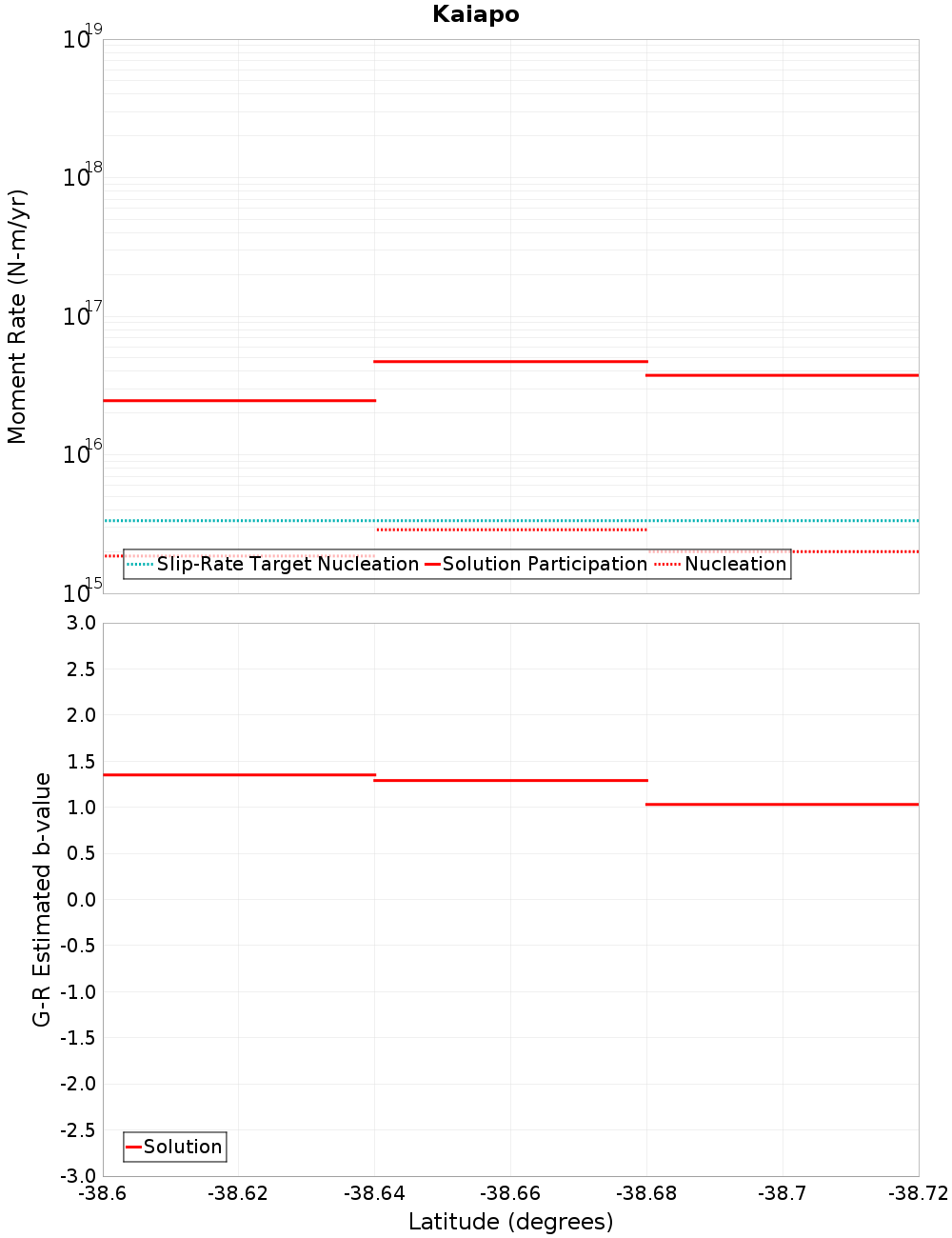

Moment-Rates and b-Values

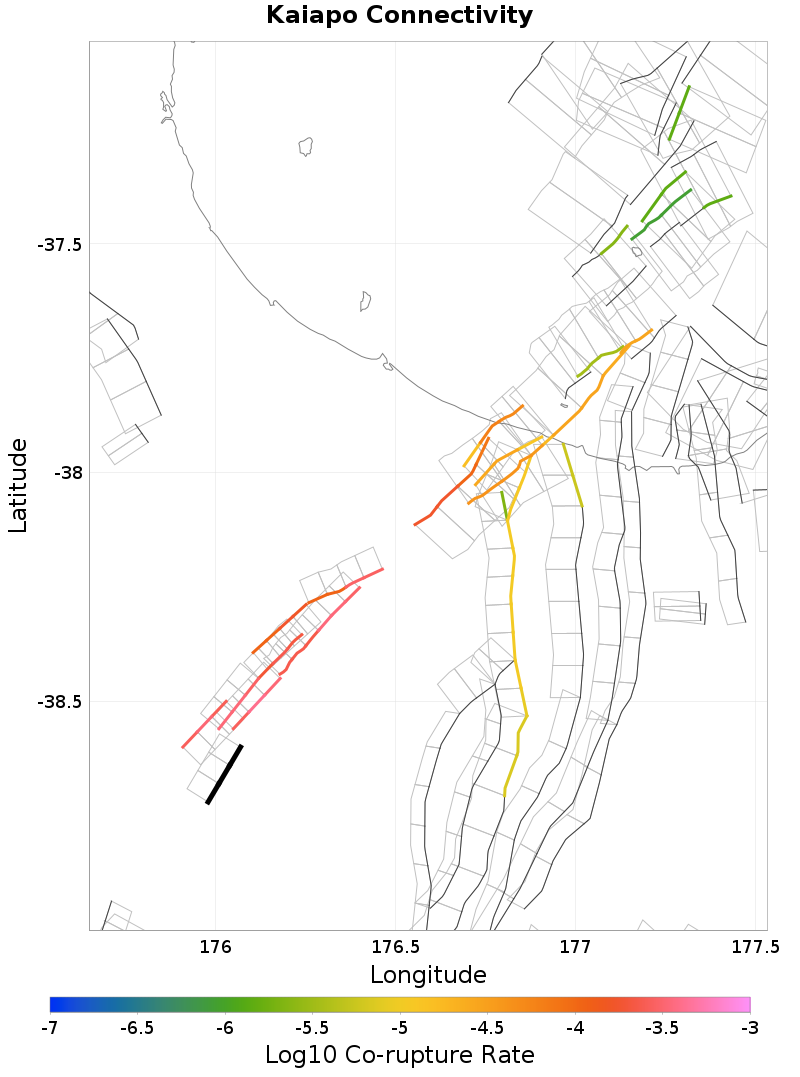

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Whangamata West, 0.25 km away |
| Orakeikorako, 4.37 km away |
| Puketerata, 5.96 km away |
| Puketerata North, 17.13 km away |
| Maleme, 19.42 km away |
Whangamata West, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 733 |
| Co-rupture Rate | 3.2804318E-4 |
Orakeikorako, 4.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 870 |
| Co-rupture Rate | 4.09354E-4 |
Puketerata, 5.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 276 |
| Co-rupture Rate | 3.3846244E-4 |
Puketerata North, 17.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 358 |
| Co-rupture Rate | 2.3842137E-4 |
Maleme, 19.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 762 |
| Co-rupture Rate | 2.0029765E-4 |
