North Canterbury Shelf 4 Details

PropertyValue
Rupture Count102
Ruptures Above Sect Min Mag101
Ruptures w/ Nonzero Rates8
Magnitude Range[6.61, 7.80]
Length Range[15, 208] km
Total Rate2.2736325E-5 /yr
Multi-Fault Rate2.2736325E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults10

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

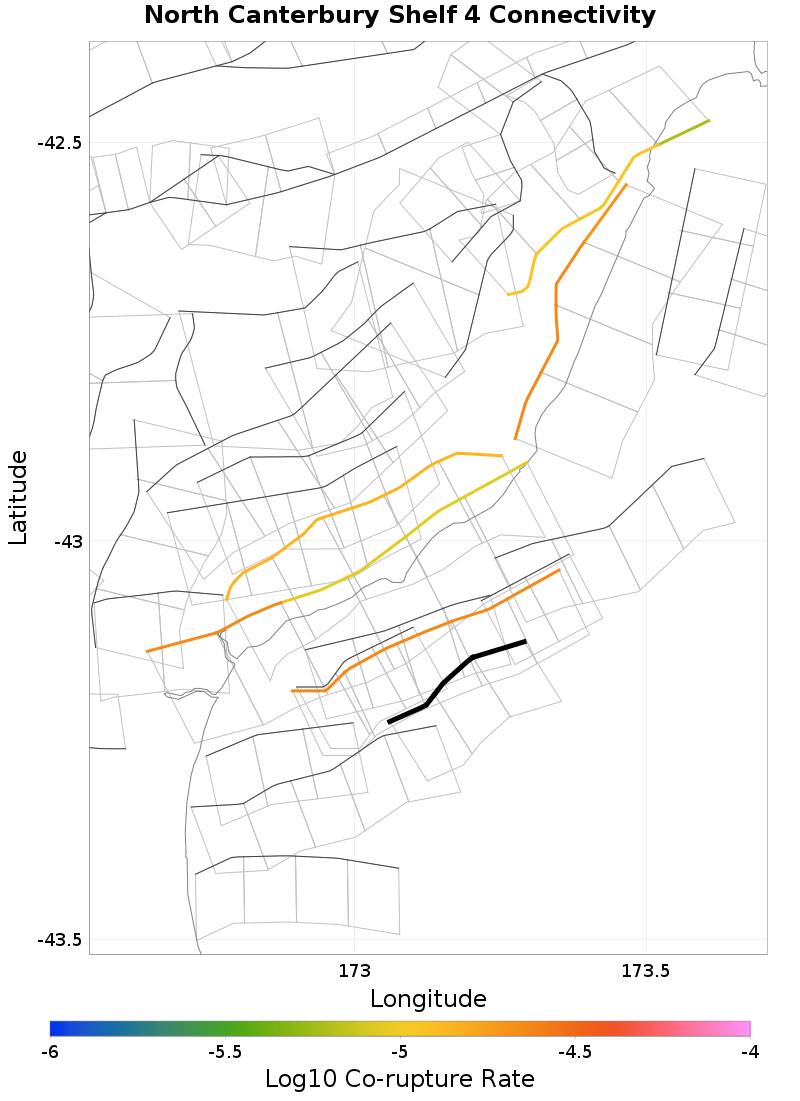

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pegasus Bay, 1.54 km away
Leithfield - NCVI - NCVII, 4.53 km away
Waikuku, 5.12 km away
North Canterbury Shelf 11, 5.86 km away
Motunau, 6 km away
North Canterbury Shelf 2, 7.11 km away
Point Gibson, 10.06 km away
AmberBlyth, 12.25 km away
CenPeg1n2, 17.71 km away
OmihiLwrHuru, 19.34 km away

Pegasus Bay, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?true
Co-rupture Count45
Co-rupture Rate0.0

Leithfield - NCVI - NCVII, 4.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?true
Co-rupture Count70
Co-rupture Rate2.2736325E-5

Waikuku, 5.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Canterbury Shelf 11, 5.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate0.0

Motunau, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?true
Co-rupture Count28
Co-rupture Rate0.0

North Canterbury Shelf 2, 7.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Point Gibson, 10.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate0.0

AmberBlyth, 12.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate2.2736325E-5

CenPeg1n2, 17.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

OmihiLwrHuru, 19.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate1.38873165E-5
