Puketerata North Details
| Property | Value |
|---|---|
| Rupture Count | 1,666 |
| Ruptures Above Sect Min Mag | 1,663 |
| Ruptures w/ Nonzero Rates | 191 |
| Magnitude Range | [6.22, 7.80] |
| Length Range | [10, 210] km |
| Total Rate | 7.521739E-4 /yr |
| Multi-Fault Rate | 7.521739E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 28 |
Table Of Contents

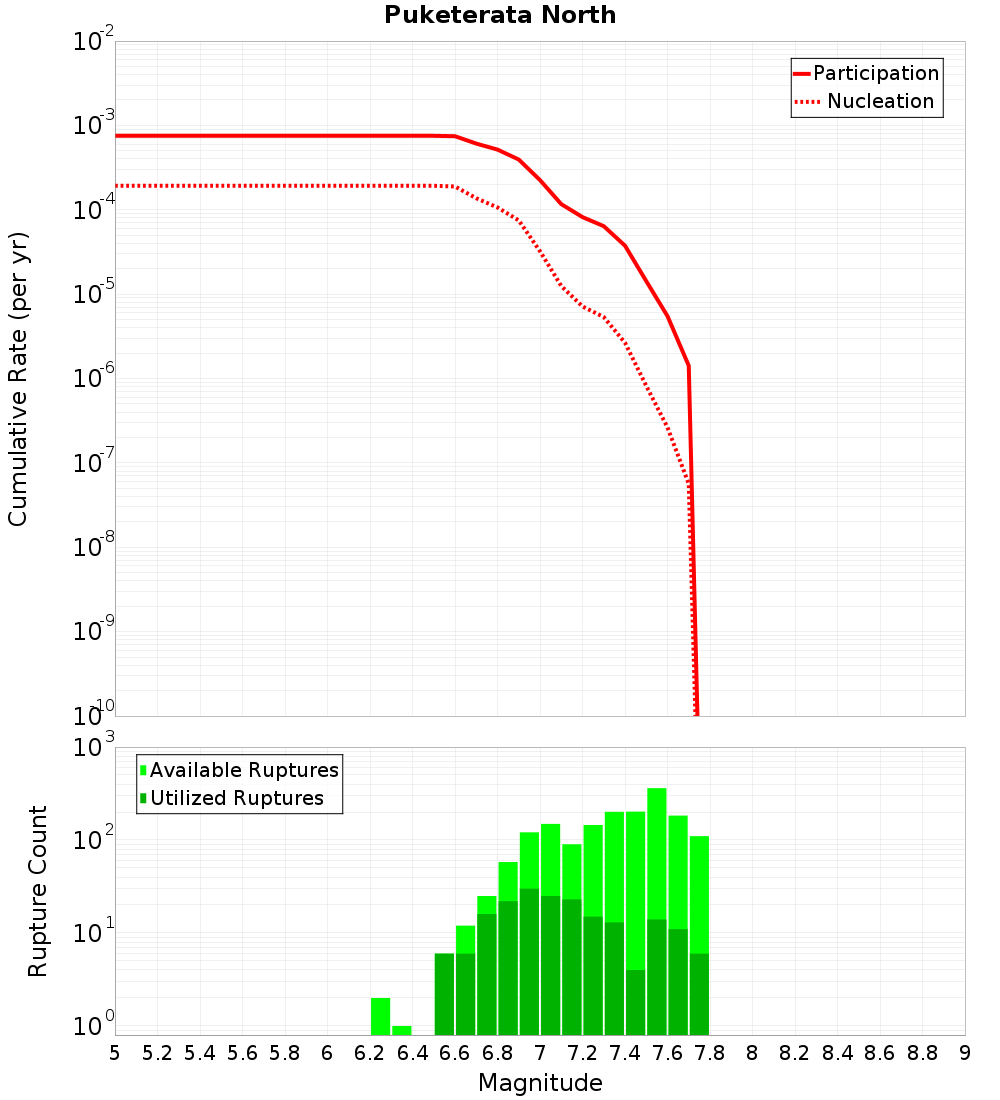

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

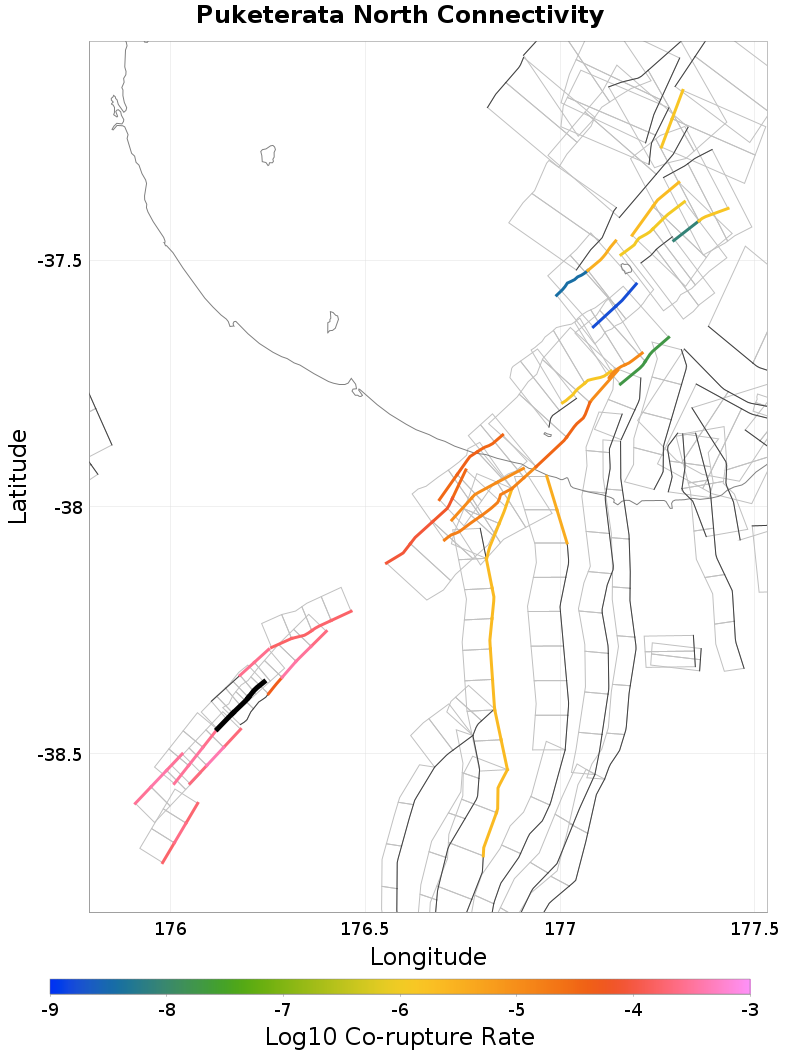

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Puketerata, 0.1 km away |
| Maleme, 0.15 km away |
| Paeroa, 2.13 km away |
| Orakeikorako, 3.3 km away |
| EarthquakeFlat - Tumunui, 7.65 km away |
| Whangamata West, 9.6 km away |
| Kaiapo, 17.13 km away |
Puketerata, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 657 |
| Co-rupture Rate | 3.1652086E-4 |
Maleme, 0.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,356 |
| Co-rupture Rate | 2.6132926E-4 |
Paeroa, 2.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 688 |
| Co-rupture Rate | 3.4698416E-4 |
Orakeikorako, 3.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 604 |
| Co-rupture Rate | 4.0364737E-4 |
EarthquakeFlat - Tumunui, 7.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,411 |
| Co-rupture Rate | 2.424948E-4 |
Whangamata West, 9.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 615 |
| Co-rupture Rate | 3.6835764E-4 |
Kaiapo, 17.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 358 |
| Co-rupture Rate | 2.3842137E-4 |
