Rangitaiki 1 Details

Property	Value
Rupture Count	2,001
Ruptures Above Sect Min Mag	2,001
Ruptures w/ Nonzero Rates	183
Magnitude Range	[6.52, 7.80]
Length Range	[9, 201] km
Total Rate	3.3530773E-4 /yr
Multi-Fault Rate	3.3402693E-4 /yr (99.62%)
Directly-Connected Faults	2
All Co-Rupturing Faults	36

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

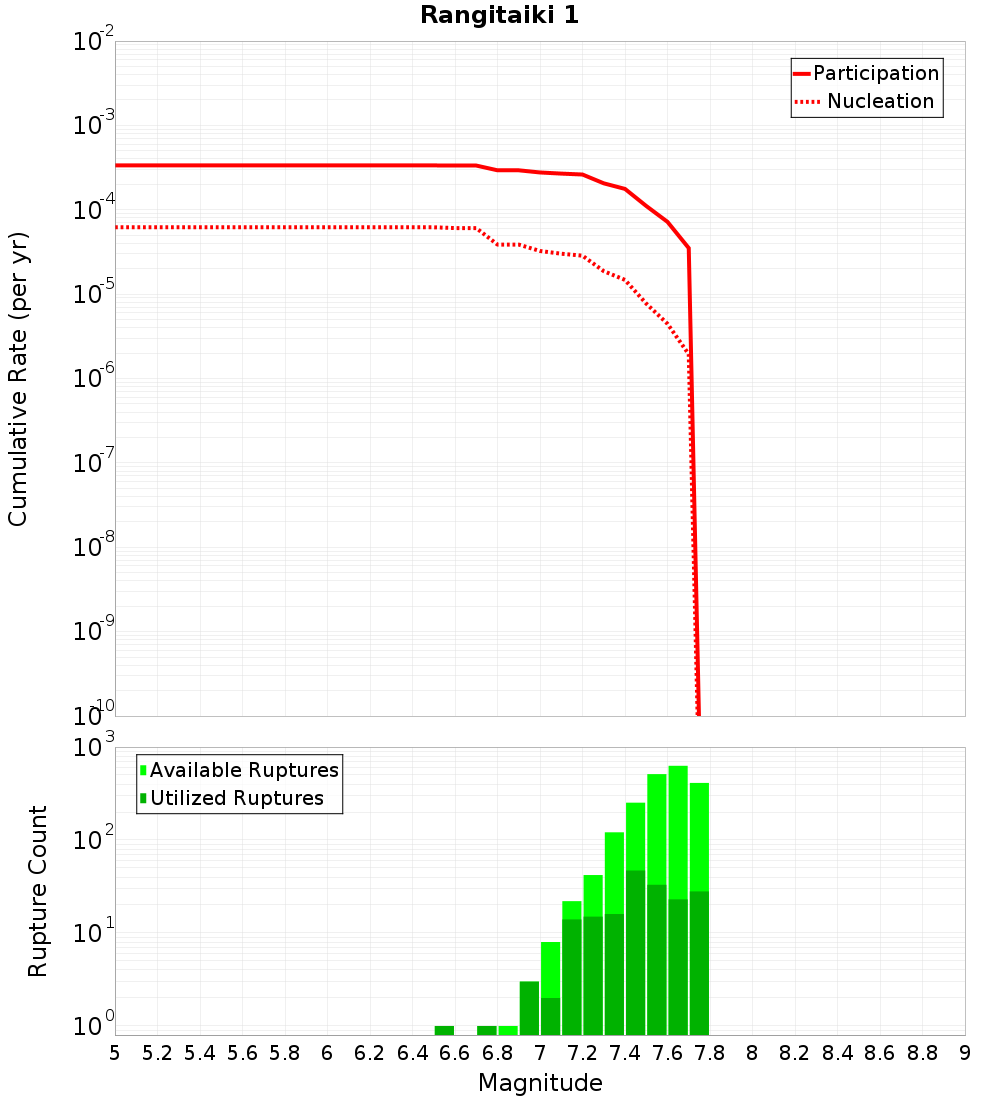

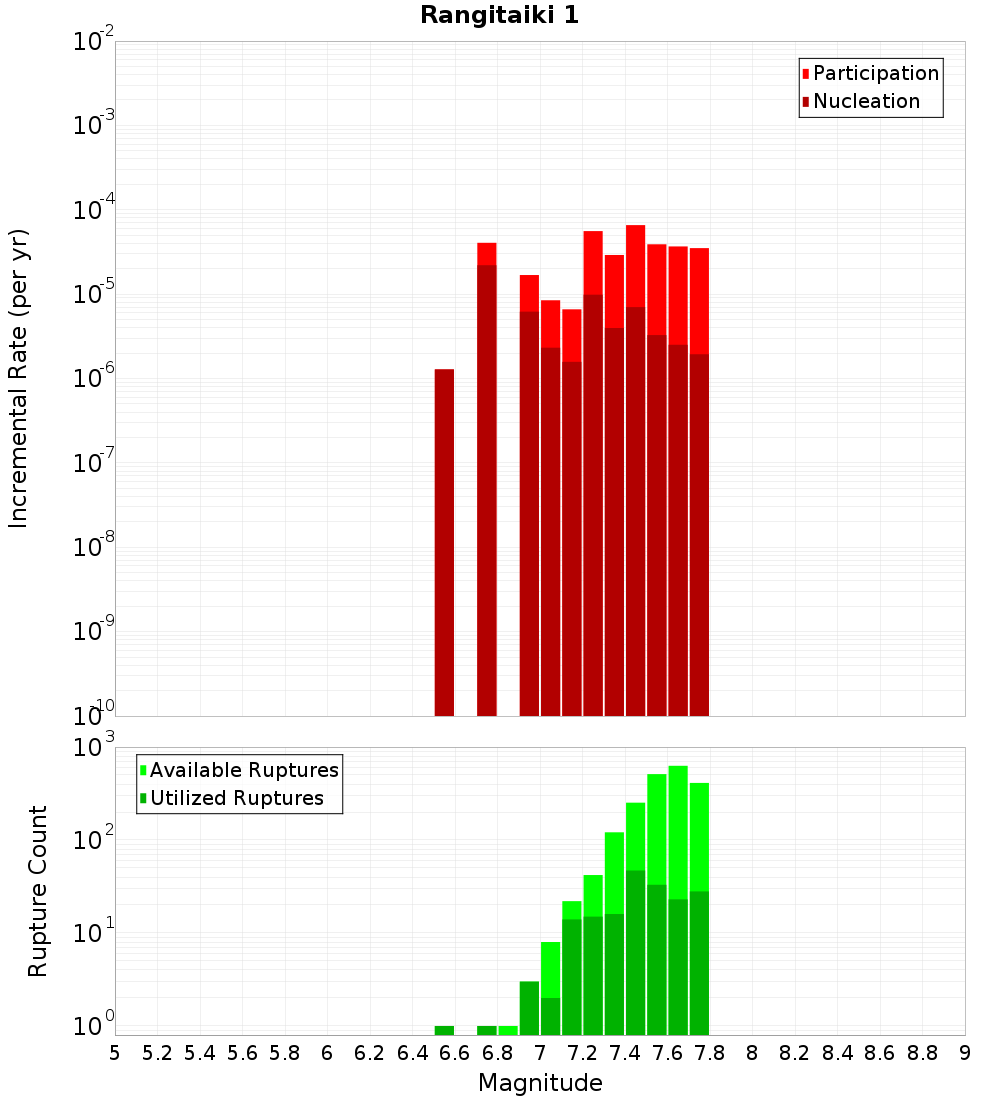

Magnitude-Frequency Distribution

Incremental	Cumulative

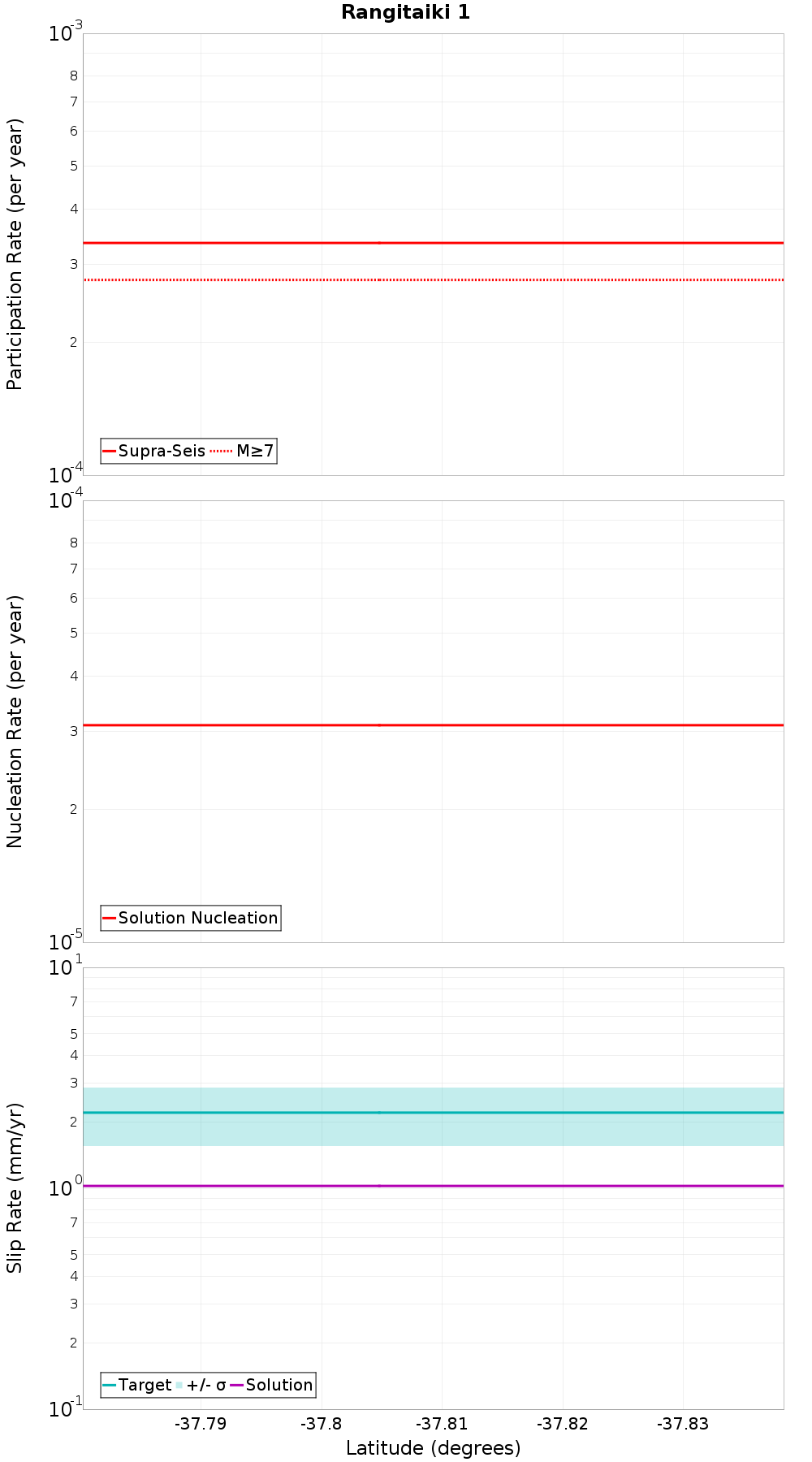

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Rangitaiki 2, 0.74 km away
White Island 1, 2 km away
Ohiwa 1, 8.72 km away
Edgecumbe Coastal, 8.81 km away
Matata, 9.11 km away
White Island 2, 9.3 km away
Waimana: North, 10.53 km away
Whakaari 4, 10.86 km away
Otakiri, 10.94 km away
Whakatane: North, 11.12 km away
Waimanawa - Waikaremoana, 12.26 km away
Waiotahi: North, 13.71 km away
Calypso 2, 14.65 km away
Edgecumbe 1987, 15.01 km away
Awakeri, 16.13 km away

Rangitaiki 2, 0.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	true
Directly Connected?	true
Co-rupture Count	1,905
Co-rupture Rate	2.3634893E-4

White Island 1, 2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohiwa 1, 8.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	true
Directly Connected?	false
Co-rupture Count	511
Co-rupture Rate	1.0839082E-4

Edgecumbe Coastal, 8.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	true
Directly Connected?	true
Co-rupture Count	1,897
Co-rupture Rate	3.3054754E-4

Matata, 9.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	true
Directly Connected?	false
Co-rupture Count	303
Co-rupture Rate	3.451299E-5

White Island 2, 9.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	true
Directly Connected?	false
Co-rupture Count	419
Co-rupture Rate	7.1823306E-5

Waimana: North, 10.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakaari 4, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	true
Directly Connected?	false
Co-rupture Count	1,302
Co-rupture Rate	9.669243E-5

Otakiri, 10.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	true
Directly Connected?	false
Co-rupture Count	41
Co-rupture Rate	3.5243753E-5

Whakatane: North, 11.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	true
Directly Connected?	false
Co-rupture Count	145
Co-rupture Rate	9.696437E-5

Waimanawa - Waikaremoana, 12.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiotahi: North, 13.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Calypso 2, 14.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	true
Directly Connected?	false
Co-rupture Count	169
Co-rupture Rate	5.152164E-5

Edgecumbe 1987, 15.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	true
Directly Connected?	false
Co-rupture Count	626
Co-rupture Rate	8.072704E-5

Awakeri, 16.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?	true
Directly Connected?	false
Co-rupture Count	685
Co-rupture Rate	2.6712698E-5
