Rangitaiki 2 Details

PropertyValue
Rupture Count7,549
Ruptures Above Sect Min Mag7,549
Ruptures w/ Nonzero Rates283
Magnitude Range[6.66, 7.80]
Length Range[13, 207] km
Total Rate3.1446313E-4 /yr
Multi-Fault Rate3.1446313E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults47

Table Of Contents

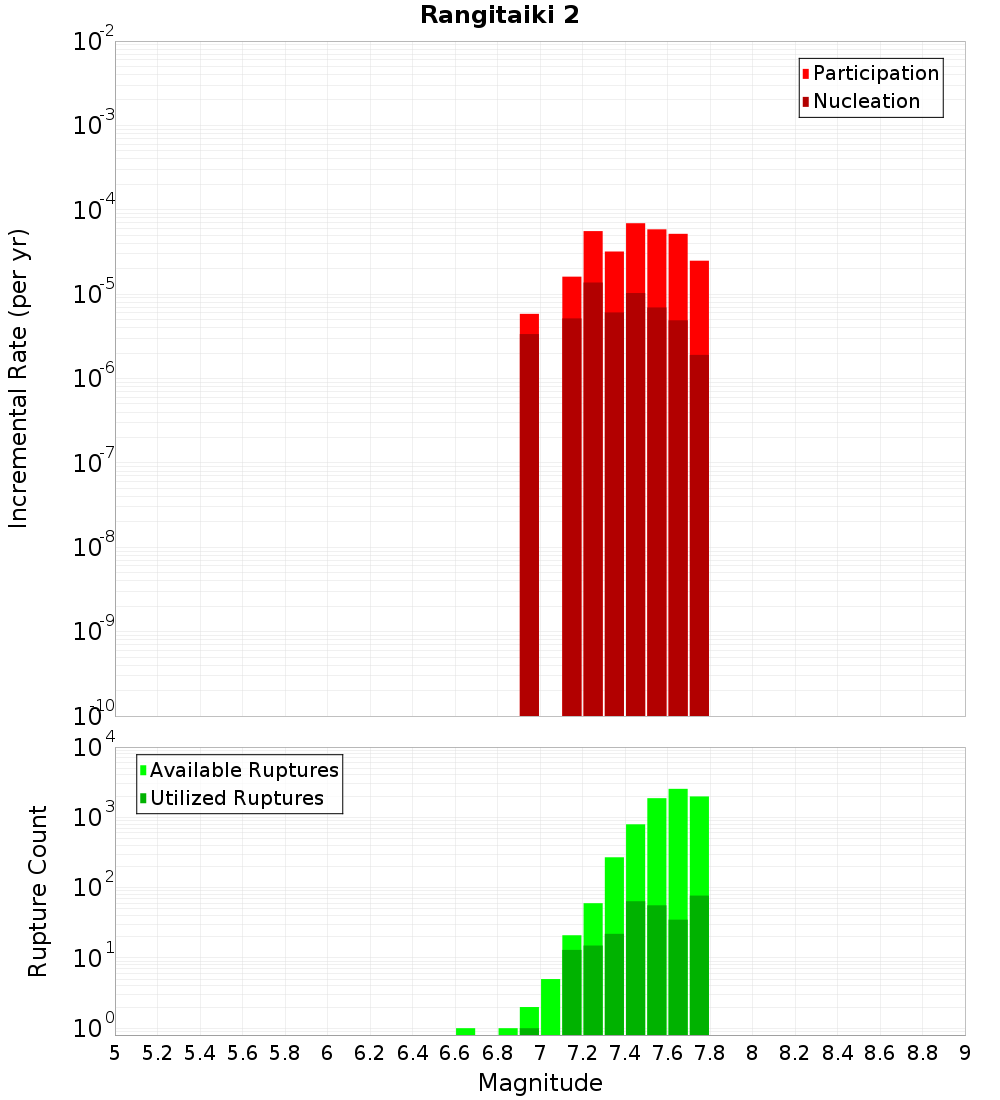

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

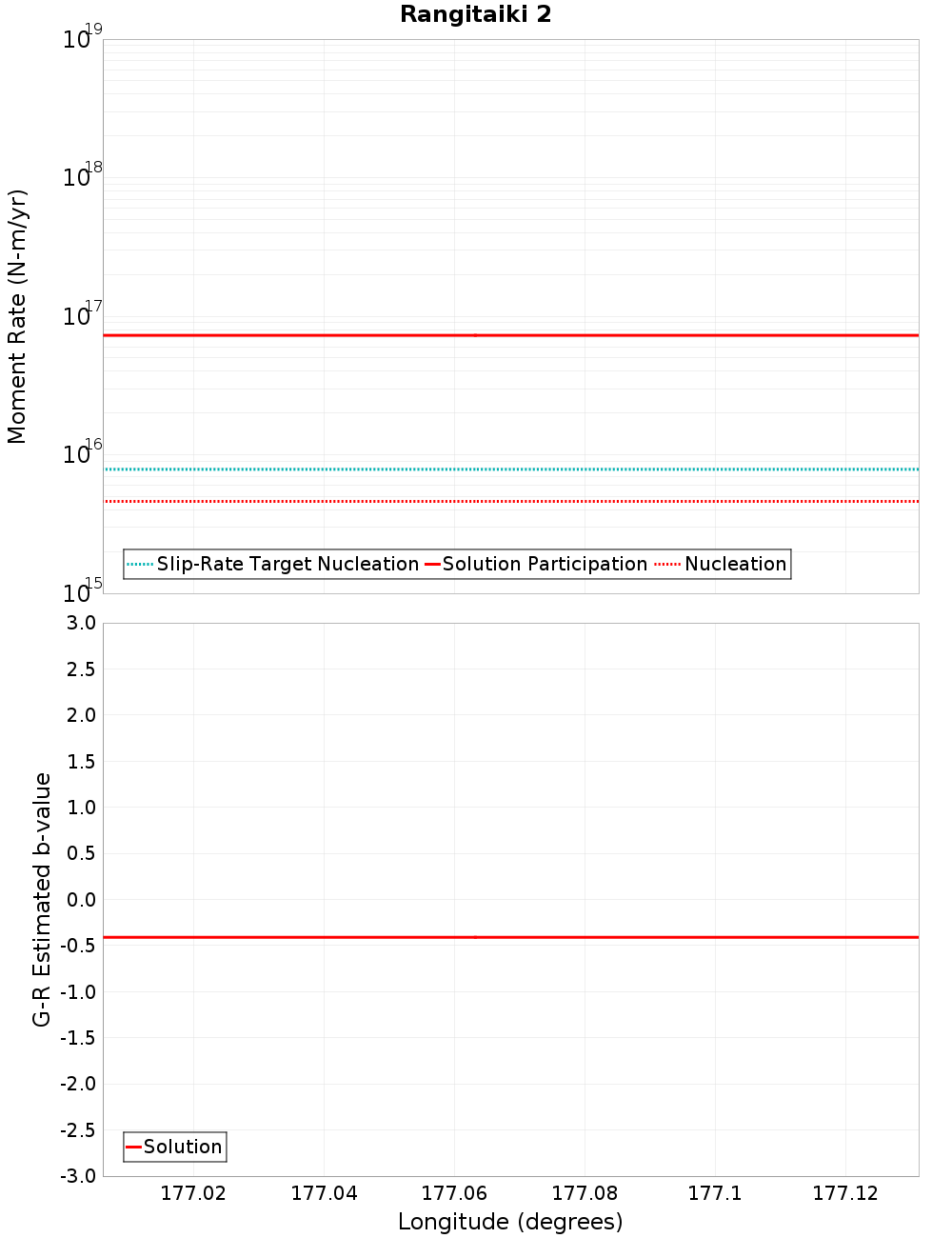

Moment-Rates and b-Values

(top)

Along-strike plot

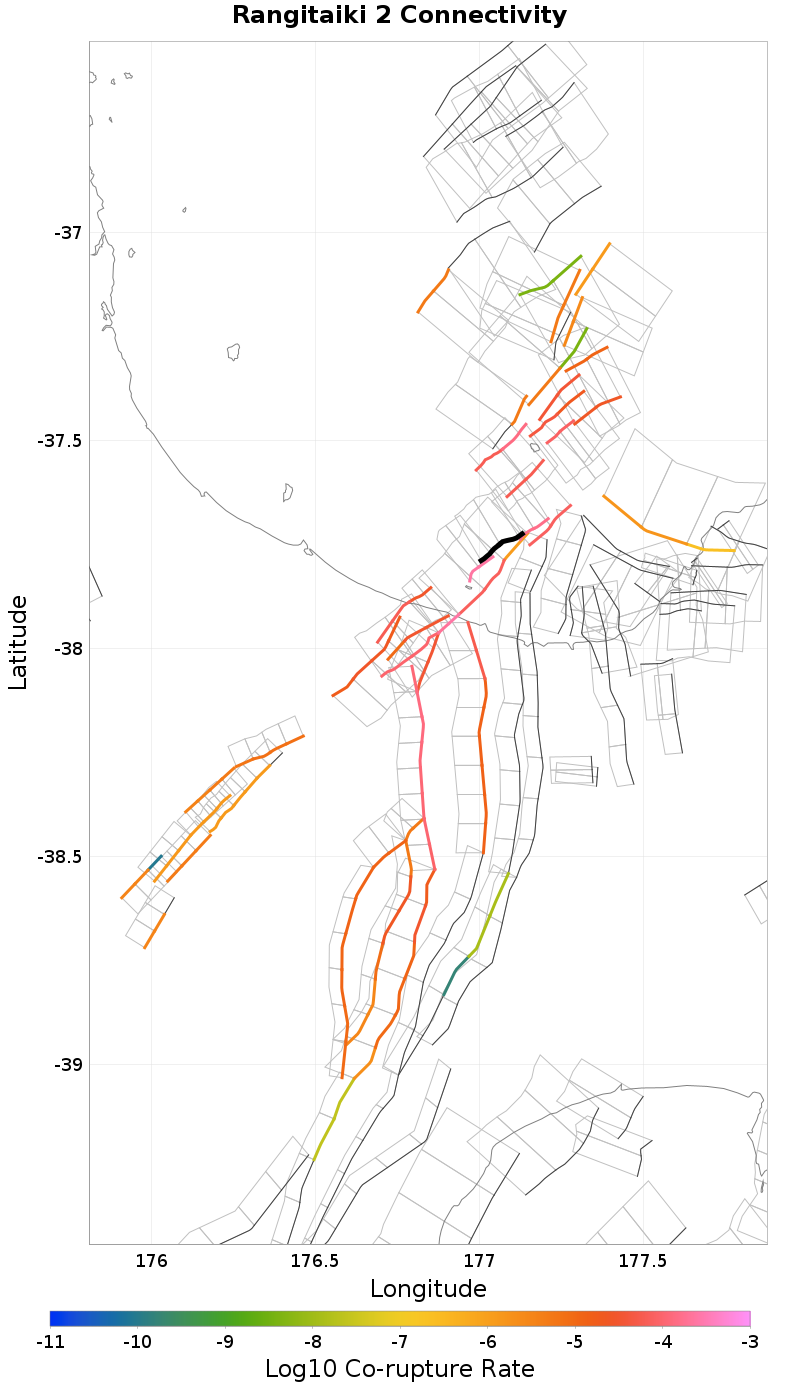

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohiwa 1, 0.42 km awayOhae 1, 14.97 km away
Whakaari 4, 0.45 km awayOpotiki 3, 15.11 km away
Rangitaiki 1, 0.74 km awayMatata, 15.14 km away
White Island 1, 0.77 km awayTe Arawa 1, 16.46 km away
White Island 2, 2.66 km awayWhakatane: North, 16.94 km away
Waimanawa - Waikaremoana, 6.46 km awayOtakiri, 17.19 km away
Calypso 2, 8.01 km awayVolkner 3, 17.97 km away
Waimana: North, 9.4 km awayOhae 2, 19.04 km away
Edgecumbe Coastal, 14.83 km awayTuatoru 1, 19.16 km away
Waiotahi: North, 14.87 km away

Ohiwa 1, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?true
Co-rupture Count1,979
Co-rupture Rate1.5673412E-4

Whakaari 4, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?true
Co-rupture Count4,502
Co-rupture Rate1.3667636E-4

Rangitaiki 1, 0.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?true
Co-rupture Count1,905
Co-rupture Rate2.3634893E-4

White Island 1, 0.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?true
Co-rupture Count5,527
Co-rupture Rate7.2220726E-5

White Island 2, 2.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?true
Co-rupture Count1,707
Co-rupture Rate7.5314085E-5

Waimanawa - Waikaremoana, 6.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 8.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?true
Co-rupture Count1,291
Co-rupture Rate5.9395483E-5

Waimana: North, 9.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edgecumbe Coastal, 14.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count4,270
Co-rupture Rate2.506402E-4

Waiotahi: North, 14.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Ohae 1, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 15.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count251
Co-rupture Rate0.0

Matata, 15.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count2,207
Co-rupture Rate6.297354E-5

Te Arawa 1, 16.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count3,049
Co-rupture Rate4.3401007E-5

Whakatane: North, 16.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count679
Co-rupture Rate5.511809E-5

Otakiri, 17.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count571
Co-rupture Rate3.0853065E-5

Volkner 3, 17.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count292
Co-rupture Rate5.2008127E-6

Ohae 2, 19.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 19.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count1,177
Co-rupture Rate8.041028E-5
