Te Arawa 3 Details

PropertyValue
Rupture Count1,708
Ruptures Above Sect Min Mag1,708
Ruptures w/ Nonzero Rates98
Magnitude Range[6.79, 7.80]
Length Range[13, 199] km
Total Rate7.6781755E-5 /yr
Multi-Fault Rate7.6781136E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults39

Table Of Contents

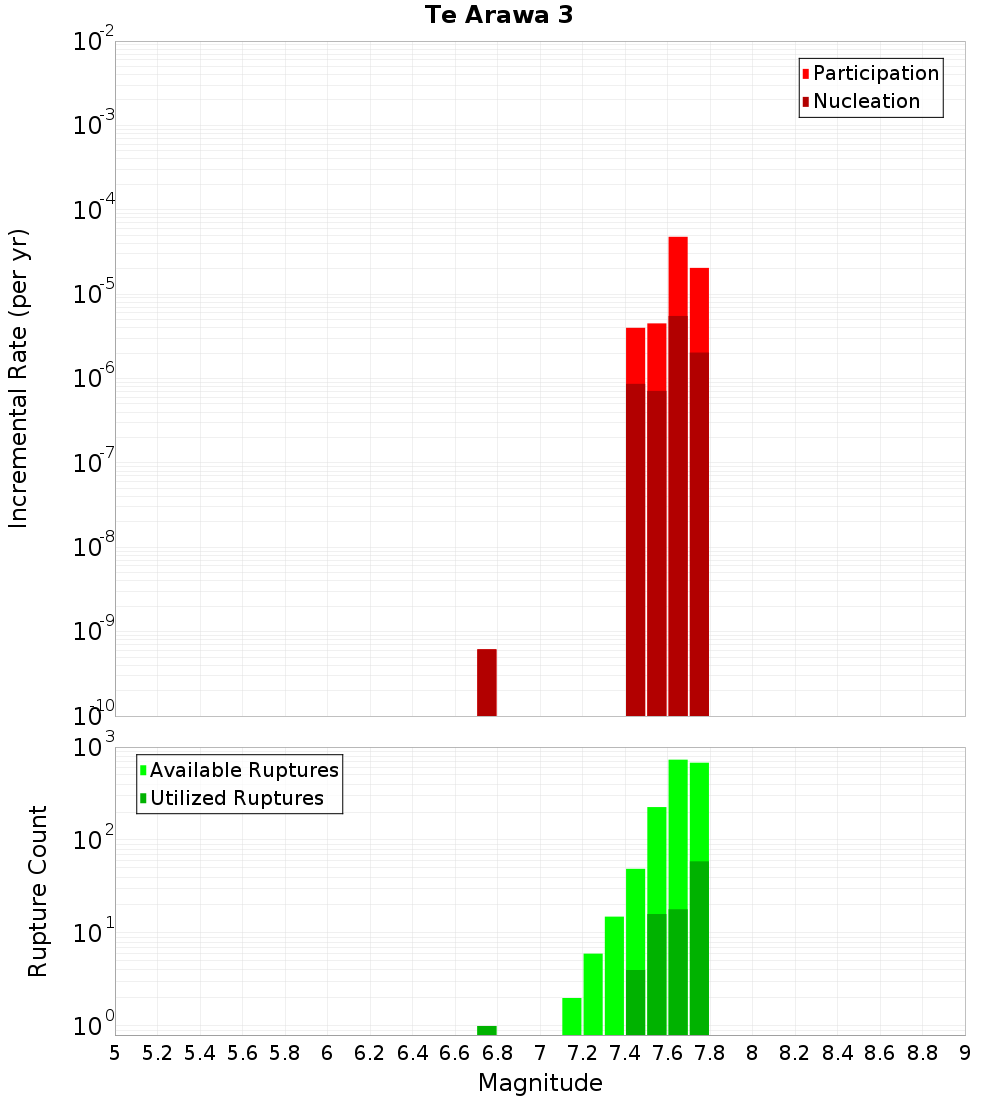

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

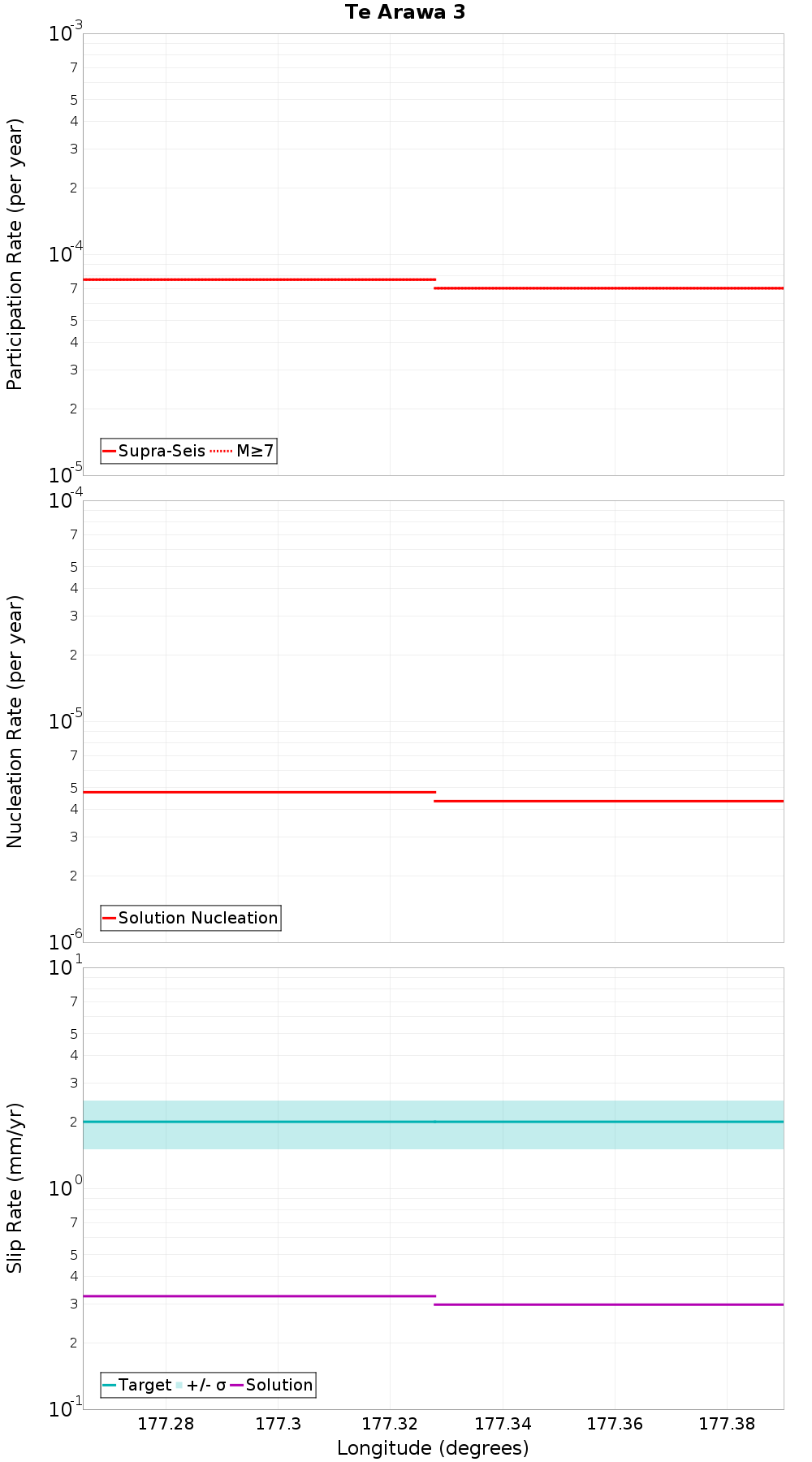

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tuatoru 2, 0.11 km away
Te Arawa 2, 1.67 km away
Volkner 4, 1.79 km away
Hariki, 3.21 km away
Otara West 1, 4.41 km away
Otara East 1, 5.22 km away
Te Arawa 1, 5.29 km away
Otara West 2, 8.79 km away
Tuatoru 1, 9.82 km away
Volkner 3, 12.62 km away
Otara East 2, 13.29 km away
Whakaari 4, 14.7 km away
Otara West 3, 16.94 km away
Calypso 2, 18.58 km away
White Island 2, 19.34 km away

Tuatoru 2, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count230
Co-rupture Rate3.7210928E-5

Te Arawa 2, 1.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count134
Co-rupture Rate3.1335642E-7

Volkner 4, 1.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate0.0

Hariki, 3.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?true
Co-rupture Count208
Co-rupture Rate8.7428325E-6

Otara West 1, 4.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara East 1, 5.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?true
Co-rupture Count685
Co-rupture Rate4.3824683E-5

Te Arawa 1, 5.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?true
Co-rupture Count1,447
Co-rupture Rate3.6908175E-5

Otara West 2, 8.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 9.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count96
Co-rupture Rate3.6897574E-5

Volkner 3, 12.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Otara East 2, 13.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count198
Co-rupture Rate0.0

Whakaari 4, 14.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count1,056
Co-rupture Rate1.8298659E-5

Otara West 3, 16.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 18.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count82
Co-rupture Rate1.3621803E-6

White Island 2, 19.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count532
Co-rupture Rate4.8483333E-5
