Wairarapa: 3 Details

PropertyValue
Rupture Count11,476
Ruptures Above Sect Min Mag11,474
Ruptures w/ Nonzero Rates42
Magnitude Range[6.63, 8.63]
Length Range[15, 1,112] km
Total Rate5.723613E-4 /yr
Multi-Fault Rate5.723613E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults83

Table Of Contents

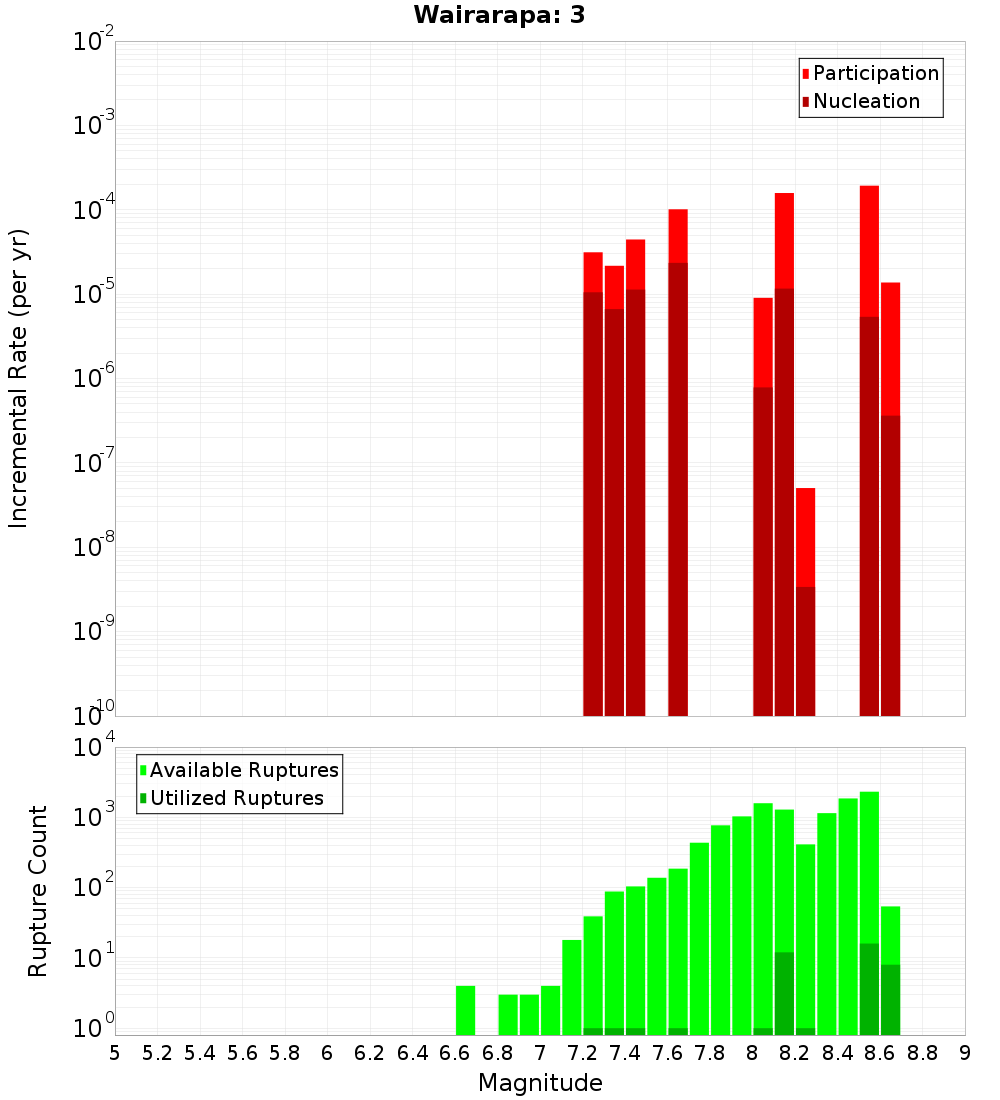

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

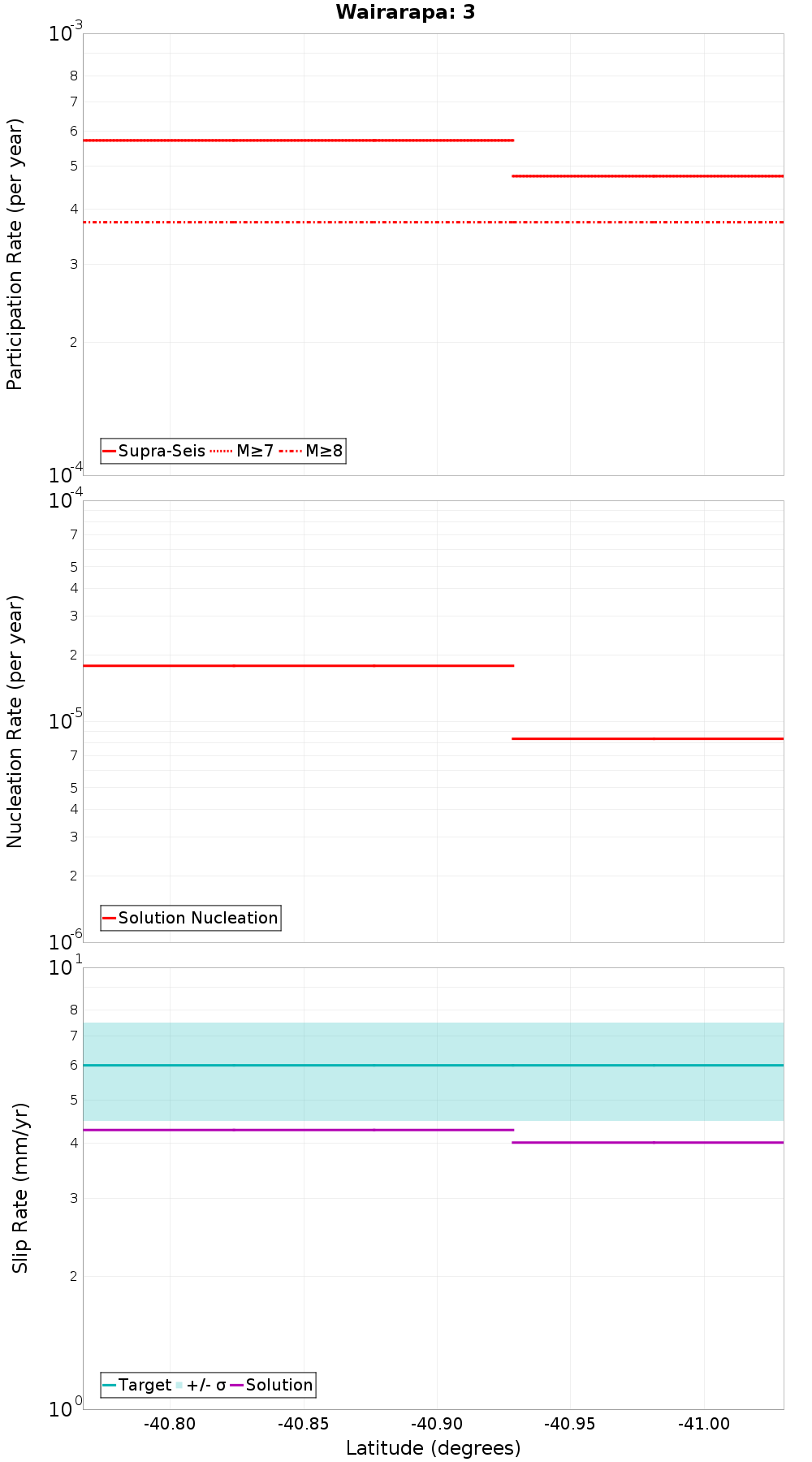

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

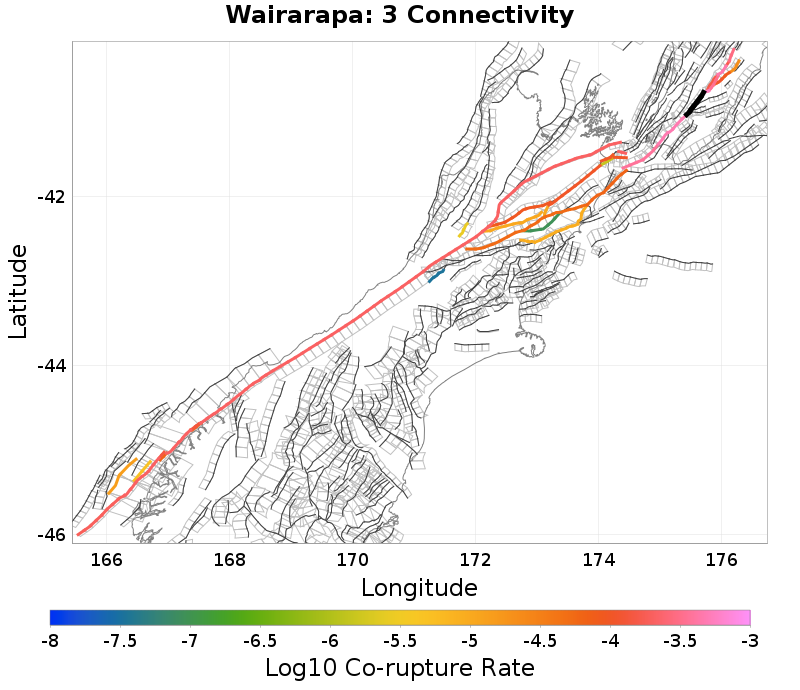

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Carterton, 0.02 km awayBidwill, 10.11 km away
Wairarapa: 2, 0.03 km awayMokonui Northeast, 10.14 km away
Mokonui Southwest, 0.12 km awayTokomaru, 11.99 km away
Masterton, 0.33 km awayWellington: Tararua 1, 13.27 km away
Dreyers Rock, 0.46 km awayWellington: Pahiatua, 13.85 km away
Pa Valley, 5.36 km awayAlfredton North, 15.44 km away
Alfredton South, 7.46 km awayOtaki Forks: 2, 16.33 km away
Wellington: Tararua 2, 7.95 km awaySaunders Road, 16.72 km away
Wellington: Tararua 3, 9.13 km awayDry River - Huangarua: 3, 17.91 km away
Martinborough, 9.53 km awayWellington Hutt Valley: 5, 19.01 km away

Carterton, 0.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Wairarapa: 2, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?true
Co-rupture Count11,353
Co-rupture Rate4.749363E-4

Mokonui Southwest, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?true
Co-rupture Count2,266
Co-rupture Rate0.0

Masterton, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dreyers Rock, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?true
Co-rupture Count5,771
Co-rupture Rate5.674561E-4

Pa Valley, 5.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?true
Co-rupture Count3,548
Co-rupture Rate1.5691396E-4

Alfredton South, 7.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count2,249
Co-rupture Rate3.5306712E-4

Wellington: Tararua 2, 7.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count56
Co-rupture Rate0.0

Wellington: Tararua 3, 9.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count77
Co-rupture Rate0.0

Martinborough, 9.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Bidwill, 10.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mokonui Northeast, 10.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count1,161
Co-rupture Rate0.0

Tokomaru, 11.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Tararua 1, 13.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate0.0

Wellington: Pahiatua, 13.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alfredton North, 15.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count1,553
Co-rupture Rate3.2300304E-4

Otaki Forks: 2, 16.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Saunders Road, 16.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count2,196
Co-rupture Rate1.0501415E-4

Dry River - Huangarua: 3, 17.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 5, 19.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMxOTEuMDdpOFNq
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate0.0
