Hope: Hamner SW Details

PropertyValue
Rupture Count36,511
Ruptures Above Sect Min Mag36,511
Ruptures w/ Nonzero Rates21
Magnitude Range[6.60, 8.59]
Length Range[11, 1,147] km
Total Rate3.1715265E-4 /yr
Multi-Fault Rate3.1715265E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults122

Table Of Contents

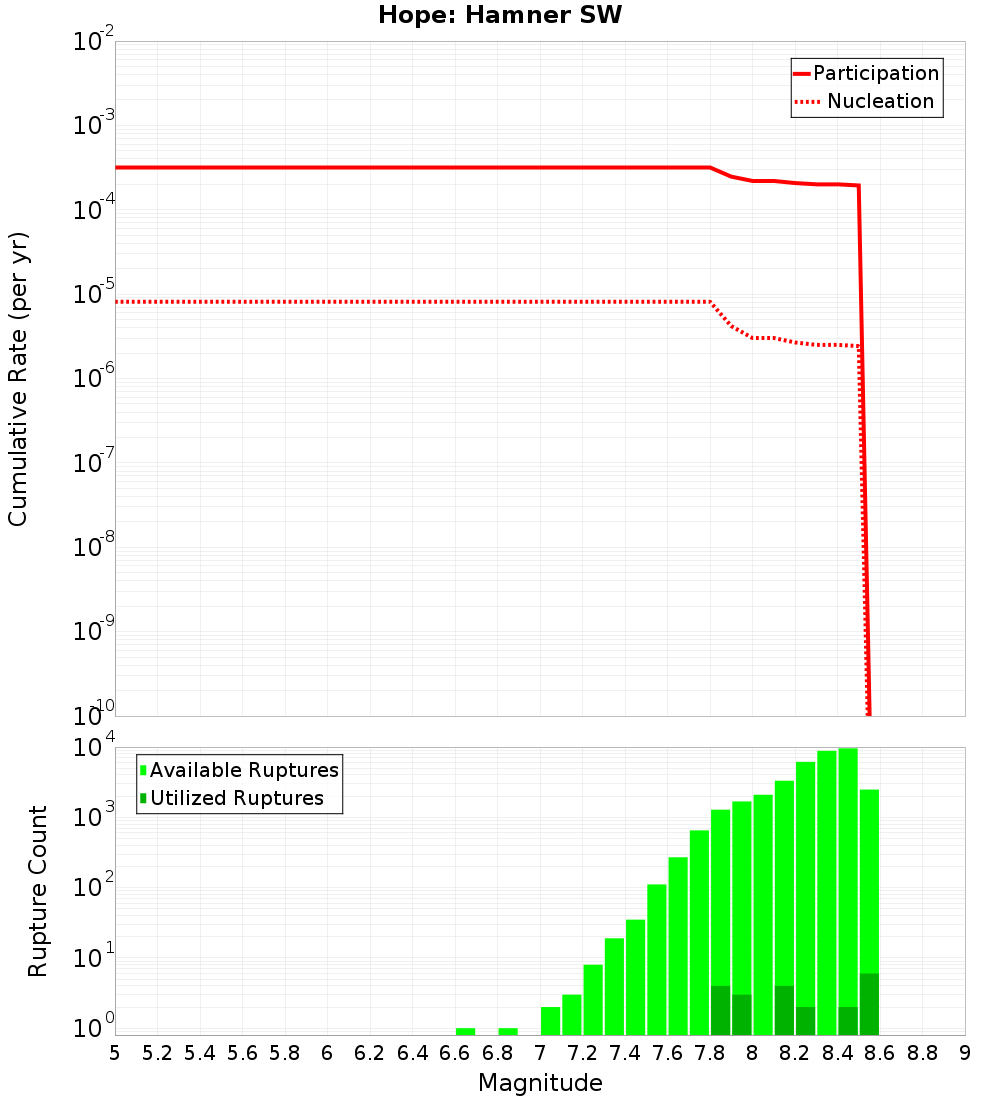

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

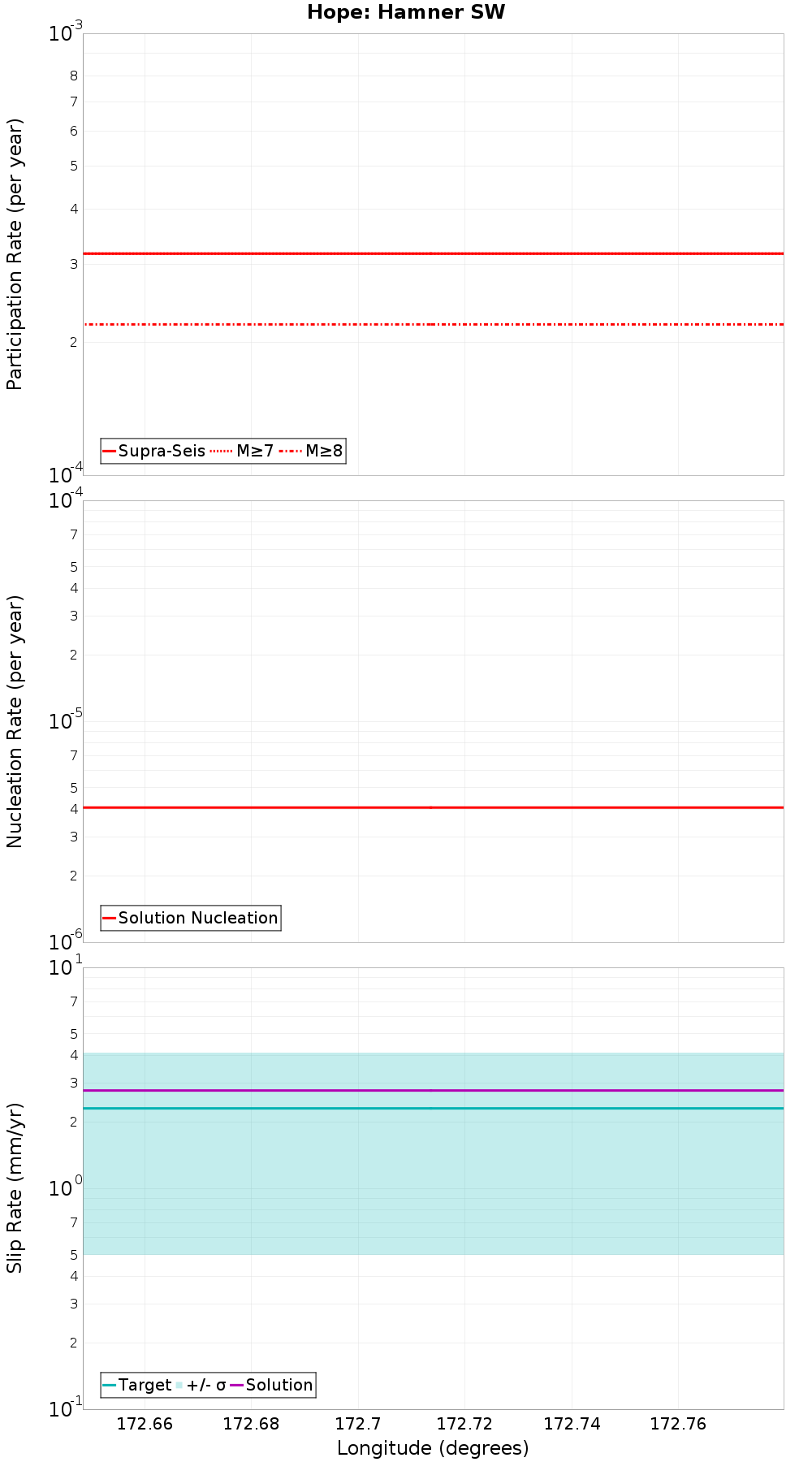

Along-Strike Values

(top)

Along-strike plot

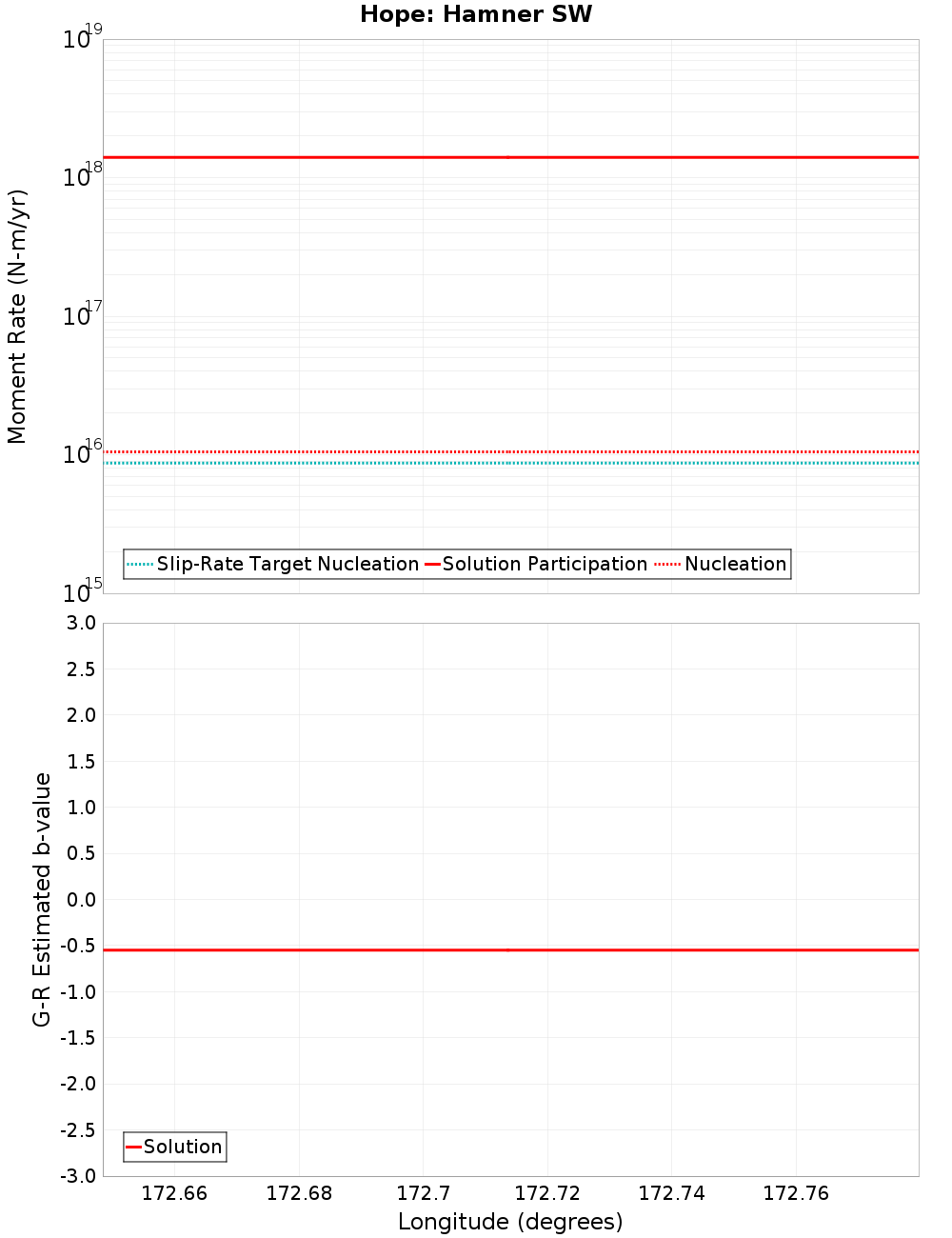

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hope: Hamner SE, 0 km away
Hope: Kakapo-2-Hamner, 0 km away
Hope: Hanmer NW, 0 km away
Hanmer, 0.55 km away
Hope: Hope River, 6.3 km away
Kakapo, 6.3 km away
Esk North, 9.97 km away
The Humps, 10.61 km away
Hope: Conway, 13.75 km away
Clarence: Southwest, 13.9 km away
Hurunui Peak, 14.89 km away
Mt Culverden, 15.12 km away
Balmoral, 15.69 km away
Clarence: Central, 17.74 km away
Elliott, 17.88 km away

Hope: Hamner SE, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?true
Directly Connected?true
Co-rupture Count35,532
Co-rupture Rate3.1715265E-4

Hope: Kakapo-2-Hamner, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?true
Directly Connected?true
Co-rupture Count36,241
Co-rupture Rate3.1715265E-4

Hope: Hanmer NW, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hanmer, 0.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hope River, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?true
Directly Connected?false
Co-rupture Count22,389
Co-rupture Rate1.7545762E-4

Kakapo, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?true
Directly Connected?false
Co-rupture Count14,046
Co-rupture Rate1.4169501E-4

Esk North, 9.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

The Humps, 10.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?true
Directly Connected?false
Co-rupture Count155
Co-rupture Rate0.0

Hope: Conway, 13.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?true
Directly Connected?false
Co-rupture Count34,852
Co-rupture Rate3.1715265E-4

Clarence: Southwest, 13.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?true
Directly Connected?false
Co-rupture Count133
Co-rupture Rate0.0

Hurunui Peak, 14.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Culverden, 15.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Balmoral, 15.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Central, 17.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Elliott, 17.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
