Tuatoru 1 Details

PropertyValue
Rupture Count4,084
Ruptures Above Sect Min Mag4,084
Ruptures w/ Nonzero Rates144
Magnitude Range[6.56, 8.00]
Length Range[9, 299] km
Total Rate2.2882877E-4 /yr
Multi-Fault Rate2.2856219E-4 /yr (99.88%)
Directly-Connected Faults5
All Co-Rupturing Faults32

Table Of Contents

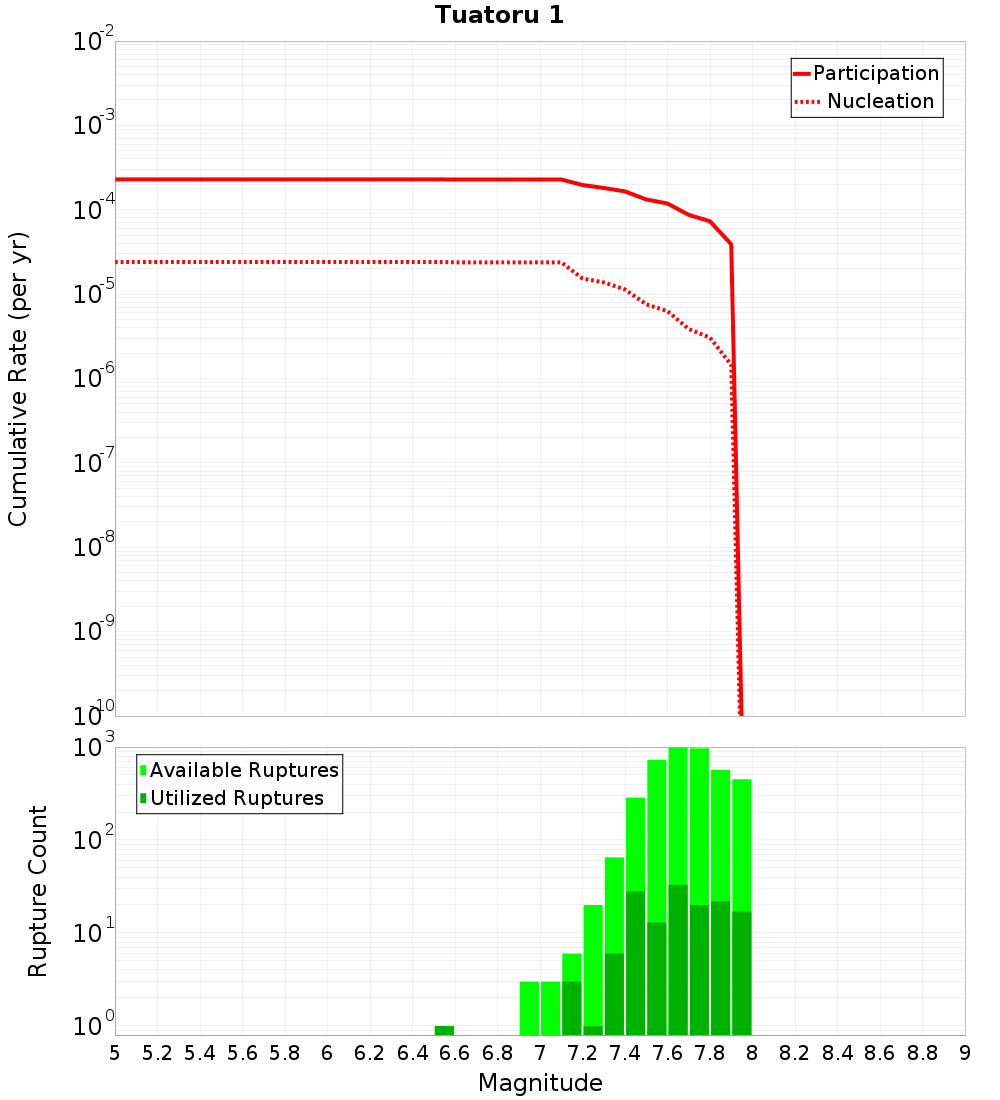

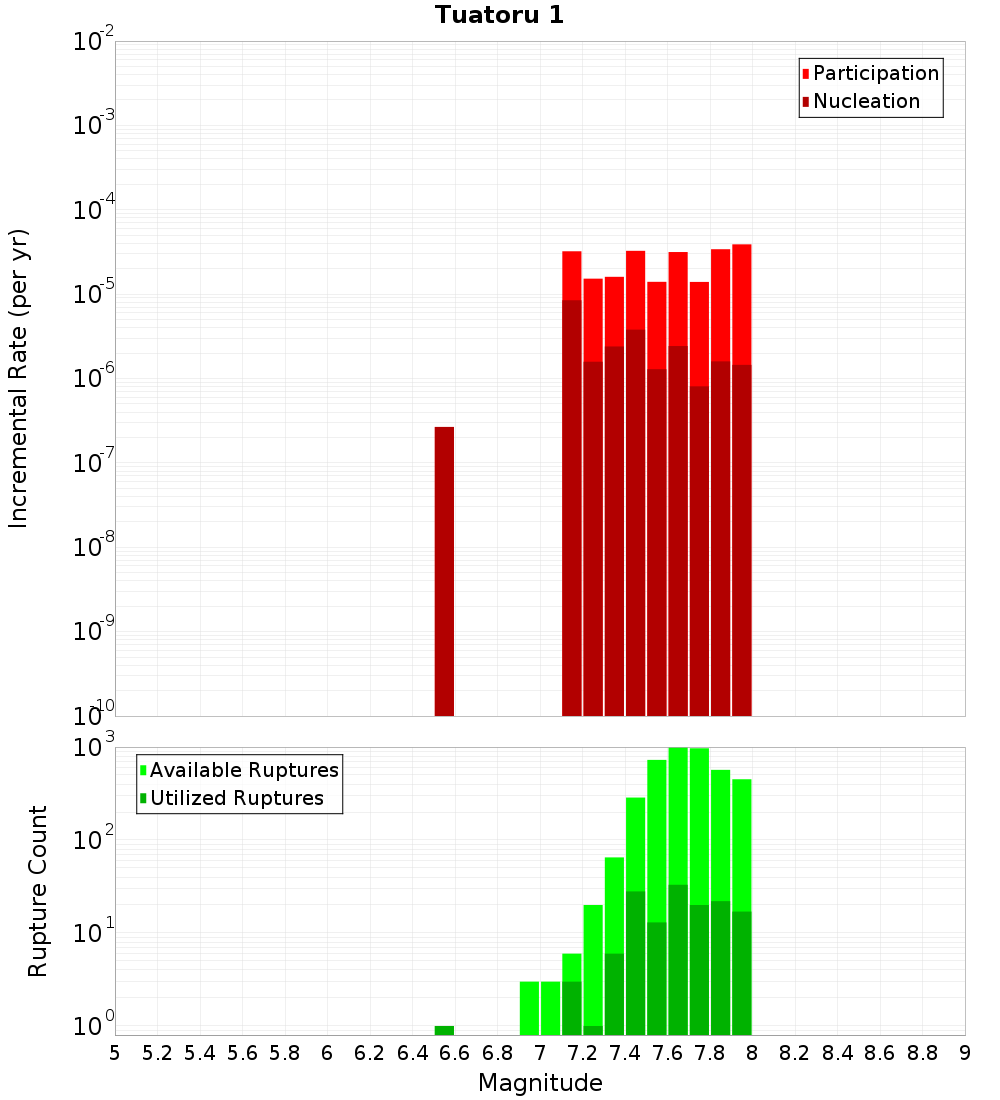

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Tuatoru 2, 0.43 km awayVolkner 3, 10.46 km away
Te Arawa 1, 3.09 km awayVolkner 4, 11.02 km away
Calypso 2, 3.86 km awayOhiwa 1, 11.29 km away
Te Arawa 2, 4.64 km awayOhae 1, 16.26 km away
Hariki, 5.5 km awayOtara West 1, 17.15 km away
Whakaari 4, 5.84 km awayWaimanawa - Waikaremoana, 18.66 km away
White Island 2, 5.84 km awayRangitaiki 2, 19.16 km away
Opotiki 3, 8.45 km awayOtara East 1, 19.26 km away
Te Arawa 3, 9.82 km away

Tuatoru 2, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?true
Directly Connected?true
Co-rupture Count2,677
Co-rupture Rate1.2700212E-4

Te Arawa 1, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 3.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?true
Directly Connected?true
Co-rupture Count412
Co-rupture Rate5.3484873E-5

Te Arawa 2, 4.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?true
Directly Connected?true
Co-rupture Count538
Co-rupture Rate3.097296E-5

Hariki, 5.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakaari 4, 5.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?true
Directly Connected?true
Co-rupture Count1,755
Co-rupture Rate6.7705114E-5

White Island 2, 5.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?true
Directly Connected?true
Co-rupture Count2,072
Co-rupture Rate1.2265384E-4

Opotiki 3, 8.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 3, 9.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?true
Directly Connected?false
Co-rupture Count97
Co-rupture Rate6.1535475E-6

Volkner 3, 10.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 4, 11.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohiwa 1, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?true
Directly Connected?false
Co-rupture Count979
Co-rupture Rate5.5836404E-5

Ohae 1, 16.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 1, 17.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimanawa - Waikaremoana, 18.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 2, 19.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?true
Directly Connected?false
Co-rupture Count1,240
Co-rupture Rate1.3986208E-4

Otara East 1, 19.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?true
Directly Connected?false
Co-rupture Count1,782
Co-rupture Rate9.0187794E-5
