Whakaari 4 Details

Property	Value
Rupture Count	15,651
Ruptures Above Sect Min Mag	15,651
Ruptures w/ Nonzero Rates	217
Magnitude Range	[6.80, 8.00]
Length Range	[18, 305] km
Total Rate	2.810143E-4 /yr
Multi-Fault Rate	2.810143E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	55

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

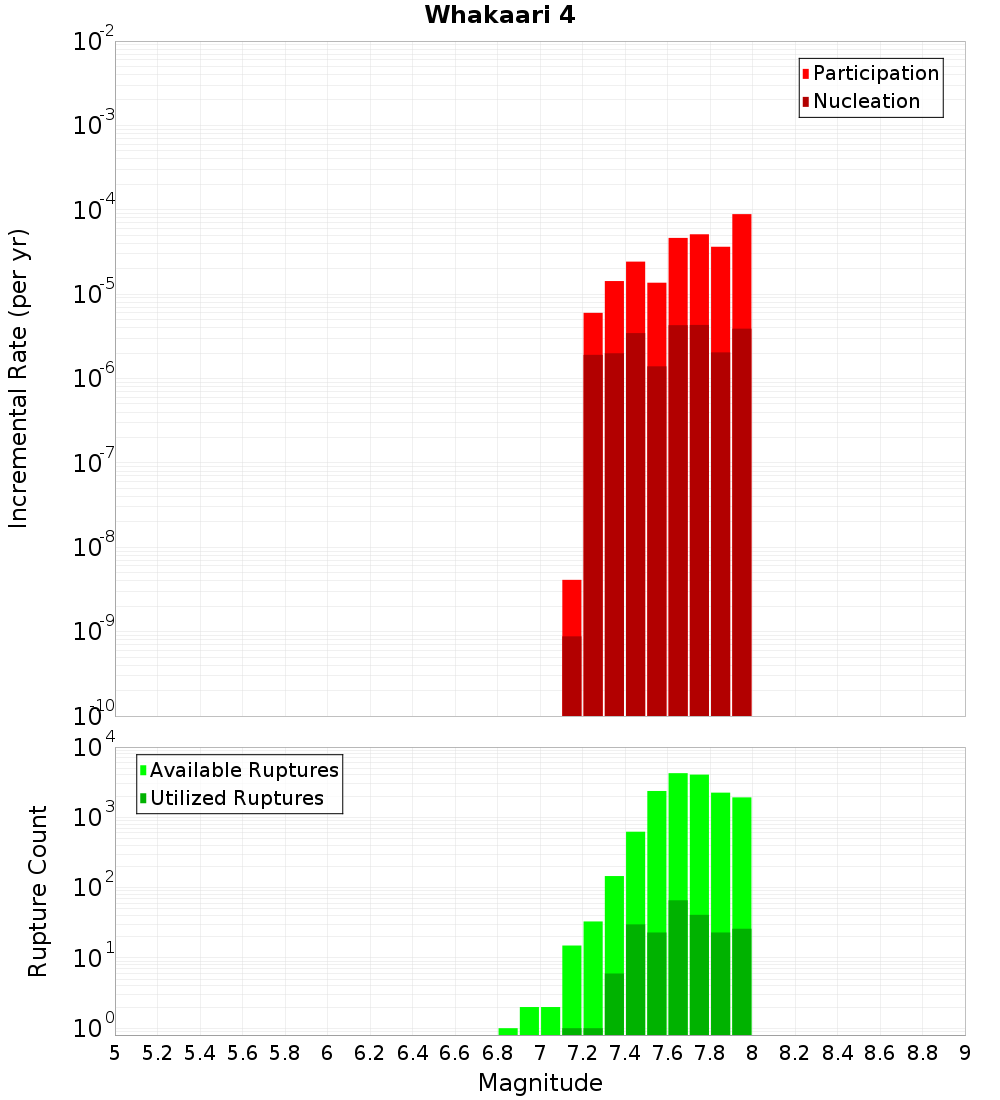

Magnitude-Frequency Distribution

Incremental	Cumulative

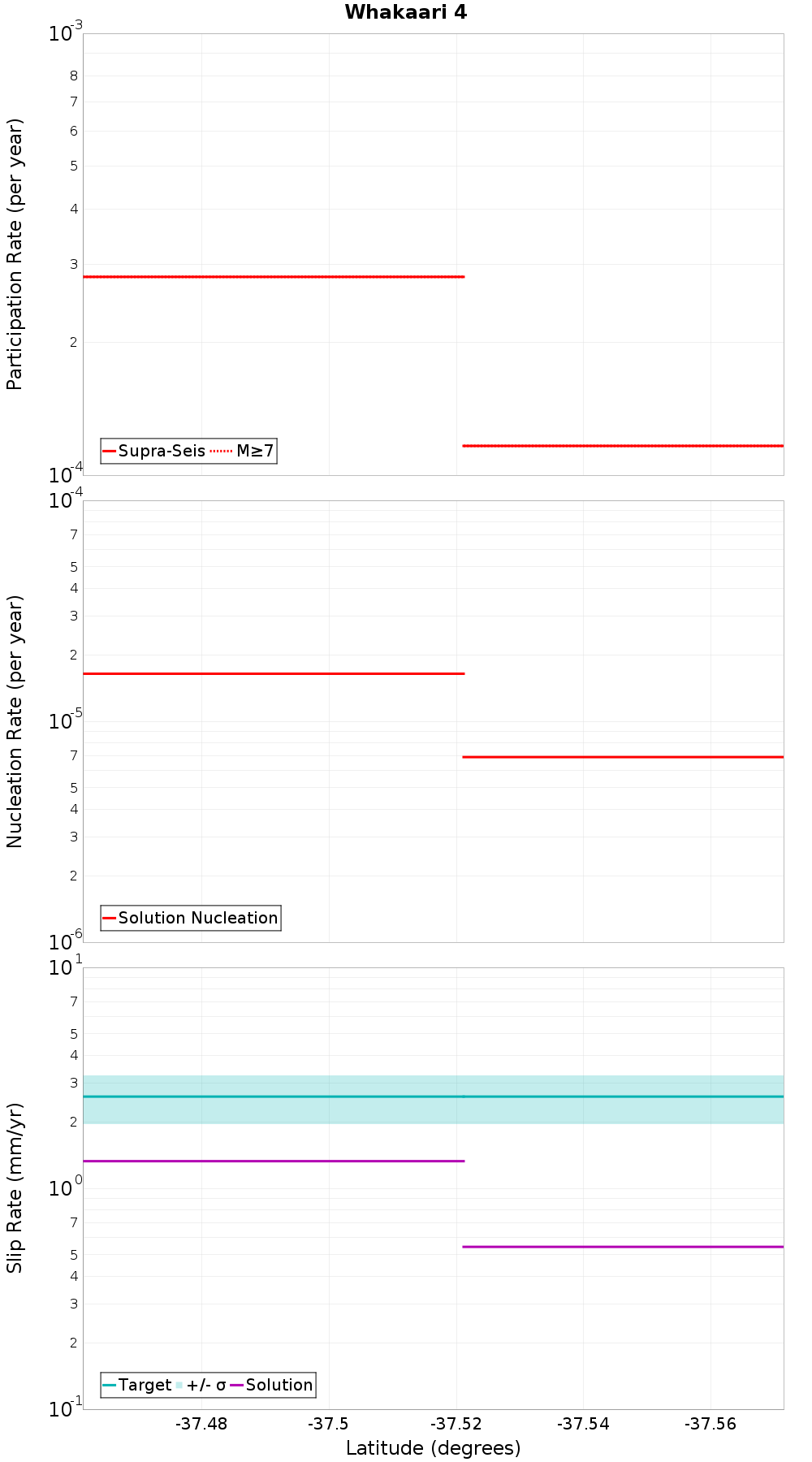

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Ohiwa 1, 0.14 km away	Waimanawa - Waikaremoana, 7.01 km away
Calypso 2, 0.2 km away	Opotiki 3, 8.08 km away
Rangitaiki 2, 0.45 km away	Rangitaiki 1, 10.86 km away
White Island 2, 0.45 km away	Tuatoru 2, 11.04 km away
White Island 1, 1.52 km away	Te Arawa 3, 14.7 km away
Volkner 3, 1.58 km away	Waimana: North, 15.48 km away
Te Arawa 1, 2.25 km away	Hariki, 17.21 km away
Te Arawa 2, 3.86 km away	Ohae 1, 17.38 km away
Volkner 4, 5.31 km away	Otara West 1, 18.82 km away
Tuatoru 1, 5.84 km away

Ohiwa 1, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?	true
Directly Connected?	true
Co-rupture Count	7,637
Co-rupture Rate	1.6343455E-4

Calypso 2, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?	true
Directly Connected?	false
Co-rupture Count	473
Co-rupture Rate	2.0017467E-5

Rangitaiki 2, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?	true
Directly Connected?	true
Co-rupture Count	5,357
Co-rupture Rate	1.3462307E-4

White Island 2, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?	true
Directly Connected?	false
Co-rupture Count	706
Co-rupture Rate	5.4037763E-8

White Island 1, 1.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?	true
Directly Connected?	true
Co-rupture Count	14,004
Co-rupture Rate	1.6719694E-4

Volkner 3, 1.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?	true
Directly Connected?	false
Co-rupture Count	901
Co-rupture Rate	3.7407408E-5

Te Arawa 1, 2.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?	true
Directly Connected?	true
Co-rupture Count	5,590
Co-rupture Rate	9.849047E-5

Te Arawa 2, 3.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?	true
Directly Connected?	true
Co-rupture Count	3,878
Co-rupture Rate	7.0305214E-5

Volkner 4, 5.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?	true
Directly Connected?	true
Co-rupture Count	2,968
Co-rupture Rate	3.9642233E-5

Tuatoru 1, 5.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,755
Co-rupture Rate	6.7705114E-5

Waimanawa - Waikaremoana, 7.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opotiki 3, 8.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?	true
Directly Connected?	false
Co-rupture Count	267
Co-rupture Rate	4.9746814E-6

Rangitaiki 1, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?	true
Directly Connected?	false
Co-rupture Count	1,392
Co-rupture Rate	1.0711606E-4

Tuatoru 2, 11.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?	true
Directly Connected?	false
Co-rupture Count	5,955
Co-rupture Rate	9.708979E-5

Te Arawa 3, 14.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?	true
Directly Connected?	false
Co-rupture Count	1,325
Co-rupture Rate	6.129141E-5

Waimana: North, 15.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hariki, 17.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?	true
Directly Connected?	false
Co-rupture Count	236
Co-rupture Rate	4.6197106E-6

Ohae 1, 17.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otara West 1, 18.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjEuMGhtTXB2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
