Awakeri Details

PropertyValue
Rupture Count4,653
Ruptures Above Sect Min Mag4,653
Ruptures w/ Nonzero Rates57
Magnitude Range[6.66, 7.80]
Length Range[17, 202] km
Total Rate6.277129E-5 /yr
Multi-Fault Rate6.277129E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults44

Table Of Contents

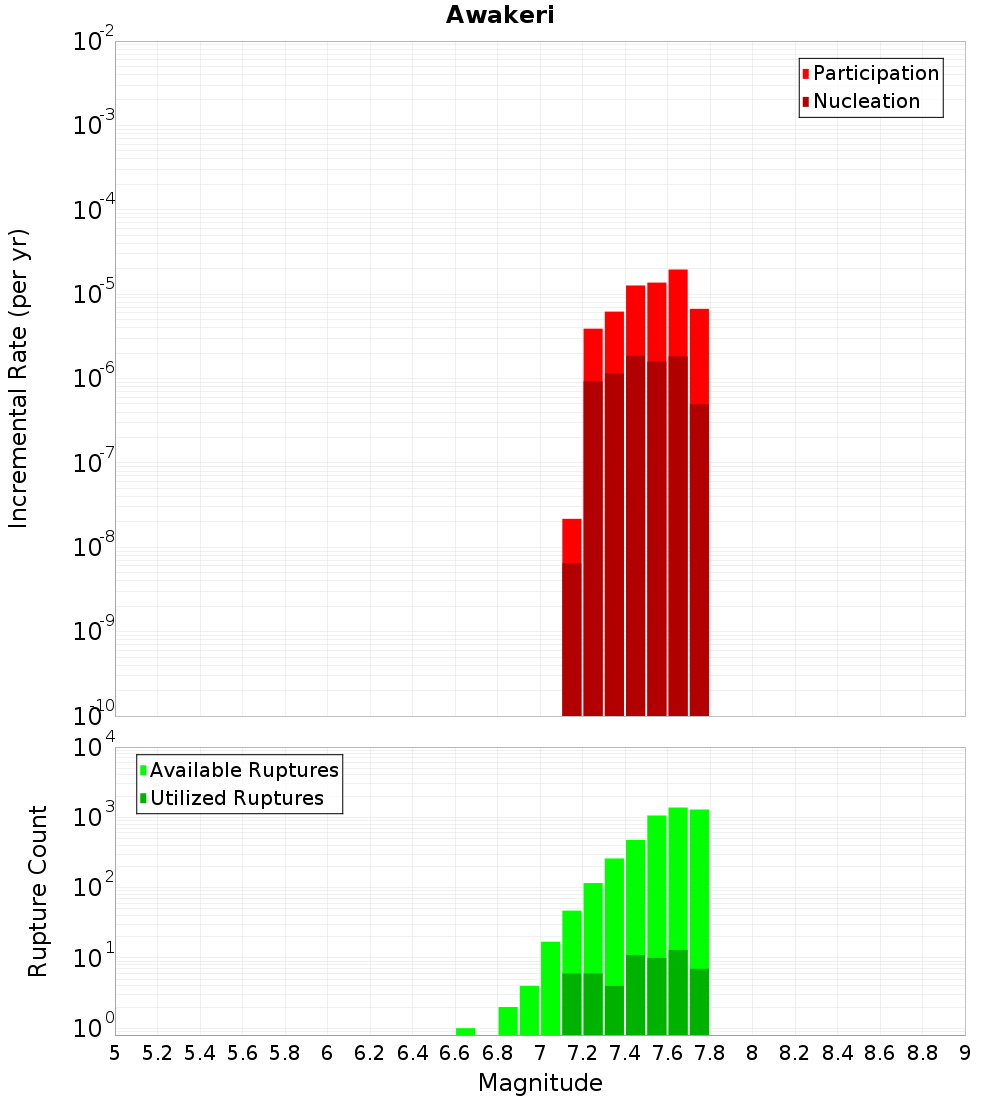

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

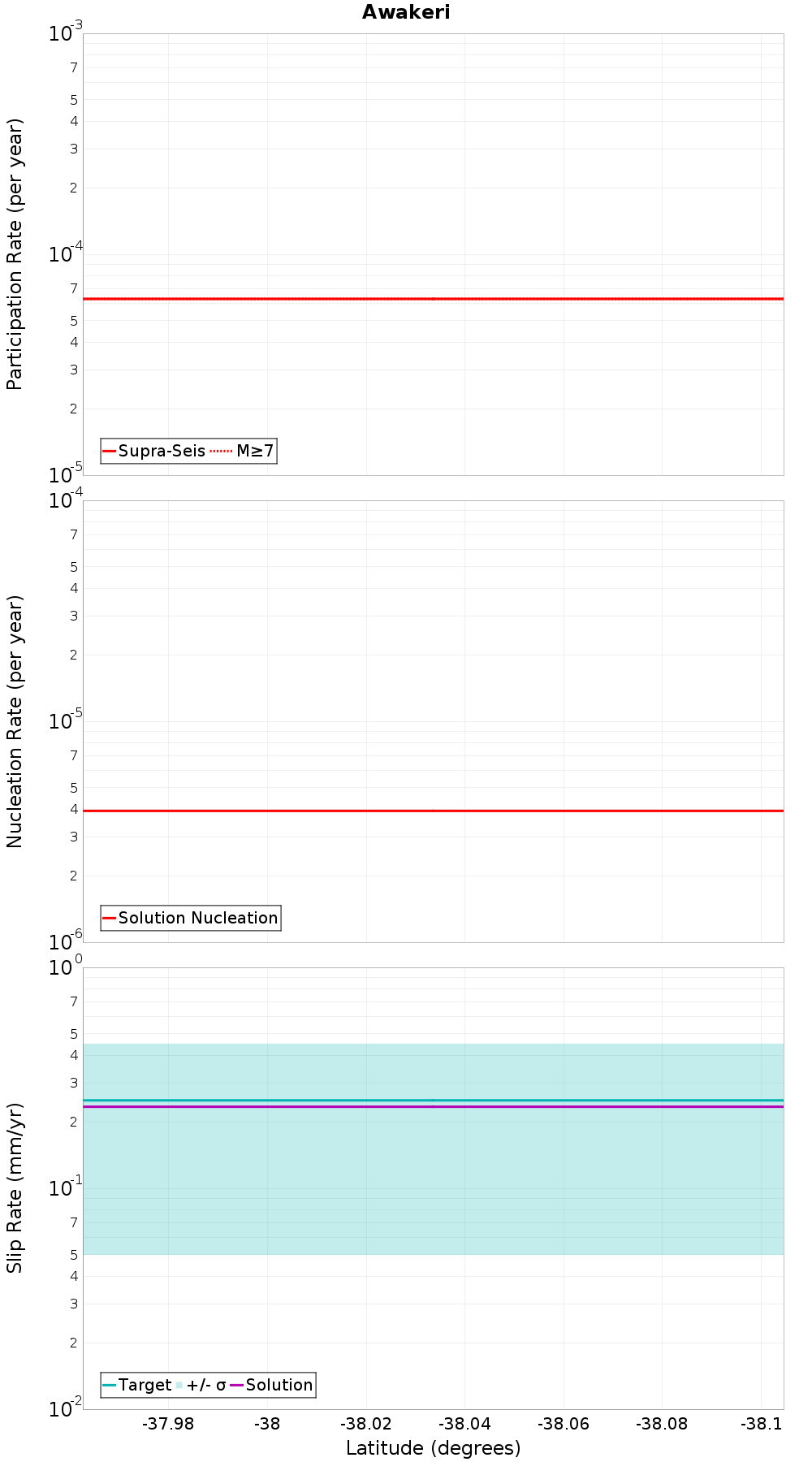

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

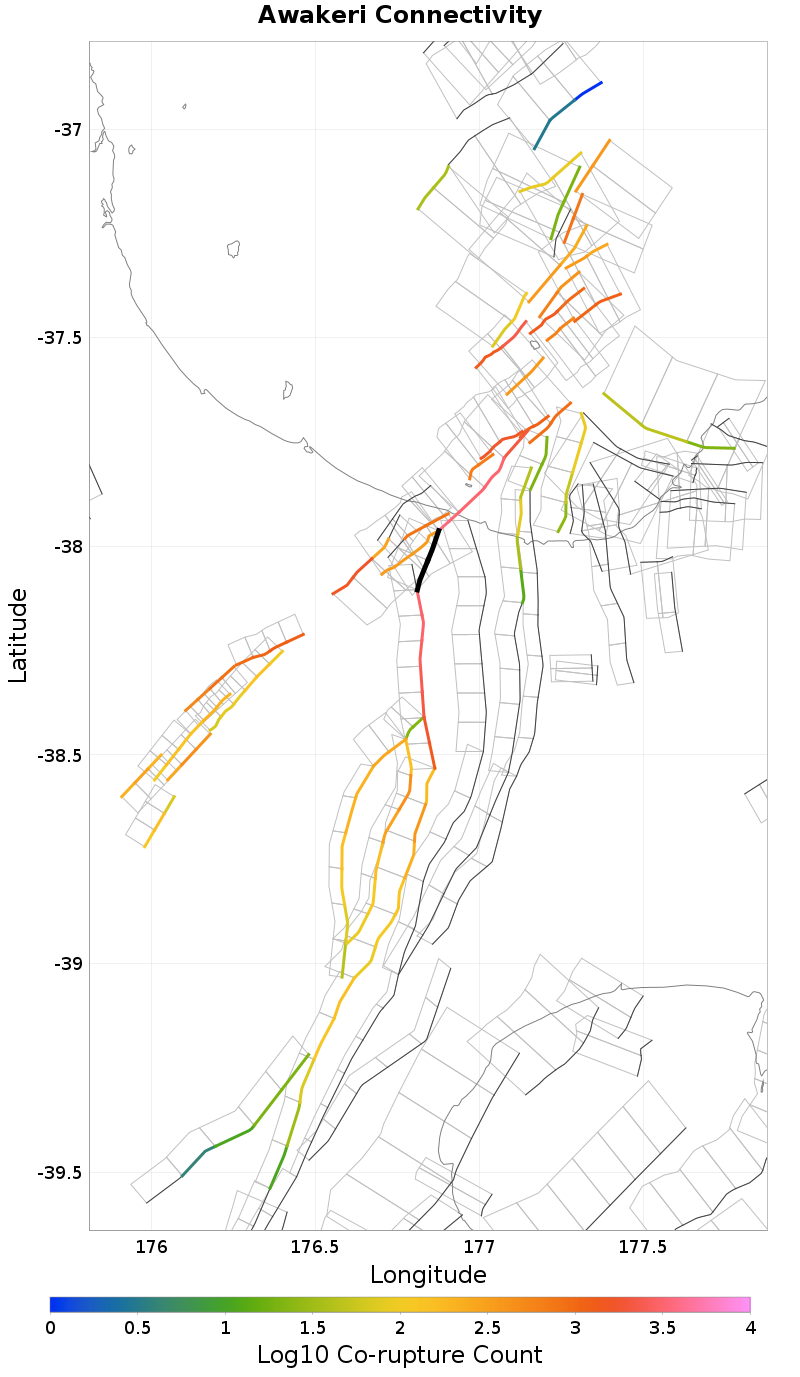

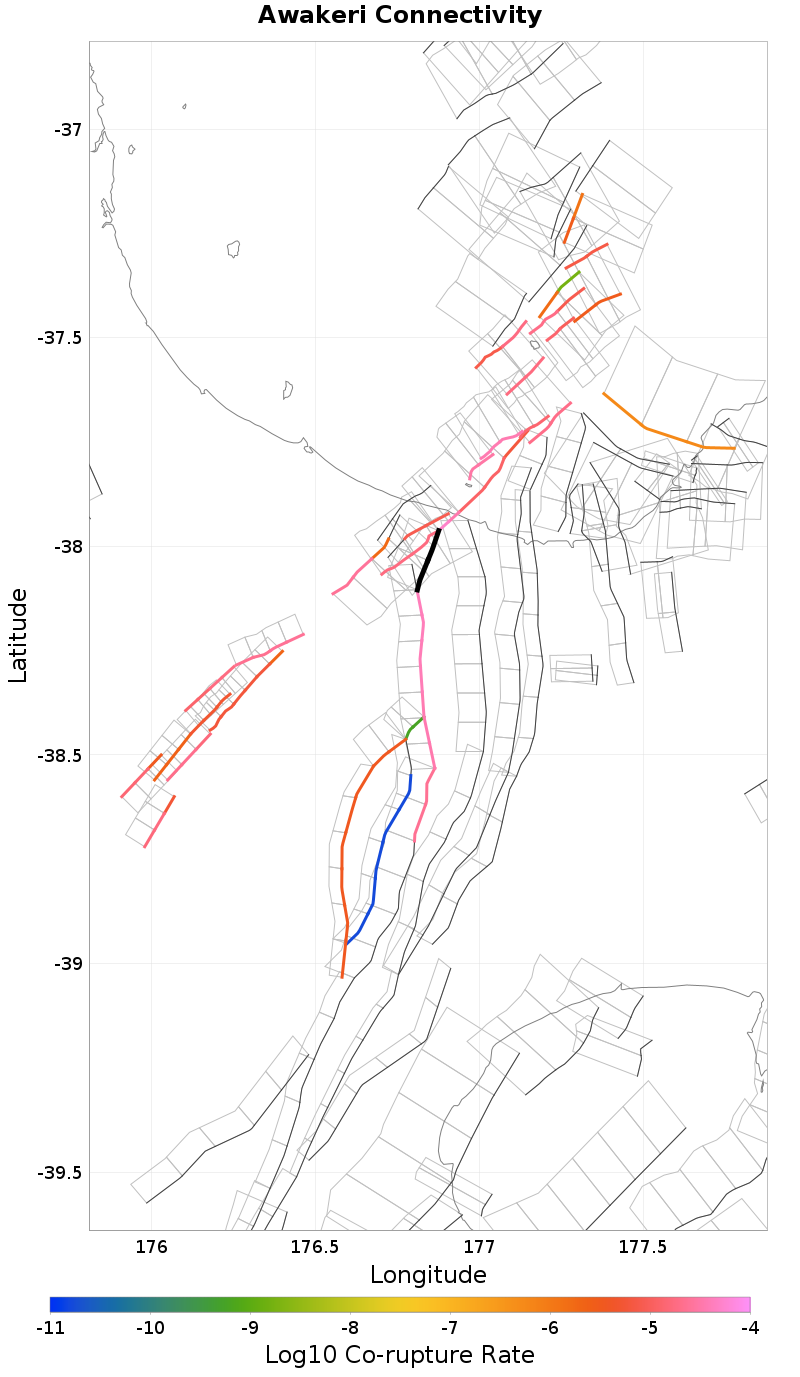

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Edgecumbe 1987, 0 km away
Edgecumbe Coastal, 0 km away
Braemar, 0.1 km away
Otakiri, 0.1 km away
Waiohau: North, 0.13 km away
Matata, 0.16 km away
White Island 1, 7.32 km away
Whakatane: North, 7.56 km away
Rangitaiki 1, 16.13 km away

Edgecumbe 1987, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?true
Directly Connected?false
Co-rupture Count351
Co-rupture Rate1.7118533E-5

Edgecumbe Coastal, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?true
Directly Connected?true
Co-rupture Count3,527
Co-rupture Rate5.0780898E-5

Braemar, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?true
Directly Connected?true
Co-rupture Count1,691
Co-rupture Rate2.5392754E-5

Otakiri, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?true
Directly Connected?true
Co-rupture Count792
Co-rupture Rate8.363253E-6

Waiohau: North, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?true
Directly Connected?true
Co-rupture Count3,078
Co-rupture Rate4.0315626E-5

Matata, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 7.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?true
Directly Connected?false
Co-rupture Count3,101
Co-rupture Rate1.1604183E-5

Whakatane: North, 7.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 16.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?true
Directly Connected?false
Co-rupture Count685
Co-rupture Rate2.9790763E-5
