Edgecumbe Coastal Details

Property	Value
Rupture Count	10,530
Ruptures Above Sect Min Mag	10,529
Ruptures w/ Nonzero Rates	204
Magnitude Range	[6.44, 7.80]
Length Range	[7, 210] km
Total Rate	5.150985E-4 /yr
Multi-Fault Rate	5.150985E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	48

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

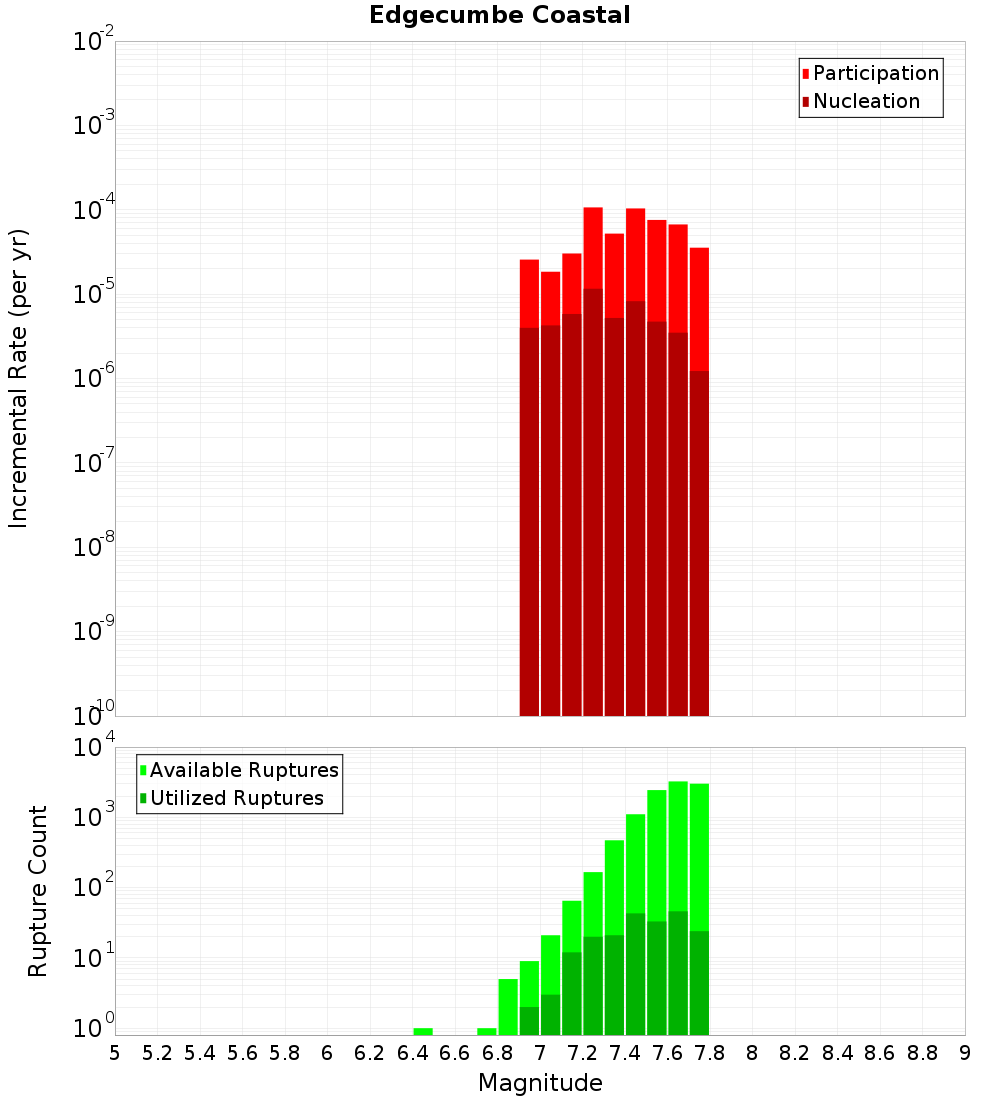

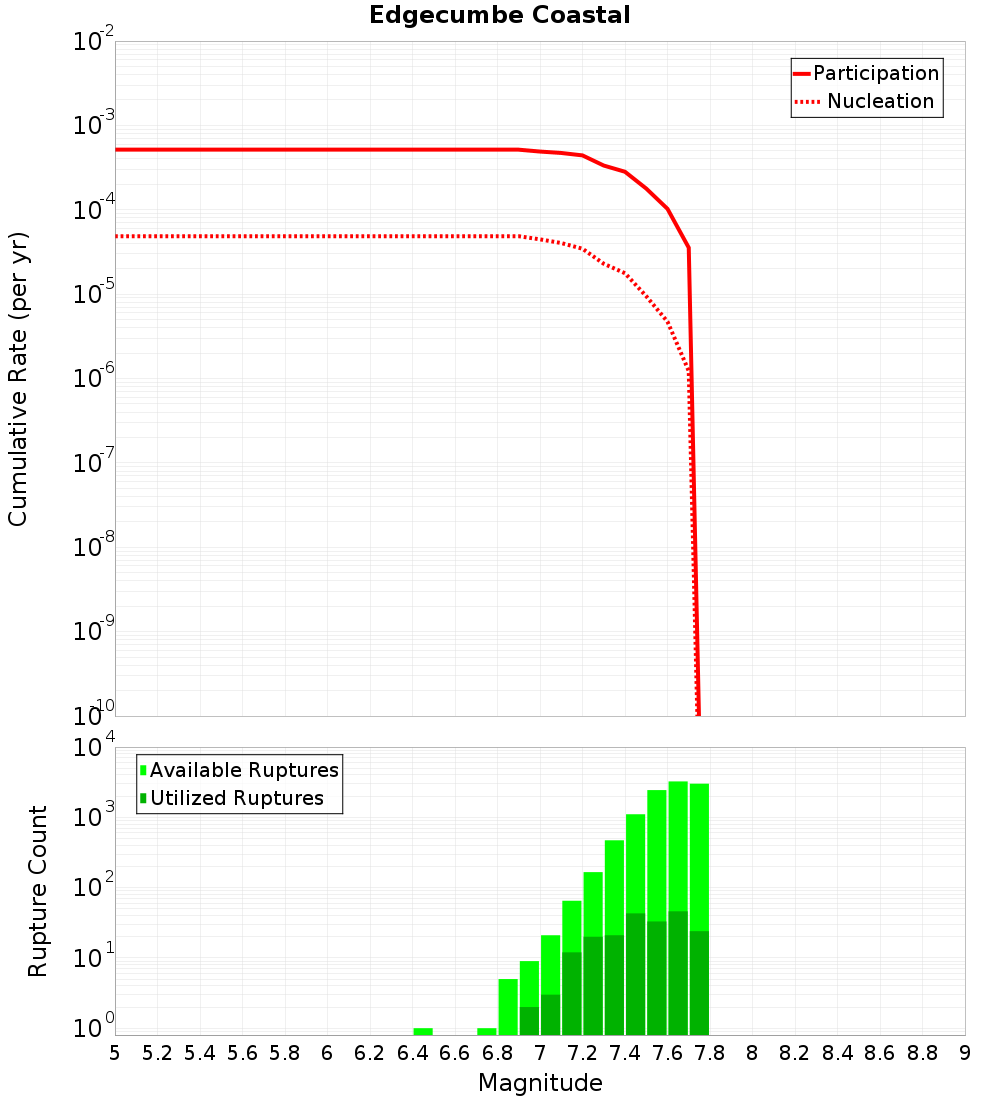

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

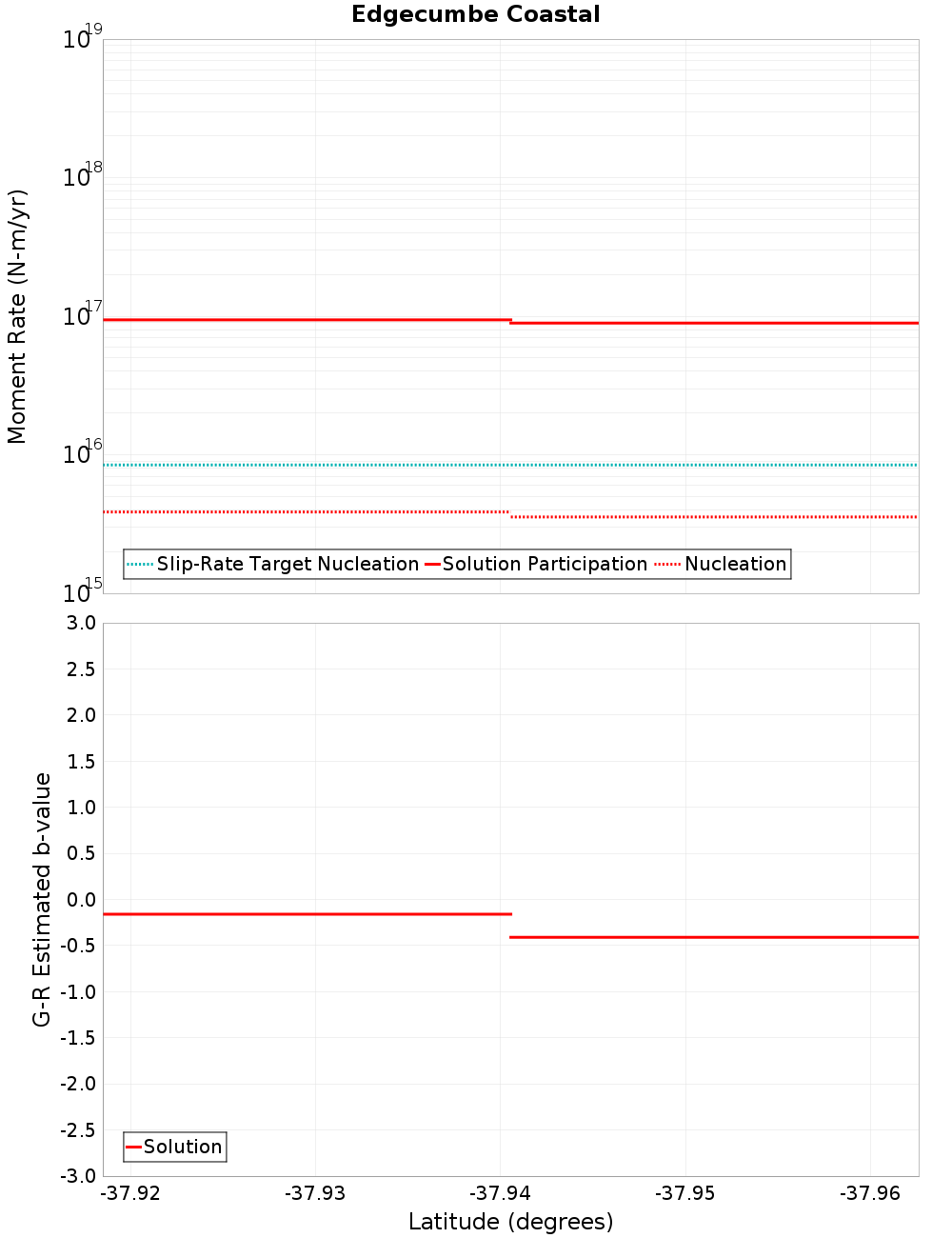

Moment-Rates and b-Values

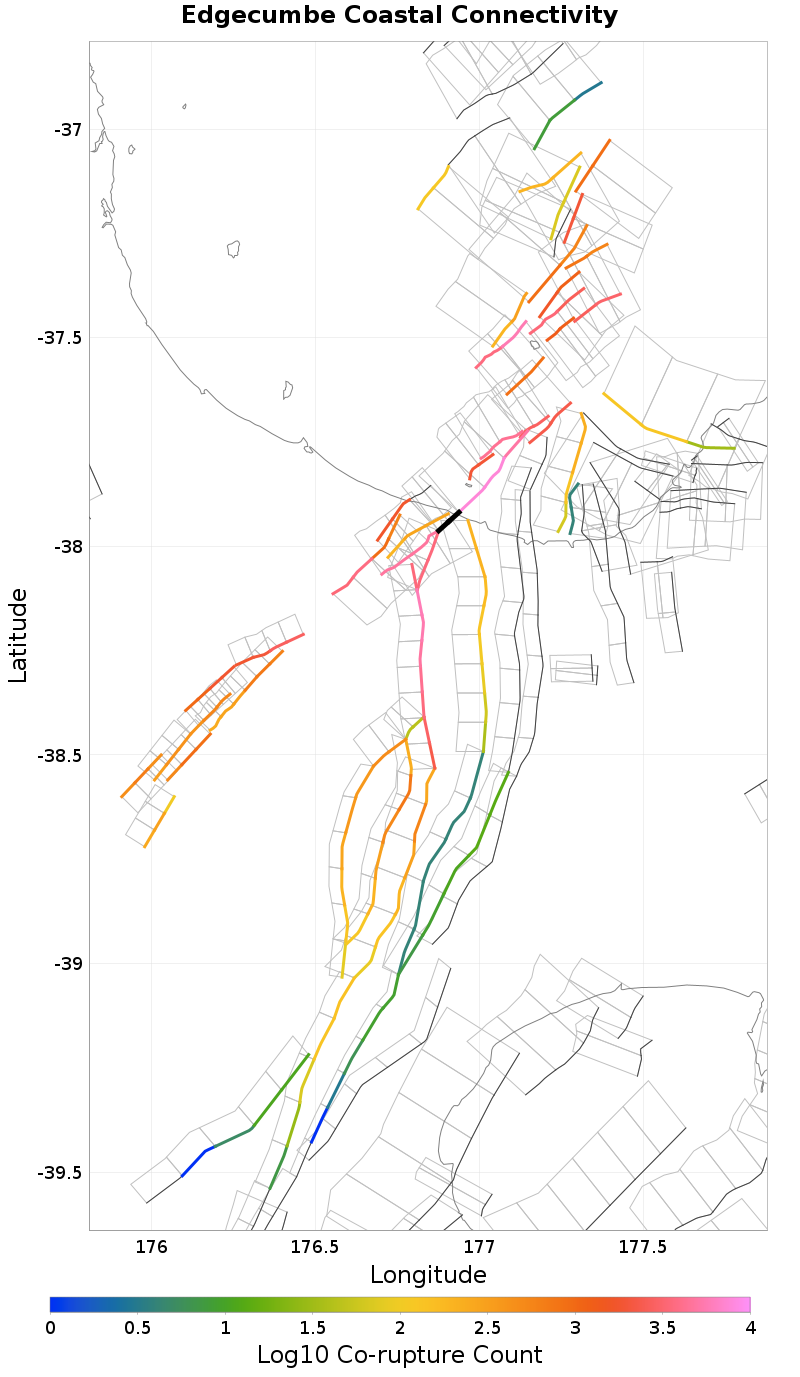

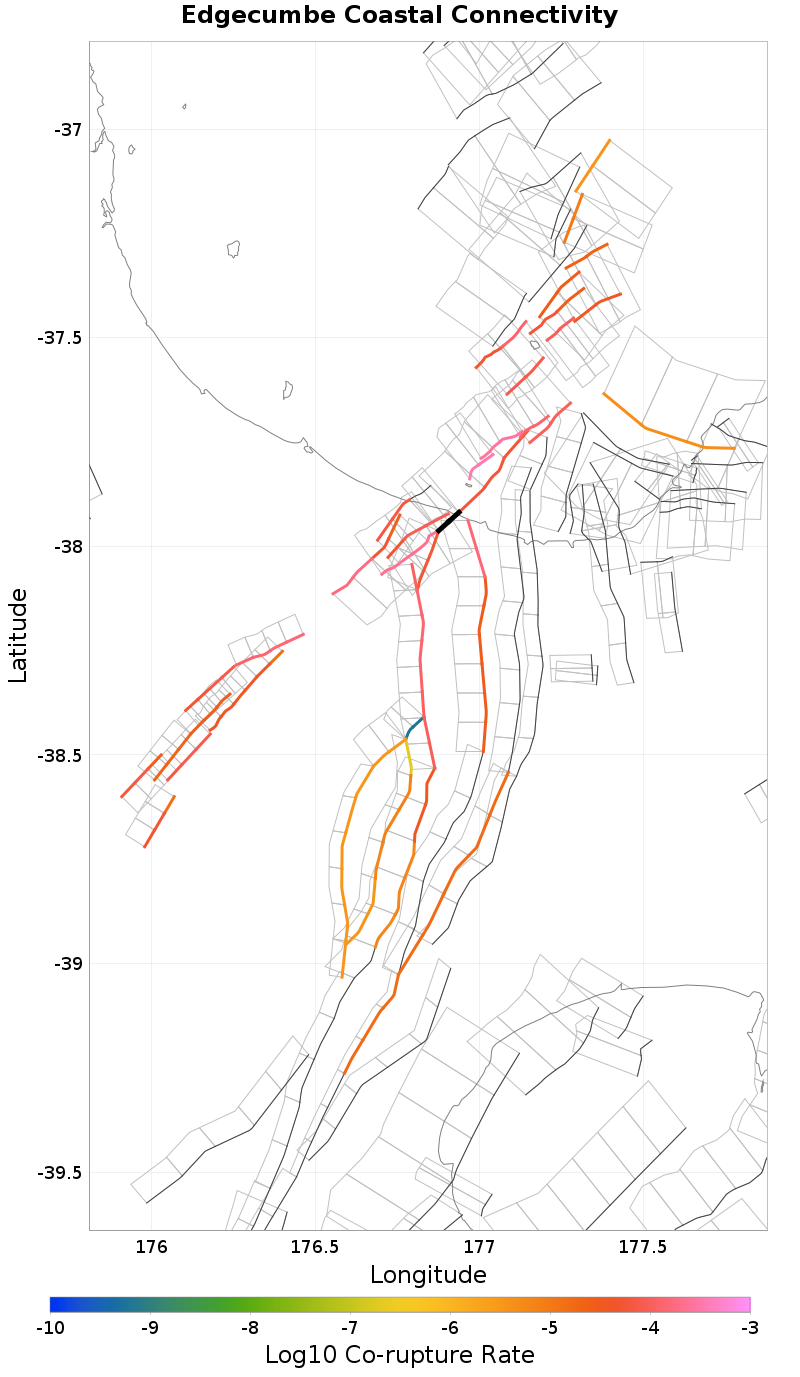

Connectivity

Nearby Sections

Fault Section
White Island 1, 0 km away
Edgecumbe 1987, 0 km away
Awakeri, 0 km away
Otakiri, 0.1 km away
Matata, 0.14 km away
Whakatane: North, 3.09 km away
Braemar, 4.62 km away
Rangitaiki 1, 8.81 km away
Waiohau: North, 11.47 km away
Rangitaiki 2, 14.83 km away
Waimana: North, 15.94 km away
Waiotahi: North, 18.75 km away
Waimanawa - Waikaremoana, 19.37 km away

White Island 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?	true
Directly Connected?	true
Co-rupture Count	7,584
Co-rupture Rate	5.882856E-5

Edgecumbe 1987, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?	true
Directly Connected?	true
Co-rupture Count	4,731
Co-rupture Rate	2.2106896E-4

Awakeri, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?	true
Directly Connected?	true
Co-rupture Count	3,527
Co-rupture Rate	5.0780898E-5

Otakiri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?	true
Directly Connected?	true
Co-rupture Count	282
Co-rupture Rate	8.9155976E-5

Matata, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?	true
Directly Connected?	true
Co-rupture Count	1,710
Co-rupture Rate	7.137444E-5

Whakatane: North, 3.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?	true
Directly Connected?	true
Co-rupture Count	202
Co-rupture Rate	1.4912403E-4

Braemar, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?	true
Directly Connected?	true
Co-rupture Count	3,995
Co-rupture Rate	1.7862905E-4

Rangitaiki 1, 8.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?	true
Directly Connected?	true
Co-rupture Count	1,897
Co-rupture Rate	3.4181355E-4

Waiohau: North, 11.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?	true
Directly Connected?	false
Co-rupture Count	5,867
Co-rupture Rate	1.3851805E-4

Rangitaiki 2, 14.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?	true
Directly Connected?	false
Co-rupture Count	4,270
Co-rupture Rate	2.7102686E-4

Waimana: North, 15.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiotahi: North, 18.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimanawa - Waikaremoana, 19.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMjguMEs1WGpD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
