Ariel Bank Details

PropertyValue
Rupture Count87
Ruptures Above Sect Min Mag83
Ruptures w/ Nonzero Rates3
Magnitude Range[6.51, 7.58]
Length Range[13, 136] km
Total Rate0.0016143416 /yr
Multi-Fault Rate0.0016143416 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults8

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

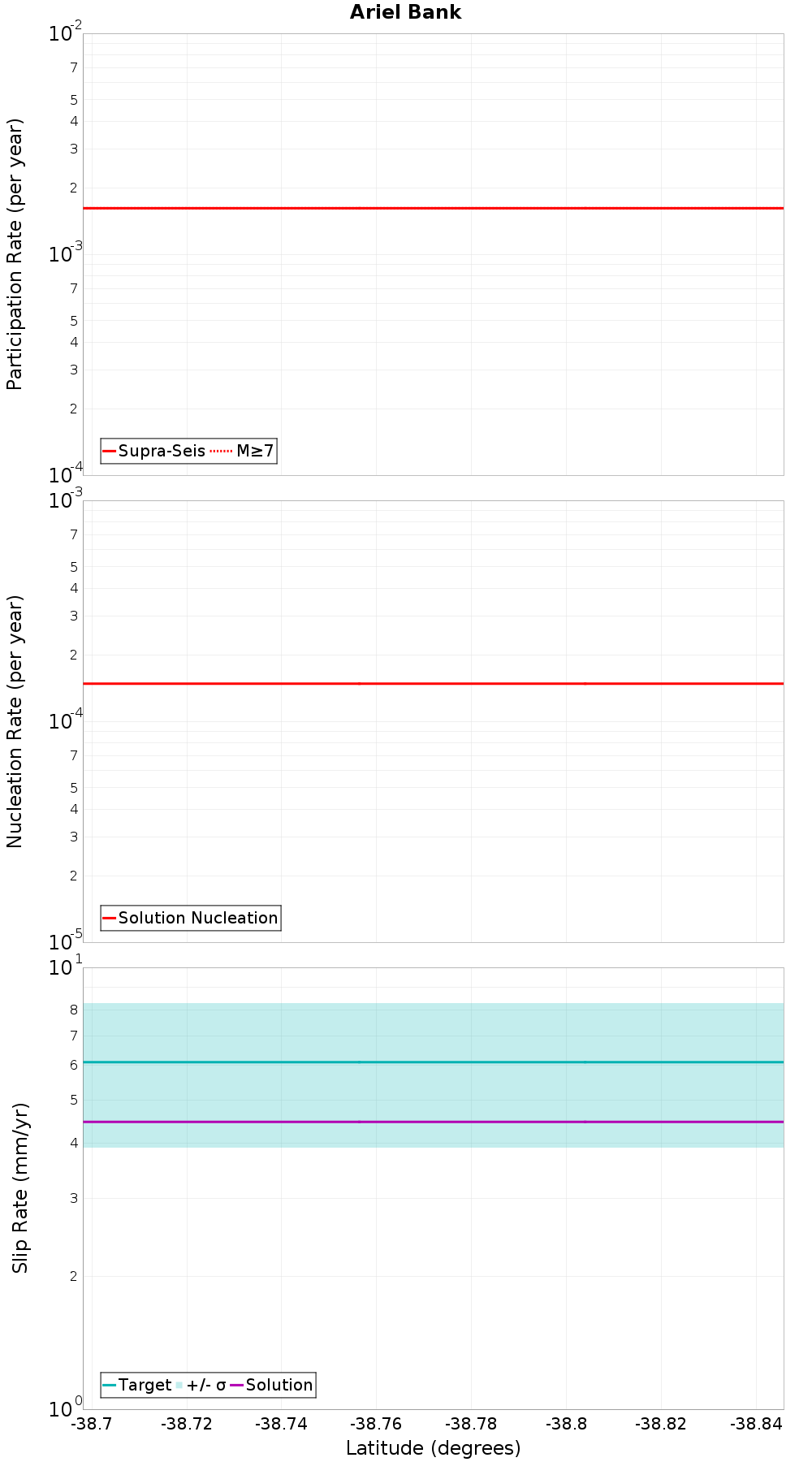

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Te Ikaarongamai, 0.36 km away
Ariel East, 0.48 km away
Gable End North, 2.13 km away
Lachlan 3, 6.74 km away
Gable End South, 7.12 km away
Poverty Bay, 8.84 km away
Pakarae, 10.5 km away
Ariel Bank 2, 17.07 km away

Te Ikaarongamai, 0.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMzIuMG14bXM0
Connected?true
Directly Connected?true
Co-rupture Count7
Co-rupture Rate3.7640776E-4

Ariel East, 0.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMzIuMG14bXM0
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate0.0

Gable End North, 2.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMzIuMG14bXM0
Connected?true
Directly Connected?true
Co-rupture Count69
Co-rupture Rate0.0012379339

Lachlan 3, 6.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMzIuMG14bXM0
Connected?true
Directly Connected?true
Co-rupture Count49
Co-rupture Rate4.6446998E-4

Gable End South, 7.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMzIuMG14bXM0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poverty Bay, 8.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMzIuMG14bXM0
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Pakarae, 10.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMzIuMG14bXM0
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate7.734639E-4

Ariel Bank 2, 17.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyMzIuMG14bXM0
Connected?true
Directly Connected?false
Co-rupture Count41
Co-rupture Rate8.408777E-4
