Calypso 2 Details

PropertyValue
Rupture Count1,658
Ruptures Above Sect Min Mag1,658
Ruptures w/ Nonzero Rates34
Magnitude Range[6.72, 7.80]
Length Range[14, 206] km
Total Rate1.68538E-4 /yr
Multi-Fault Rate9.9251476E-5 /yr (58.89%)
Directly-Connected Faults3
All Co-Rupturing Faults38

Table Of Contents

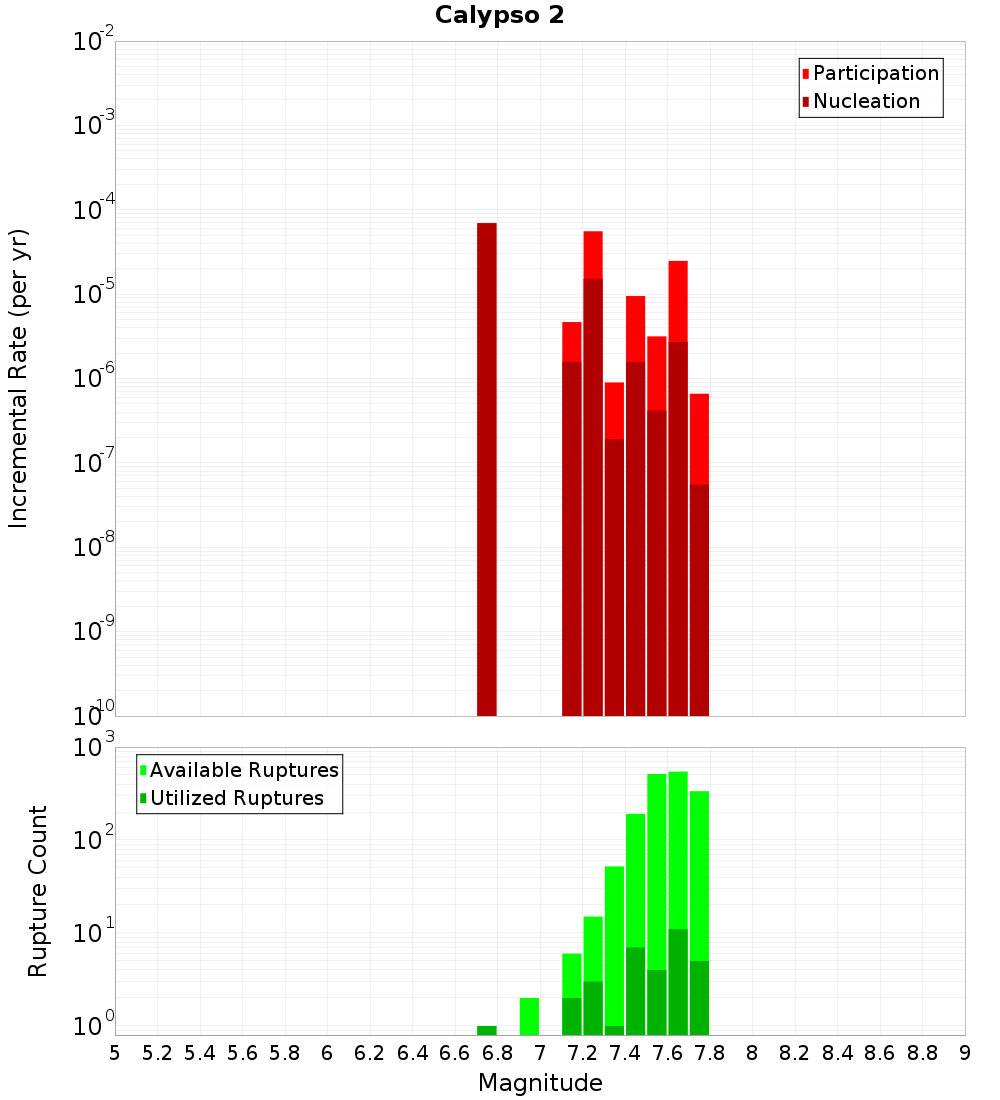

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

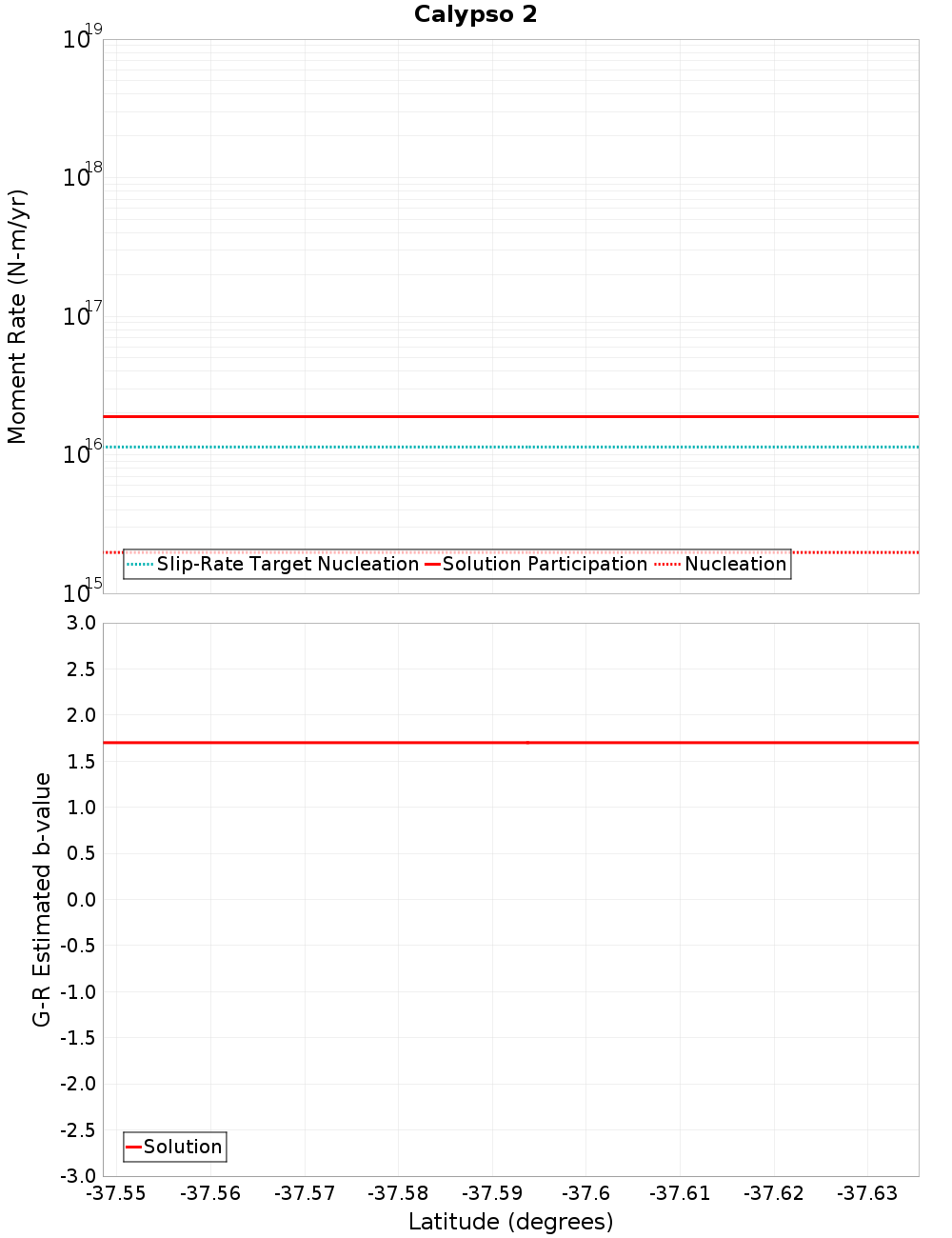

Moment-Rates and b-Values

(top)

Along-strike plot

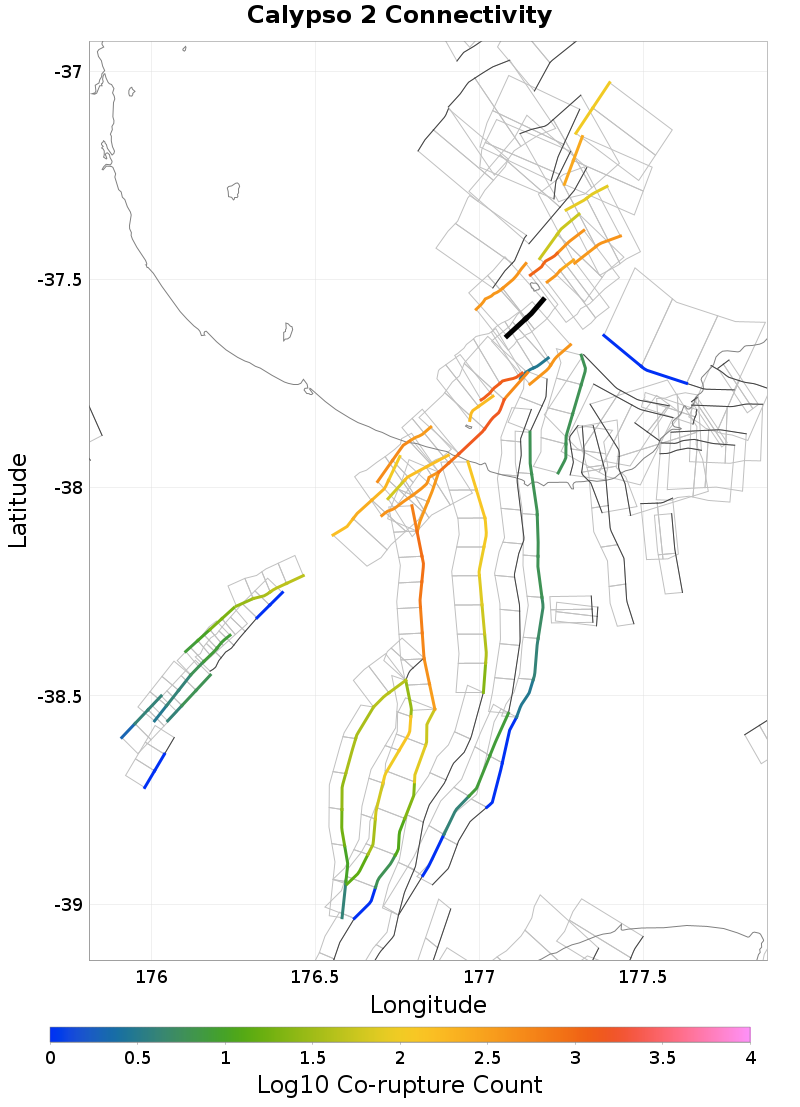

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Whakaari 4, 0.2 km awayVolkner 4, 11.95 km away
Te Arawa 1, 1.54 km awayTuatoru 2, 12.9 km away
Tuatoru 1, 3.86 km awayRangitaiki 1, 14.65 km away
Te Arawa 2, 6.99 km awayWaimanawa - Waikaremoana, 14.96 km away
Rangitaiki 2, 8.01 km awayOpotiki 3, 16.55 km away
Ohiwa 1, 8.32 km awayTuakana 6, 17.76 km away
White Island 1, 8.93 km awayOhae 1, 17.8 km away
Volkner 3, 9.04 km awayTe Arawa 3, 18.58 km away
White Island 2, 10.04 km awayHariki, 18.86 km away

Whakaari 4, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?false
Co-rupture Count406
Co-rupture Rate4.1924295E-6

Te Arawa 1, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?true
Co-rupture Count1,092
Co-rupture Rate2.9249972E-5

Tuatoru 1, 3.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?true
Co-rupture Count393
Co-rupture Rate1.2981003E-5

Te Arawa 2, 6.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?false
Co-rupture Count55
Co-rupture Rate4.664772E-6

Rangitaiki 2, 8.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?true
Co-rupture Count1,291
Co-rupture Rate9.047535E-5

Ohiwa 1, 8.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate8.692393E-12

White Island 1, 8.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?false
Co-rupture Count1,440
Co-rupture Rate2.4743573E-5

Volkner 3, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 2, 10.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?false
Co-rupture Count396
Co-rupture Rate1.218015E-5

Volkner 4, 11.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 2, 12.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?false
Co-rupture Count401
Co-rupture Rate1.243661E-6

Rangitaiki 1, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?false
Co-rupture Count169
Co-rupture Rate6.984312E-5

Waimanawa - Waikaremoana, 14.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 16.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Tuakana 6, 17.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 1, 17.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 3, 18.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?false
Co-rupture Count82
Co-rupture Rate1.6054222E-5

Hariki, 18.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate5.641743E-7
