Gable End North Details

PropertyValue
Rupture Count135
Ruptures Above Sect Min Mag130
Ruptures w/ Nonzero Rates3
Magnitude Range[6.60, 7.59]
Length Range[15, 136] km
Total Rate0.0016042463 /yr
Multi-Fault Rate0.0016042463 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults10

Table Of Contents

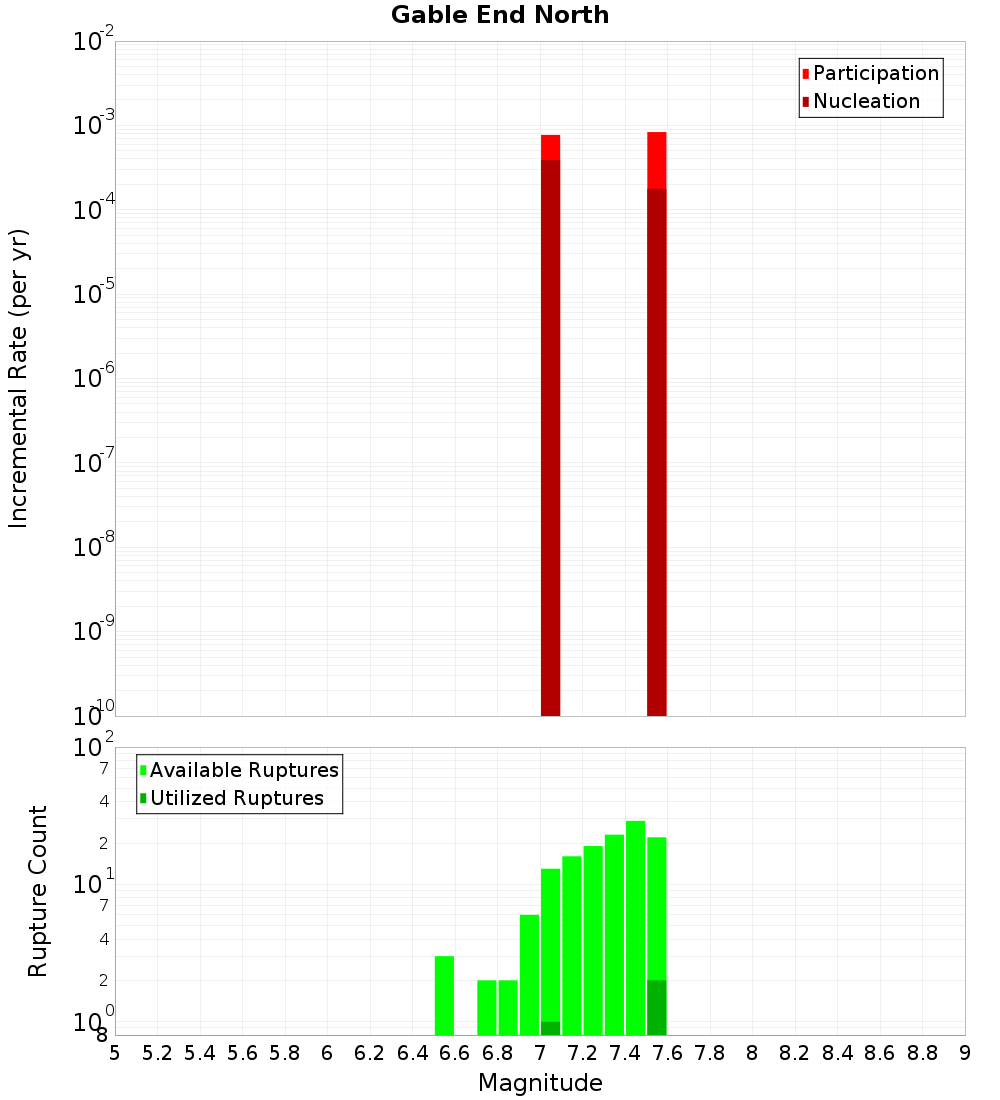

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

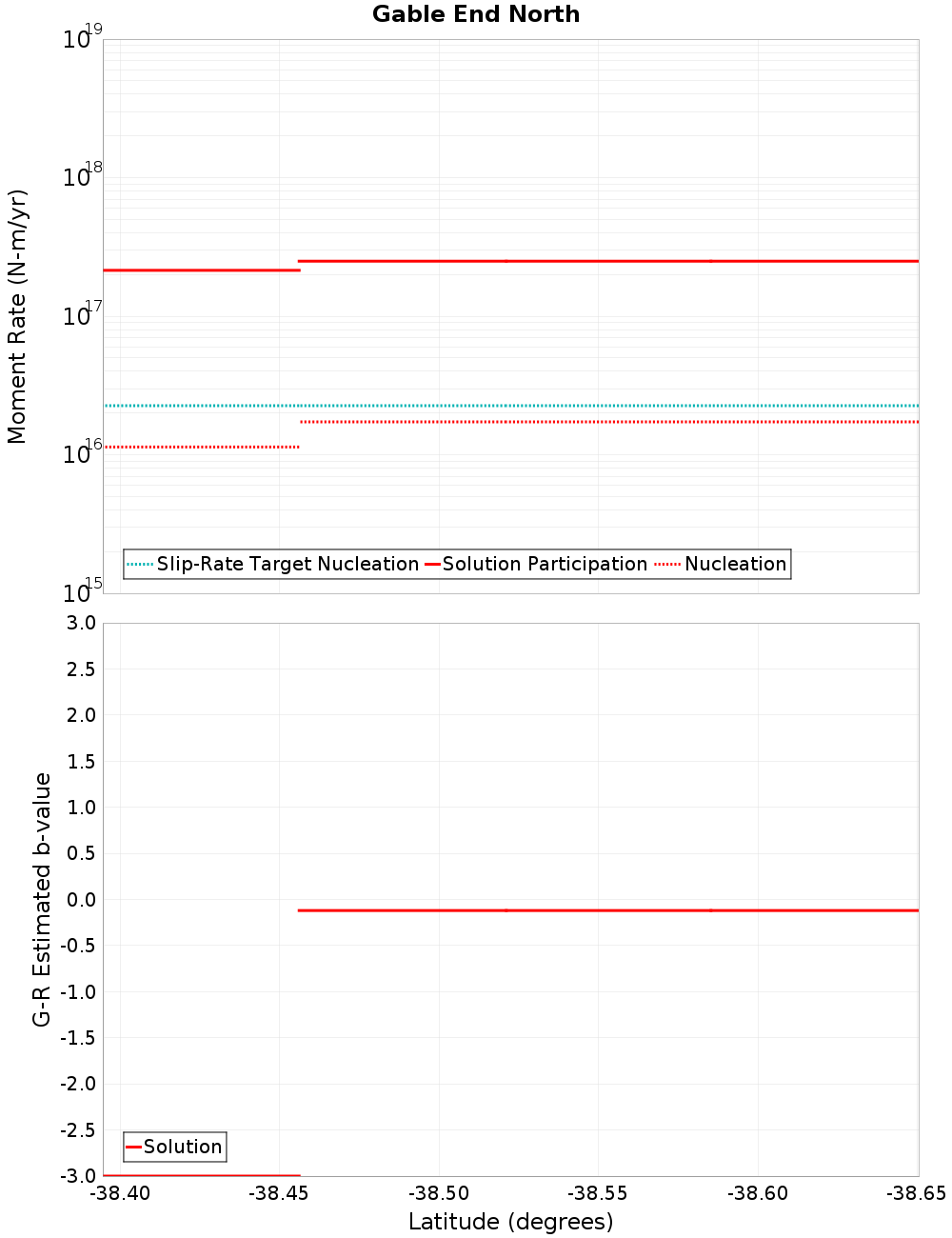

Moment-Rates and b-Values

(top)

Along-strike plot

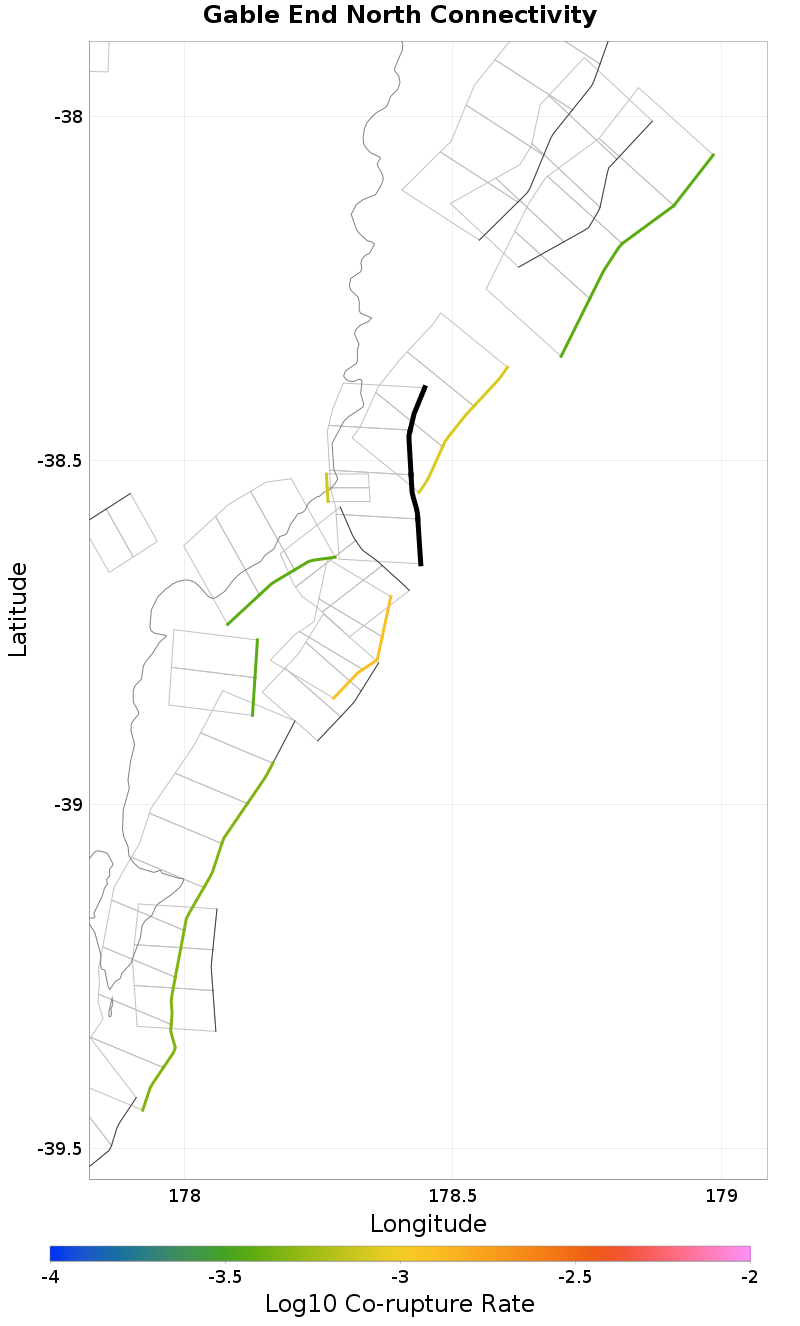

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pakarae, 0.48 km away
Ariel Bank 2, 0.9 km away
Ariel Bank, 2.13 km away
Te Ikaarongamai, 3.53 km away
Gable End South, 5.25 km away
Ariel East, 9.29 km away

Pakarae, 0.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate7.7100436E-4

Ariel Bank 2, 0.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?true
Co-rupture Count78
Co-rupture Rate8.332419E-4

Ariel Bank, 2.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?true
Co-rupture Count69
Co-rupture Rate0.0012348106

Te Ikaarongamai, 3.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?true
Co-rupture Count29
Co-rupture Rate0.0

Gable End South, 5.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?true
Co-rupture Count19
Co-rupture Rate3.6943567E-4

Ariel East, 9.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate0.0
