Waiohau: North Details

PropertyValue
Rupture Count12,809
Ruptures Above Sect Min Mag12,796
Ruptures w/ Nonzero Rates171
Magnitude Range[6.50, 8.27]
Length Range[14, 521] km
Total Rate2.844641E-4 /yr
Multi-Fault Rate2.844641E-4 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults80

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

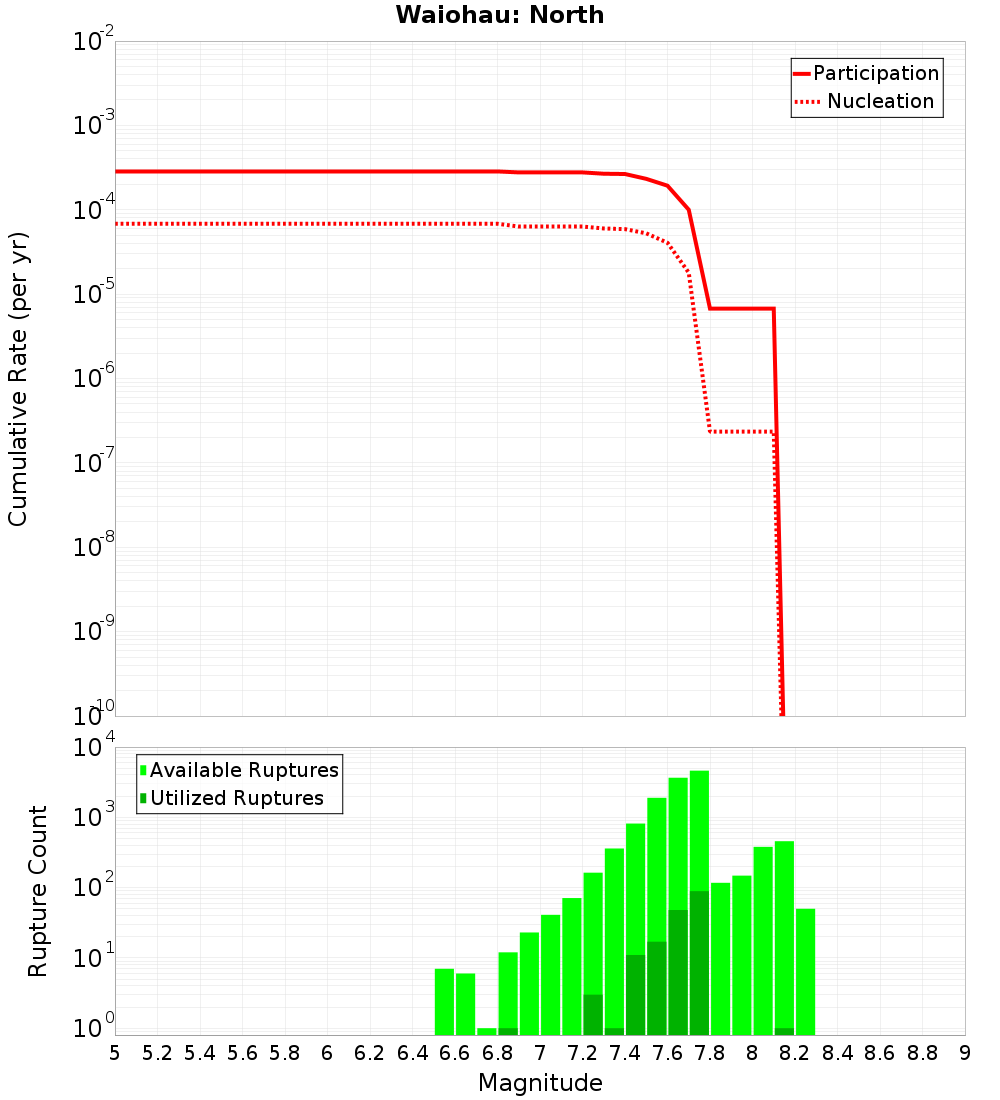

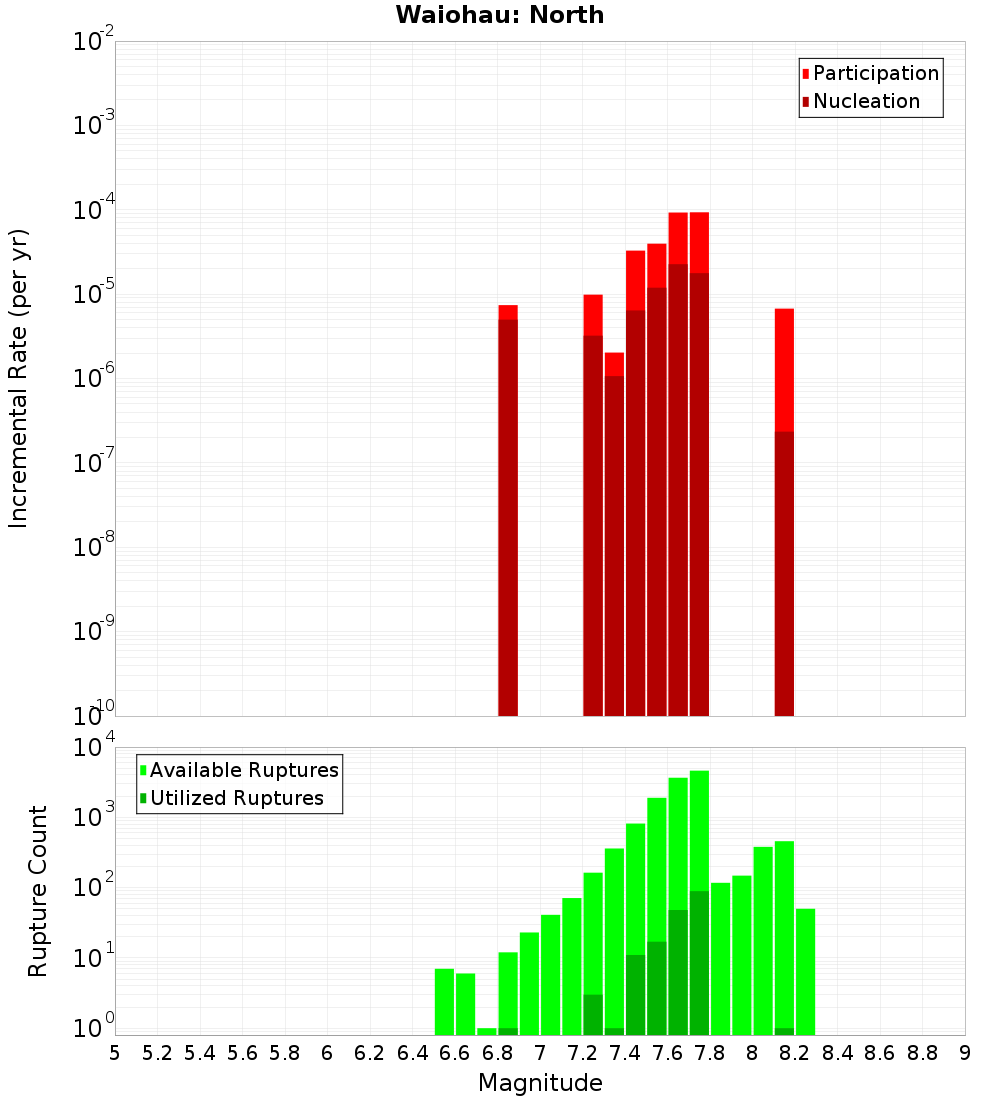

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

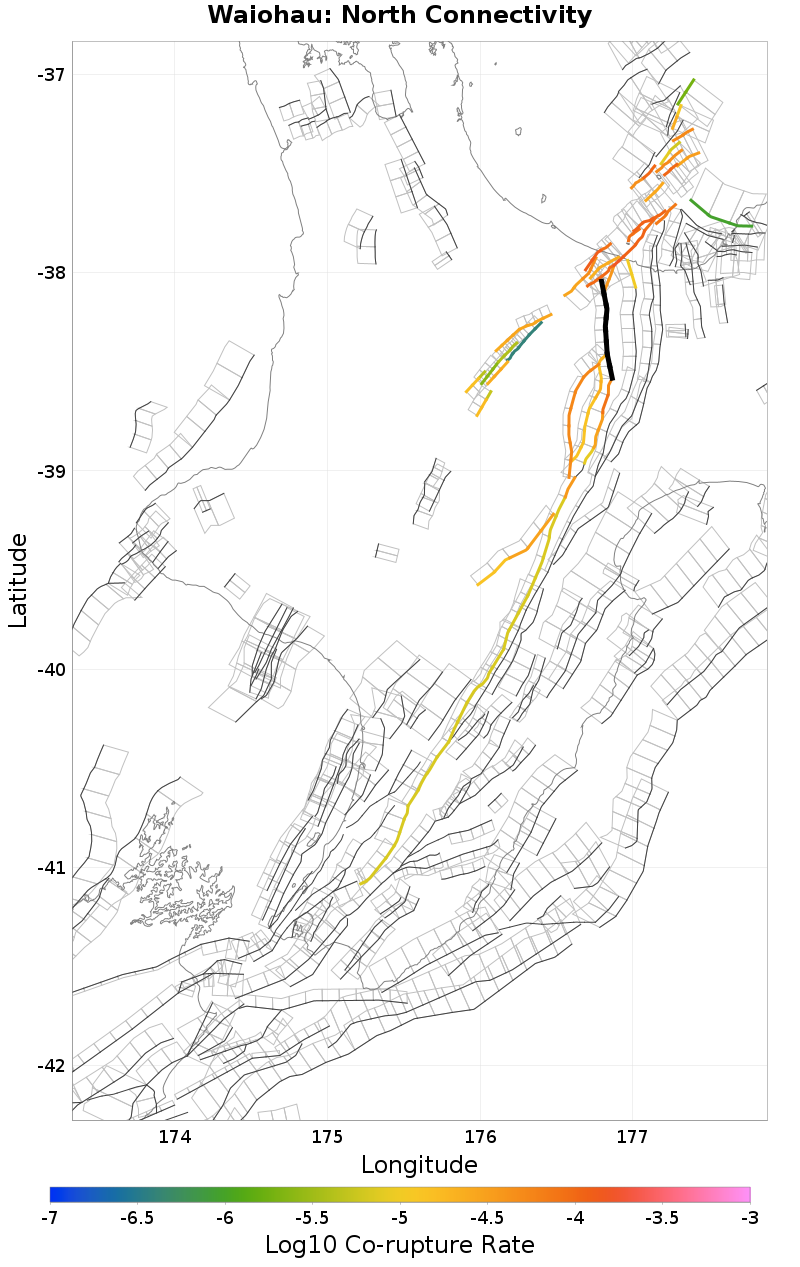

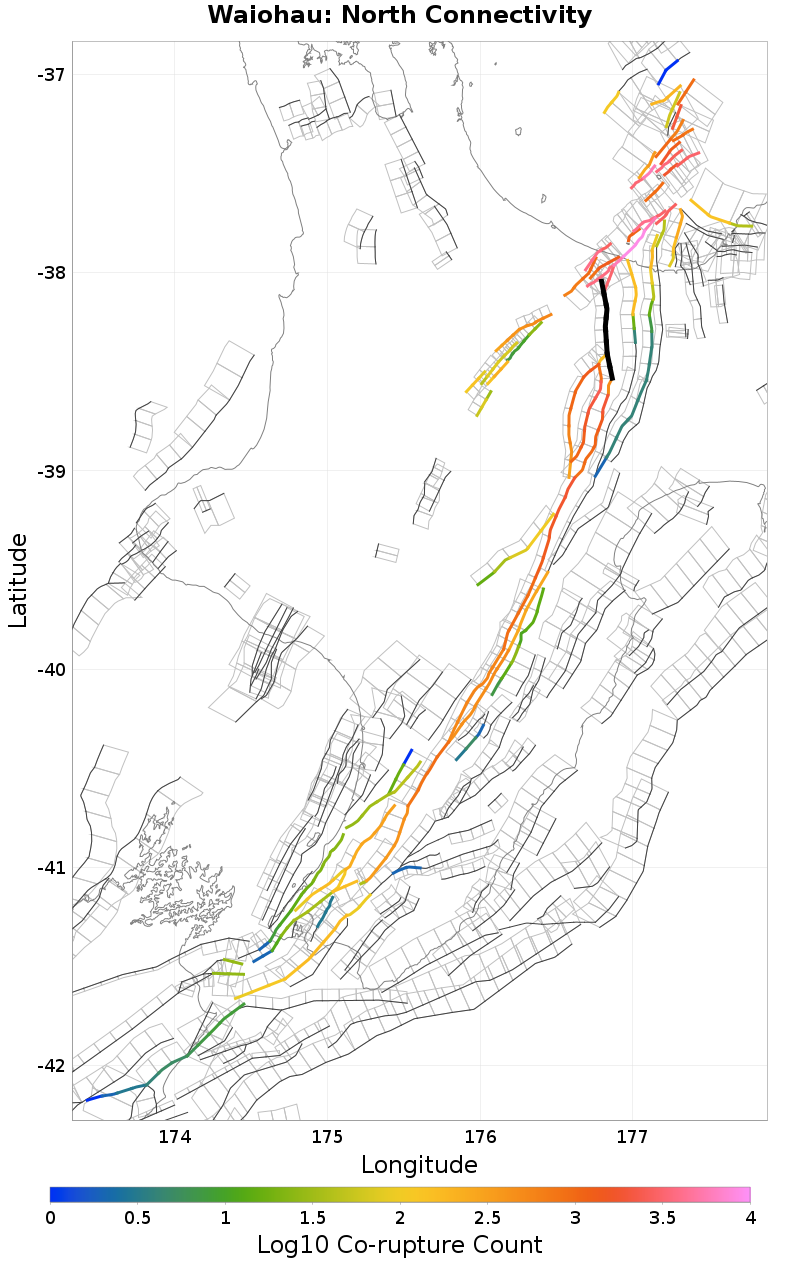

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Waiohau: South, 0 km awayWheao: North, 2.44 km away
Awakeri, 0.13 km awayWhakatane: South, 11.09 km away
Te Whaiti North, 0.16 km awayEdgecumbe Coastal, 11.47 km away
Braemar, 0.22 km awayWheao: South, 11.7 km away
Otakiri, 0.39 km awayWhakatane: North, 12.32 km away
Te Whaiti South, 1.94 km awayWaimana: South, 17.98 km away
Matata, 2.01 km awayWhite Island 1, 18.73 km away
Edgecumbe 1987, 2.18 km awayWaimana: North, 18.89 km away

Waiohau: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?true
Co-rupture Count1,896
Co-rupture Rate8.33043E-5

Awakeri, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?true
Co-rupture Count3,077
Co-rupture Rate3.8767703E-5

Te Whaiti North, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?true
Co-rupture Count165
Co-rupture Rate1.9855022E-5

Braemar, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?true
Co-rupture Count1,615
Co-rupture Rate7.6305136E-5

Otakiri, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?true
Co-rupture Count1,356
Co-rupture Rate2.3714229E-5

Te Whaiti South, 1.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?true
Co-rupture Count2,439
Co-rupture Rate2.2139942E-5

Matata, 2.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?true
Co-rupture Count3,932
Co-rupture Rate1.2769965E-4

Edgecumbe 1987, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?true
Co-rupture Count3,651
Co-rupture Rate9.690887E-5

Wheao: North, 2.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?true
Co-rupture Count1,336
Co-rupture Rate5.5056702E-5

Whakatane: South, 11.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edgecumbe Coastal, 11.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?false
Co-rupture Count5,862
Co-rupture Rate1.547819E-4

Wheao: South, 11.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?false
Co-rupture Count1,060
Co-rupture Rate5.3615946E-5

Whakatane: North, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?true
Co-rupture Count194
Co-rupture Rate1.0065613E-5

Waimana: South, 17.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

White Island 1, 18.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?false
Co-rupture Count8,617
Co-rupture Rate1.1353512E-4

Waimana: North, 18.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDAuMEZ6YTdp
Connected?true
Directly Connected?false
Co-rupture Count180
Co-rupture Rate0.0
