Browning Pass Details
| Property | Value |
|---|---|
| Rupture Count | 17,888 |
| Ruptures Above Sect Min Mag | 17,886 |
| Ruptures w/ Nonzero Rates | 14 |
| Magnitude Range | [6.70, 8.60] |
| Length Range | [16, 1,087] km |
| Total Rate | 3.0372338E-4 /yr |
| Multi-Fault Rate | 3.0372338E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 94 |
Table Of Contents

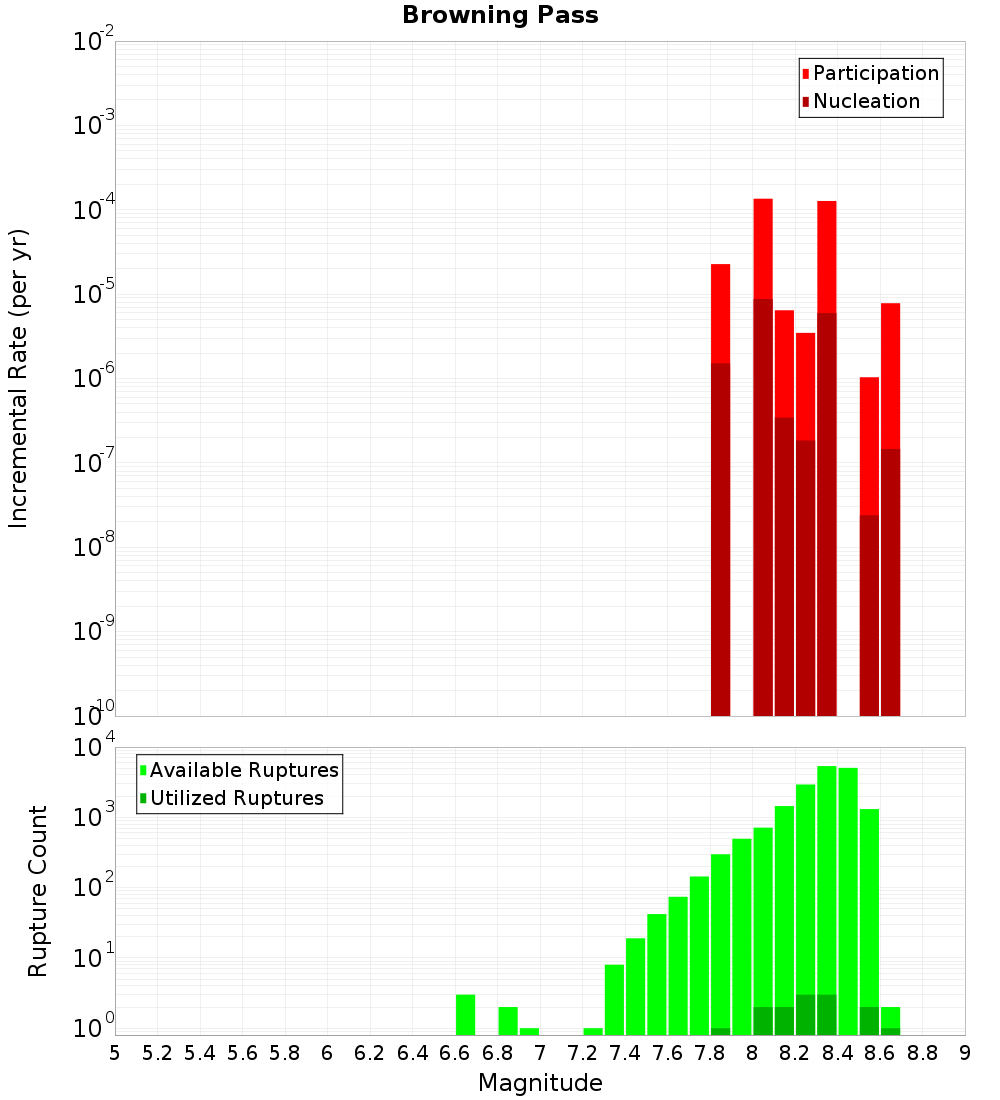

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

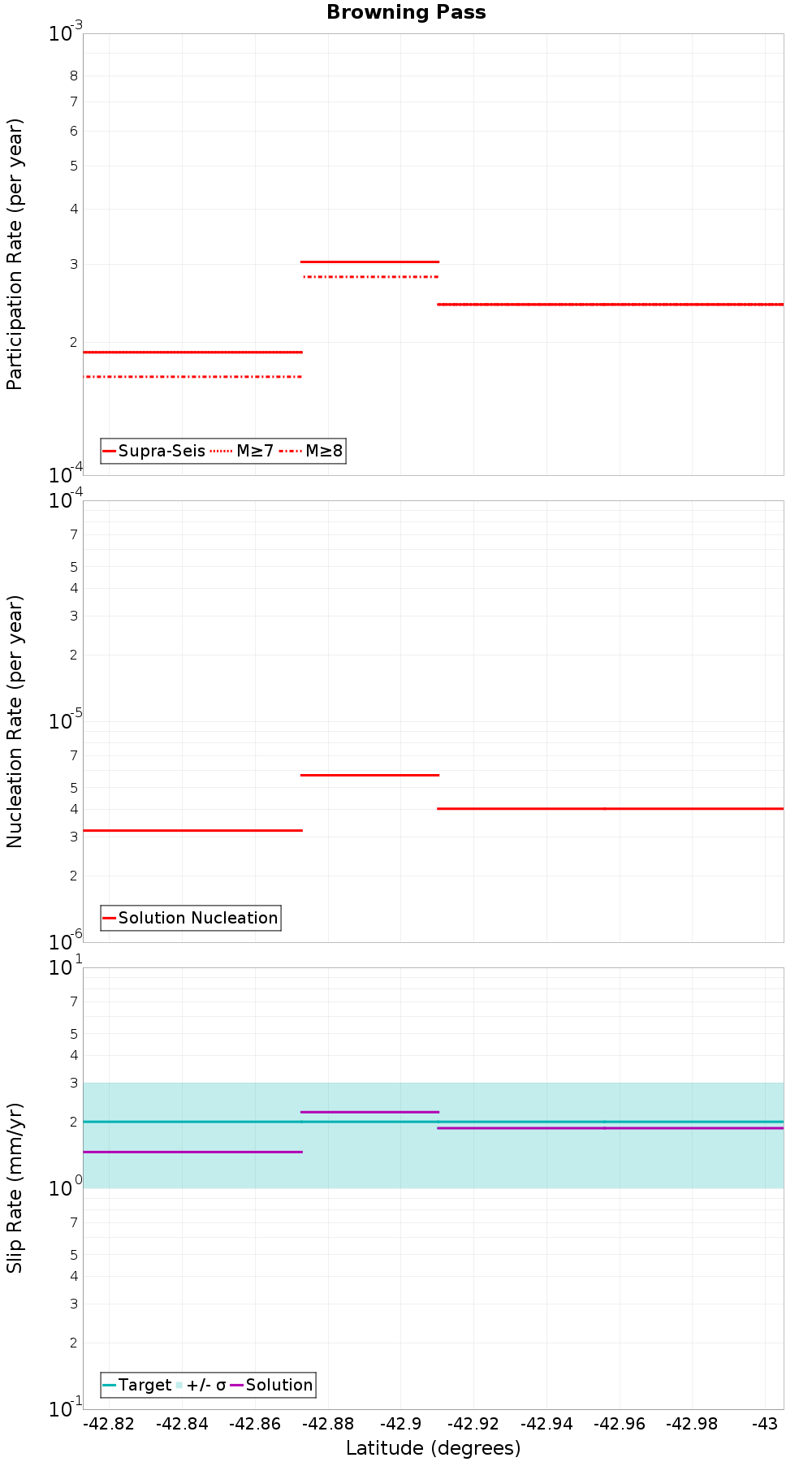

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kelly, 0.1 km away |
| Alpine: Kaniere to Springs Junction, 0.16 km away |
| Hope: Taramakau, 0.25 km away |
| Alpine: Jacksons to Kaniere, 0.34 km away |
| Poulter, 14.55 km away |
Kelly, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMDluWTk2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Alpine: Kaniere to Springs Junction, 0.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMDluWTk2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 17,378 |
| Co-rupture Rate | 1.7446304E-4 |
Hope: Taramakau, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMDluWTk2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Alpine: Jacksons to Kaniere, 0.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMDluWTk2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 17,330 |
| Co-rupture Rate | 1.4584829E-4 |
Poulter, 14.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMDluWTk2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
