Puketerata North Details
| Property | Value |
|---|---|
| Rupture Count | 1,684 |
| Ruptures Above Sect Min Mag | 1,681 |
| Ruptures w/ Nonzero Rates | 111 |
| Magnitude Range | [6.22, 7.85] |
| Length Range | [10, 215] km |
| Total Rate | 6.865099E-4 /yr |
| Multi-Fault Rate | 6.865099E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 29 |
Table Of Contents

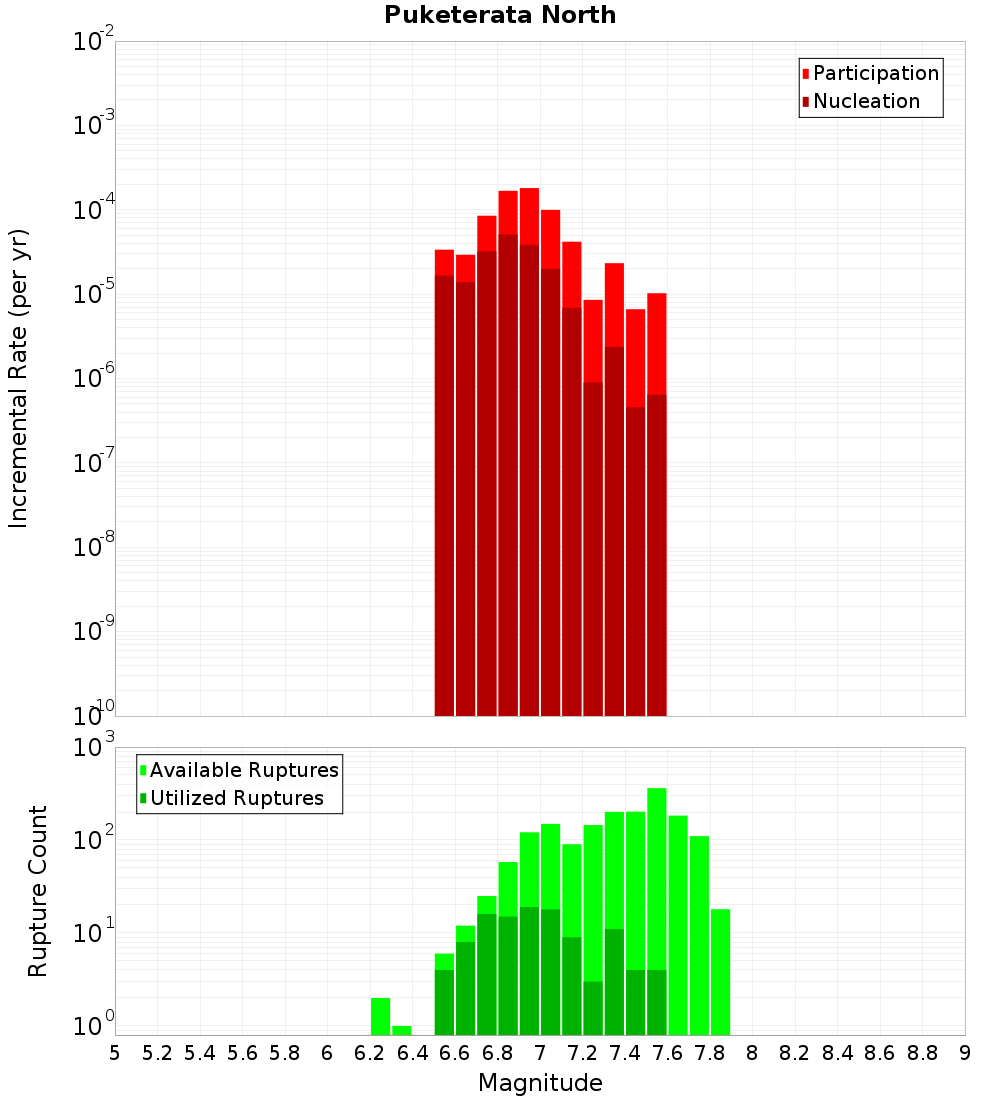

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

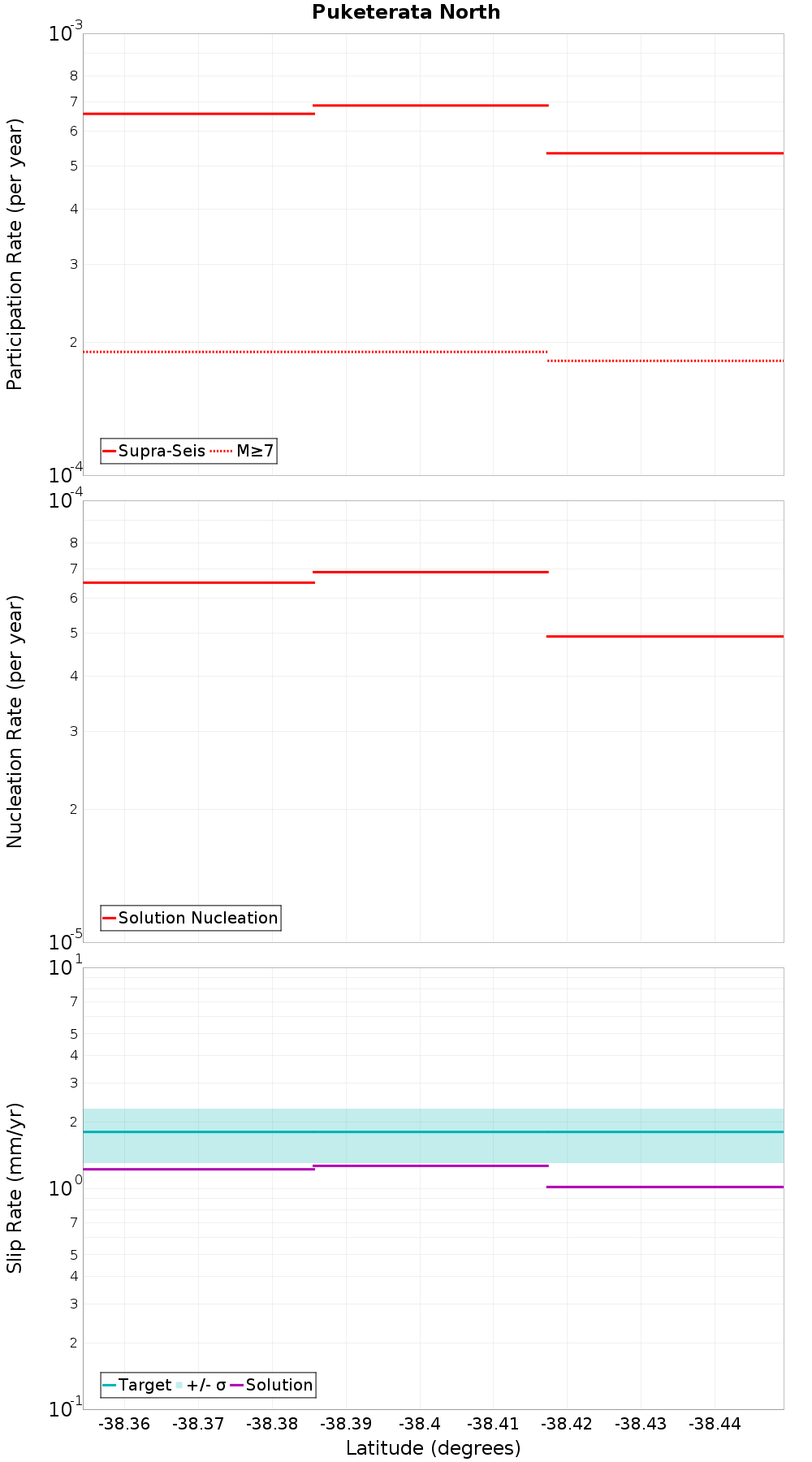

Along-Strike Values

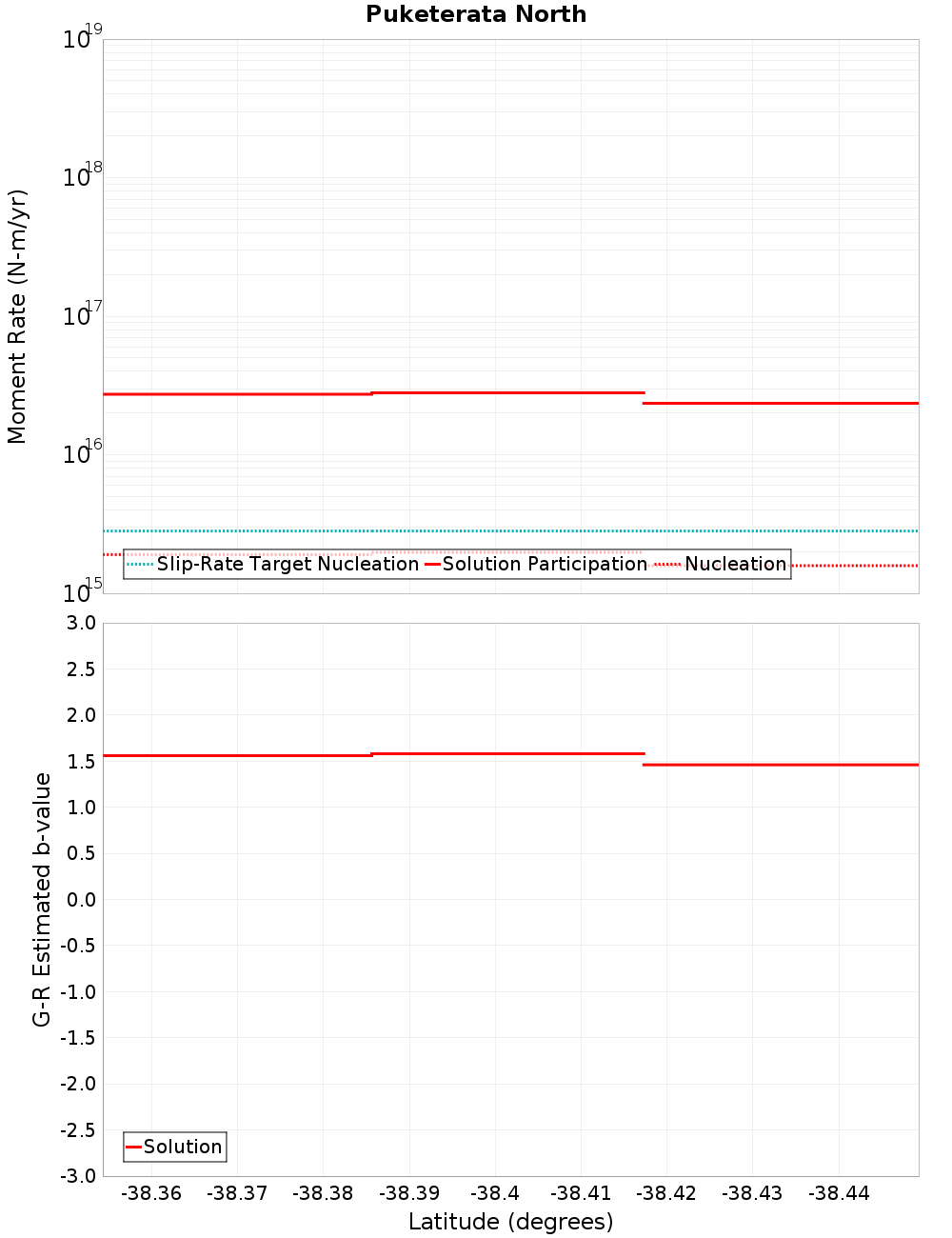

Moment-Rates and b-Values

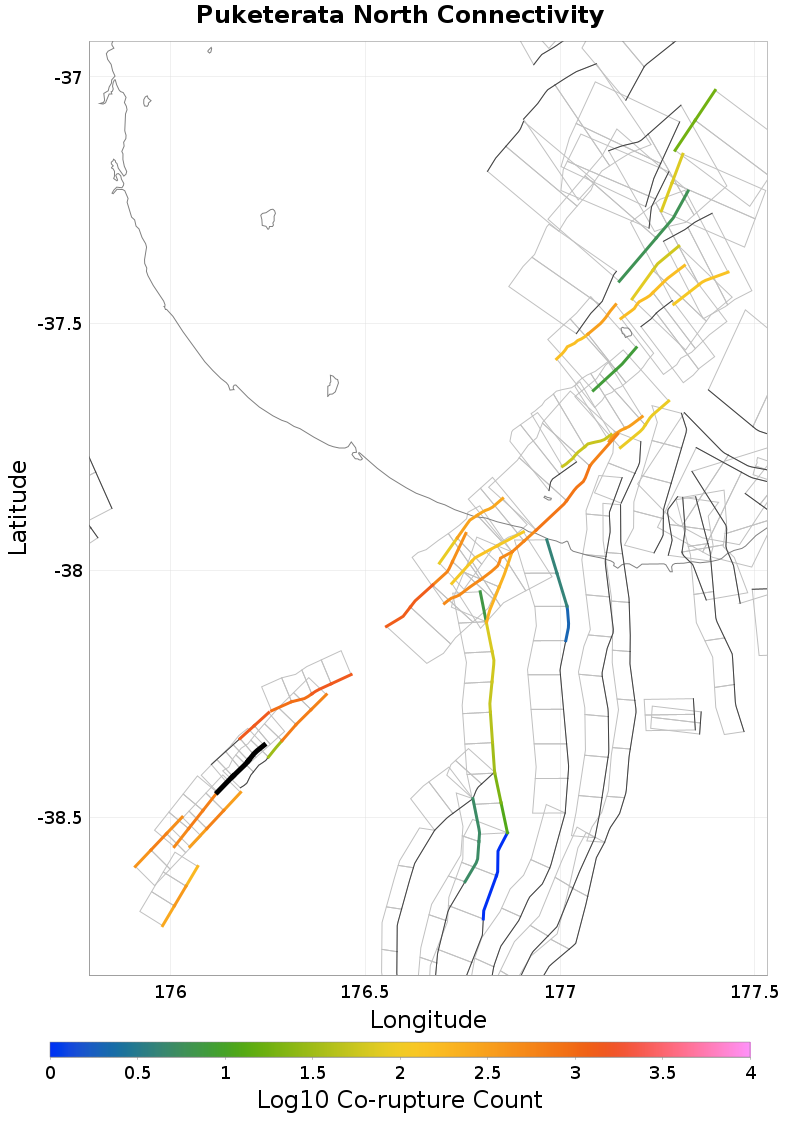

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Puketerata, 0.1 km away |
| Maleme, 0.15 km away |
| Paeroa, 2.13 km away |
| Orakeikorako, 3.3 km away |
| EarthquakeFlat - Tumunui, 7.65 km away |
| Whangamata West, 9.6 km away |
| Kaiapo, 17.13 km away |
Puketerata, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMDluWTk2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 663 |
| Co-rupture Rate | 2.9669426E-4 |
Maleme, 0.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMDluWTk2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,374 |
| Co-rupture Rate | 2.9958054E-4 |
Paeroa, 2.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMDluWTk2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 692 |
| Co-rupture Rate | 3.4299536E-4 |
Orakeikorako, 3.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMDluWTk2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 604 |
| Co-rupture Rate | 3.2162046E-4 |
EarthquakeFlat - Tumunui, 7.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMDluWTk2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,429 |
| Co-rupture Rate | 2.684481E-4 |
Whangamata West, 9.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMDluWTk2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 615 |
| Co-rupture Rate | 2.7510815E-4 |
Kaiapo, 17.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMDluWTk2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 358 |
| Co-rupture Rate | 3.0561694E-4 |
