Awakeri Details

PropertyValue
Rupture Count923
Ruptures Above Sect Min Mag923
Ruptures w/ Nonzero Rates15
Magnitude Range[6.66, 7.50]
Length Range[17, 143] km
Total Rate7.196901E-5 /yr
Multi-Fault Rate7.196901E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults31

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

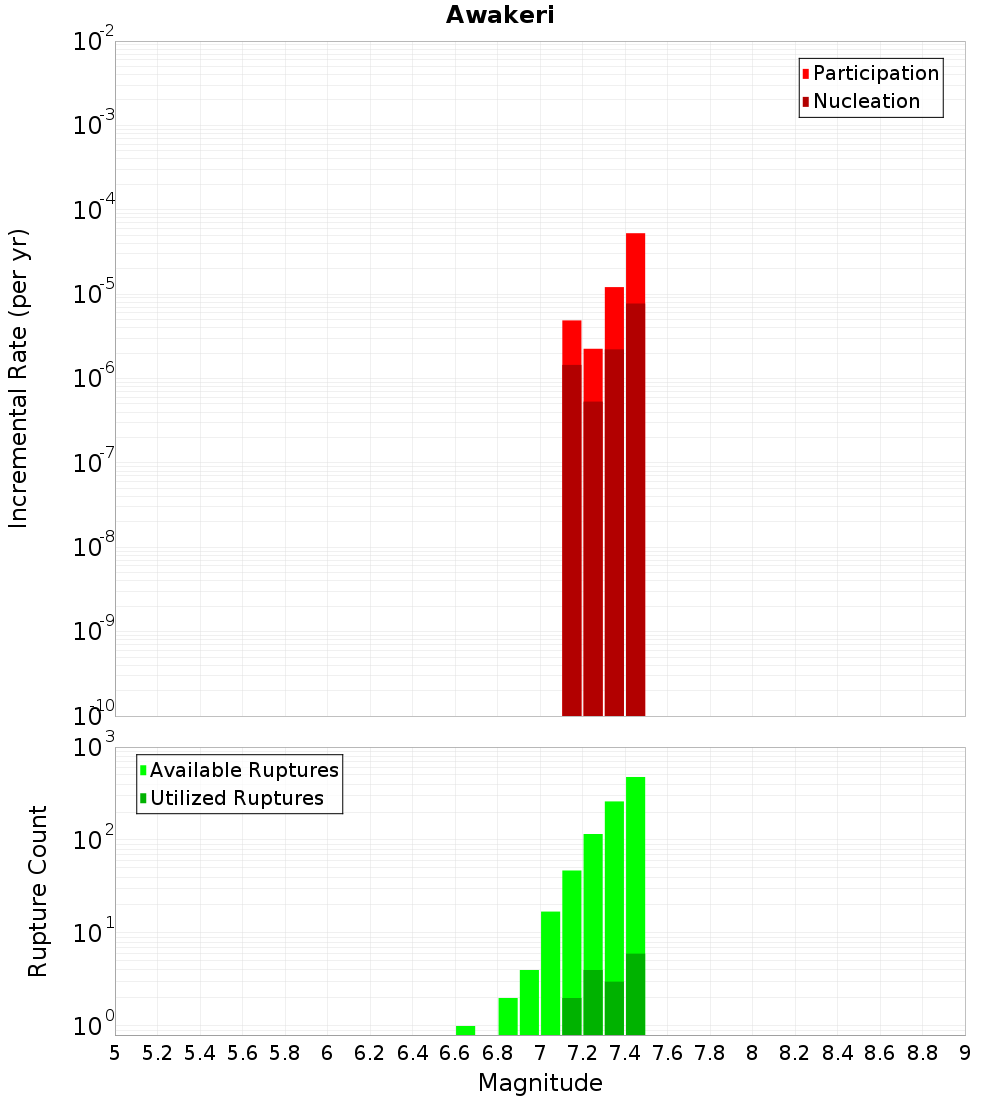

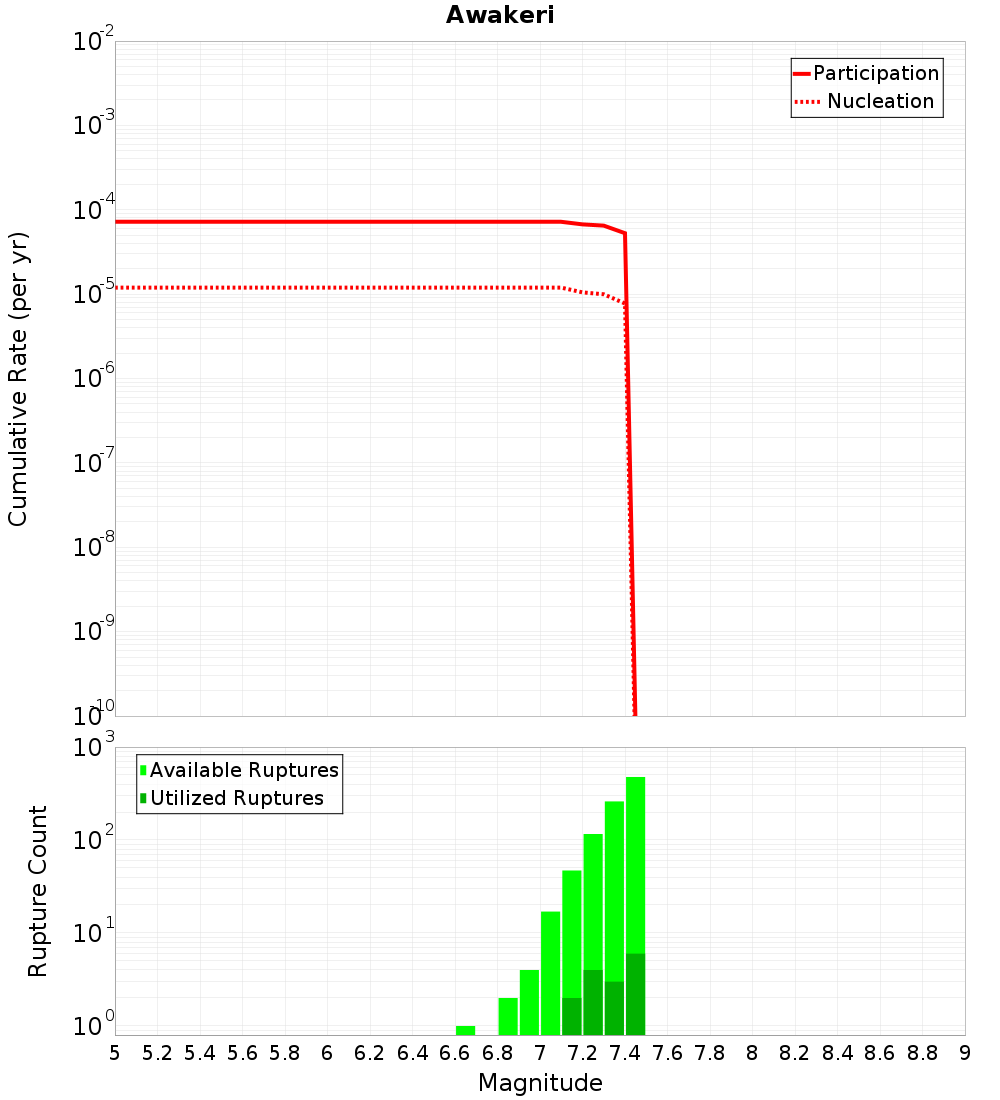

Incremental PlotCumulative Plot

Along-Strike Values

(top)

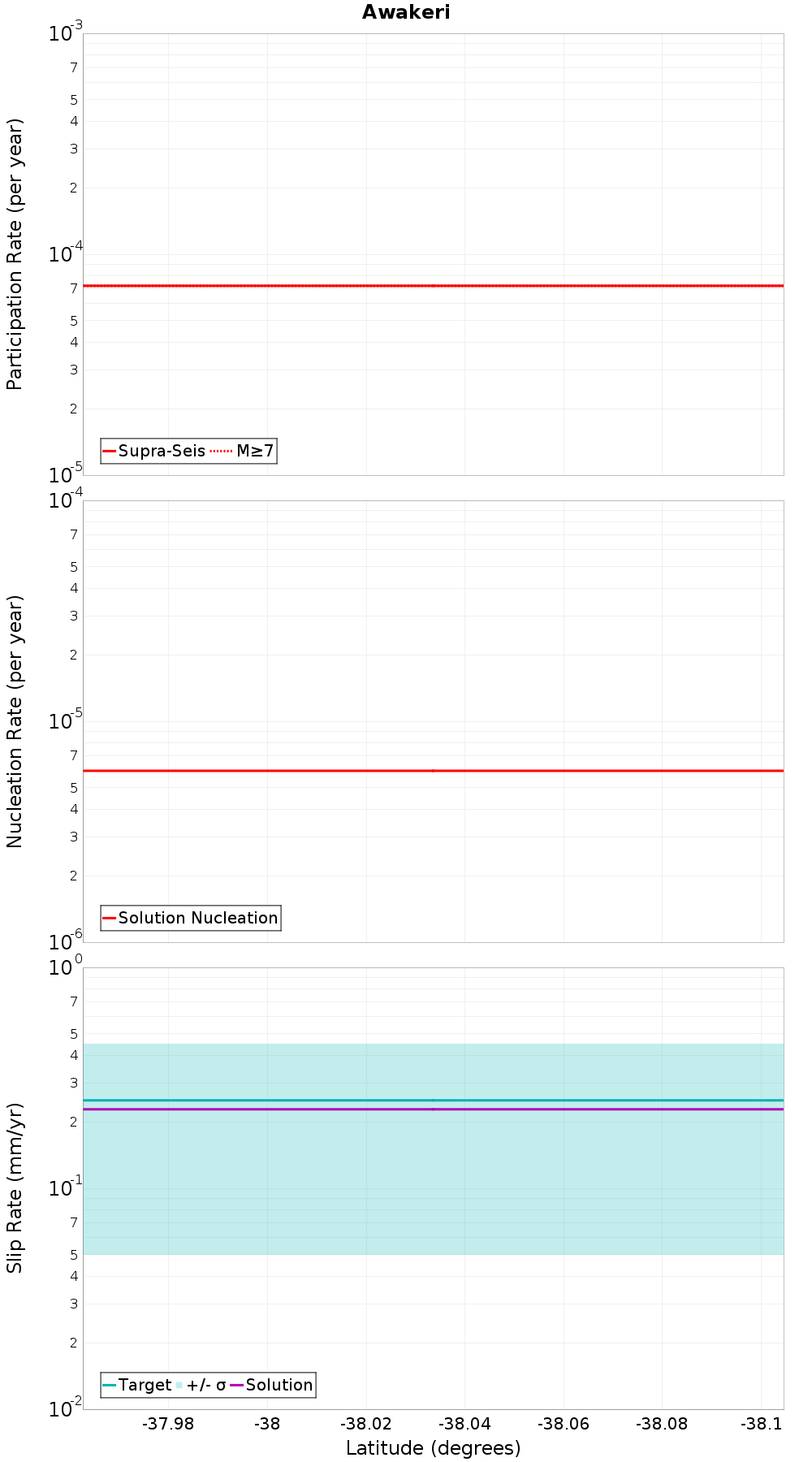

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

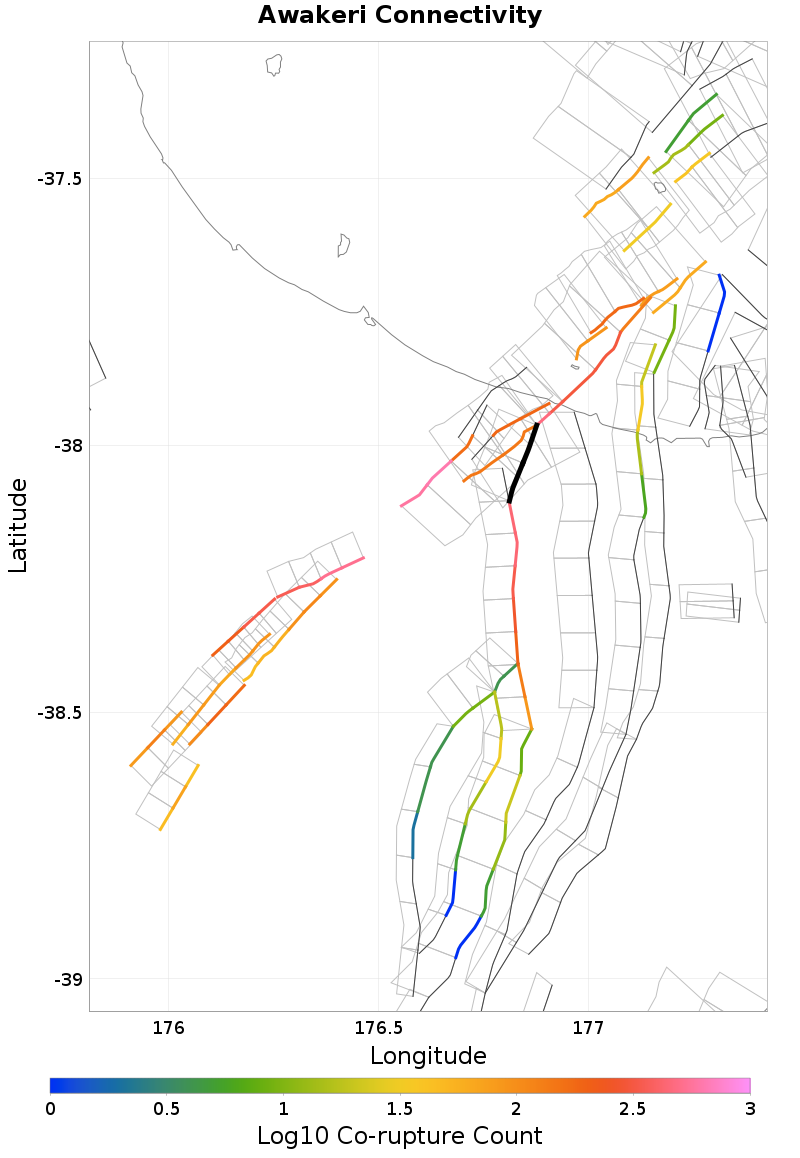

MapMap

Nearby Sections

(top)

Fault Section
Edgecumbe 1987, 0 km away
Edgecumbe Coastal, 0 km away
Braemar, 0.1 km away
Otakiri, 0.1 km away
Waiohau: North, 0.13 km away
Matata, 0.16 km away
White Island 1, 7.32 km away
Whakatane: North, 7.56 km away
Rangitaiki 1, 16.13 km away

Edgecumbe 1987, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMEx4dVlG
Connected?true
Directly Connected?false
Co-rupture Count143
Co-rupture Rate1.6925006E-10

Edgecumbe Coastal, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMEx4dVlG
Connected?true
Directly Connected?true
Co-rupture Count466
Co-rupture Rate3.1749118E-5

Braemar, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMEx4dVlG
Connected?true
Directly Connected?true
Co-rupture Count627
Co-rupture Rate2.5555943E-5

Otakiri, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMEx4dVlG
Connected?true
Directly Connected?true
Co-rupture Count185
Co-rupture Rate3.387113E-5

Waiohau: North, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMEx4dVlG
Connected?true
Directly Connected?true
Co-rupture Count432
Co-rupture Rate4.6256828E-5

Matata, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMEx4dVlG
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 7.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMEx4dVlG
Connected?true
Directly Connected?false
Co-rupture Count302
Co-rupture Rate1.6910386E-5

Whakatane: North, 7.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMEx4dVlG
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 16.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNDYuMEx4dVlG
Connected?true
Directly Connected?false
Co-rupture Count90
Co-rupture Rate1.4812718E-5
