Nevis Details

Property	Value
Rupture Count	246
Ruptures Above Sect Min Mag	245
Ruptures w/ Nonzero Rates	15
Magnitude Range	[7.24, 8.44]
Length Range	[33, 731] km
Total Rate	9.8701435E-5 /yr
Multi-Fault Rate	8.2685954E-5 /yr (83.77%)
Directly-Connected Faults	5
All Co-Rupturing Faults	36

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

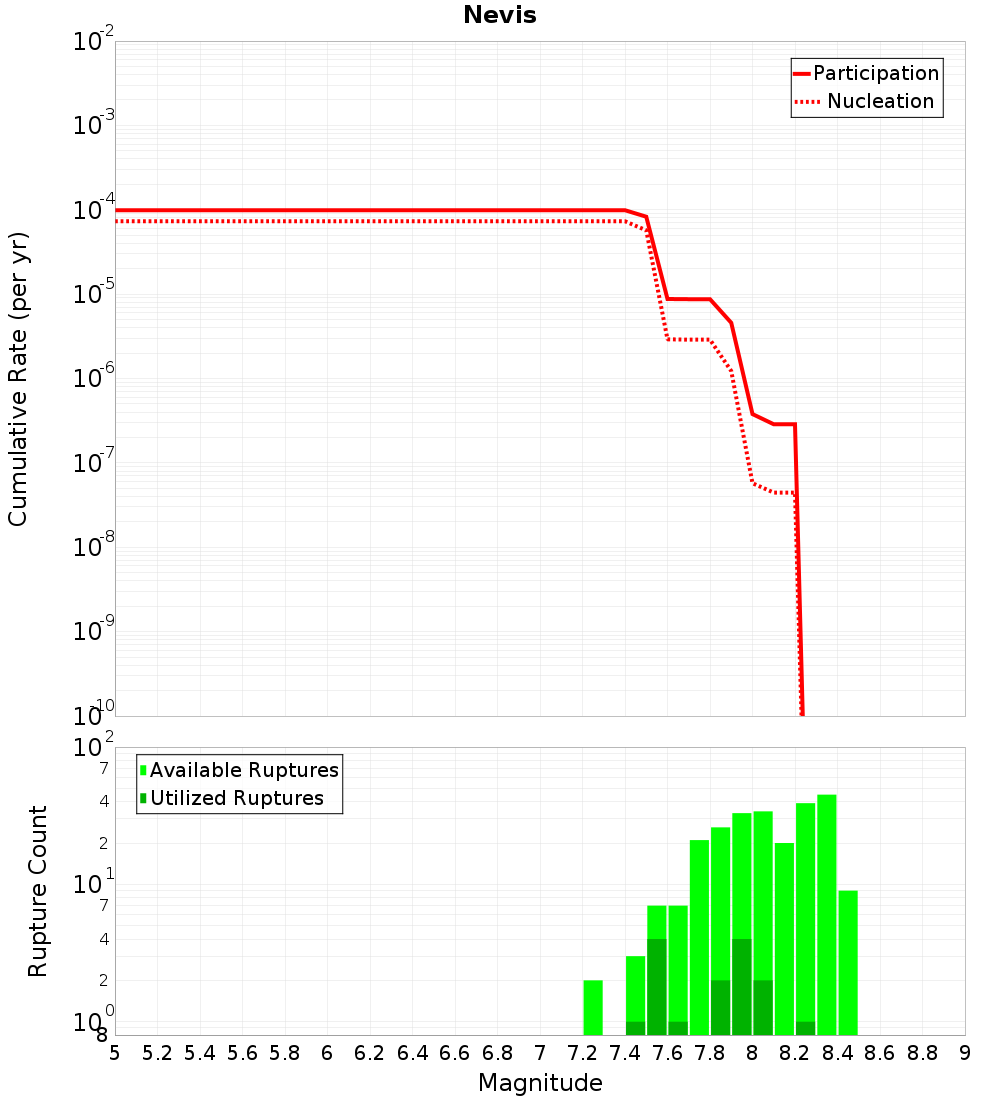

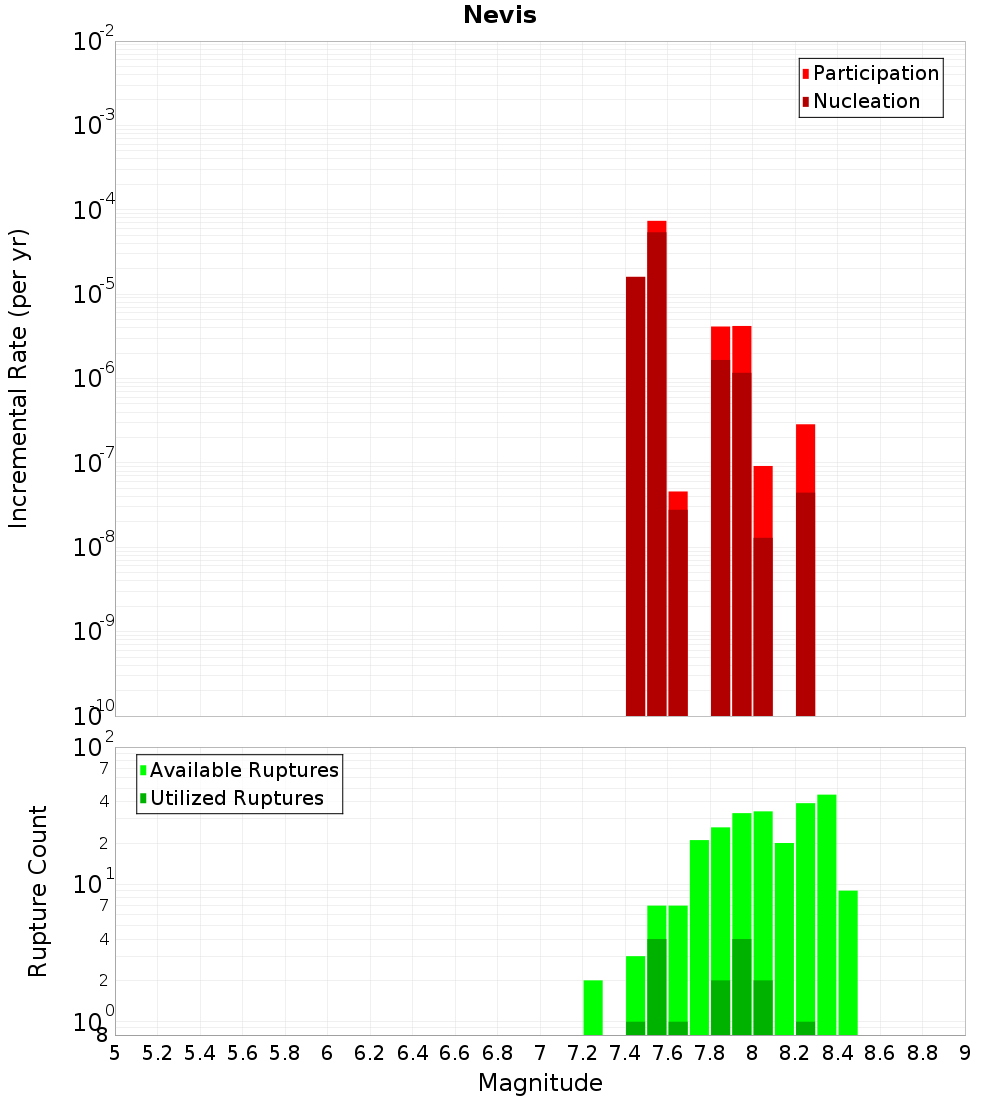

Magnitude-Frequency Distribution

Incremental	Cumulative

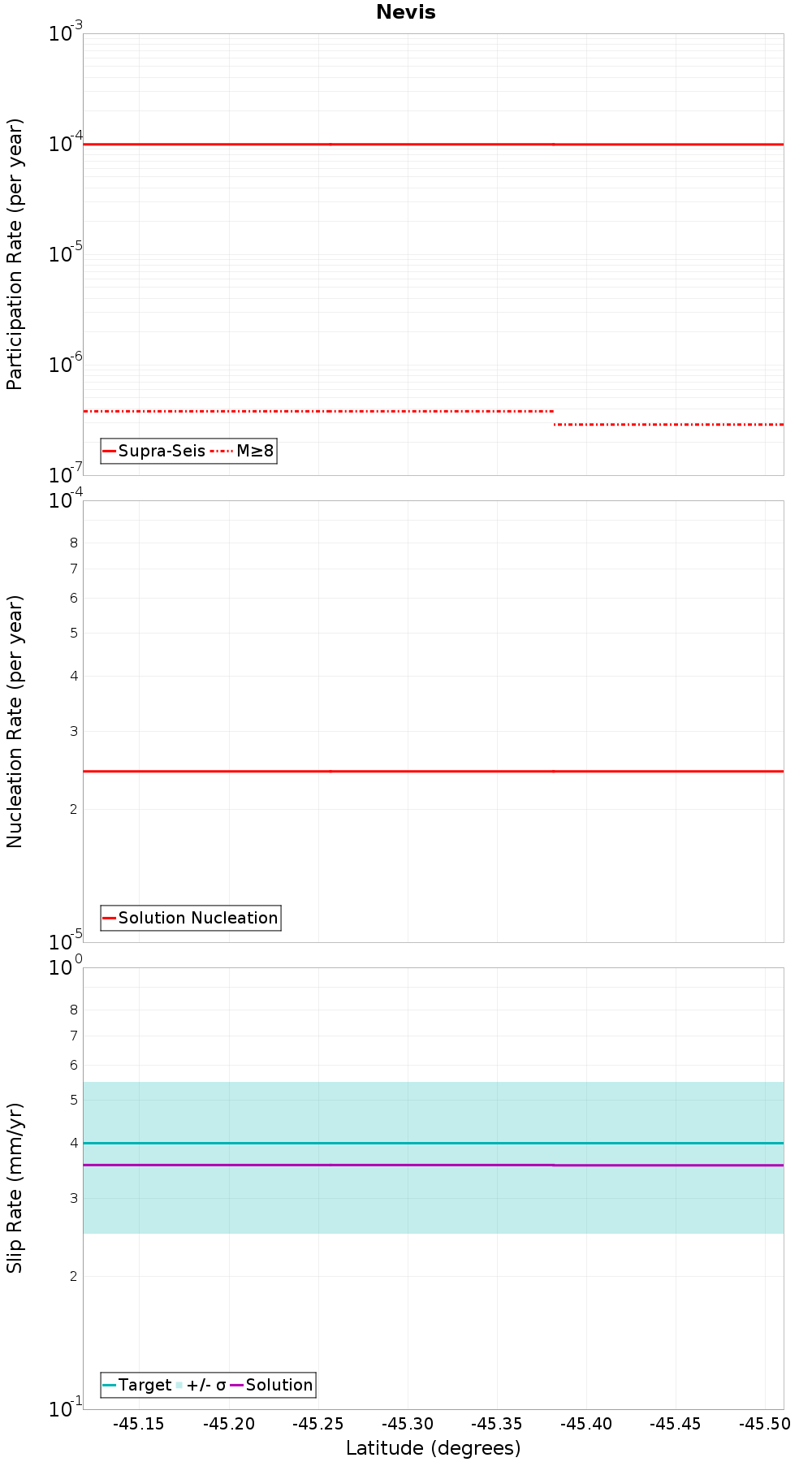

Along-Strike Values

Moment-Rates and b-Values

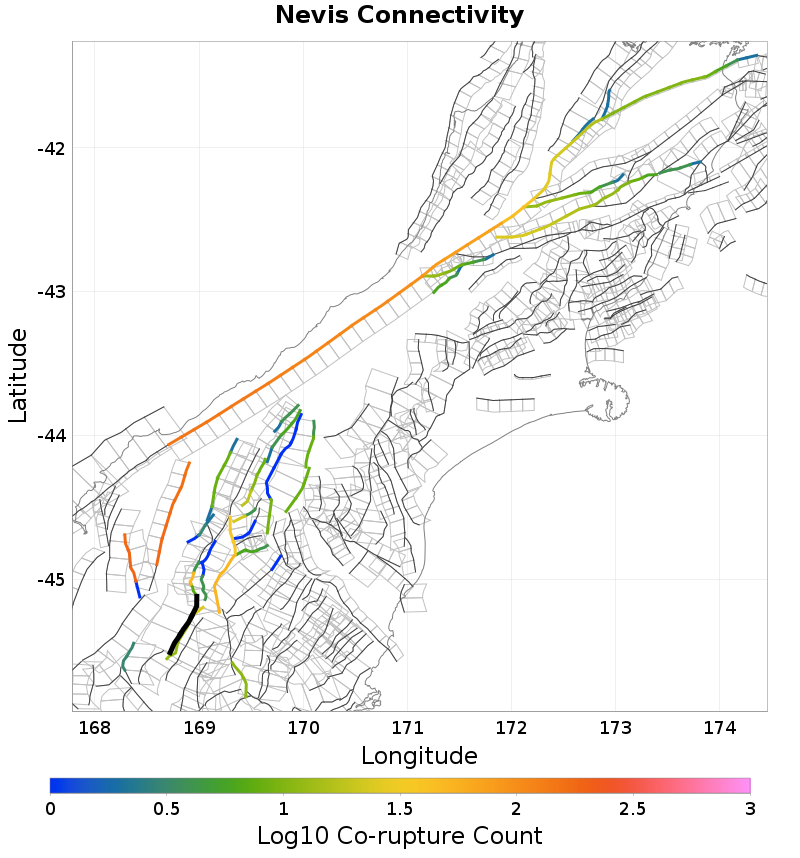

Connectivity

Nearby Sections

Fault Section
Roaring Lion, 0.43 km away
NW Cardrona South, 0.47 km away
Mid Dome, 0.85 km away
Acton, 0.95 km away
Moonlight South, 1.43 km away
Roaring Meg, 5.46 km away
Garvie, 6.28 km away
West Wakatipu, 7.52 km away
Pisa, 9.56 km away
Old Man, 14.69 km away
Dunstan, 18.02 km away

Roaring Lion, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjQuMDNCemNv
Connected?	true
Directly Connected?	true
Co-rupture Count	24
Co-rupture Rate	9.1970676E-8

NW Cardrona South, 0.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjQuMDNCemNv
Connected?	true
Directly Connected?	true
Co-rupture Count	50
Co-rupture Rate	5.9049267E-5

Mid Dome, 0.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjQuMDNCemNv
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Acton, 0.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjQuMDNCemNv
Connected?	true
Directly Connected?	true
Co-rupture Count	3
Co-rupture Rate	9.729717E-6

Moonlight South, 1.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjQuMDNCemNv
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Roaring Meg, 5.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjQuMDNCemNv
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	1.3574263E-5

Garvie, 6.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjQuMDNCemNv
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

West Wakatipu, 7.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjQuMDNCemNv
Connected?	true
Directly Connected?	true
Co-rupture Count	184
Co-rupture Rate	3.326293E-7

Pisa, 9.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjQuMDNCemNv
Connected?	true
Directly Connected?	false
Co-rupture Count	51
Co-rupture Rate	8.420388E-6

Old Man, 14.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjQuMDNCemNv
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dunstan, 18.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjQuMDNCemNv
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	8.7568844E-7
