Alfredton North Details

PropertyValue
Rupture Count1,570
Ruptures Above Sect Min Mag1,569
Ruptures w/ Nonzero Rates11
Magnitude Range[6.65, 8.59]
Length Range[15, 1,112] km
Total Rate7.598627E-4 /yr
Multi-Fault Rate7.598627E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults61

Table Of Contents

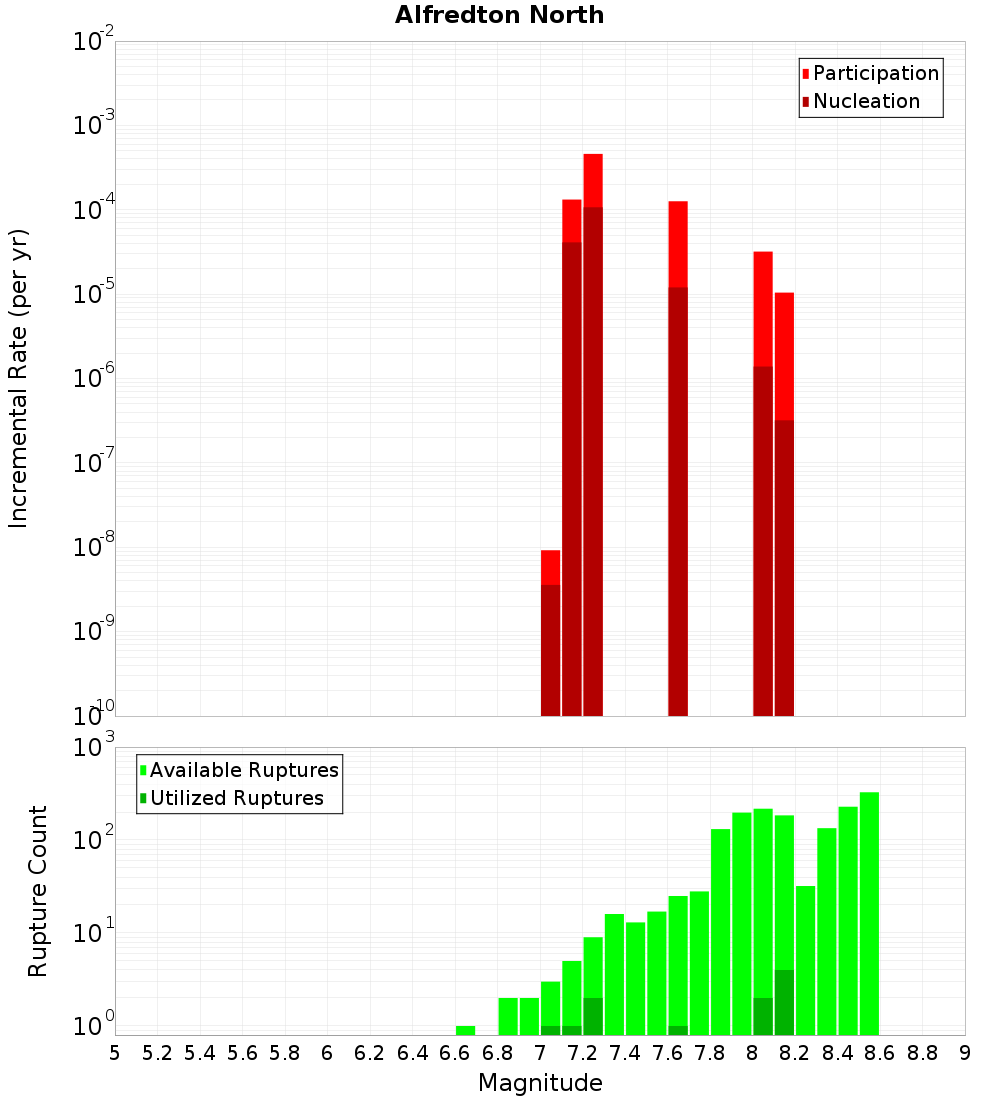

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

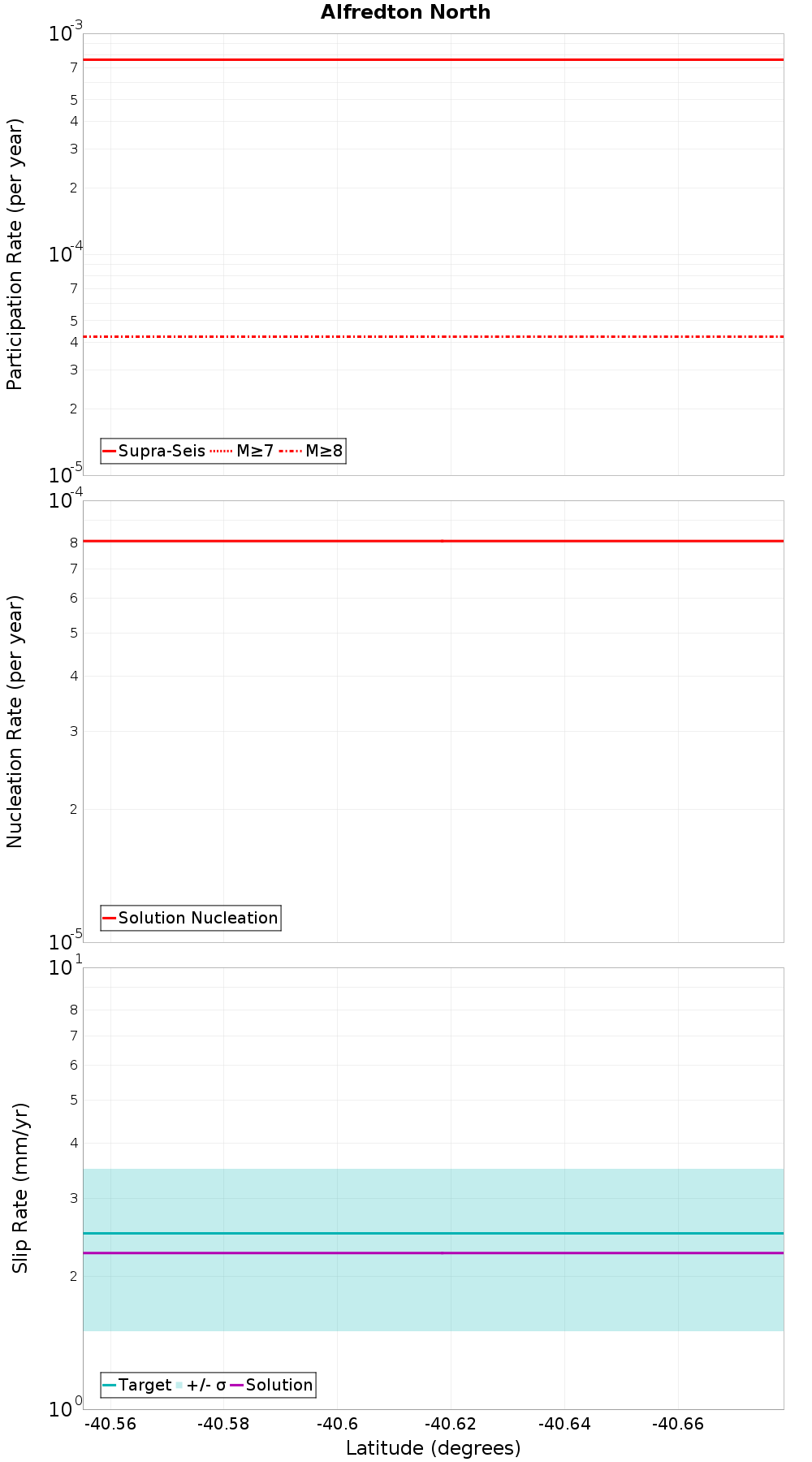

Along-Strike Values

(top)

Along-strike plot

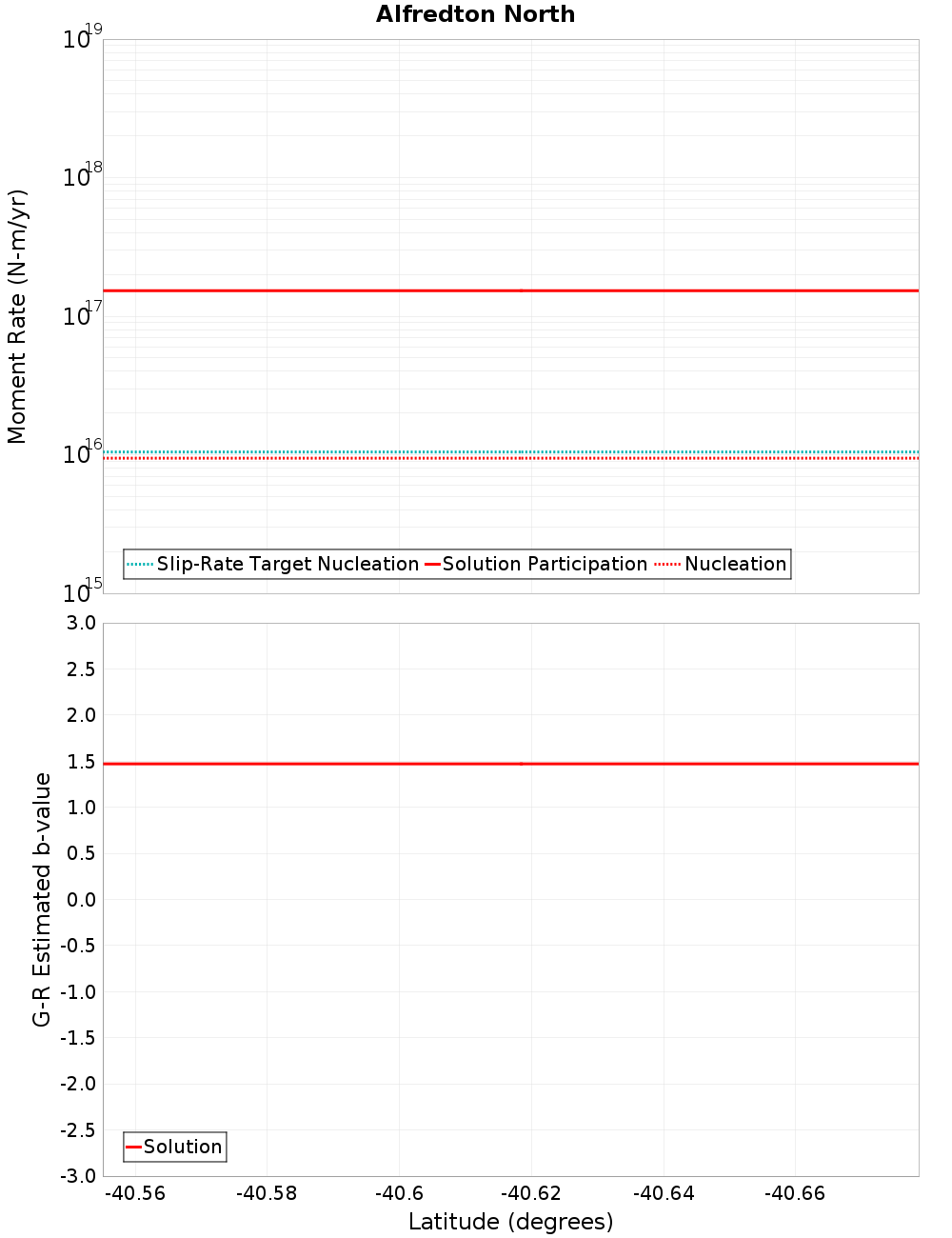

Moment-Rates and b-Values

(top)

Along-strike plot

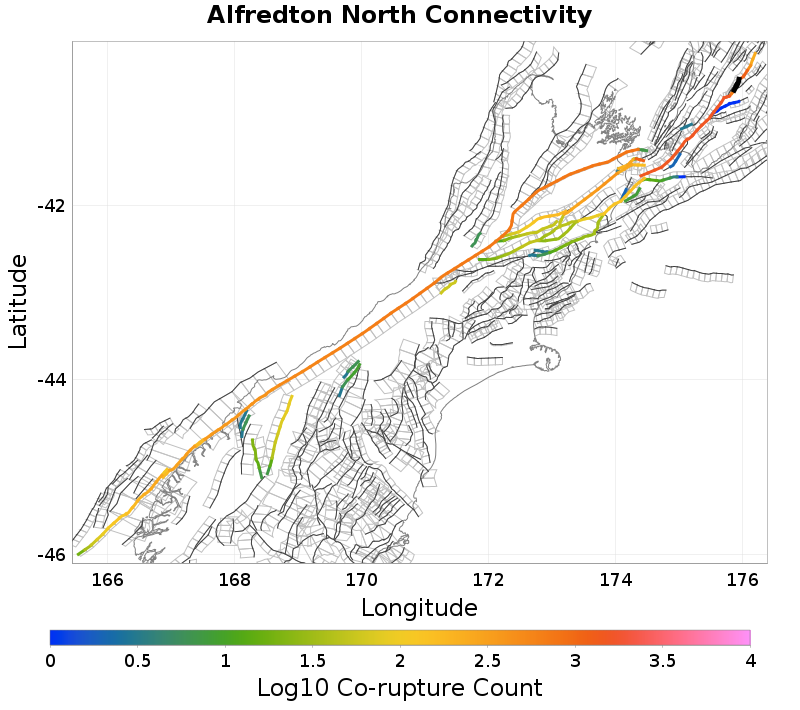

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alfredton South, 0 km away
Saunders Road, 0 km away
Pa Valley, 0.21 km away
Makuri - Waewaepa, 0.29 km away
Dreyers Rock, 5.12 km away
Pahiatua, 12.97 km away
Waitawhiti, 14.48 km away
Wairarapa: 3, 15.44 km away
Mokonui Northeast, 15.66 km away
Waipukaka, 15.91 km away
Mokonui Southwest, 18.29 km away
Tokomaru, 18.34 km away
Wellington: Pahiatua, 19 km away

Alfredton South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?true
Directly Connected?true
Co-rupture Count656
Co-rupture Rate6.906172E-4

Saunders Road, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pa Valley, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Makuri - Waewaepa, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?true
Directly Connected?true
Co-rupture Count1,179
Co-rupture Rate7.598627E-4

Dreyers Rock, 5.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?true
Directly Connected?true
Co-rupture Count1,562
Co-rupture Rate6.277539E-4

Pahiatua, 12.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitawhiti, 14.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: 3, 15.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?true
Directly Connected?false
Co-rupture Count1,553
Co-rupture Rate2.2631342E-4

Mokonui Northeast, 15.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Waipukaka, 15.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mokonui Southwest, 18.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Tokomaru, 18.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Pahiatua, 19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
