Maimai: North Details

PropertyValue
Rupture Count21
Ruptures Above Sect Min Mag19
Ruptures w/ Nonzero Rates7
Magnitude Range[6.72, 7.71]
Length Range[18, 146] km
Total Rate4.4427143E-4 /yr
Multi-Fault Rate2.294916E-4 /yr (51.66%)
Directly-Connected Faults3
All Co-Rupturing Faults5

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

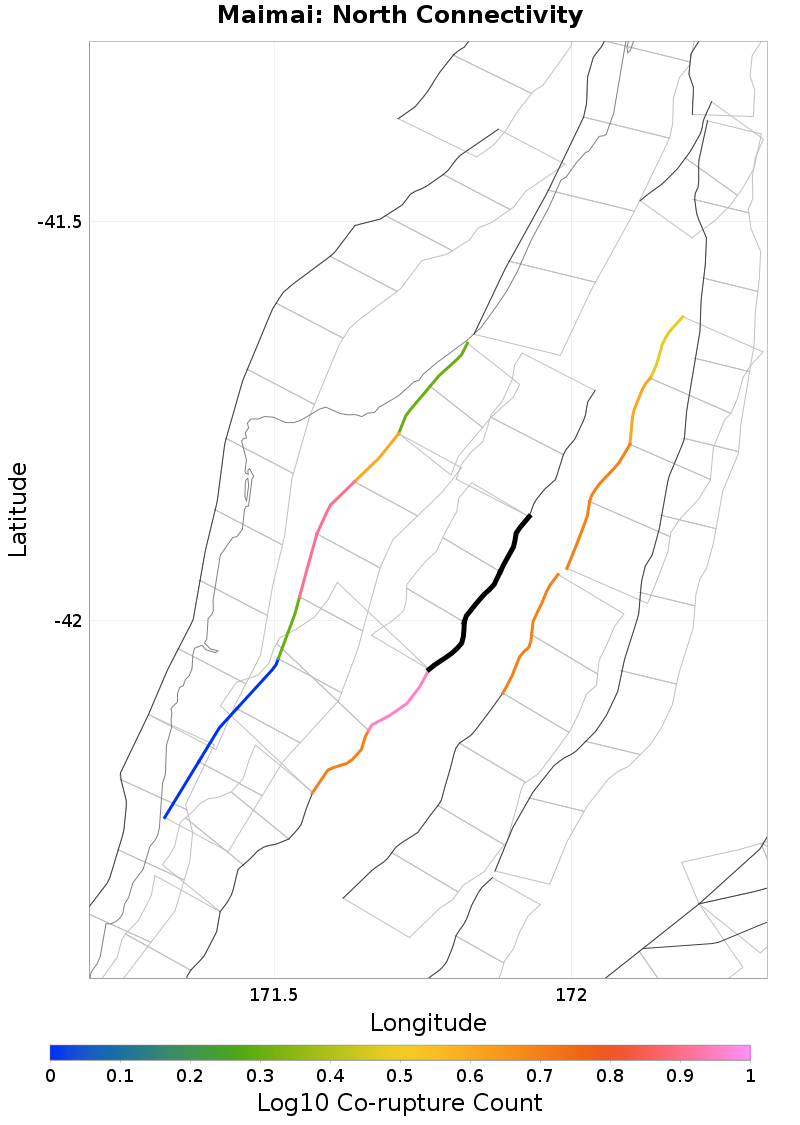

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Inangahua, 0 km away
Maimai, 0 km away
Paparoa West, 1.82 km away
Paparoa West: North, 2.9 km away
Lyell South, 7.01 km away
Lyell, 7.56 km away
Cape Foulwind 2, 14.88 km away
White Creek, 17.57 km away

Inangahua, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maimai, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?true
Directly Connected?true
Co-rupture Count9
Co-rupture Rate9.716239E-5

Paparoa West, 1.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate9.00624E-5

Paparoa West: North, 2.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate1.3134333E-4

Lyell South, 7.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate4.118127E-5

Lyell, 7.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate4.118127E-5

Cape Foulwind 2, 14.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Creek, 17.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
