Paparoa West: North Details

Property	Value
Rupture Count	3
Ruptures Above Sect Min Mag	2
Ruptures w/ Nonzero Rates	2
Magnitude Range	[6.68, 7.35]
Length Range	[16, 67] km
Total Rate	1.3134333E-4 /yr
Multi-Fault Rate	1.3134333E-4 /yr (100.00%)
Directly-Connected Faults	1
All Co-Rupturing Faults	2

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

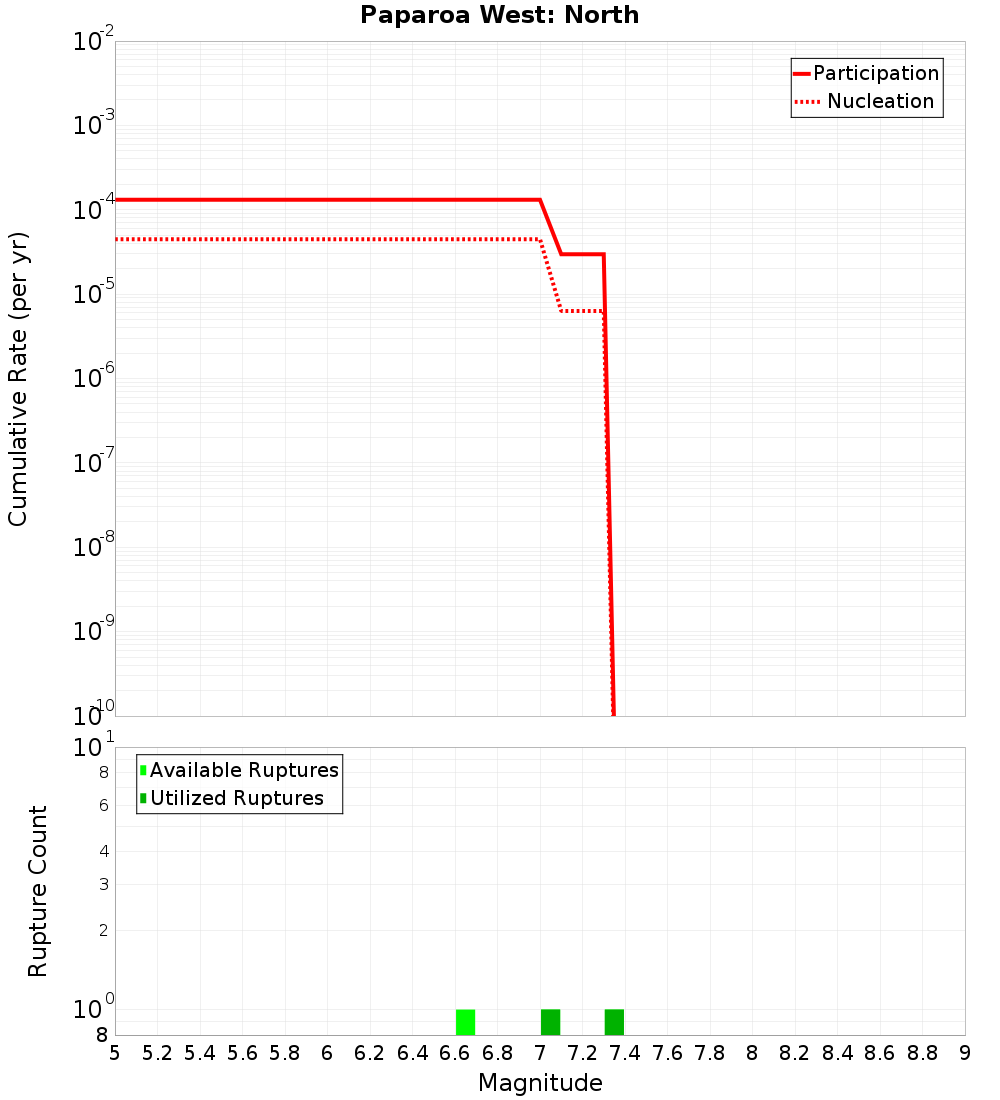

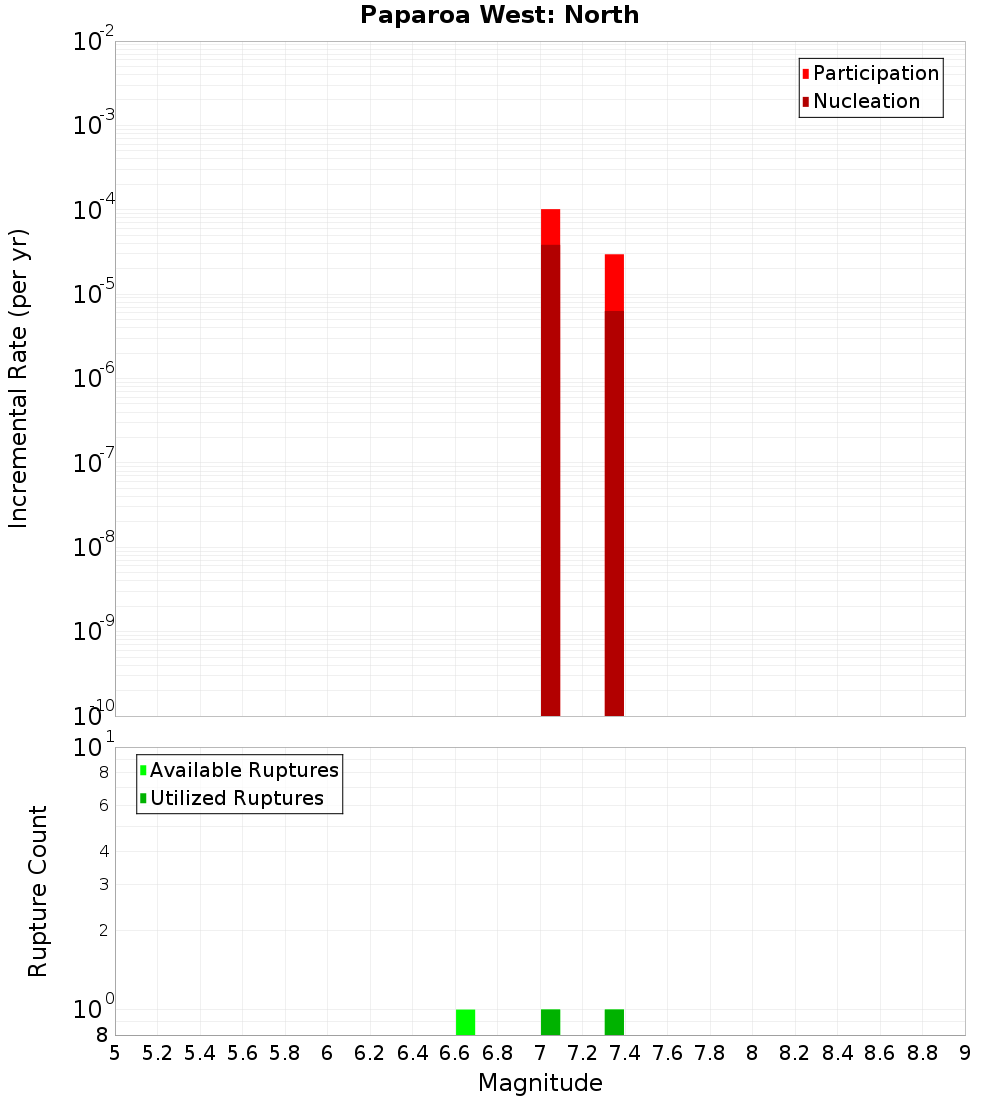

Magnitude-Frequency Distribution

Incremental	Cumulative

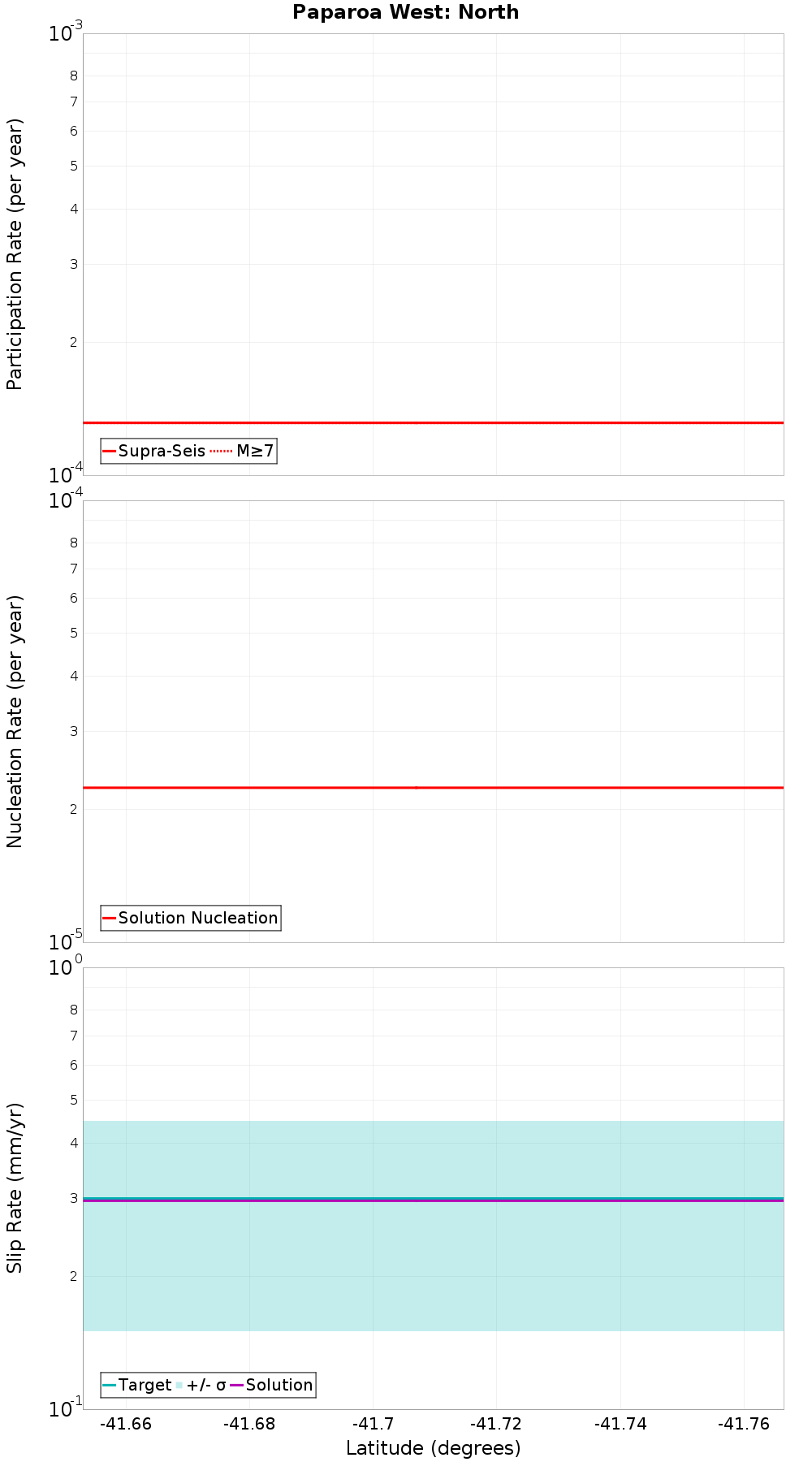

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Paparoa West, 0 km away
Inangahua, 0.83 km away
Kongahau, 1.54 km away
Maimai: North, 2.9 km away
Cape Foulwind 2, 18.95 km away

Paparoa West, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Inangahua, 0.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kongahau, 1.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maimai: North, 2.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	1.3134333E-4

Cape Foulwind 2, 18.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMFB4cWUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
