High Peak - Sheffield Details

PropertyValue
Rupture Count210
Ruptures Above Sect Min Mag203
Ruptures w/ Nonzero Rates5
Magnitude Range[6.61, 8.11]
Length Range[16, 345] km
Total Rate3.2070104E-5 /yr
Multi-Fault Rate3.2070104E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults15

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

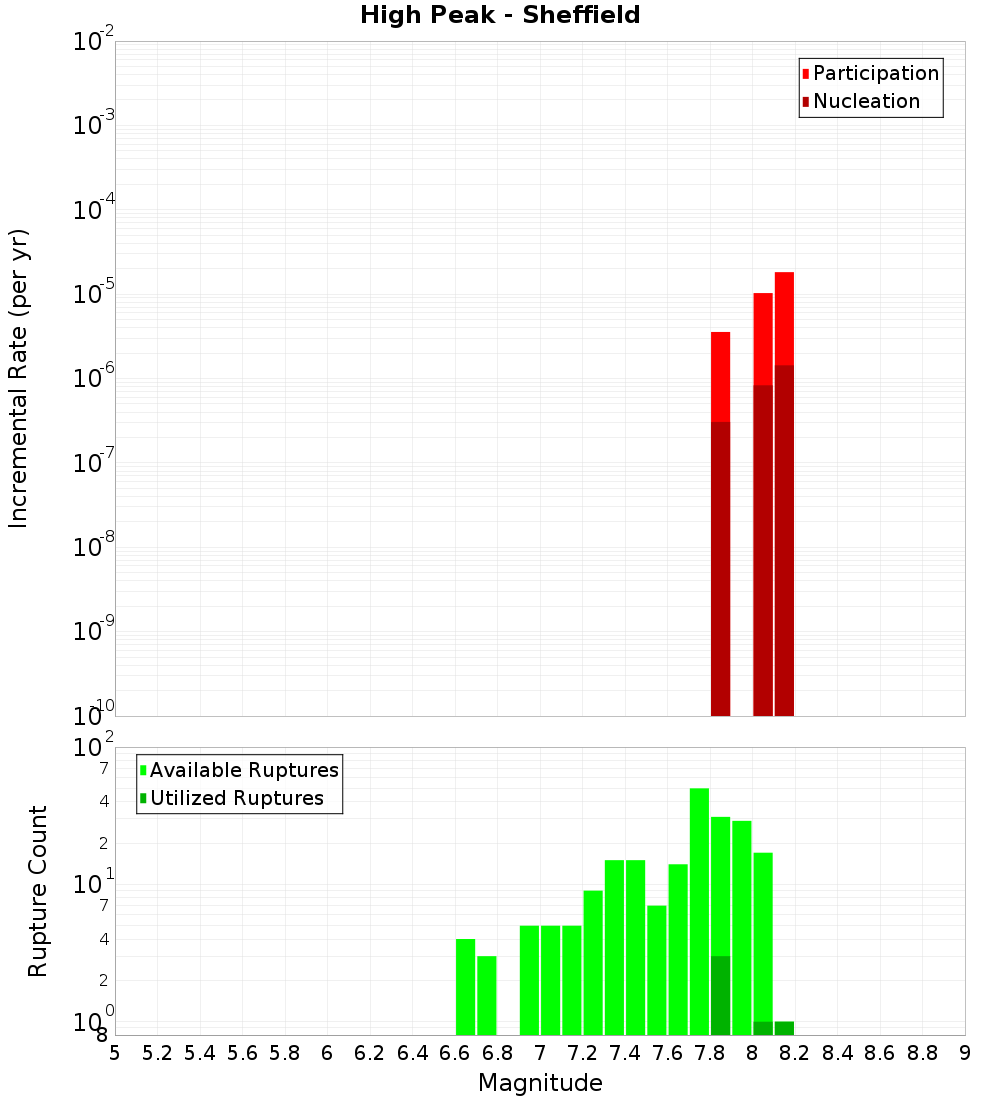

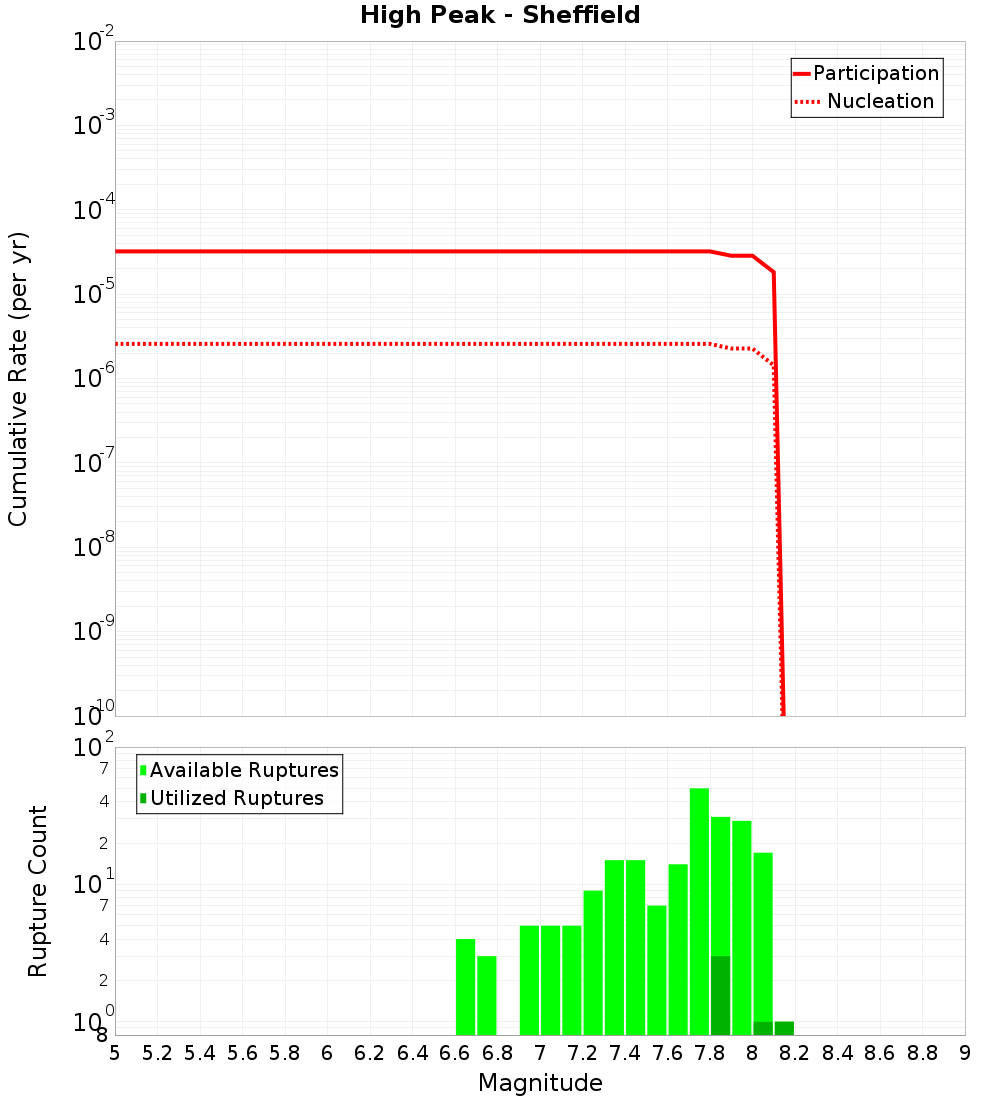

Incremental PlotCumulative Plot

Along-Strike Values

(top)

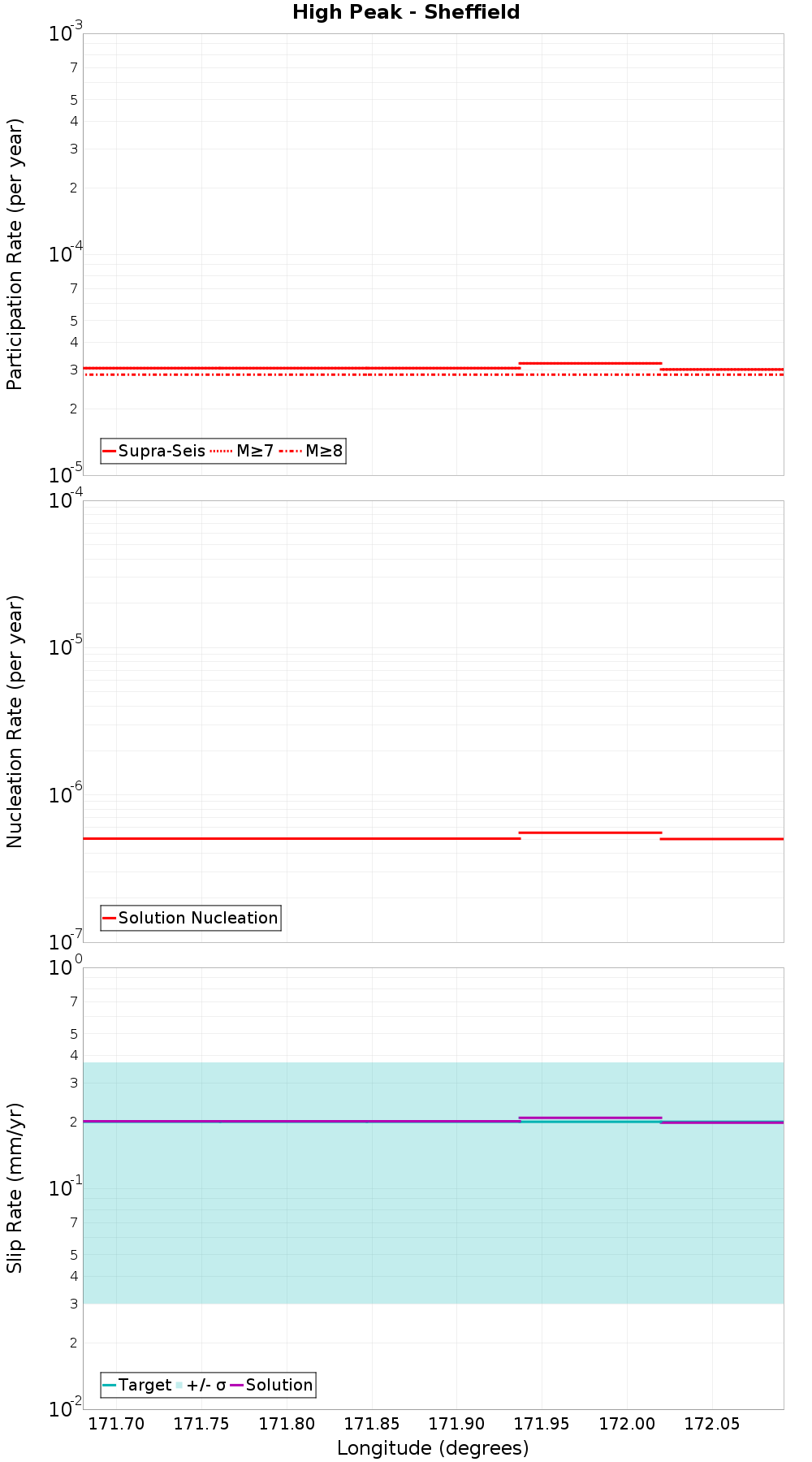

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hororata, 0.14 km away
Big Ben, 1.56 km away
Kowai - View Hill, 1.73 km away
Starvation - Ashley, 3.73 km away
Knowles Top, 6 km away
Hutt Peel, 6.61 km away
Lees Valley, 11.61 km away
Porters Pass, 12.52 km away
Esk South, 12.68 km away
Springbank, 13.42 km away
Greendale, 14.22 km away
Double Hill, 15.46 km away
Torlesse, 17.34 km away
Redcliffe, 18.32 km away

Hororata, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMGNpUm5U
Connected?true
Directly Connected?true
Co-rupture Count76
Co-rupture Rate1.8427678E-6

Big Ben, 1.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMGNpUm5U
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kowai - View Hill, 1.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMGNpUm5U
Connected?true
Directly Connected?false
Co-rupture Count32
Co-rupture Rate1.8427678E-6

Starvation - Ashley, 3.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMGNpUm5U
Connected?true
Directly Connected?true
Co-rupture Count128
Co-rupture Rate3.0079013E-5

Knowles Top, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMGNpUm5U
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate1.7191351E-6

Hutt Peel, 6.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMGNpUm5U
Connected?true
Directly Connected?true
Co-rupture Count123
Co-rupture Rate3.0499292E-5

Lees Valley, 11.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMGNpUm5U
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Porters Pass, 12.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMGNpUm5U
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk South, 12.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMGNpUm5U
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Springbank, 13.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMGNpUm5U
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Greendale, 14.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMGNpUm5U
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Double Hill, 15.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMGNpUm5U
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Torlesse, 17.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMGNpUm5U
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Redcliffe, 18.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNjYuMGNpUm5U
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
