Awatere: Northeast 2 Details

PropertyValue
Rupture Count22,110
Ruptures Above Sect Min Mag22,110
Ruptures w/ Nonzero Rates17
Magnitude Range[6.89, 8.62]
Length Range[22, 1,204] km
Total Rate5.1642786E-4 /yr
Multi-Fault Rate5.1642786E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults151

Table Of Contents

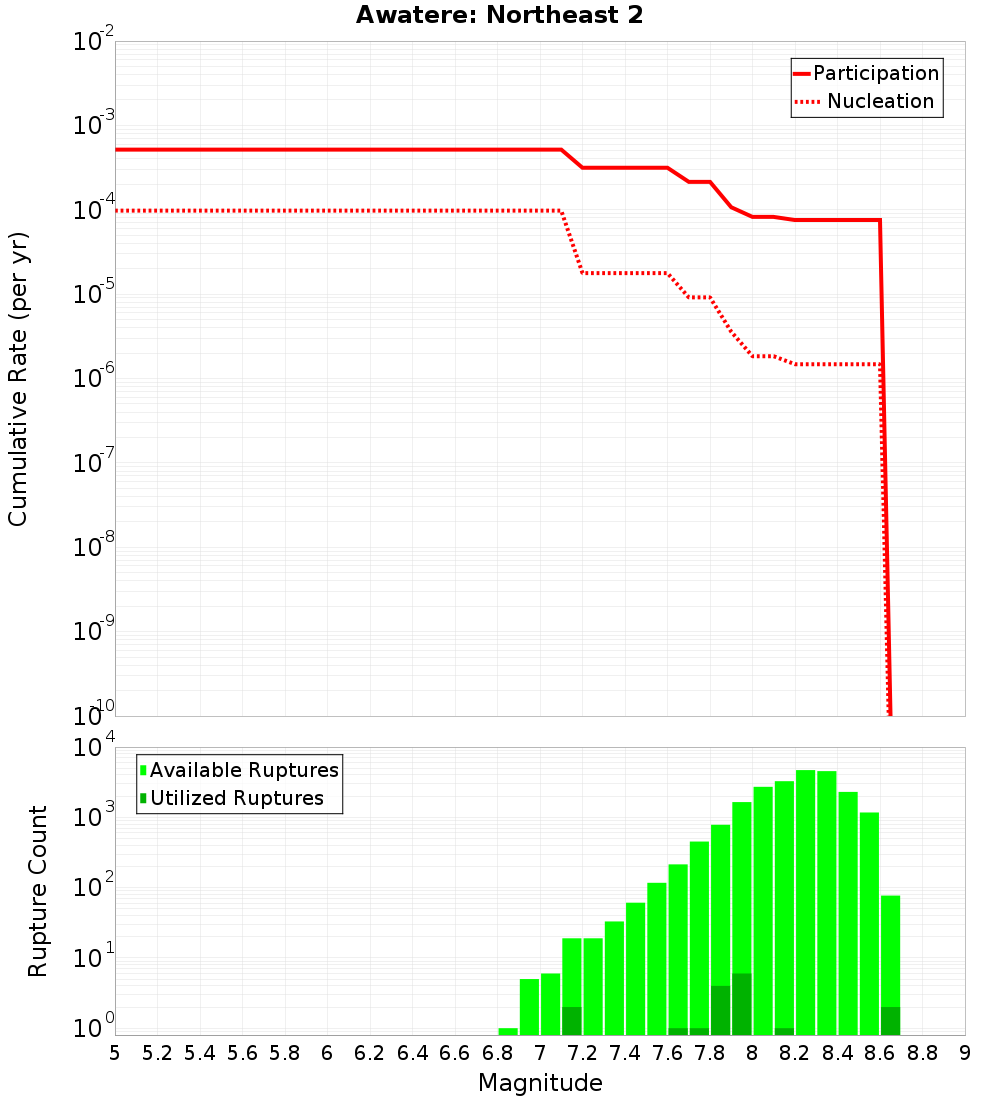

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

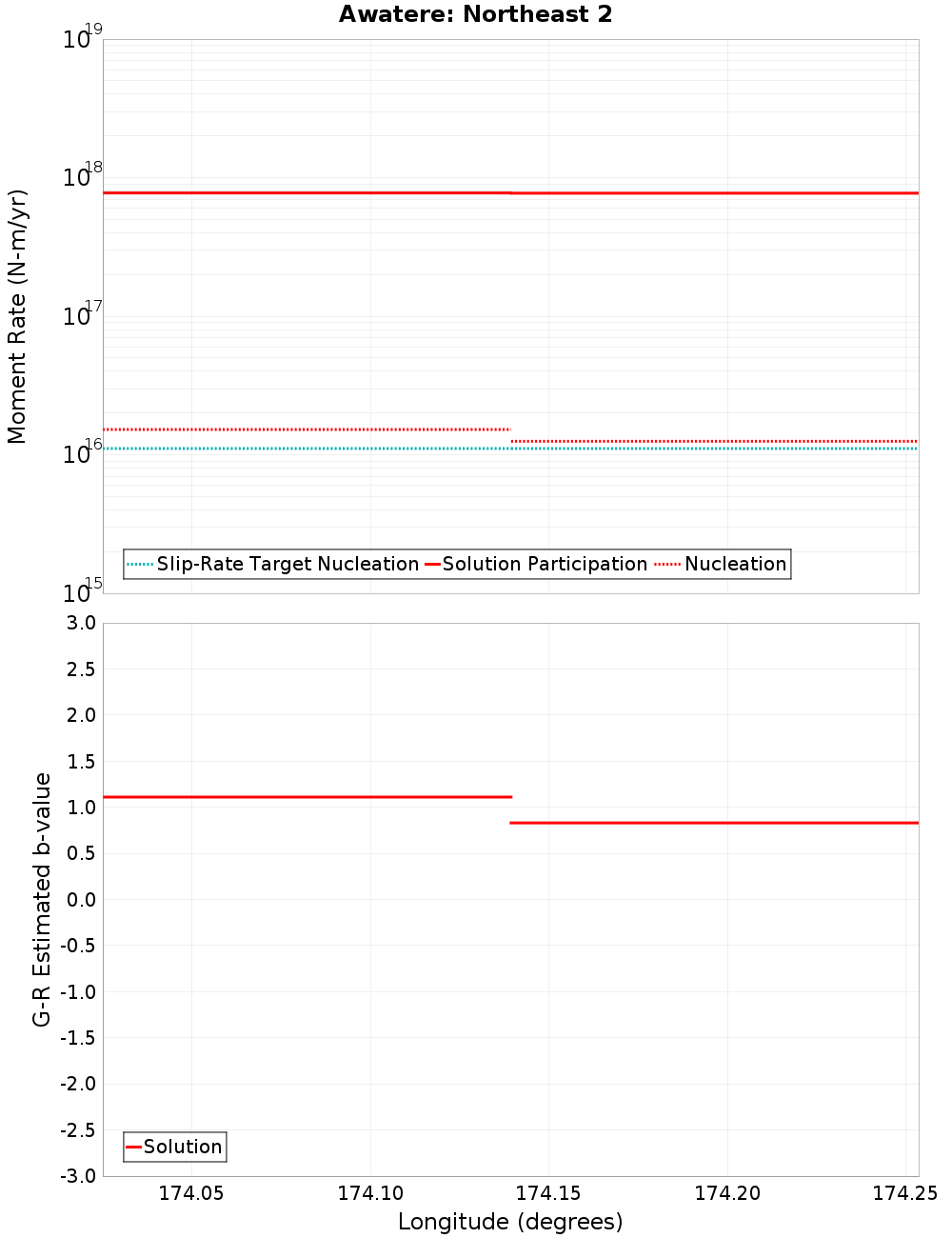

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awatere: Northeast 1, 0 km away
Vernon 1, 0 km away
Vernon 4, 0 km away
Vernon 3, 0 km away
Cloudy 1, 0.04 km away
Vernon 2, 0.12 km away
Cloudy 2, 4.02 km away
Cloudy 3, 5.28 km away
Wairau 2, 7.45 km away
Wairau 3, 10.16 km away
Wairau, 12.04 km away
London Hill, 14.08 km away
Wairarapa: Needles, 14.79 km away
Ohariu South 1, 16.05 km away
Needles East 2, 16.06 km away

Awatere: Northeast 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?true
Directly Connected?true
Co-rupture Count19,614
Co-rupture Rate3.3150916E-4

Vernon 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?true
Directly Connected?true
Co-rupture Count819
Co-rupture Rate0.0

Vernon 4, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?true
Directly Connected?true
Co-rupture Count9,909
Co-rupture Rate1.6778323E-4

Vernon 3, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?true
Directly Connected?true
Co-rupture Count385
Co-rupture Rate4.1886914E-4

Cloudy 1, 0.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?true
Directly Connected?true
Co-rupture Count4,834
Co-rupture Rate0.0

Vernon 2, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?true
Directly Connected?false
Co-rupture Count45
Co-rupture Rate1.0038166E-4

Cloudy 2, 4.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?true
Directly Connected?true
Co-rupture Count1,424
Co-rupture Rate1.0171212E-4

Cloudy 3, 5.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?true
Directly Connected?true
Co-rupture Count9,720
Co-rupture Rate0.0

Wairau 2, 7.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?true
Directly Connected?false
Co-rupture Count839
Co-rupture Rate0.0

Wairau 3, 10.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?true
Directly Connected?true
Co-rupture Count237
Co-rupture Rate1.2982124E-5

Wairau, 12.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?true
Directly Connected?false
Co-rupture Count1,430
Co-rupture Rate0.0

London Hill, 14.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: Needles, 14.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?true
Directly Connected?false
Co-rupture Count12,765
Co-rupture Rate2.2074995E-5

Ohariu South 1, 16.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?true
Directly Connected?false
Co-rupture Count150
Co-rupture Rate0.0

Needles East 2, 16.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
