Lake Onslow Details

PropertyValue
Rupture Count73
Ruptures Above Sect Min Mag73
Ruptures w/ Nonzero Rates15
Magnitude Range[7.00, 8.03]
Length Range[23, 214] km
Total Rate1.0706194E-5 /yr
Multi-Fault Rate1.0706194E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults11

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

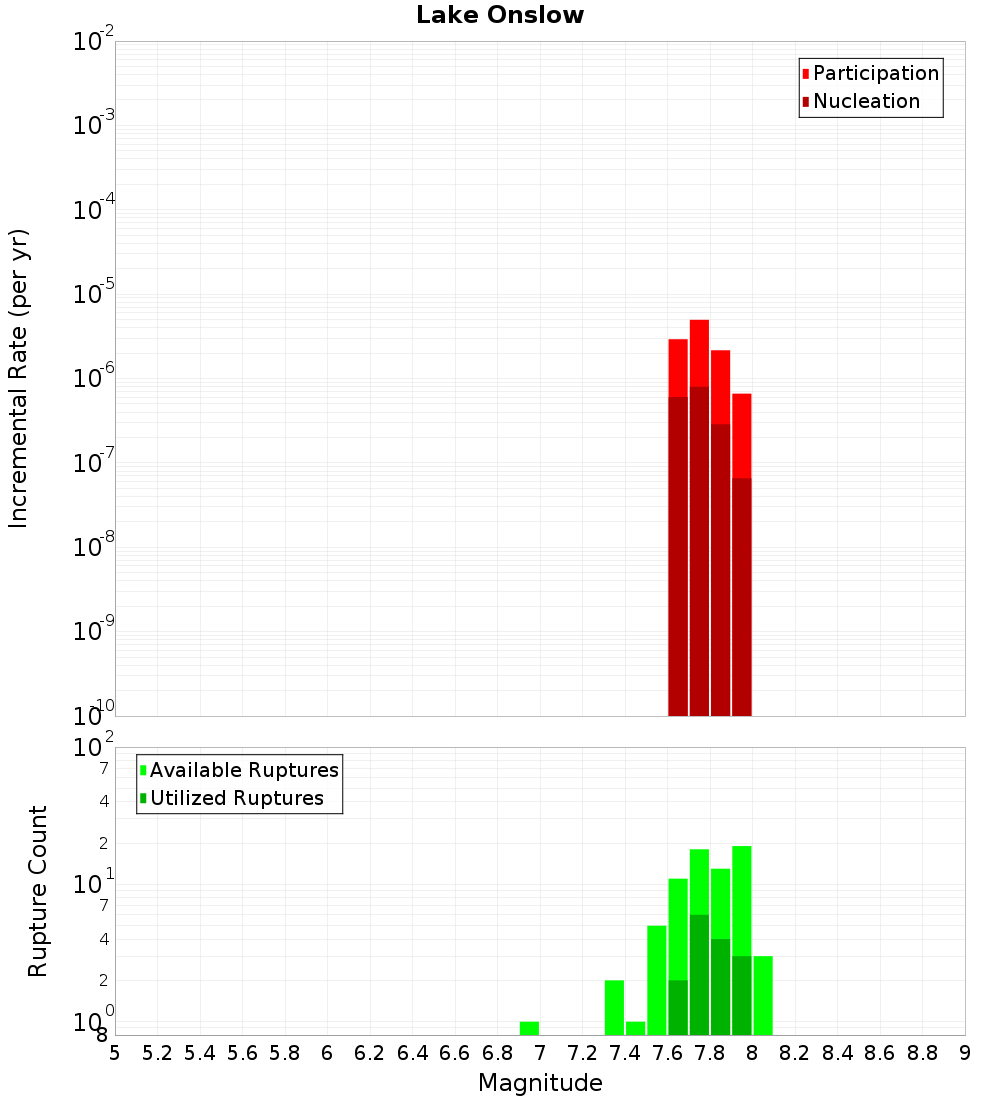

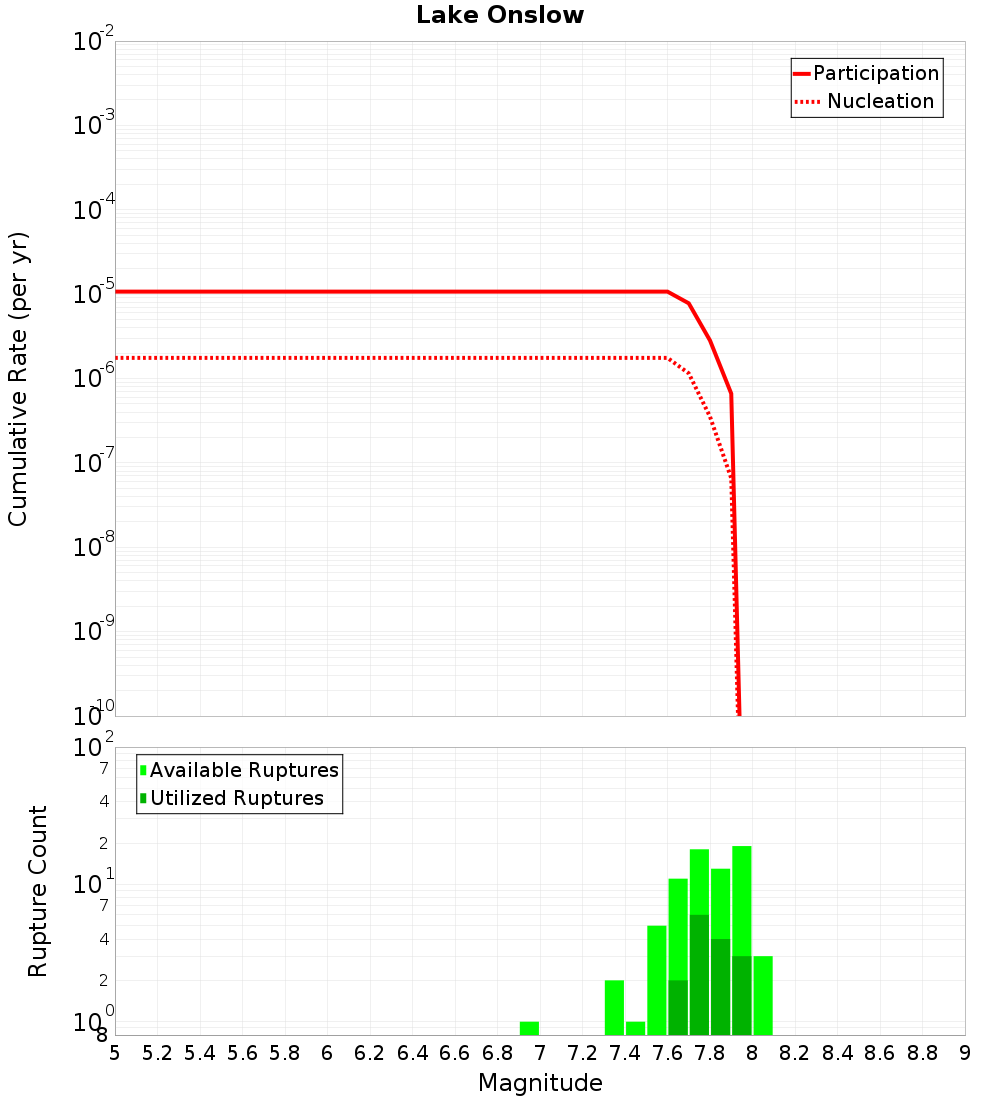

Incremental PlotCumulative Plot

Along-Strike Values

(top)

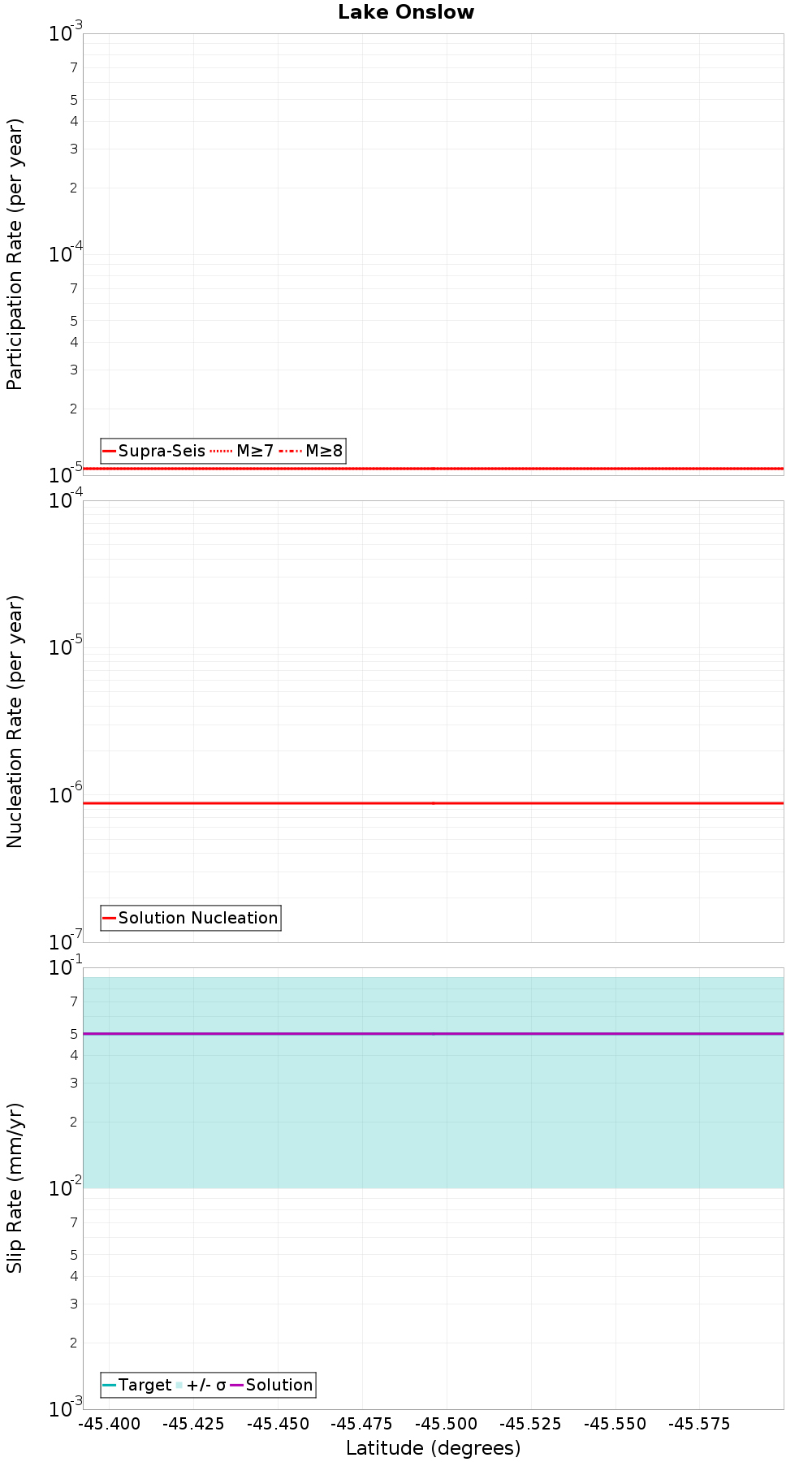

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

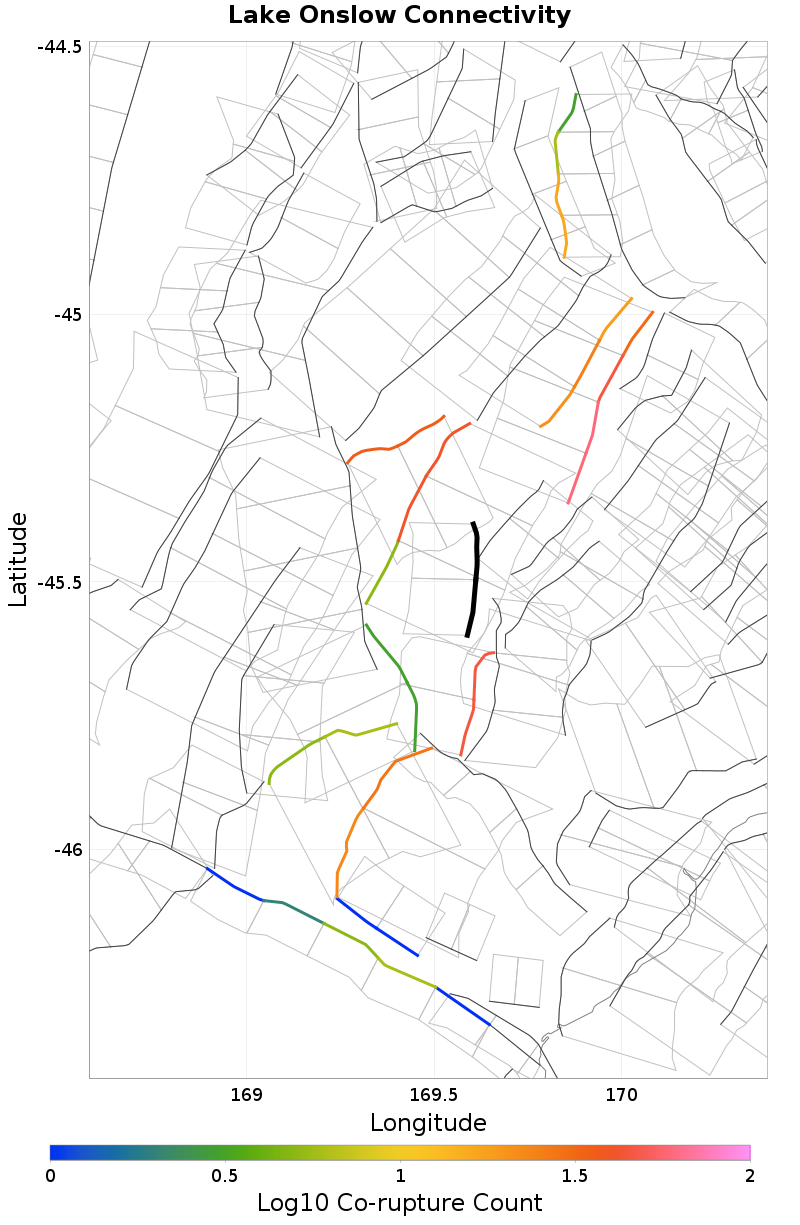

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Galloway, 0.3 km awayWaikaia, 9.49 km away
Little Valley, 0.37 km awayWendon Valley, 11.68 km away
Long Valley, 0.52 km awayHyde South - The Twins, 11.72 km away
Backbone, 3.64 km awayRoaring Lion, 12.03 km away
Beaumont River, 3.85 km awayTeviot, 13.96 km away
Pylap, 7.26 km awayGimmerburn, 15.86 km away
Logan Burn, 7.67 km awayHyde North, 16.15 km away
Garvie, 7.88 km awayOld Man, 17.7 km away

Galloway, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?true
Directly Connected?true
Co-rupture Count36
Co-rupture Rate8.992435E-6

Little Valley, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?true
Directly Connected?true
Co-rupture Count41
Co-rupture Rate1.7137587E-6

Long Valley, 0.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Backbone, 3.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?true
Directly Connected?true
Co-rupture Count46
Co-rupture Rate2.8232823E-6

Beaumont River, 3.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pylap, 7.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Logan Burn, 7.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garvie, 7.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waikaia, 9.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wendon Valley, 11.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hyde South - The Twins, 11.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Roaring Lion, 12.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Teviot, 13.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Gimmerburn, 15.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?true
Directly Connected?false
Co-rupture Count62
Co-rupture Rate1.0712861E-5

Hyde North, 16.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Old Man, 17.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuME4zS0dU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
