Jordan Details

PropertyValue
Rupture Count9,720
Ruptures Above Sect Min Mag9,720
Ruptures w/ Nonzero Rates113
Magnitude Range[7.15, 8.54]
Length Range[29, 975] km
Total Rate0.002508753 /yr
Multi-Fault Rate0.002508753 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults132

Table Of Contents

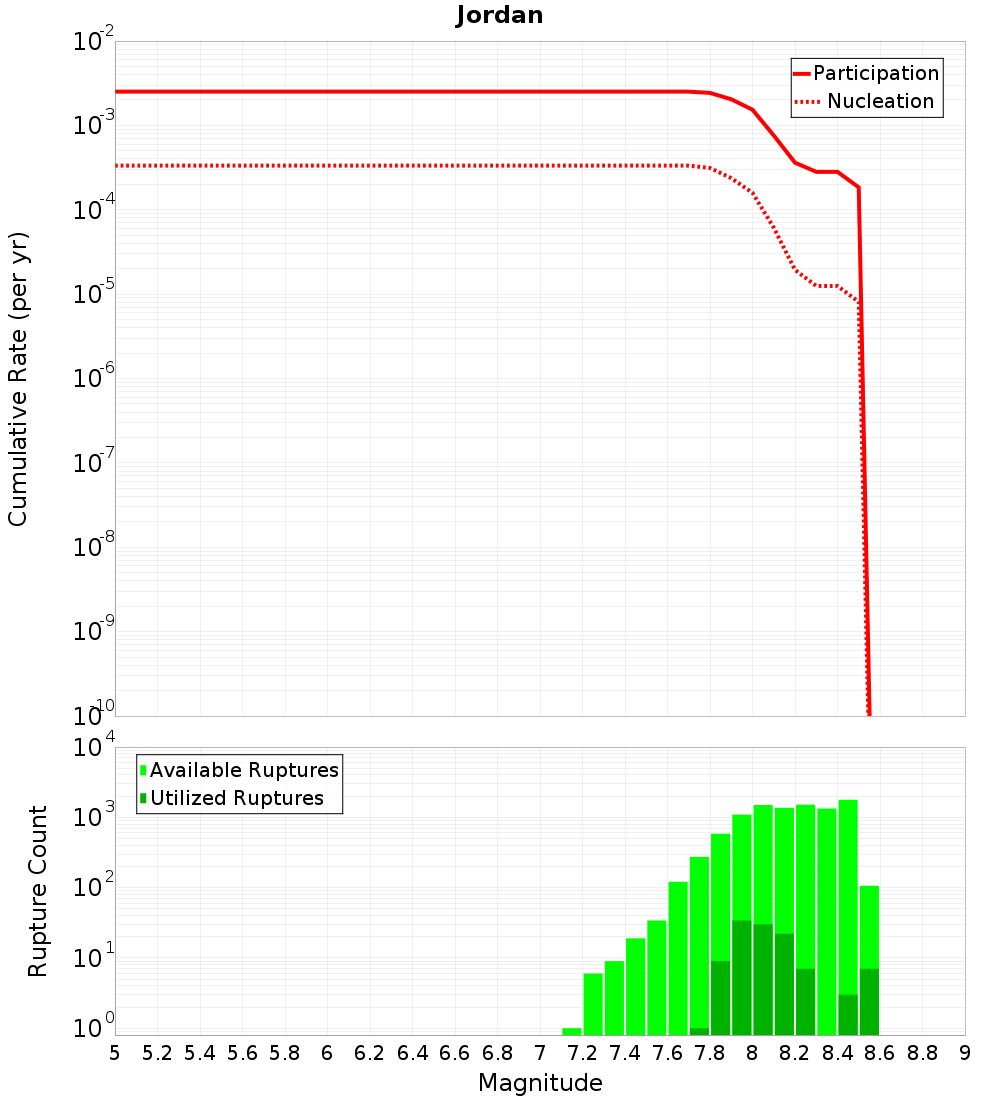

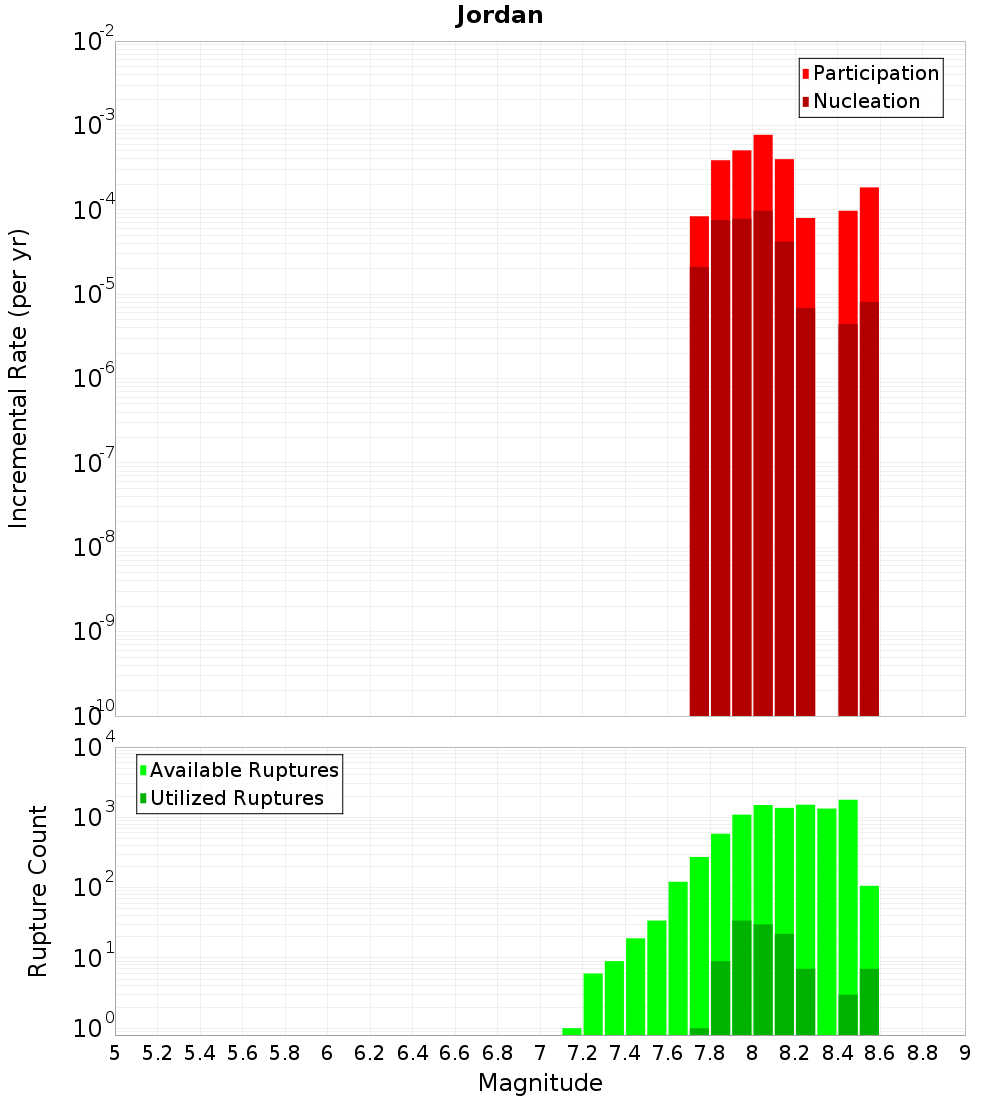

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

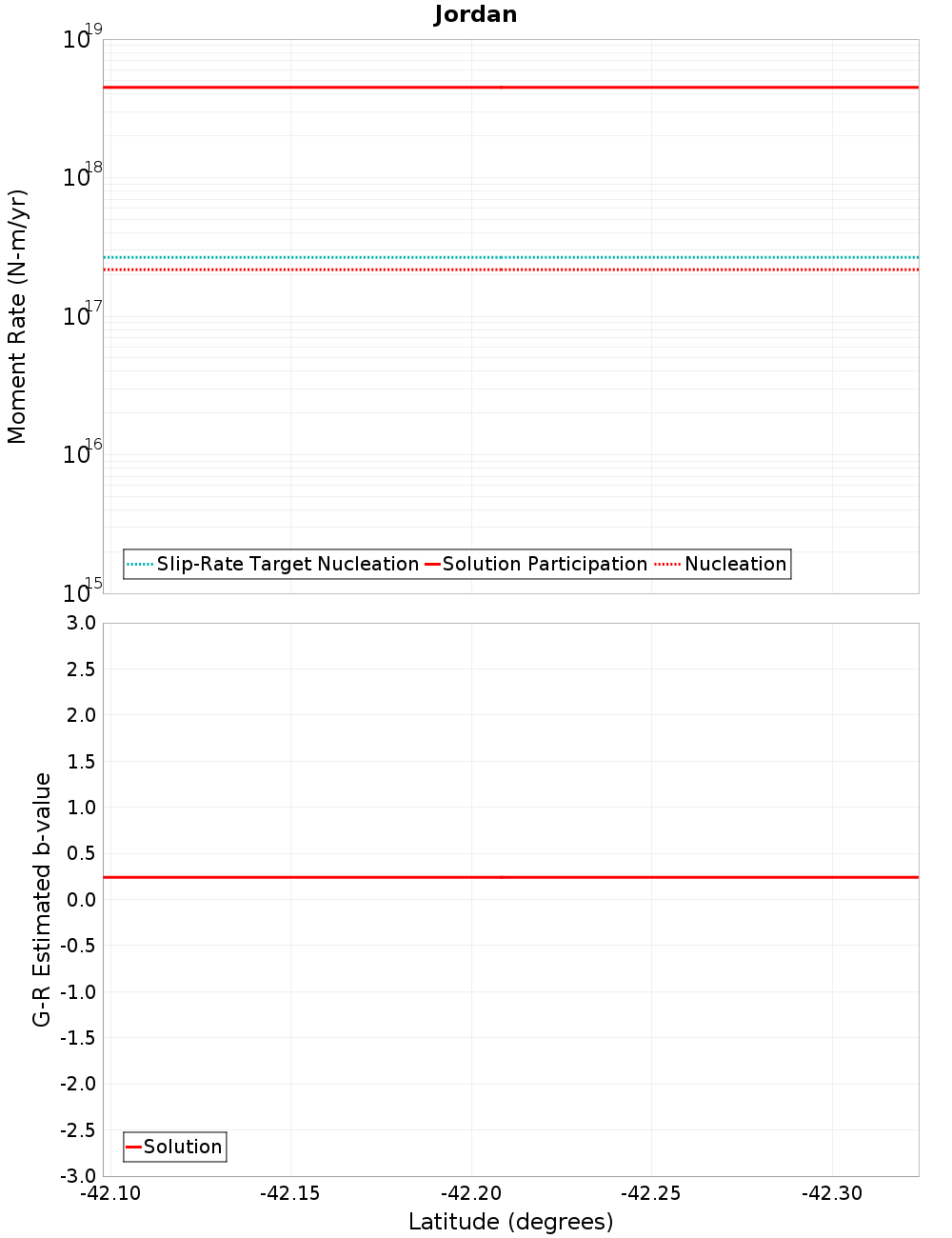

Moment-Rates and b-Values

(top)

Along-strike plot

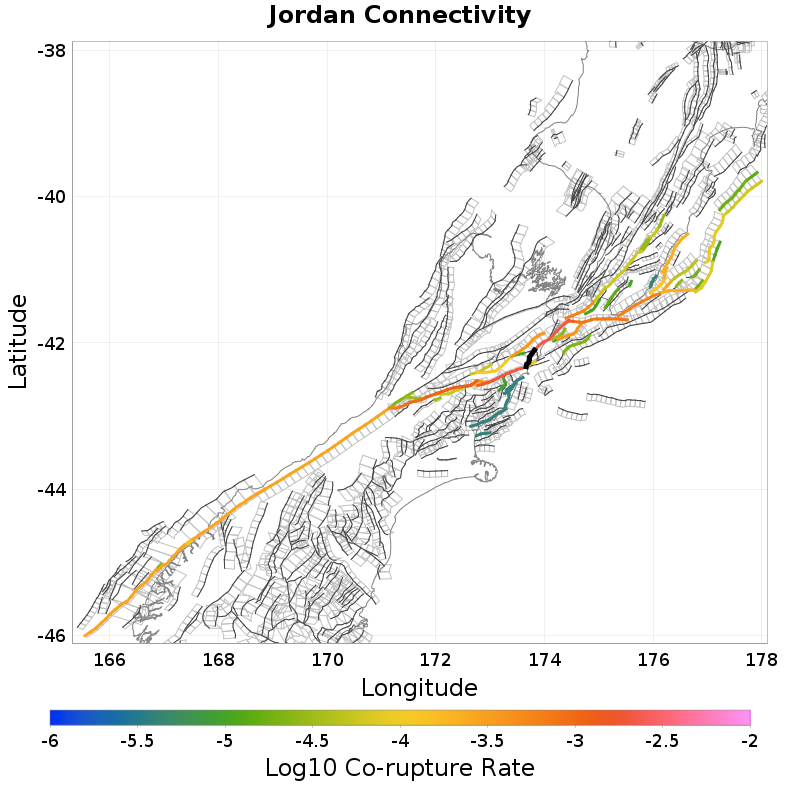

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hope: Conway, 0 km away
Papatea, 0 km away
Kekerengu 1, 0 km away
Fidget, 0 km away
Hope: Seaward, 0 km away
Clarence: Northeast, 0.78 km away
Kaikoura - Mangamaunu, 2.75 km away
Clarence: Central, 7.52 km away
Elliott, 9.78 km away
Awatere: Northeast 1, 12.64 km away
Hundalee, 15.34 km away
Awatere: Southwest, 16.38 km away
Hope: Te Rapa, 18.18 km away

Hope: Conway, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuMFVwM0pi
Connected?true
Directly Connected?true
Co-rupture Count8,978
Co-rupture Rate0.0020285686

Papatea, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuMFVwM0pi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kekerengu 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuMFVwM0pi
Connected?true
Directly Connected?true
Co-rupture Count5,093
Co-rupture Rate0.0022421095

Fidget, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuMFVwM0pi
Connected?true
Directly Connected?true
Co-rupture Count290
Co-rupture Rate1.0233496E-5

Hope: Seaward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuMFVwM0pi
Connected?true
Directly Connected?true
Co-rupture Count60
Co-rupture Rate9.081829E-5

Clarence: Northeast, 0.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuMFVwM0pi
Connected?true
Directly Connected?true
Co-rupture Count1,711
Co-rupture Rate3.7378172E-4

Kaikoura - Mangamaunu, 2.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuMFVwM0pi
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate0.0

Clarence: Central, 7.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuMFVwM0pi
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate5.302585E-5

Elliott, 9.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuMFVwM0pi
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate1.11005036E-4

Awatere: Northeast 1, 12.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuMFVwM0pi
Connected?true
Directly Connected?true
Co-rupture Count2,313
Co-rupture Rate0.0

Hundalee, 15.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuMFVwM0pi
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate3.8669095E-6

Awatere: Southwest, 16.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuMFVwM0pi
Connected?true
Directly Connected?false
Co-rupture Count640
Co-rupture Rate0.0

Hope: Te Rapa, 18.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzAuMFVwM0pi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
