Kongahau Details

Property	Value
Rupture Count	312
Ruptures Above Sect Min Mag	306
Ruptures w/ Nonzero Rates	24
Magnitude Range	[6.95, 7.96]
Length Range	[23, 246] km
Total Rate	1.4931879E-4 /yr
Multi-Fault Rate	1.3902961E-4 /yr (93.11%)
Directly-Connected Faults	6
All Co-Rupturing Faults	10

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

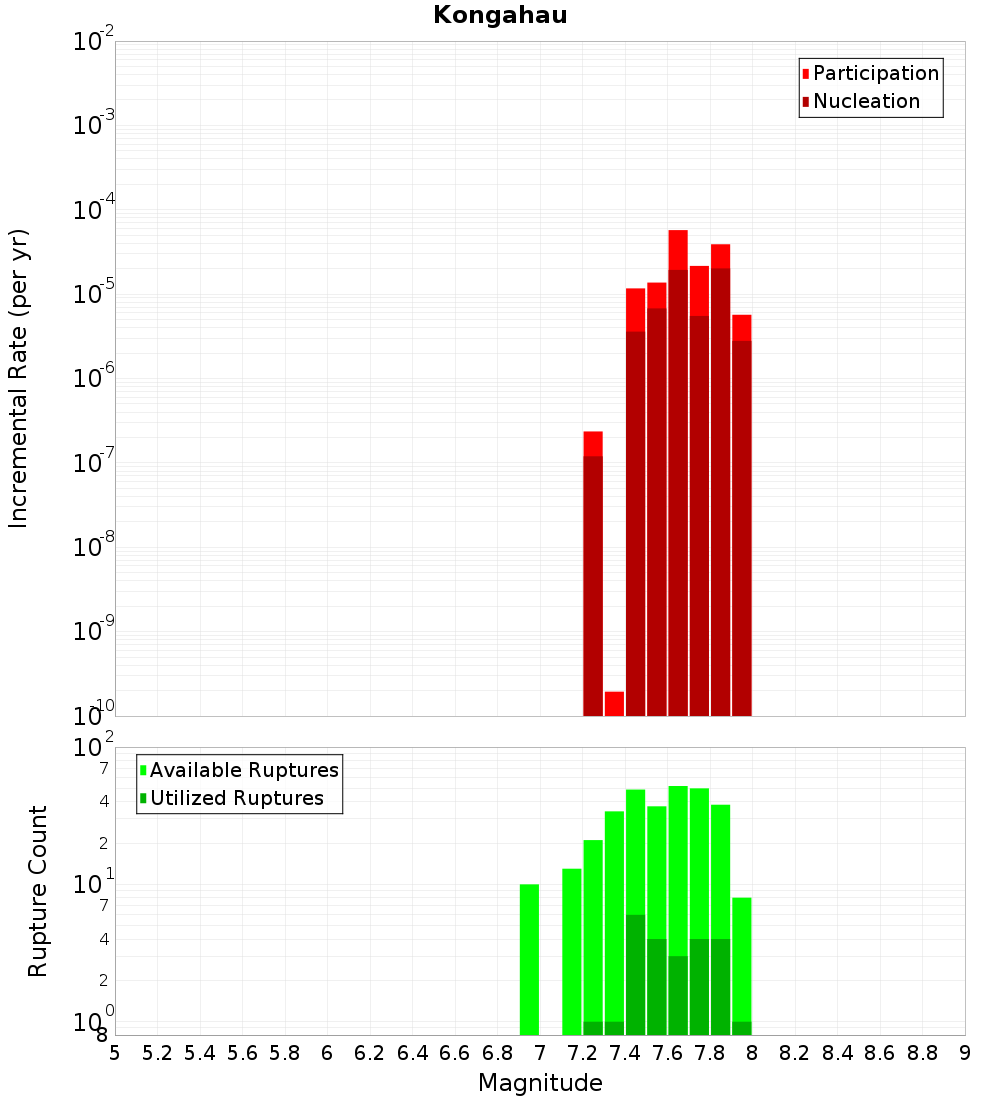

Magnitude-Frequency Distribution

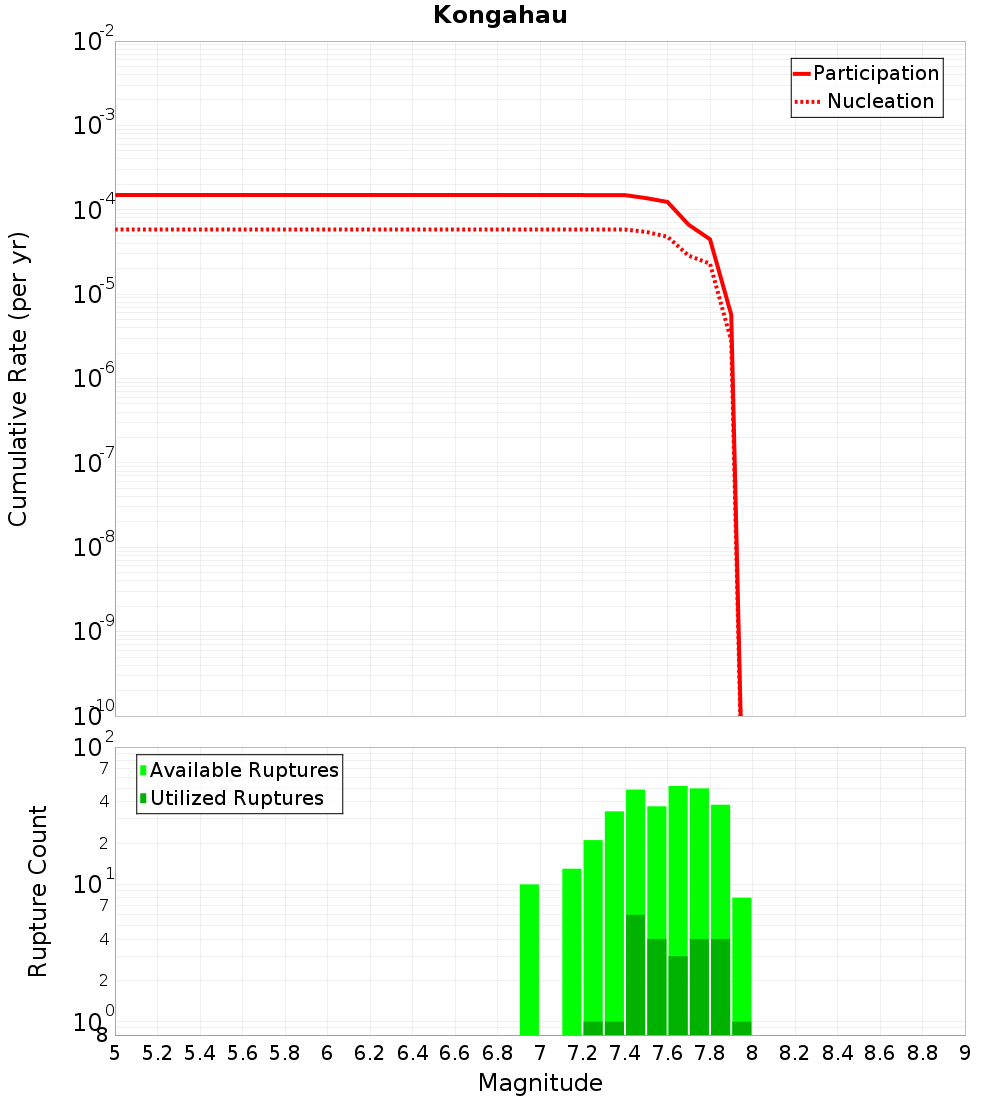

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kahurangi, 0.31 km away
Wakamarama, 0.44 km away
Cape Foulwind 4, 1.15 km away
Inangahua, 1.46 km away
Paparoa West: North, 1.54 km away
Farewell, 3.83 km away
Kohaihai, 5.29 km away
Kohaihai South, 7.34 km away
Cape Foulwind 2, 8.54 km away
White Creek, 11.75 km away
Paparoa West, 17.34 km away

Kahurangi, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzkuMDdaek45
Connected?	true
Directly Connected?	true
Co-rupture Count	115
Co-rupture Rate	4.049903E-5

Wakamarama, 0.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzkuMDdaek45
Connected?	true
Directly Connected?	true
Co-rupture Count	47
Co-rupture Rate	1.381649E-5

Cape Foulwind 4, 1.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzkuMDdaek45
Connected?	true
Directly Connected?	true
Co-rupture Count	49
Co-rupture Rate	9.776015E-6

Inangahua, 1.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzkuMDdaek45
Connected?	true
Directly Connected?	true
Co-rupture Count	58
Co-rupture Rate	7.494696E-5

Paparoa West: North, 1.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzkuMDdaek45
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Farewell, 3.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzkuMDdaek45
Connected?	true
Directly Connected?	true
Co-rupture Count	20
Co-rupture Rate	1.6340893E-5

Kohaihai, 5.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzkuMDdaek45
Connected?	true
Directly Connected?	true
Co-rupture Count	21
Co-rupture Rate	9.694764E-6

Kohaihai South, 7.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzkuMDdaek45
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	2.46486E-6

Cape Foulwind 2, 8.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzkuMDdaek45
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Creek, 11.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzkuMDdaek45
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Paparoa West, 17.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyNzkuMDdaek45
Connected?	true
Directly Connected?	false
Co-rupture Count	49
Co-rupture Rate	7.494696E-5
