White Island 2 Details

PropertyValue
Rupture Count10,917
Ruptures Above Sect Min Mag10,917
Ruptures w/ Nonzero Rates150
Magnitude Range[6.76, 8.31]
Length Range[15, 577] km
Total Rate1.831869E-4 /yr
Multi-Fault Rate1.831869E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults83

Table Of Contents

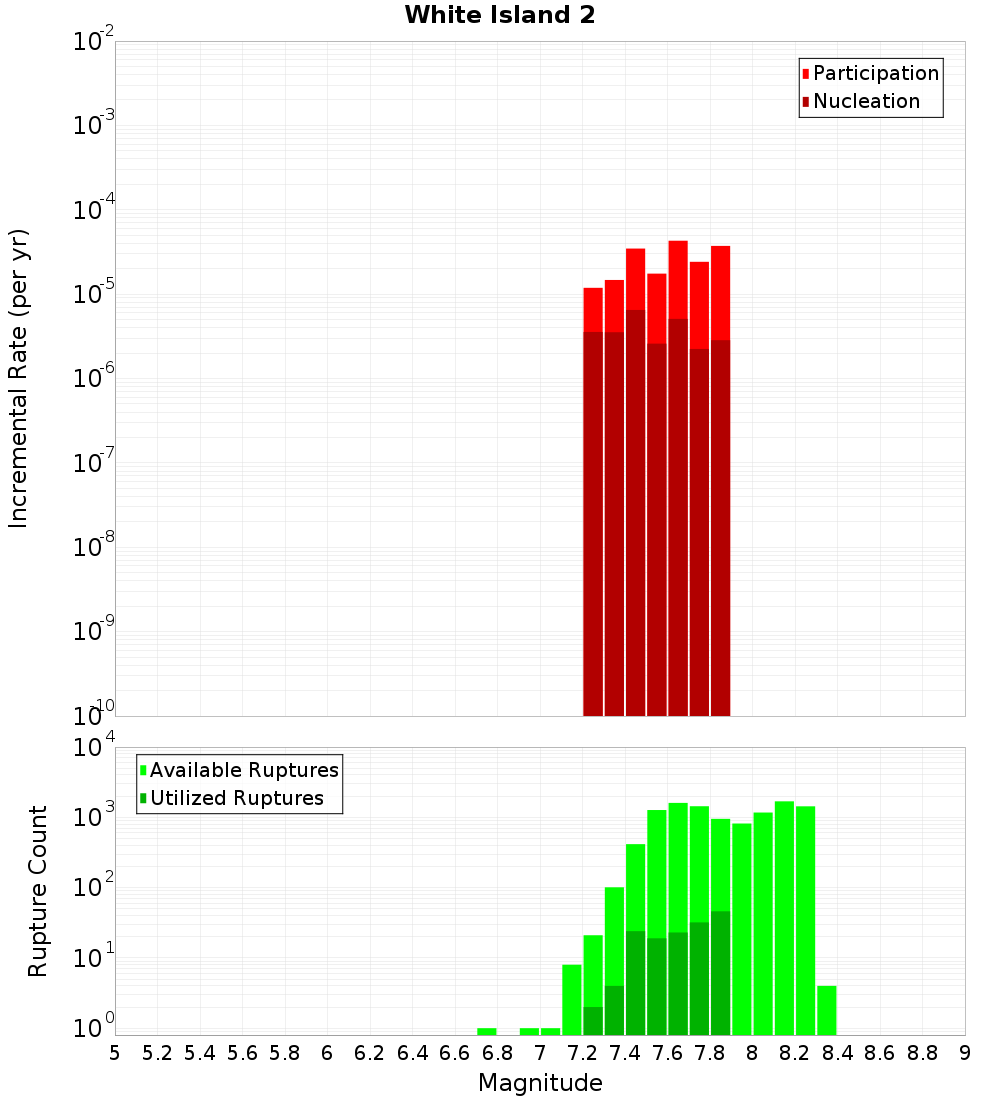

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Whakaari 4, 0.45 km awayCalypso 2, 10.04 km away
Ohiwa 1, 0.88 km awayTe Arawa 2, 10.07 km away
Waimanawa - Waikaremoana, 1.87 km awayOhae 2, 12.01 km away
White Island 1, 1.95 km awayWaiotahi: North, 12.85 km away
Rangitaiki 2, 2.66 km awayOpape 1, 14.68 km away
Te Arawa 1, 3.53 km awayOpotiki 2, 16.72 km away
Opotiki 3, 3.83 km awayTirohanga, 17.57 km away
Ohae 1, 4.4 km awayKotare - Moutuhora, 19.23 km away
Tuatoru 1, 5.84 km awayVolkner 3, 19.24 km away
Waimana: North, 6.76 km awayTe Arawa 3, 19.34 km away
Rangitaiki 1, 9.3 km awayTuatoru 2, 19.44 km away
Hariki, 9.31 km away

Whakaari 4, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?true
Directly Connected?false
Co-rupture Count937
Co-rupture Rate4.052258E-6

Ohiwa 1, 0.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?true
Directly Connected?false
Co-rupture Count512
Co-rupture Rate3.1919517E-6

Waimanawa - Waikaremoana, 1.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 1.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?true
Directly Connected?true
Co-rupture Count10,355
Co-rupture Rate9.168305E-5

Rangitaiki 2, 2.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?true
Directly Connected?true
Co-rupture Count2,173
Co-rupture Rate1.0325343E-4

Te Arawa 1, 3.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?true
Directly Connected?true
Co-rupture Count5,515
Co-rupture Rate4.9577466E-5

Opotiki 3, 3.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?true
Directly Connected?false
Co-rupture Count320
Co-rupture Rate1.3047755E-5

Ohae 1, 4.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 5.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?true
Directly Connected?true
Co-rupture Count3,131
Co-rupture Rate1.10173336E-4

Waimana: North, 6.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 9.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?true
Directly Connected?false
Co-rupture Count450
Co-rupture Rate7.776257E-5

Hariki, 9.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?true
Directly Connected?false
Co-rupture Count104
Co-rupture Rate1.2962321E-6

Calypso 2, 10.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?true
Directly Connected?false
Co-rupture Count491
Co-rupture Rate1.3342633E-5

Te Arawa 2, 10.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?true
Directly Connected?false
Co-rupture Count619
Co-rupture Rate2.0185216E-5

Ohae 2, 12.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: North, 12.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?true
Directly Connected?false
Co-rupture Count61
Co-rupture Rate1.3047755E-5

Opape 1, 14.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 2, 16.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Tirohanga, 17.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kotare - Moutuhora, 19.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 3, 19.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 3, 19.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?true
Directly Connected?false
Co-rupture Count749
Co-rupture Rate1.4902532E-5

Tuatoru 2, 19.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMyODcuMG5kSkt4
Connected?true
Directly Connected?false
Co-rupture Count4,041
Co-rupture Rate7.12654E-5
